Channel List Screen

The easiest way to set up a screen that shows the active user’s channels and give them the ability to search for a specific channel is to use one of the following components:

ChannelListFragment: A Fragment that represents a self-contained channel list screen.
ChannelListActivity: An Activity that is just a thin wrapper around ChannelListFragment.

The ChannelListFragment contains these four inner components:

ChannelListHeaderView: Displays information about the current user and the connection state.
ChannelListView: Displays a list of channel items in a paginated list.
SearchInputView: An input field to search for messages that contain specific text.
SearchResultListView: Displays a list of search result items.

Fragments and Activities representing self-contained screens are easy to use. They allow you to explore the SDK’s features in a breeze, however, they offer limited customization.

Usage

To use the channel list screen, simply start ChannelListActivity from the SDK:

context.startActivity(ChannelListActivity.createIntent(context))

context.startActivity(ChannelListActivity.createIntent(context));

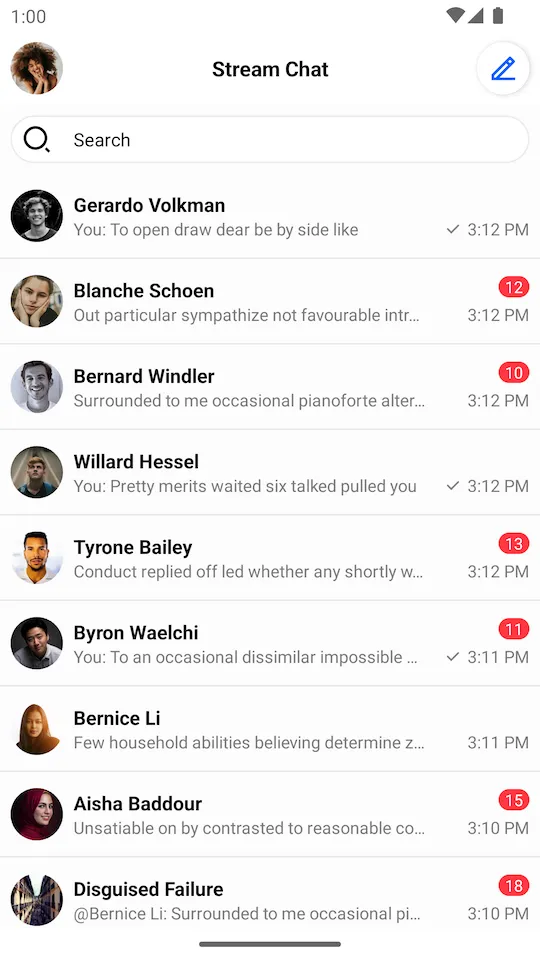

This single line of code will produce a fully working solution, as shown in the image below.

Alternatively, you can achieve the same result by adding ChannelListFragment from the SDK to your Fragment or Activity:

<?xml version="1.0" encoding="utf-8"?>
<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:id="@+id/container"
    android:layout_width="match_parent"
    android:layout_height="match_parent" />

class MyChannelListActivity : AppCompatActivity(R.layout.fragment_container) {

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        if (savedInstanceState == null) {
            supportFragmentManager.beginTransaction()
                .replace(R.id.container, ChannelListFragment.newInstance())
                .commit()
        }
    }
}

public final class MyChannelListActivity extends AppCompatActivity {

    public MyChannelListActivity() {
        super(R.layout.fragment_container);
    }

    @Override
    protected void onCreate(@Nullable Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        if (savedInstanceState == null) {
            getSupportFragmentManager().beginTransaction()
                    .replace(R.id.container, ChannelListFragment.newInstance())
                    .commit();
        }
    }
}

Next, let’s see how to handle actions on the screen.

Handling Actions

To handle actions supported by ChannelListFragment you have to implement corresponding click listeners in the parent Fragment or Activity:

class MyChannelListActivity : AppCompatActivity(R.layout.fragment_container),
    ChannelListFragment.HeaderActionButtonClickListener,
    ChannelListFragment.HeaderUserAvatarClickListener,
    ChannelListFragment.ChannelListItemClickListener,
    ChannelListFragment.SearchResultClickListener {

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        // Add ChannelListFragment to the layout
    }

    override fun onUserAvatarClick() {
        // Handle header avatar click
    }

    override fun onActionButtonClick() {
        // Handle header action button click
    }

    override fun onChannelClick(channel: Channel) {
        // Handle channel click
    }

    override fun onSearchResultClick(message: Message) {
        // Handle search result click
    }
}

public final class MyChannelListActivity extends AppCompatActivity implements
        ChannelListFragment.HeaderActionButtonClickListener,
        ChannelListFragment.HeaderUserAvatarClickListener,
        ChannelListFragment.ChannelListItemClickListener,
        ChannelListFragment.SearchResultClickListener {

    public MyChannelListActivity() {
        super(R.layout.fragment_container);
    }

    @Override
    protected void onCreate(@Nullable Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        // Add ChannelListFragment to the layout
    }

    @Override
    public void onUserAvatarClick() {
        // Handle header avatar click
    }

    @Override
    public void onActionButtonClick() {
        // Handle header action button click
    }

    @Override
    public void onChannelClick(@NonNull Channel channel) {
        // Handle channel click
    }

    @Override
    public void onSearchResultClick(@NonNull Message message) {
        // Handle search result click
    }
}

These are the main click listeners you can use with the ChannelListFragment:

HeaderActionButtonClickListener: Click listener for the right button in the header. Not implemented by default.
HeaderUserAvatarClickListener: Click listener for the left button in the header represented by the avatar of the current user. Not implemented by default.
ChannelListItemClickListener: Click listener for channel item clicks. Navigates to MessageListActivity by default.
SearchResultClickListener: Click listener for search result items. Navigates to MessageListActivity by default.

Customization

The channel list screen component offers limited customization. The ChannelListFragment exposes a builder with the following methods:

setFragment: Sets a custom channel list Fragment. The Fragment must be a subclass of ChannelListFragment.
customTheme: Custom theme for the screen.
showHeader: Whether the header is shown or hidden.
showSearch: Whether the search input is shown or hidden.
headerTitle: Header title. “Stream Chat” by default.

Other than that, you can use inheritance for further customization as shown in the example below:

class CustomChannelListFragment : ChannelListFragment() {

    override fun setupChannelListHeader(channelListHeaderView: ChannelListHeaderView) {
        super.setupChannelListHeader(channelListHeaderView)
        // Customize channel list header view

        // For example, set a custom listener for the avatar
        channelListHeaderView.setOnUserAvatarClickListener {
            // Handle avatar click
        }
    }

    override fun setupChannelList(channelListView: ChannelListView) {
        super.setupChannelList(channelListView)
        // Customize channel list view
    }

    override fun setupSearchInput(searchInputView: SearchInputView) {
        super.setupSearchInput(searchInputView)
        // Customize search input field
    }

    override fun setupSearchResultList(searchResultListView: SearchResultListView) {
        super.setupSearchResultList(searchResultListView)
        // Customize search result list
    }

    override fun getFilter(): FilterObject? {
        // Provide custom filter
        return null
    }

    override fun getSort(): QuerySorter<Channel> {
        // Provide custom sort
        return super.getSort()
    }
}

class CustomChannelListActivity : ChannelListActivity() {

    override fun createChannelListFragment(): ChannelListFragment {
        return ChannelListFragment.newInstance {
            setFragment(CustomChannelListFragment())
            customTheme(R.style.StreamUiTheme)
            showSearch(true)
            showHeader(true)
            headerTitle("Title")
        }
    }
}

public final class CustomChannelListFragment extends ChannelListFragment {

    @Override
    protected void setupChannelListHeader(@NonNull ChannelListHeaderView channelListHeaderView) {
        super.setupChannelListHeader(channelListHeaderView);
        // Customize channel list header view

        // For example, set a custom listener for the avatar
        channelListHeaderView.setOnUserAvatarClickListener(() -> {
            // Handle avatar click
        });
    }

    @Override
    protected void setupChannelList(@NonNull ChannelListView channelListView) {
        super.setupChannelList(channelListView);
        // Customize channel list view
    }

    @Override
    protected void setupSearchInput(@NonNull SearchInputView searchInputView) {
        super.setupSearchInput(searchInputView);
        // Customize search input field
    }

    @Override
    protected void setupSearchResultList(@NonNull SearchResultListView searchResultListView) {
        super.setupSearchResultList(searchResultListView);
        // Customize search result list
    }

    @Nullable
    @Override
    protected FilterObject getFilter() {
        // Provide custom filter
        return super.getFilter();
    }

    @NonNull
    @Override
    protected QuerySorter<Channel> getSort() {
        // Provide custom sort
        return super.getSort();
    }
}

public final class CustomChannelListActivity extends ChannelListActivity {

    @NonNull
    @Override
    protected ChannelListFragment createChannelListFragment() {
        return ChannelListFragment.newInstance(builder -> {
            builder.setFragment(new CustomChannelListFragment());
            builder.customTheme(R.style.StreamUiTheme);
            builder.showSearch(true);
            builder.showHeader(true);
            builder.headerTitle("Title");
            return Unit.INSTANCE;
        });
    }
}

Then you need to add CustomChannelListActivity to your AndroidManifest.xml, create an Intent for it using the ChannelListActivity.createIntent() method, and finally start the Activity:

context.startActivity(
    ChannelListActivity.createIntent(
        context = context,
        activityClass = CustomChannelListActivity::class.java
    )
)

context.startActivity(ChannelListActivity.createIntent(context, CustomChannelListActivity.class));

Fragments and Activities representing self-contained screens can be styled using the options described in the theming guide.
