Custom Attachments Picker

The AttachmentsPicker component allows users to pick media, files or capture media attachments. You can find more info about it here.

By default, it looks like below:

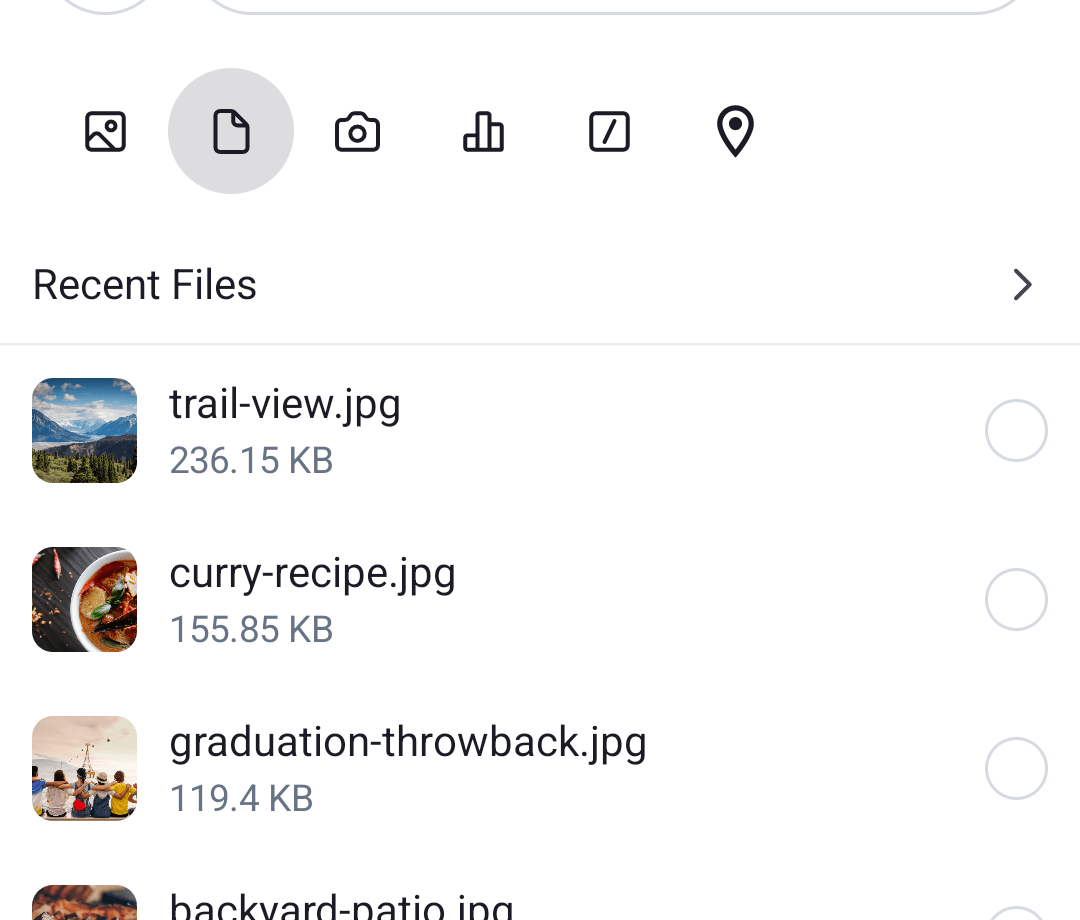

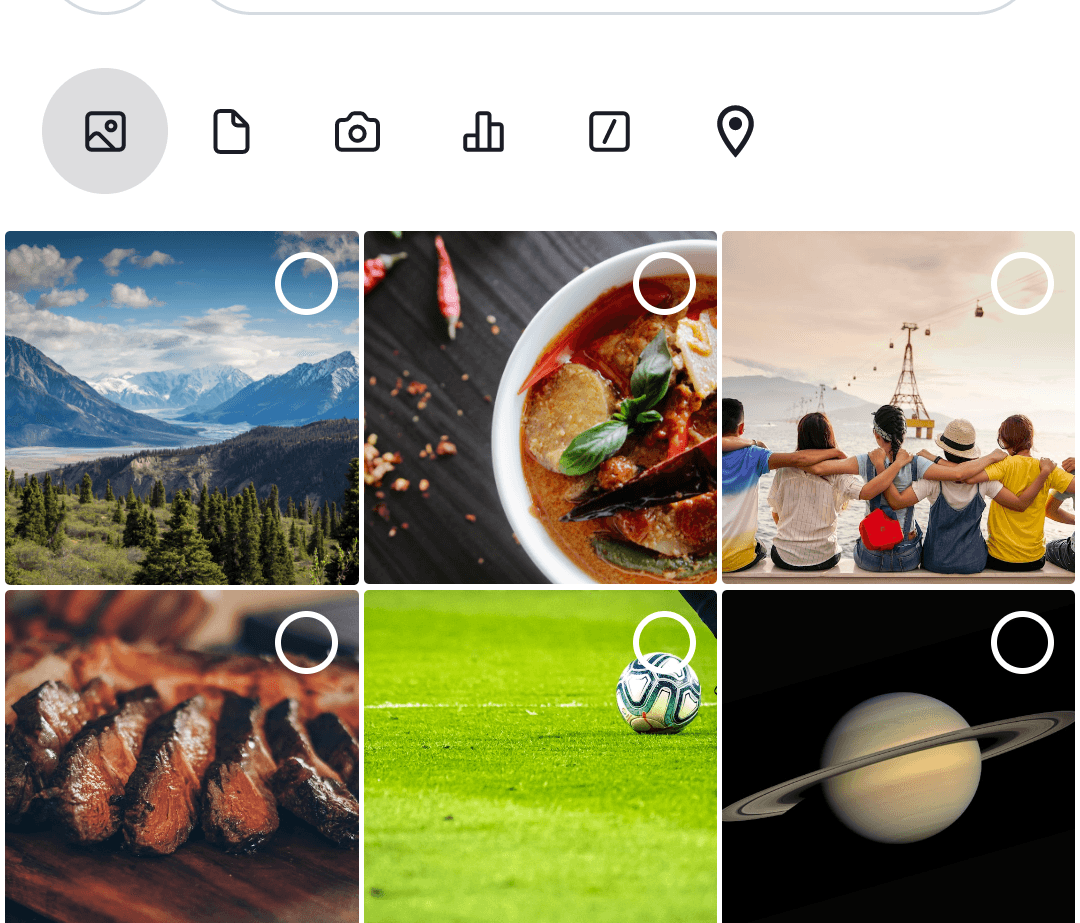

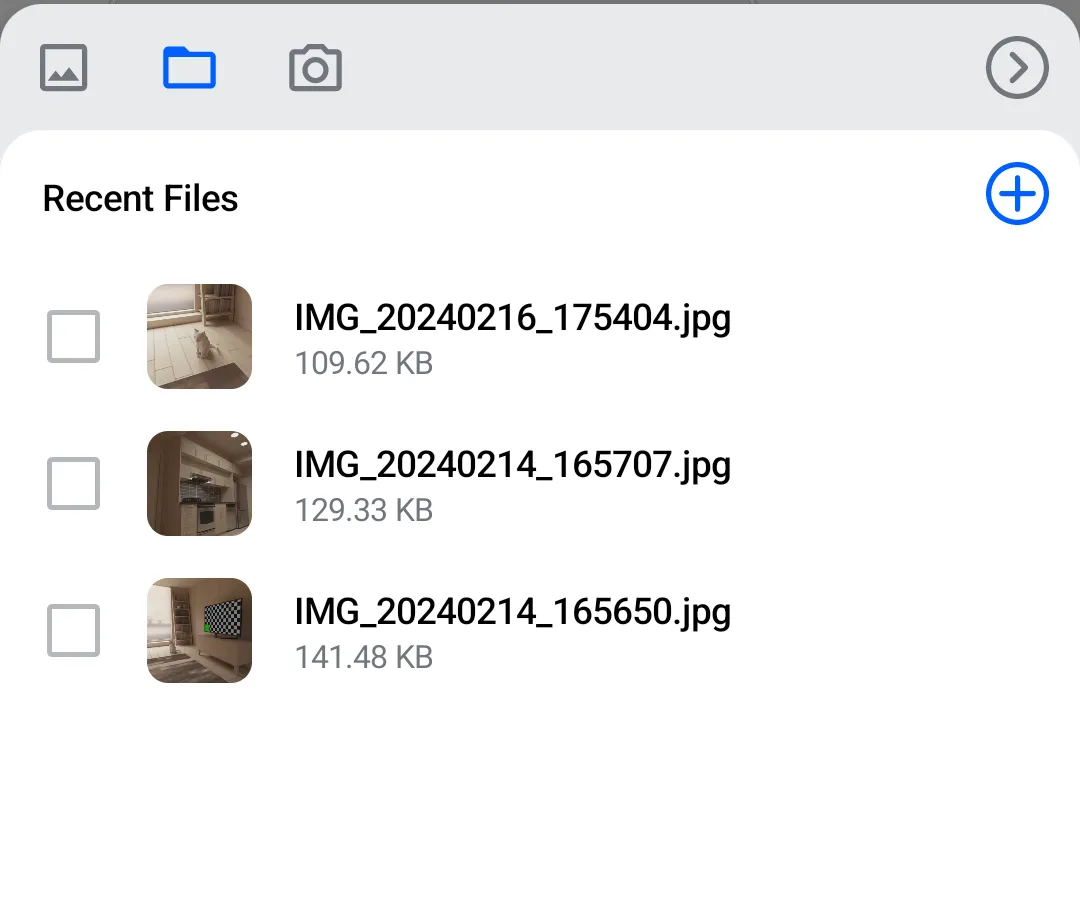

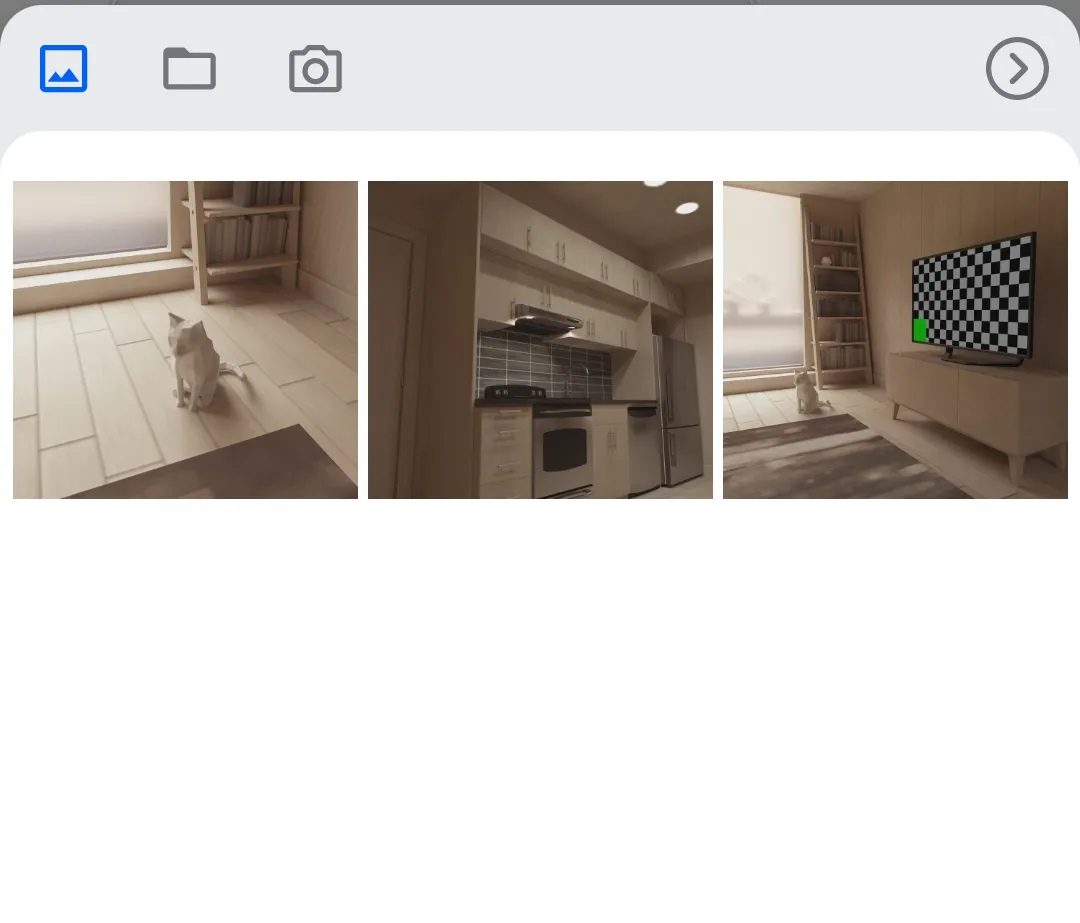

Default - Images tab selected	Default - Files tab selected

When we're done, our custom attachments picker will look this this:

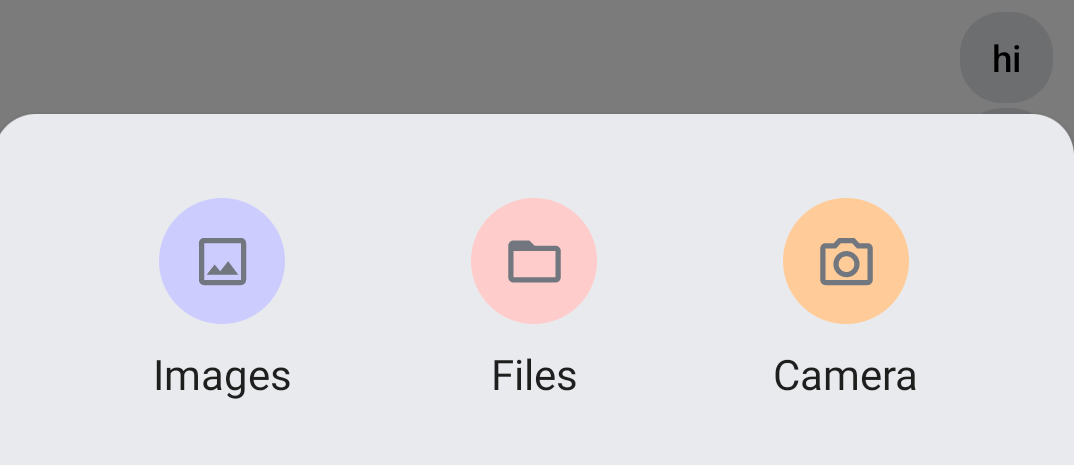

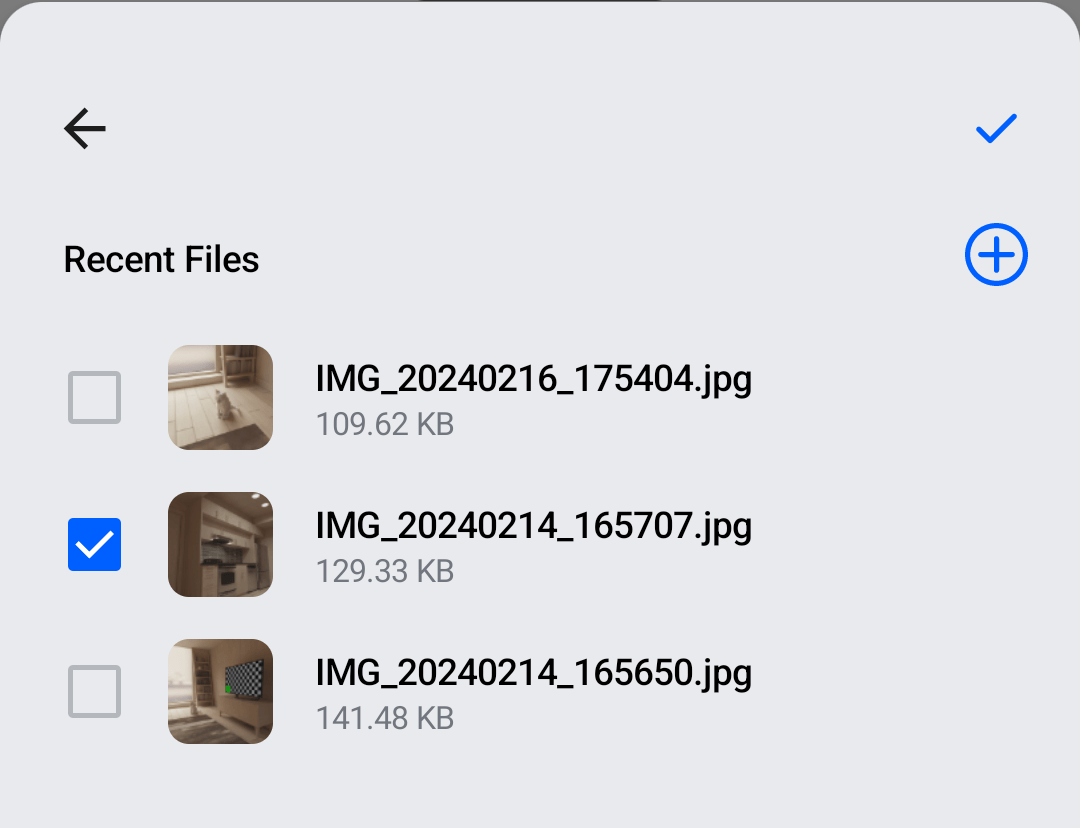

Custom - Attachment type menu	Custom - File picker with Back and Submit

Although AttachmentsPicker can be customized extensively, as you can read here, for this example we'll create our own component. We'll mostly keep the signature of the standard AttachmentsPicker and rely on the default tabFactories parameter value to show pickers for several attachments types (Images, Files, Camera).

Main Composable

Let's define the main composable for our custom attachment picker. Notice that it expects an AttachmentsPickerViewModel, which is part of our SDK. Also, notice the usage of ChatTheme.attachmentsPickerTabFactories as a default value for the tabFactories parameter. It provides the standard selector content for Images, Files and Camera attachment type.

@Composable
private fun CustomAttachmentsPicker(
    attachmentsPickerViewModel: AttachmentsPickerViewModel,
    onAttachmentsSelected: (List<Attachment>) -> Unit,
    onDismiss: () -> Unit,
    tabFactories: List<AttachmentsPickerTabFactory> = ChatTheme.attachmentsPickerTabFactories,
) {
    var shouldShowMenu by remember { mutableStateOf(true) }
    var selectedOptionIndex by remember { mutableStateOf(-1) }

    Box( // Gray overlay
        modifier = Modifier
            .fillMaxSize()
            .background(ChatTheme.colors.overlay)
            .clickable(
                onClick = onDismiss,
                indication = null,
                interactionSource = remember { MutableInteractionSource() },
            ),
    ) {
        Card(
            modifier = Modifier
                .heightIn(max = 350.dp)
                .align(Alignment.BottomCenter)
                .clickable(
                    indication = null,
                    onClick = {},
                    interactionSource = remember { MutableInteractionSource() },
                ),
            elevation = 4.dp,
            shape = ChatTheme.shapes.bottomSheet,
            backgroundColor = ChatTheme.colors.inputBackground,
        ) {
            Box(modifier = Modifier.padding(vertical = 24.dp)) {
                if (shouldShowMenu) {
                    // Show the menu with Images, Files, Camera options
                    // See implementation in dedicated section below
                    AttachmentsTypeMenu(
                        tabFactories = tabFactories,
                        onClick = {
                            selectedOptionIndex = it
                            shouldShowMenu = false
                        },
                    )
                } else {
                    // Show the selected tabFactory content, with a back and submit buttons toolbar
                    Column(
                        modifier = Modifier.padding(horizontal = 8.dp),
                    ) {
                        // See implementation in dedicated section below
                        AttachmentsPickerToolbar(
                            onBackClick = {
                                shouldShowMenu = true
                                selectedOptionIndex = -1
                            },
                            isSubmitEnabled = attachmentsPickerViewModel.hasPickedAttachments,
                            onSubmitClick = {
                                onAttachmentsSelected(attachmentsPickerViewModel.getSelectedAttachments())
                            },
                        )

                        tabFactories.getOrNull(selectedOptionIndex)
                            ?.PickerTabContent(
                                attachments = attachmentsPickerViewModel.attachments,
                                onAttachmentItemSelected = attachmentsPickerViewModel::changeSelectedAttachments,
                                onAttachmentsChanged = { attachmentsPickerViewModel.attachments = it },
                                onAttachmentsSubmitted = {
                                    onAttachmentsSelected(attachmentsPickerViewModel.getAttachmentsFromMetaData(it))
                                },
                            )
                    }
                }
            }
        }
    }
}

Attachment Type Menu

The attachment type menu (Images, Files, Camera) is drawn by a simple composable that shows a menu item for each tabFactory.

@Composable
private fun AttachmentsTypeMenu(
    tabFactories: List<AttachmentsPickerTabFactory>,
    onClick: (Int) -> Unit,
) {
    Row(
        modifier = Modifier.fillMaxWidth(),
        horizontalArrangement = Arrangement.SpaceEvenly,
        verticalAlignment = Alignment.CenterVertically,
    ) {
        tabFactories.forEachIndexed { index, tabFactory ->
            AttachmentsTypeMenuItem(
                tabFactory = tabFactory,
                isEnabled = tabFactory.isPickerTabEnabled(),
                index = index,
                onClick = onClick,
            )
        }
    }
}

Each menu item is represented by a circle with a label underneath. So we need a Column, a circle-shaped Box with a certain background color, and a Text.

@Composable
private fun AttachmentsTypeMenuItem(
    tabFactory: AttachmentsPickerTabFactory,
    isEnabled: Boolean,
    index: Int,
    onClick: (Int) -> Unit,
) {
    Column(
        modifier = Modifier.clickable(enabled = isEnabled) { onClick(index) },
        horizontalAlignment = Alignment.CenterHorizontally,
    ) {
        val backgroundColor: Color
        val label: String

        when (tabFactory.attachmentsPickerMode) {
            is Images -> {
                backgroundColor = Color(0xFFCCCCFF)
                label = "Images"
            }
            is Files -> {
                backgroundColor = Color(0xFFFFCCCC)
                label = "Files"
            }
            is MediaCapture -> {
                backgroundColor = Color(0xFFFFCC99)
                label = "Camera"
            }
            else -> {
                backgroundColor = Color.LightGray
                label = "Other"
            }
        }

        Box(
            modifier = Modifier
                .padding(8.dp)
                .size(48.dp)
                .background(backgroundColor, shape = CircleShape),
            contentAlignment = Alignment.Center,
        ) {
            tabFactory.PickerTabIcon(isEnabled, isSelected = false)
        }
        Text(text = label)
    }
}

Picker Toolbar

Above each picker, we draw a toolbar with Back and Submit buttons. Back navigates to the menu and Submit attaches the selected file to the message contents.

@Composable
private fun AttachmentsPickerToolbar(
    onBackClick: () -> Unit,
    isSubmitEnabled: Boolean,
    onSubmitClick: () -> Unit,
) {
    Row(
        modifier = Modifier.fillMaxWidth(),
        horizontalArrangement = Arrangement.SpaceBetween
    ) {
        IconButton(onClick = onBackClick) {
            Icon(
                painter = painterResource(id = R.drawable.ic_back),
                contentDescription = "Back",
                modifier = Modifier.size(24.dp),
            )
        }
        IconButton(
            enabled = isSubmitEnabled,
            onClick = onSubmitClick
        ) {
            Icon(
                painter = painterResource(id = R.drawable.ic_check),
                contentDescription = "Submit Attachments",
                modifier = Modifier.size(24.dp),
                tint = if (isSubmitEnabled) {
                    ChatTheme.colors.primaryAccent
                } else {
                    ChatTheme.colors.textLowEmphasis
                },
            )
        }
    }
}

Usage

We'll place our custom attachments picker in a screen that contains other components, like a header, a messages list and a message composer. We'll also use the BackHandler standard component.

In order to show the attachments picker, we'll use an isShowingAttachments flag. We'll wrap all components in a Box, so that the attachments picker appears on top of other content.

fun CustomScreen(cid: String, onBackClick: () -> Unit = {}) {
    val viewModelFactory = MessagesViewModelFactory(LocalContext.current, channelId = cid)
    val listViewModel = viewModel(modelClass = MessageListViewModel::class.java, factory = viewModelFactory)
    val composerViewModel = viewModel(modelClass = MessageComposerViewModel::class.java, factory = viewModelFactory)
    val attachmentsPickerViewModel = viewModel(modelClass = AttachmentsPickerViewModel::class.java, factory = viewModelFactory)

    val isShowingAttachments = attachmentsPickerViewModel.isShowingAttachments

    val backAction = remember(composerViewModel, attachmentsPickerViewModel) {
        {
            // First close the attachments picker, if visible, then call onBackClick
            when {
                attachmentsPickerViewModel.isShowingAttachments -> {
                    attachmentsPickerViewModel.changeAttachmentState(false)
                }
                else -> onBackClick()
            }
        }
    }
    BackHandler(enabled = true, onBack = backAction) // Standard SDK component

    Box(modifier = Modifier.fillMaxSize(), contentAlignment = Alignment.BottomCenter) {
        // Screen content
        Scaffold(
            topBar = {
                // MessageListHeader
            },
            bottomBar = {
                // MessageComposer
            },
            content = {
                // MessageList
            }
        )

        // Attachments picker
        if (isShowingAttachments) {
            CustomAttachmentsPicker(
                attachmentsPickerViewModel = attachmentsPickerViewModel,
                onAttachmentsSelected = { attachments ->
                    attachmentsPickerViewModel.changeAttachmentState(false)
                    composerViewModel.addSelectedAttachments(attachments)
                },
                onDismiss = {
                    attachmentsPickerViewModel.changeAttachmentState(false)
                    attachmentsPickerViewModel.dismissAttachments()
                }
            )
        }
    }
}

More Resources

If you want to learn how to use our Compose UI Components, see this page.

Also, check the other pages in this Cookbook to find out how to create custom versions of our components.
