Custom Attachments

Introduction

By default Stream Chat supports several built-in attachment types like image, video, file and Giphy. Apart from that, you can also add your own types of attachments such as location, contact, audio, sticker, etc.

In this guide, we will demonstrate how to build a date sharing feature. Chat users will be able to pick a date from the calendar, preview their selection in the message composer and see the sent attachment within a message in the message list.

This involves doing the following steps:

  1. Implementing a custom message composer that is capable of sending a message with date attachments.
  2. Adding support for date attachments by creating a custom AttachmentFactory.

In this guide, we’ll show only the main points concerning custom attachments and their factories. Smaller parts will be omitted for the sake of being concise.

You can find the full code from this guide on GitHub. To check the final result, clone the repository, select the stream-chat-android-ui-guides module on your Android Studio like the image below, and run the module.

UI Guides Module on Android Studio

Attachment Factories

The AttachmentFactory class allows you to build your own attachments to display in the Message List and in the MessageComposer before sending the attachment. It exposes the following properties and behavior:

public open class AttachmentFactory constructor(
    public val canHandle: (attachments: List<Attachment>) -> Boolean,
    public val previewContent: (
        @Composable (
            modifier: Modifier,
            attachments: List<Attachment>,
            onAttachmentRemoved: (Attachment) -> Unit,
        ) -> Unit
    )? = null,
    public val content: @Composable (
        modifier: Modifier,
        attachmentState: AttachmentState,
    ) -> Unit,
    public val textFormatter: (attachments: Attachment) -> String = {
        it.title ?: it.name ?: it.fallback ?: ""
    },
)
  • canHandle: Lambda function that accepts a List of attachments in a message and returns true if the given factory can consume the attachments and render the UI.
  • previewContent: Lambda function that accepts a Modifier, List of Attachments and an onAttachmentRemoved handler. It’s used to render selected attachments in the MessageComposer or the MessageInput before sending the message.
  • content: Defines the composable function that accepts a Modifier and an AttachmentState and shows the given attachment component in the message list.
  • textFormatter: Lambda function that accepts an attachment and returns a string representation for it.

There are a few examples of default attachment factory implementations, in the StreamAttachmentFactories.kt file:

public fun defaultFactories(
    linkDescriptionMaxLines: Int = DEFAULT_LINK_DESCRIPTION_MAX_LINES,
    giphyInfoType: GiphyInfoType = GiphyInfoType.ORIGINAL,
    giphySizingMode: GiphySizingMode = GiphySizingMode.ADAPTIVE,
    contentScale: ContentScale = ContentScale.Crop,
): List<AttachmentFactory> = listOf(
    UploadAttachmentFactory(),
    LinkAttachmentFactory(linkDescriptionMaxLines),
    GiphyAttachmentFactory(
        giphyInfoType = giphyInfoType,
        giphySizingMode = giphySizingMode,
        contentScale = contentScale,
    ),
    MediaAttachmentFactory(),
    FileAttachmentFactory(),
    UnsupportedAttachmentFactory(),
)

These factories perform specific checks that you can explore by opening each specific factory.

Each of these factories supplies a predicate, as well as two content composable lambda functions that provide the appropriate content in the message input or the message list.

To customize the factories your code uses, you can always override the attachmentFactories parameter of the ChatTheme wrapper:

override fun onCreate(savedInstanceState: Bundle?) {
    super.onCreate(savedInstanceState)
    val defaultFactories = StreamAttachmentFactories.defaultFactories()

    setContent {
        // override the default factories by adding your own
        ChatTheme(attachmentFactories = myAttachmentFactories + defaultFactories) {
            // Chat components
        }
    }
}

That way, you can build any type of factory you want, to show things like the user location within a Google Maps component, audio files, videos and more.

Because we pick the first factory that can handle the attachments, the order of the factories matters when rendering the UI.

Make sure to always put the higher priority Attachment factories first.

Sending Date Attachments

To begin with, you’ll need a custom message composer with a button to pick dates. Here’s the code for this component:

@Composable
fun CustomMessageComposer(
    viewModel: MessageComposerViewModel,
    onDateSelected: (Long) -> Unit,
) {
    val activity = LocalContext.current as AppCompatActivity

    MessageComposer(
        modifier = Modifier
            .fillMaxWidth()
            .wrapContentHeight(),
        viewModel = viewModel,
        integrations = { // here
            IconButton(
                modifier = Modifier
                    .size(48.dp)
                    .padding(12.dp),
                content = {
                    Icon(
                        painter = painterResource(id = R.drawable.ic_calendar),
                        contentDescription = null,
                        tint = ChatTheme.colors.textLowEmphasis
                    )
                },
                onClick = {
                    MaterialDatePicker.Builder
                        .datePicker()
                        .build()
                        .apply {
                            show(activity.supportFragmentManager, null)
                            addOnPositiveButtonClickListener {
                                onDateSelected(it)
                            }
                        }
                }
            )
        }
    )
}

For simplicity, the integration section to the left of the message input has only one button that is used to show the date picker dialog.

What’s happening here is that within the integrations, you define a custom button to open the picker. Within its onClick, you build a new MaterialDatePicker and show it using activity.supportFragmentManager.

If the user selects a date and selects the positive button, you proceed to call onDateSelected() and update the state. But more on that later.

Next, you’ll need to create a custom messages screen that makes use of the composer that you’ve created above:

@Composable
fun CustomMessagesScreen(
    channelId: String,
    onBackPressed: () -> Unit = {}
) {
    val factory = MessagesViewModelFactory(
        context = LocalContext.current,
        channelId = channelId,
    )

    val composerViewModel = viewModel(MessageComposerViewModel::class.java, factory = factory)

    // Other declarations

    Box(modifier = Modifier.fillMaxSize()) {
        Scaffold(
            modifier = Modifier.fillMaxSize(),
            topBar = {
                // Message list header
            },
            bottomBar = {
                // 1
                CustomMessageComposer(
                    viewModel = composerViewModel,
                    onDateSelected = { date ->
                        // 2
                        val payload = SimpleDateFormat("MMMM dd, yyyy").format(Date(date))
                        val attachment = Attachment(
                            type = "date",
                            extraData = mutableMapOf("payload" to payload)
                        )

                        // 3
                        composerViewModel.addSelectedAttachments(listOf(attachment))
                    }
                )
            }
        ) {
            // Message list setup - available in the full code sample
        }
    }
}

The full source code of the CustomMessagesScreen component is available here.

In the snippet above, you:

  1. Make use of the newly created custom message composer in our messages screen, setting it inside the bottomBar.
  2. Create a custom attachment of type date carrying the selected date as a payload.
  3. Submit the attachment with the selected date to the message composer.

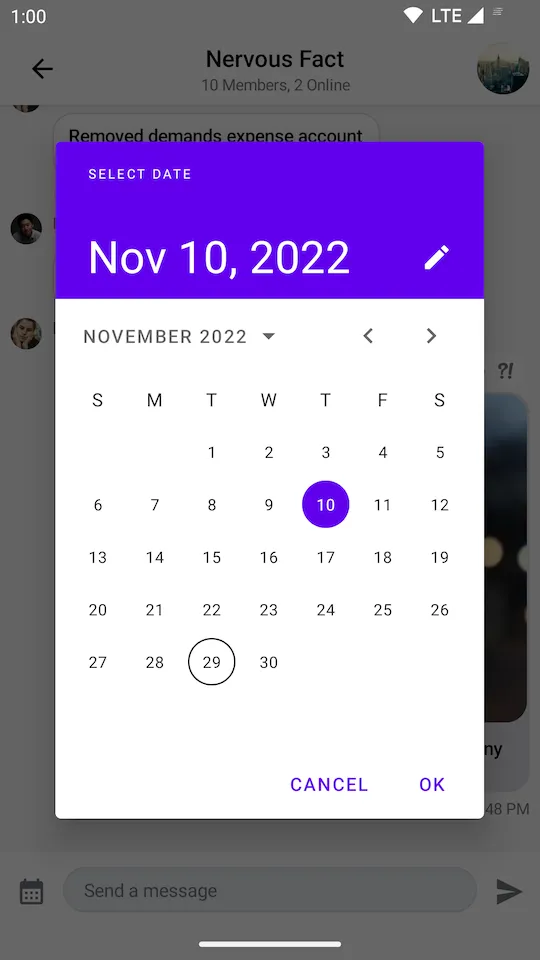

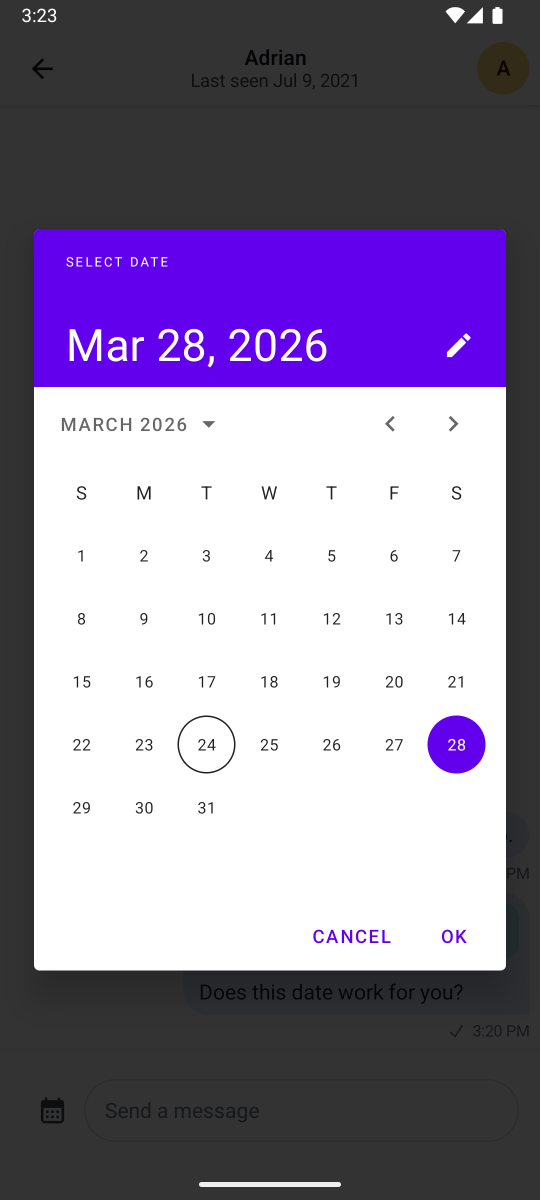

Now you can send a custom attachment of type date to the chat. The resulting UI will look like this:

Sending Custom Attachment

Now that you’ve set up the DatePicker and the custom composer, you need to build a custom attachment factory to render the item both in the input and the list.

Rendering Date Attachments

Let’s see how to create an AttachmentFactory that is capable of handling date attachments:

val dateAttachmentFactory: AttachmentFactory = AttachmentFactory(
    canHandle = { attachments -> attachments.any { it.type == "date" } },
    content = @Composable { modifier, attachmentState ->
      // Composable that represents the UI of "date" attachments in the message list
    },
    previewContent = { modifier, attachments, onAttachmentRemoved ->
      // Composable that represents the UI of "date" attachments in the message composer
    },
    textFormatter = { attachment ->
      // String representation of the attachment in the channel list
    }
)

There are four important parts of each attachment factory:

  • canHandle: Describes the condition that tells our components if the factory can handle a given set of attachments.
  • content: Represents the attachment UI within the MessageList.
  • previewContent: Represents the attachment UI within the MessageComposer.
  • textFormatter: Shows the attachment information formatted for our ChannelItems.

Let’s start with creating a component for the message input:

@Composable
fun DateAttachmentPreviewContent(
    attachments: List<Attachment>,
    onAttachmentRemoved: (Attachment) -> Unit,
    modifier: Modifier = Modifier,
) {
    val attachment = attachments.first { it.type == "date" }
    val formattedDate = attachment.extraData["payload"].toString()

    Box(
        modifier = modifier
            .wrapContentHeight()
            .clip(RoundedCornerShape(16.dp))
            .background(color = ChatTheme.colors.barsBackground)
    ) {
        Text(
            modifier = Modifier
                .align(Alignment.CenterStart)
                .padding(16.dp)
                .fillMaxWidth(),
            text = formattedDate,
            style = ChatTheme.typography.body,
            maxLines = 1,
            color = ChatTheme.colors.textHighEmphasis
        )

        CancelIcon(
            modifier = Modifier
                .align(Alignment.TopEnd)
                .padding(4.dp),
            onClick = { onAttachmentRemoved(attachment) }
        )
    }
}

Then, create a component that will be rendered in the message list:

@Composable
fun DateAttachmentContent(
    attachmentState: AttachmentState,
    modifier: Modifier = Modifier,
) {
    val attachment = attachmentState.message.attachments.first { it.type == "date" }
    val formattedDate = attachment.extraData["payload"].toString()

    Column(
        modifier = modifier
            .fillMaxWidth()
            .padding(4.dp)
            .clip(ChatTheme.shapes.attachment)
            .background(ChatTheme.colors.infoAccent)
            .padding(8.dp)
    ) {
        Row(
            horizontalArrangement = Arrangement.spacedBy(8.dp),
            verticalAlignment = Alignment.CenterVertically
        ) {
            Icon(
                modifier = Modifier.size(16.dp),
                painter = painterResource(id = R.drawable.ic_calendar),
                contentDescription = null,
                tint = ChatTheme.colors.textHighEmphasis,
            )

            Text(
                text = formattedDate,
                style = ChatTheme.typography.body,
                maxLines = 1,
                color = ChatTheme.colors.textHighEmphasis
            )
        }
    }
}

What’s important here is how you’re able to fetch the custom attachment data, using attachment.extraData["payload"]. You can format the data in any way you want here, which makes our attachments very powerful.

Finally, you need to provide a string representation of the attachment for message preview:

textFormatter = { attachment ->
    attachment.extraData["payload"].toString()
}

Now that you’ve created the content functions, your attachment factory should look like so:

val dateAttachmentFactory: AttachmentFactory = AttachmentFactory(
    canHandle = { attachments -> attachments.any { it.type == "date" } },
    content = @Composable { modifier, attachmentState ->
        DateAttachmentContent(
            modifier = modifier,
            attachmentState = attachmentState
        )
    },
    previewContent = { modifier, attachments, onAttachmentRemoved ->
        DateAttachmentPreviewContent(
            modifier = modifier,
            attachments = attachments,
            onAttachmentRemoved = onAttachmentRemoved
        )
    },
    textFormatter = { attachment ->
        attachment.extraData["payload"].toString()
    },
)

To complete the date sharing feature you just need to provide dateAttachmentFactory along with the default attachment factories via ChatTheme:

class MessagesActivity : AppCompatActivity() {

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        val channelId = requireNotNull(intent.getStringExtra(KEY_CHANNEL_ID))

        val customFactories = listOf(dateAttachmentFactory)
        val defaultFactories = StreamAttachmentFactories.defaultFactories()

        setContent {
            // Pass in custom factories or combine them with the default ones
            ChatTheme(attachmentFactories = customFactories + defaultFactories) {
                CustomMessagesScreen(
                    channelId = channelId,
                    onBackPressed = { finish() }
                )
            }
        }
    }

    companion object {
        private const val KEY_CHANNEL_ID = "channelId"

        fun getIntent(context: Context, channelId: String): Intent {
            return Intent(context, MessagesActivity::class.java).apply {
                putExtra(KEY_CHANNEL_ID, channelId)
            }
        }
    }
}

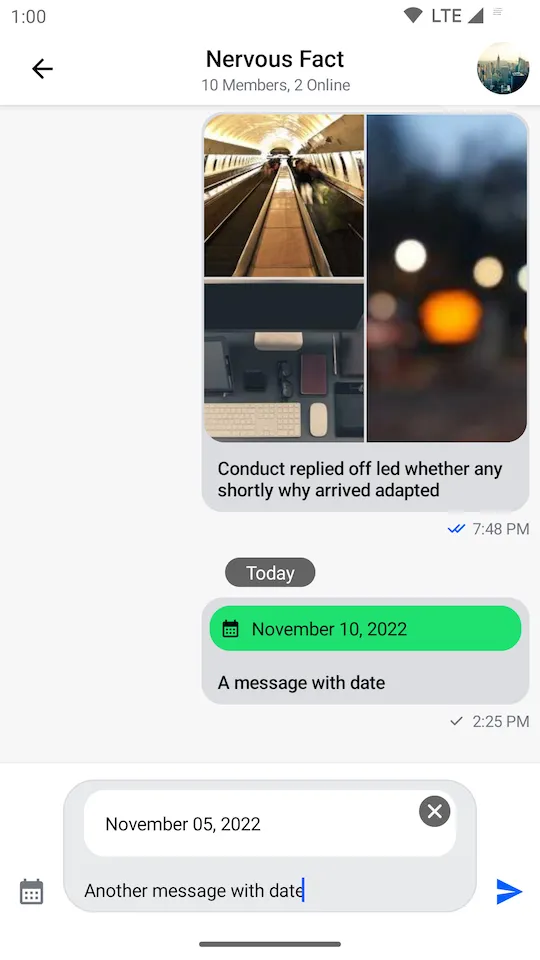

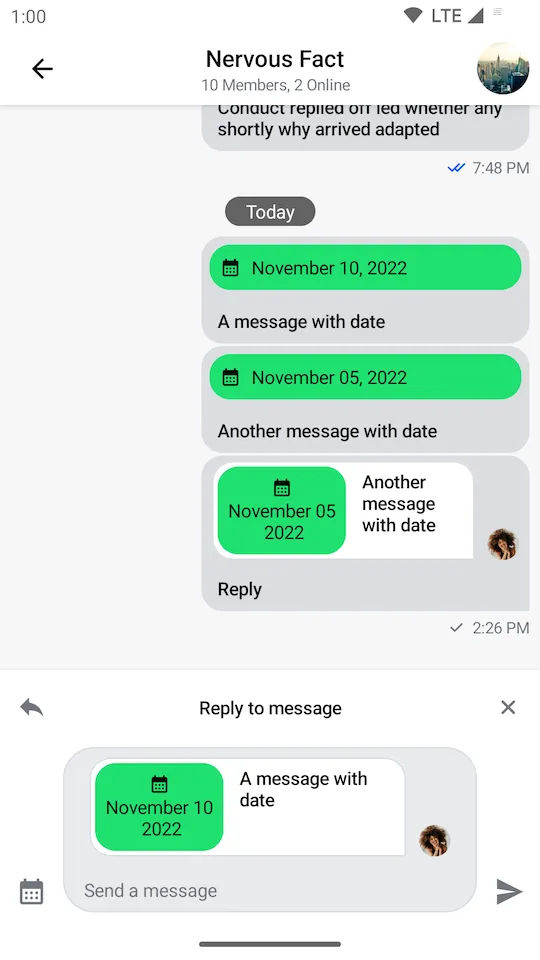

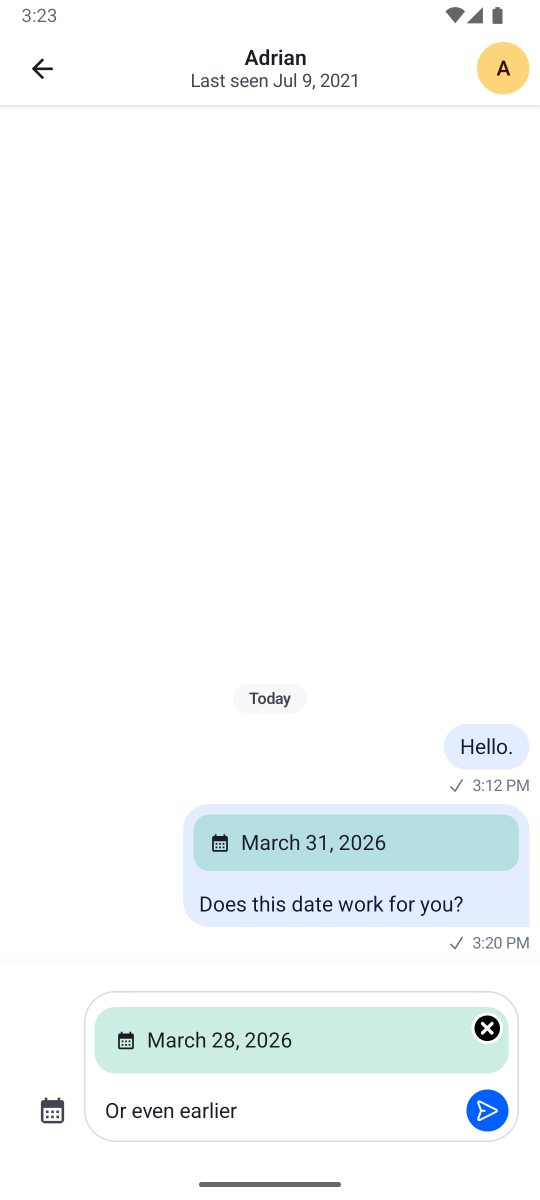

Date attachments should be now correctly rendered in the message composer and in the message list like on the screenshot below:

Rendering Custom Attachment

With just a few lines of code, you’re able to render any custom UI within the MessageComposer and MessageList components of our SDK. This gives the ability to build powerful features without having to change our default components, you just need a custom AttachmentFactory.

Quoted Messages

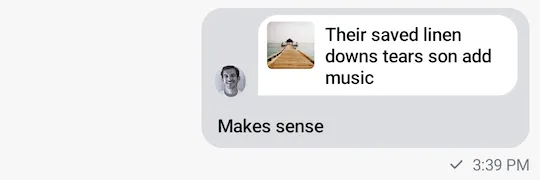

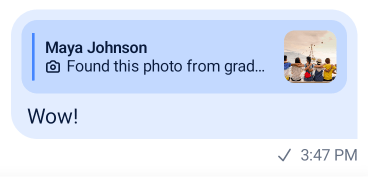

Stream SDK supports quoting or replying to messages, even if they contain attachments. These quoted messages are shown inside the message bubble above the text you wrote when quoting, which is a common pattern in various chat services.

Compose Quoted Attachment Sample

Since the quoted content is nested inside a regular message, it has less space available and requires a different layout. For this reason, the Compose SDK provides separate attachment factories just for the quoted content. This allows you to provide a different UI for attachments that are displayed as a part of the quoted content.

Attachment factories used for displaying quoted content extend the same class as regular attachment factories. As such, they are interchangeable. If you don’t provide a quotedAttachmentFactory that can render your custom type of attachments, we will use your custom attachmentFactory by default in our UI, instead.

Let’s see how to build a custom quoted attachment factory.

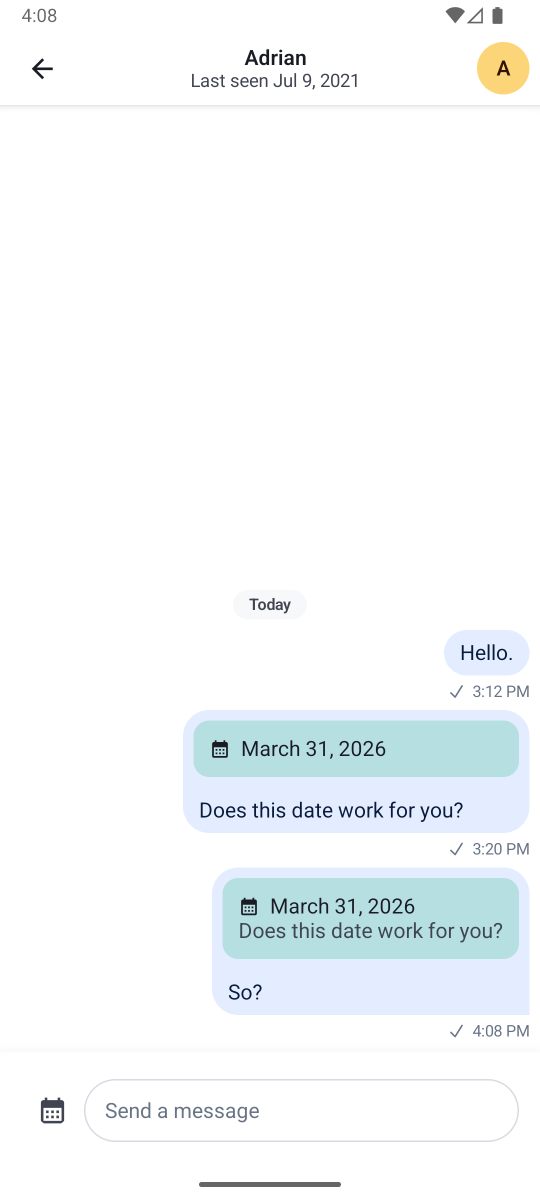

Rendering Quoted Date Attachments

We will be using the same AttachmentFactory type for quoted messages.

Let’s start with creating a component that will be used to render the quoted message inside the regular message content:

@Composable
fun QuotedDateAttachmentContent(
    attachmentState: AttachmentState,
    modifier: Modifier = Modifier,
) {
    val attachment = attachmentState.message
        .attachments
        .first { it.type == "date" }
    val formattedDate = attachment.extraData["payload"]
        .toString()
        .replace(",", "\n")

    Column(
        modifier = modifier
            .padding(4.dp)
            .clip(ChatTheme.shapes.attachment)
            .background(ChatTheme.colors.infoAccent)
            .padding(8.dp)
    ) {
        Column(
            horizontalAlignment = Alignment.CenterHorizontally
        ) {
            Icon(
                modifier = Modifier.size(16.dp),
                painter = painterResource(id = R.drawable.ic_calendar),
                contentDescription = null,
                tint = ChatTheme.colors.textHighEmphasis,
            )

            Text(
                text = formattedDate,
                style = ChatTheme.typography.body,
                color = ChatTheme.colors.textHighEmphasis,
                textAlign = TextAlign.Center
            )
        }
    }
}

As before, we are fetching the custom attachment data using attachment.extraData["payload"]. We also split the full date into separate lines for a more compact preview.

This time we don’t need the textFormatter or previewContent. The textFormatter is used to show the description of the attachment in the ChannelList and that will be handled by the parent message. The previewContent is used in the MessageComposer and it only shows the parent message before it’s sent.

Now your attachment factory should be complete and look like this:

val quotedDateAttachmentFactory: AttachmentFactory = AttachmentFactory(
    canHandle = { attachments -> attachments.any { it.type == "date" } },
    content = @Composable { modifier, attachmentState ->
        QuotedDateAttachmentContent(
            modifier = modifier,
            attachmentState = attachmentState
        )
    }
)

To complete the quoted date sharing feature you just need to provide quotedDateAttachmentFactory along with the default quoted attachment factories via ChatTheme:

class MessagesActivity : AppCompatActivity() {

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        val channelId = requireNotNull(intent.getStringExtra(KEY_CHANNEL_ID))

        val customFactories = listOf(dateAttachmentFactory)
        val defaultFactories = StreamAttachmentFactories.defaultFactories()

        val customQuotedFactories = listOf(quotedDateAttachmentFactory)
        val defaultQuotedFactories = StreamAttachmentFactories.defaultQuotedFactories()

        setContent {
            // Pass in custom factories or combine them with the default ones
            ChatTheme(
                attachmentFactories = customFactories + defaultFactories,
                quotedAttachmentFactories = customQuotedFactories + defaultQuotedFactories
            ) {
                CustomMessagesScreen(
                    channelId = channelId,
                    onBackPressed = { finish() }
                )
            }
        }
    }

    companion object {
        private const val KEY_CHANNEL_ID = "channelId"

        fun getIntent(context: Context, channelId: String): Intent {
            return Intent(context, MessagesActivity::class.java).apply {
                putExtra(KEY_CHANNEL_ID, channelId)
            }
        }
    }
}

To show the MessageOptions, you need to add the component to the CustomMessagesScreen. We’ll skip this part for the sake of the guide.

You can find the full source code of the CustomMessagesScreen component here, where everything is set up.

Quoted date attachments should now be correctly rendered in messages where they’re quoted, like in the screenshot below:

Rendering Custom Attachment

With even fewer lines of code than the previous custom attachment factory we have adjusted the date preview to fit a smaller layout retaining all the relevant data. This gives you even more fine grained customization to build powerful and responsive UI with the same reusable components.

© Getstream.io, Inc. All Rights Reserved.
