Custom Channel Header

The channel header appears above the message list in a chat view, and it has many different variations across chat apps.

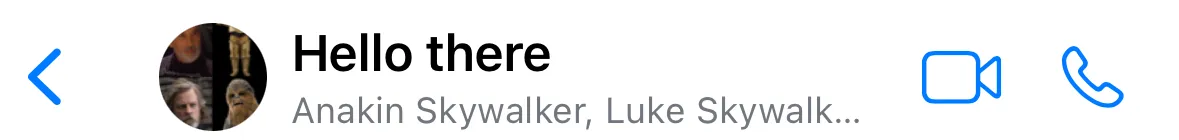

In this example, we will rebuild the one from WhatsApp. The end result will look like this:

First, let’s create a new file, called WhatsAppChannelHeader. This struct will implement the ToolbarContent protocol from SwiftUI, which is required for customizing the navigation bar.

import StreamChat
import StreamChatSwiftUI
import SwiftUI

struct WhatsAppChannelHeader: ToolbarContent {
	var body: some ToolbarContent {
		//TODO: we will provide the implementation here.
	}
}

The channel header from above consists of three sections:

leading section, represented by the back button. This one is added automatically for push navigation, so no additional changes are needed here.
title section (also called principal placement in SwiftUI), represented by the channel icon and its name and participant info.
trailing section, represented by the icons for starting audio and video calls.

Principal section

First, let’s implement the principal section. If you take a closer look at the UI, you will notice that it has two columns:

the channel icon.
the channel info, which in turn has two rows. Therefore, we will need an HStack for the columns, and a VStack for the title rows.

For the channel icon, we can use the ChannelAvatarView from our SwiftUI SDK as a building block. You can easily provide your custom implementation if you look for a different UI.

The ChannelAvatarView needs an avatar, which is the actual image that will be displayed. To fetch this image, you can use our ChannelHeaderLoader, which is an observable object that will trigger view updates whenever the image is available. Additionally, we will need few other objects from the SwiftUI SDK, for getting the user info, fonts, colors and utilities. To use these, add the following lines at the top of your struct:

@ObservedObject private var channelHeaderLoader = InjectedValues[\.utils].channelHeaderLoader

@Injected(\.chatClient) var chatClient
@Injected(\.utils) var utils
@Injected(\.fonts) var fonts
@Injected(\.colors) var colors

The state for the channel will be passed as a parameter to this toolbar content, so we should add it as a variable as well.

var channel: ChatChannel

Next, we will add few computed variables, that will be used for setting up the channel name and the subtitle.

private var currentUserId: String {
    chatClient.currentUserId ?? ""
}

private var channelNamer: ChatChannelNamer {
    utils.channelNamer
}

private var channelSubtitle: String {
    if channel.memberCount <= 2 {
        return channel.onlineInfoText(currentUserId: currentUserId)
    } else {
        return channel
            .lastActiveMembers
            .map { $0.name ?? $0.id }
            .joined(separator: ", ")
    }
}

Finally, we can add the ToolbarItem itself, with the placement of .principal. Here’s the implementation that uses the things we have defined so far. Put this code in the body of the ToolbarContent, instead of the “TODO” we have added before.

ToolbarItem(placement: .principal) {
    HStack {
        ChannelAvatarView(
            avatar: channelHeaderLoader.image(for: channel),
            showOnlineIndicator: false,
            size: CGSize(width: 36, height: 36)
        )
        VStack(alignment: .leading) {
            Text(channelNamer(channel, currentUserId) ?? "")
                .font(fonts.bodyBold)
            Text(channelSubtitle)
                .font(fonts.caption1)
                .foregroundColor(Color(colors.textLowEmphasis))
        }
    }
}

Trailing Section

Next, let’s add the trailing section, which will have two buttons in a horizontal stack, for video and audio calling.

ToolbarItem(placement: .topBarTrailing) {
    HStack {
        Button(action: {
            print("tapped on video")
        }, label: {
            Image(systemName: "video")
        })
        Button(action: {
            print("tapped on audio")
        }, label: {
            Image(systemName: "phone")
        })
    }
}

Integrating audio and video calling is outside the scope of this cookbook. If you are interested in integrating our StreamVideo SDK for audio and video calling, please check our docs.

Here’s the full implementation of the toolbar content for cross-checking.

struct WhatsAppChannelHeader: ToolbarContent {

    @ObservedObject private var channelHeaderLoader = InjectedValues[\.utils].channelHeaderLoader

    @Injected(\.chatClient) var chatClient
    @Injected(\.utils) var utils
    @Injected(\.fonts) var fonts
    @Injected(\.colors) var colors

    var channel: ChatChannel

    private var currentUserId: String {
        chatClient.currentUserId ?? ""
    }

    private var channelNamer: ChatChannelNamer {
        utils.channelNamer
    }

    private var channelSubtitle: String {
        if channel.memberCount <= 2 {
            return channel.onlineInfoText(currentUserId: currentUserId)
        } else {
            return channel
                .lastActiveMembers
                .map { $0.name ?? $0.id }
                .joined(separator: ", ")
        }
    }

    var body: some ToolbarContent {
        ToolbarItem(placement: .principal) {
            HStack {
                ChannelAvatarView(
                    avatar: channelHeaderLoader.image(for: channel),
                    showOnlineIndicator: false,
                    size: CGSize(width: 36, height: 36)
                )
                VStack(alignment: .leading) {
                    Text(channelNamer(channel, currentUserId) ?? "")
                        .font(fonts.bodyBold)
                    Text(channelSubtitle)
                        .font(fonts.caption1)
                        .foregroundColor(Color(colors.textLowEmphasis))
                }
            }
        }
        ToolbarItem(placement: .topBarTrailing) {
            HStack {
                Button(action: {
                    print("tapped on video")
                }, label: {
                    Image(systemName: "video")
                })
                Button(action: {
                    print("tapped on audio")
                }, label: {
                    Image(systemName: "phone")
                })
            }
        }
    }
}

Channel Header Modifier

The next step would be to create a channel header view modifier, which would be injected into our SwiftUI SDK.

struct WhatsAppChannelHeaderModifier: ChatChannelHeaderViewModifier {

    let channel: ChatChannel

    func body(content: Content) -> some View {
        content.toolbar {
            WhatsAppChannelHeader(channel: channel)
        }
    }
}

Finally, we need to provide this modifier to the SDK, which will use it instead of the default one. For this, create a new file called CustomViewFactory and implement the makeChannelHeaderViewModifier from the ViewFactory protocol.

import StreamChat
import StreamChatSwiftUI
import SwiftUI

class CustomViewFactory: ViewFactory {

    @Injected(\.chatClient) public var chatClient

    func makeChannelHeaderViewModifier(for channel: ChatChannel) -> some ChatChannelHeaderViewModifier {
        WhatsAppChannelHeaderModifier(channel: channel)
    }
}

Depending on which components you use, you should provide this view factory instead of the default one. For example, if you are using a ChatChannelListView, you can pass it in the creation process.

var body: some Scene {
    WindowGroup {
        ChatChannelListView(viewFactory: CustomViewFactory())
    }
}

If you run your app now, you should see the updated channel header, as shown on the screenshot.

Summary

In this cookbook, you learnt how to implement your own version of the channel view header, using the ToolbarContent API from SwiftUI. We have also shown you how to integrate it with our SwiftUI SDK.

As a next step, you can explore other parts of our cookbook, where we build many interesting customizations. Furthermore, for a complete social experience, we recommend looking into our Video SDK.
