Channel

What is the Chat Channel?

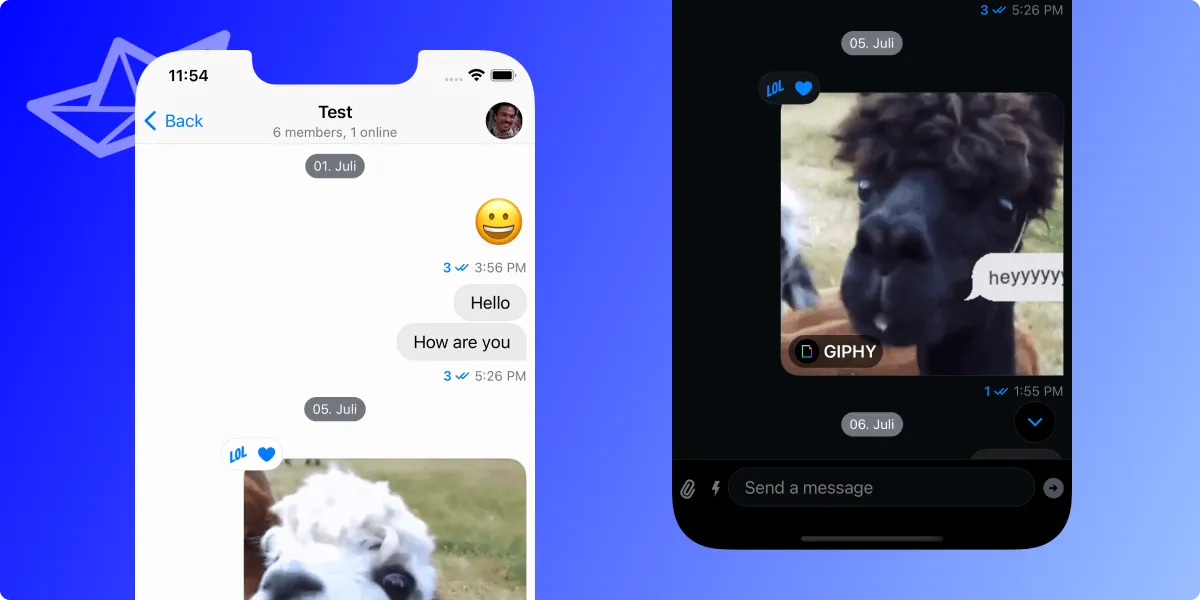

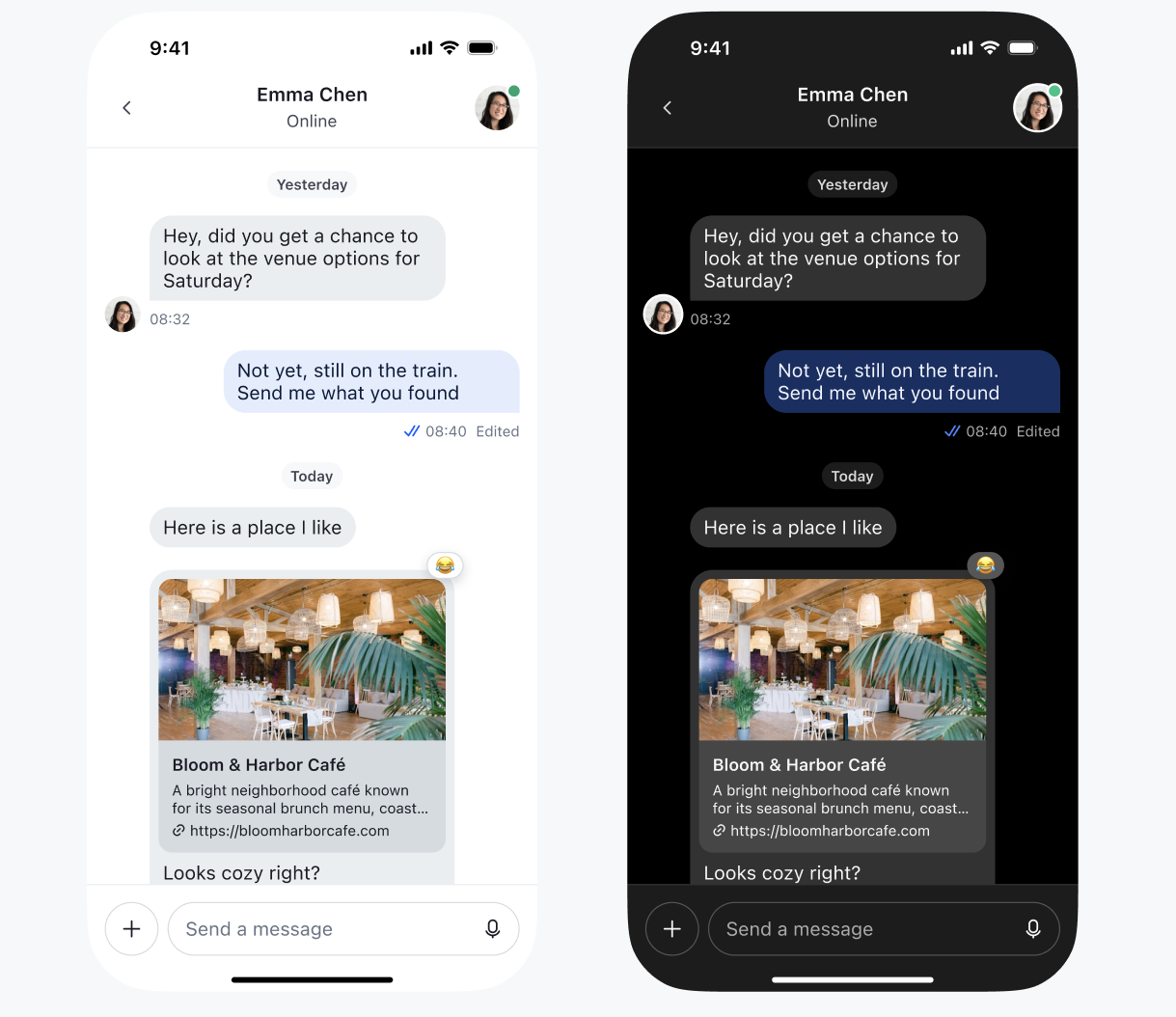

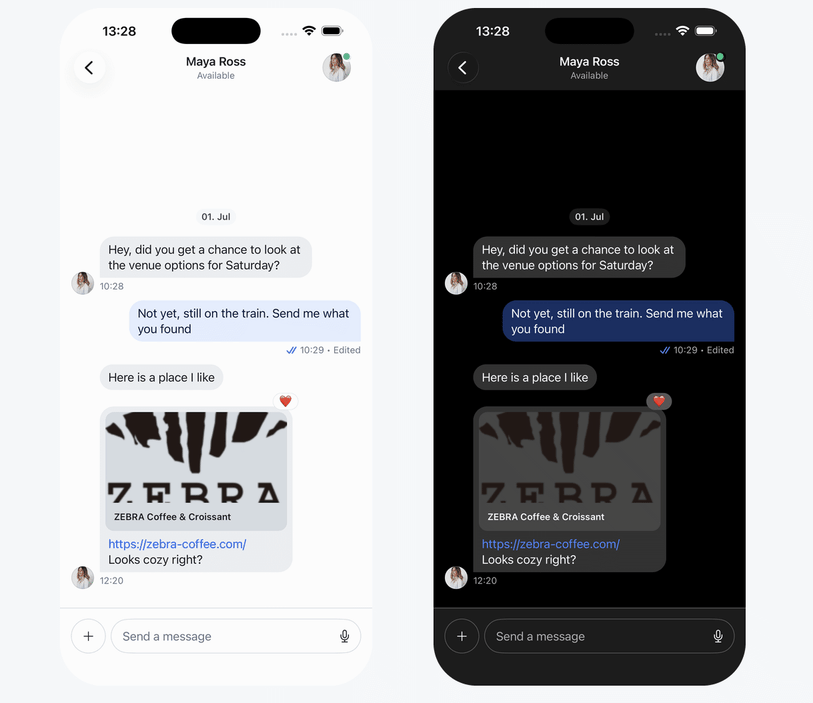

Depiction of different message components in the example of the message list.

The chat channel describes all the content that is shown for a specific channel. It consists of three main parts:

Channel Header
Message List
Message Composer

There are many components that make up the chat channel screen. The channel header is shown on the top to give an overview of the channel as well as provide other helpful information. It can take care of navigation (for example using a back button) and allow the user to see more information about the name, members, and other properties of a channel. All of these components are customizable and easily replaceable.

The message list in the SwiftUI SDK is the view that shows all the messages in a channel. These include all kinds of types like text, images, links, gifs, and many more. Also, it includes features such as message reactions and threads.

In order to compose messages there is the message composer. It can not only send messages but also all other kinds of attachments, such as photos, videos, voicemails, and many more. Also, it is possible to build customized, personalized attachments tailored for specific use-cases. The composer also supports advanced features such as message commands using for example the / shortcut.

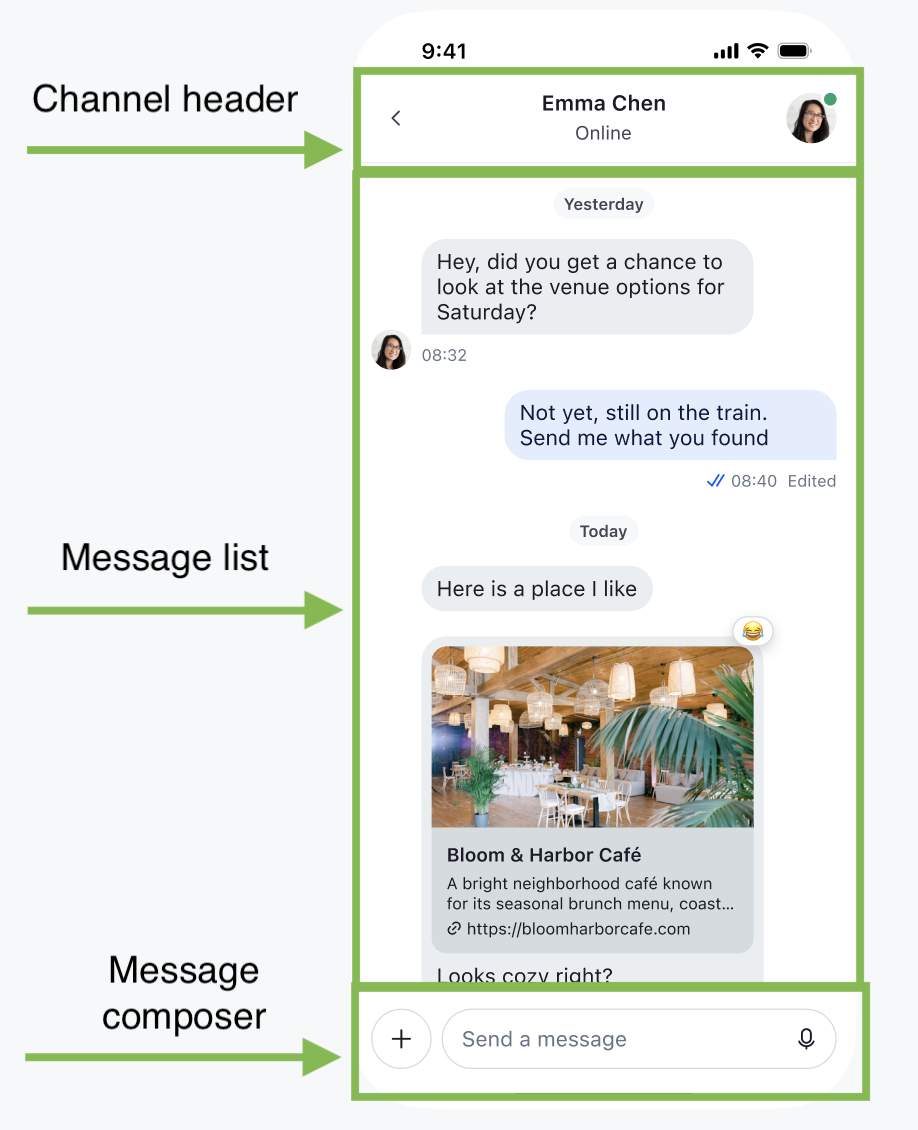

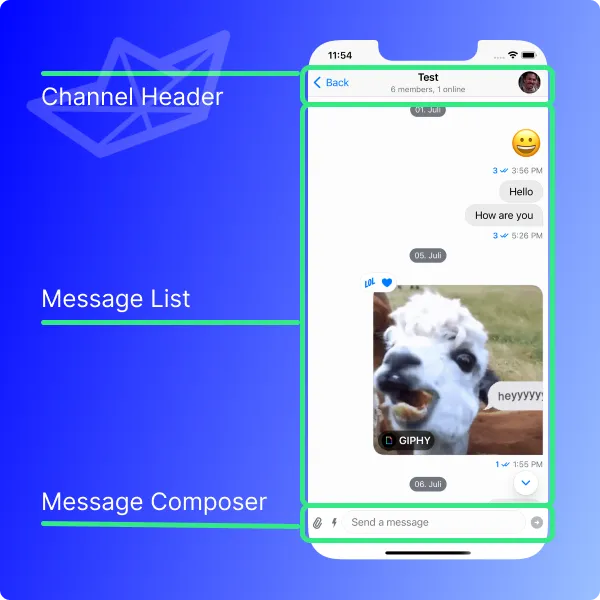

An image discriminating the different parts of the chat channel.

Customizing Message Components

The modular architecture of the Stream Chat SwiftUI SDK allows developers to change and customize the message components to match their functionalities and needs.

There are dedicated sections for each of the components that can be customized with detailed explanations how to do it:

In case there is anything missing from that list that you’d like to see, then please let us know.

There is more content to be found on our YouTube channel in a video about recreating the message list from iMessage.

Showing a Channel programmatically

While the general use-case is that users navigate from a Channel List to a chat channel there can be exceptions to that. In some cases, it is required to directly show a channel. Not only that, it can also be helpful to have the option to programmatically navigate to a certain channel.

The SDK makes this easy as it exposes the ChatChannelView as the view that holds the UI and logic for showing the chat channel. It requires two parameters:

viewFactory: with the common practices using for example a singleton the view factory that is used in the application needs to be handed to the ChatChannelView
channelController: the controller (of type ChatChannelController) handles what the ChatChannelView shows and the channel that is specified to be shown

The channelController can be initialized from the chatClient (using the injection mechanism described here). It requires a ChannelId and the specification of the messageOrdering (for example with the .topToBottom option). The creation of the channel id can be done with the knowledge of the id.

The ChatChannelView is still respecting the replacements that are applied in the custom ViewFactory implementation. All customizations are still used there as it pulls its contents dynamically from the factory.

The following code shows the example of displaying a certain channel (with the id "my-channel-id") when the app starts:

@main
struct ExampleApp: App {

    @Injected(\.chatClient) var chatClient
    @UIApplicationDelegateAdaptor(AppDelegate.self) var appDelegate

    var body: some Scene {
        WindowGroup {
            ChatChannelView(
                viewFactory: MyViewFactory.shared,
                channelController: chatClient.channelController(
                   for: try! ChannelId(cid: "my-channel-id"),
                    messageOrdering: .topToBottom
                )
            )
        }
    }
}

This example shows how to display the ChatChannelView on app startup. It is perfectly applicable everywhere else in an app (for example embedding it in a NavigationLink as the destination).
