Unity Audio Room Tutorial

Stream Video SDK for Unity excels not only in video but also in building audio-only communications. In this tutorial, we'll guide you through creating an Audio Rooms App, where participants can engage in real-time audio sharing sessions. This example is an excellent starting point for developers looking to implement in-game or lobby voice chats. You’ll have full control over participant grouping, allowing you to organize players by level, clan/club, or even into general-purpose voice channels that are open to all players. Let's dive in!

To follow this tutorial, you must install a Unity Editor. We'll use the 2021.3.26f1 LTS version, but any supported Unity version will do just fine. You can check the complete list of supported Unity Editor versions here.

To speed you up, we've prepared a starting Unity Project that you can download from our GitHub repository. You can download it using git or click here to download the project in a zip file.

Download the project and open it in Unity Editor.

The starting project contains the UI components that we will use throughout this tutorial.

Follow the installation section to see how to import Stream's Video SDK into a Unity Project.

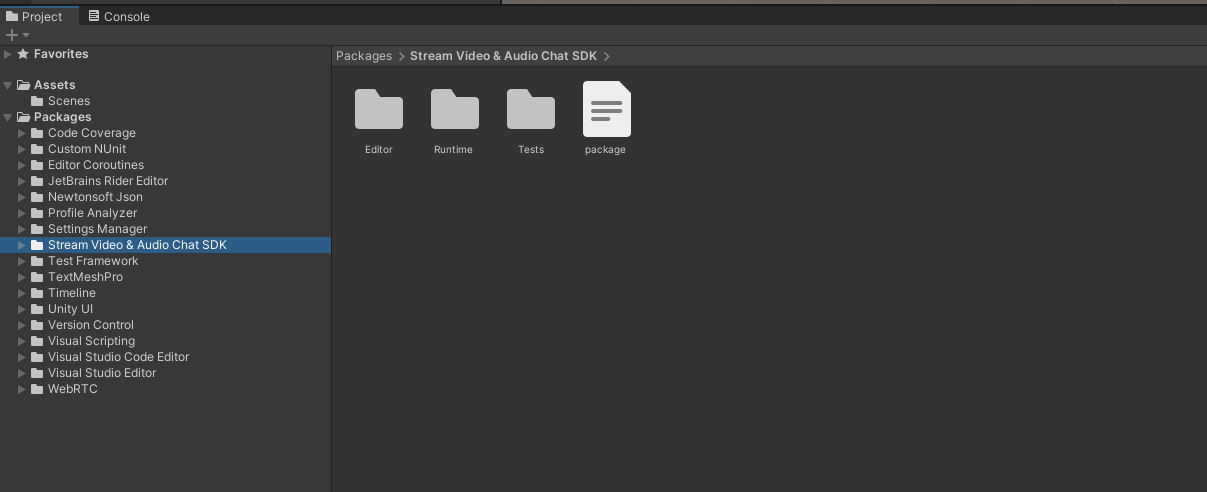

After completing this step, you should see the Stream Video & Audio Chat SDK package under Packages in the Project window.

1. Open the AudioRoomsTutorial scene from the Scenes folder
2. In the Project window, navigate to Assets -> Scripts folder
3. Create a new script file and name it AudioRoomsManager.cs
4. Open the AudioRoomsManager.cs in your code editor and replace it with the following script:

Let's go through this script step by step.

These fields:

define the authorization variables: api key, user id and the user token - essential to connect a User to the Stream Video API. The SerializeField attribute exposes them in Unity's Inspector and allows us to set them in the Unity Editor.

This line instantiates the client for the Stream's Video & Audio SDK:

The StreamVideoClient is the main component to initiate video and audio communication in Unity.

Next, we wrap the authorization credentials in a convenient structure:

And finally, we call the ConnectUserAsync that will attempt to establish a connection:

After the await completes, we should be connected to the Stream server.

We've wrapped the asynchronous ConnectUserAsync method in a try/catch block. If you're not familiar with handling exceptions in asynchronous methods - we advise you to always wrap awaited methods in a try/catch block to catch any thrown exceptions and never miss any errors that can occur during async operations.

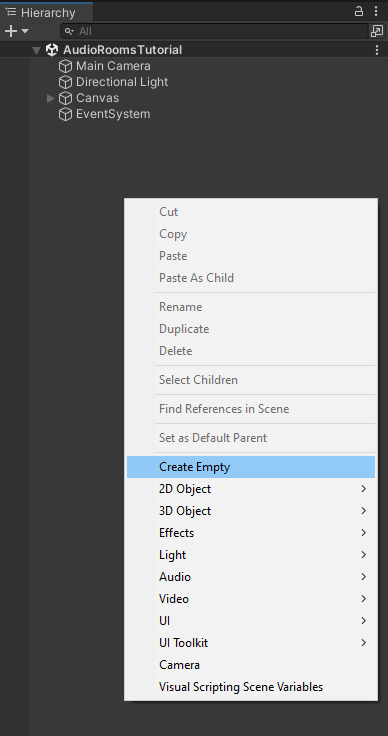

Next, go to the Scene Hierarchy window, and create an empty game object, and name it AudioRoomsManager:

Next, drag in the newly created AudioRoomsManager.cs script onto the AudioRoomsManager game object and save the scene.

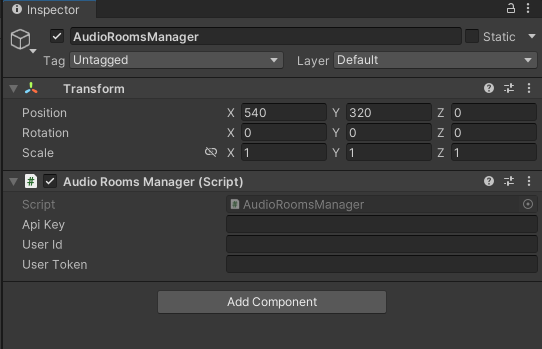

Once you select the AudioRoomsManager game object, you should see the Api Key, User Id, and the User Token fields visible in the Inspector window.

You need a valid set of authorization credentials to run this script that will connect a user to Stream Video API. In an actual project, you'd obtain the api key assigned to your application from the Stream's Dashboard. The user id and the user token would typically be generated by your backend service using one of our server-side SDKs. To keep things simple, you can use the following set of credentials for this tutorial:

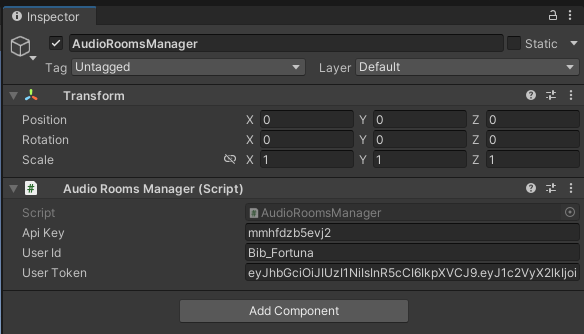

Copy the api key, user id, and the user token from the window above and paste them into the corresponding fields in the AudioRoomsManager game object:

• API KEY -> Api Key
• Token -> User Token
• User ID -> User Id

Save the scene.

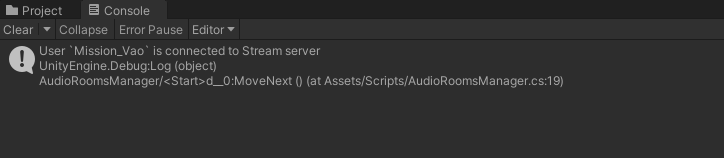

Once you run the project (Press the Play button in Unity Editor), you should see a log in Unity Console confirming that the user is connected to the stream server:

In this step, we'll add methods to Join and Leave the call - these will be called from our UI when the user clicks on the Join and Leave buttons.

Open the AudioRoomsManager.cs script and apply the following changes:

First, add the _activeCall field to the class:

The fields part of the class should now look like this:

Next, add the following methods to the AudioRoomsManager class:

Next, we'll create the UI Manager script to reference all UI elements and handle user interactions.

1. In the Scripts folder, create a new script and call it UIManager.cs
2. Open this script in your code editor and replace the file contents with the following code:

Let's break this down.

First, examine the fields section located at the bottom of the class:

Let's look in more detail on what each field will reference:

• _participantPanelPrefab: a prefab representing each call participant
• _participantsContainer: a container for the spawned participant prefabs
• _callIdInput: an input field for entering the Call ID to connect
• _joinButton & _leaveButton: Join and Leave buttons, respectively
• _microphoneDropdown: a dropdown for selecting an active microphone device
• _audioRoomsManager: manager script that we've defined in previous steps
• _microphoneDevices: a list of available microphones; used to retrieve the selected microphone based on the dropdown’s onValueChanged callback index
• _audioDeviceManager: manages all microphone interactions

Now let's analyze the Start method.

First, we get a reference to the StreamVideoClient instance exposed by the StreamClient property of the AudioRoomsManager. Note that we're executing this code using the Start method instead of the Awake method. This is because the StreamClient property is initialized by the AudioRoomsManager in the Awake method, which Unity calls before the Start method. This way, we ensure that the AudioRoomsManager has created the instance of the Stream Client before the UIManager tries to access it.

Next:

We subscribe the OnJoinButtonClicked method to Join button click event and the OnLeaveButtonClicked method to Leave button click event.

Next, we handle the microphone dropdown:

• ClearOptions is called to remove default options from the dropdown.
• _audioDeviceManager.EnumerateDevices() fetches available microphone devices. We then add them to the _microphoneDevices list, so we can later retrieve the selected option by index.
• _microphoneDevices.Select(d => d.Name).ToList() uses LINQ to get the Name property from each microphone struct.
• _microphoneDropdown.AddOptions(microphoneLabels) adds the list of microphone names as dropdown entries.

The OnJoinButtonClicked validates that the Call ID is set and calls the JoinCallAsync on the AudioRoomsManager:

The OnLeaveButtonClicked calls the LeaveCallAsync on the AudioRoomsManager:

Next:

1. In Unity Editor, go to the Hierarchy window, create a new empty game object, and name it UIManager.
2. Select the UIManager game object and attach the UIManager.cs script to it.
3. Save the scene

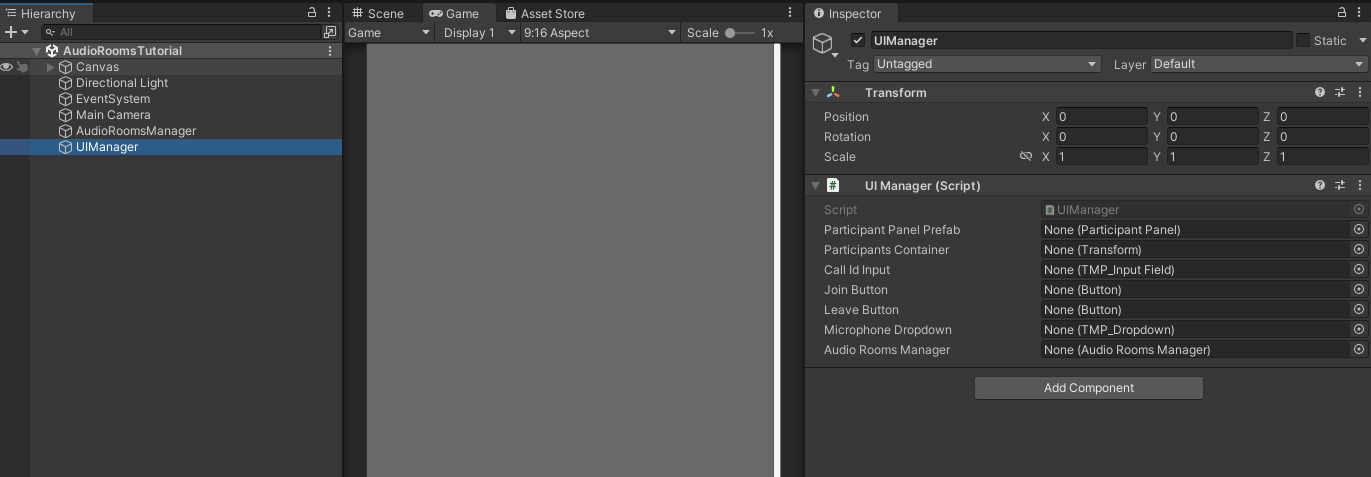

You should now have a UIManager game object with UIManager.cs script attached to it:

The UIManager will interact with UI elements and the prefab asset. Therefore, we must attach all references visible in the inspector window when you select the UIManager game object.

In case you're wondering how to do this swiftly, you can follow these steps:

1. Select the UIManager game object in the Hierarchy window and lock the window (Read Unity Docs on how to lock Inspector window)
2. Use the Hierarchy's window search input to search for each game object by name and drag it into the corresponding field in the locked Inspector window.
3. Unlock the Inspector window

Here's a full list of UIManager fields and the corresponding game objects that we want to attach:

• Participant Prefab - This is the only one that we'll drag in from the Project window, drag in the Prefabs/ParticipantPanel prefab file
• Participants Container - Search for ParticipantsContainer in the Hierarchy window
• Call Id Input - Search for CallIdInput in the Hierarchy window
• Join Button - Search for the JoinButton in the Hierarchy window
• Leave Button - Search for the LeaveButton in the Hierarchy window
• Microphone Dropdown - Search for the MicrophoneDropdown in the Hierarchy window
• Audio Rooms Manager - Search for the AudioRoomsManager in the Hierarchy window

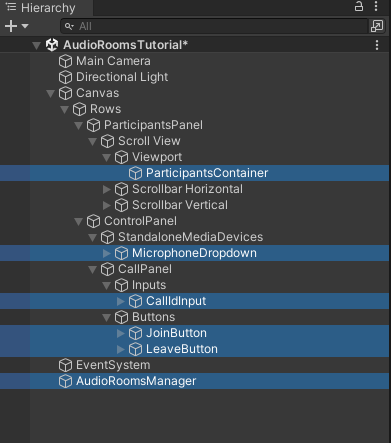

These are the game objects, from the Scene Hierarchy, that should be attached to the UIManager script:

And on to of the hierarchy game objects, we attach the Prefabs/ParticipantPanel prefab file from the Project window.

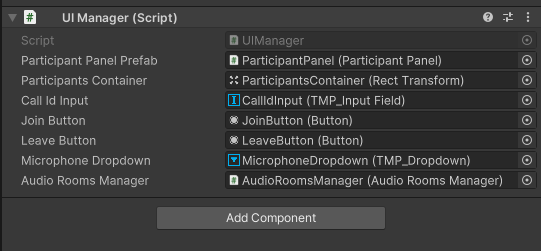

After completing this step, your UIManager game object should look as below:

Save the scene.

Now, let's add sending audio input captured from the microphone device.

Open the UIManager.cs in the code editor and add the following method to the class:

The OnMicrophoneDeviceChanged method will be triggered by the microphone dropdown onValueChanged event when a user selects a new microphone from the dropdown. The onValueChanged event passes an integer argument that we named deviceIndex, representing the index of the option chosen.

Next, add these lines to the end of the Start method in the UIManager class:

Here, we've subscribed the OnMicrophoneDeviceChanged to the dropdown onValueChanged event. Next, we're calling the OnMicrophoneDeviceChanged method with the 0 argument to select the first microphone as a default option.

Next open the AudioRoomsManager.cs script and apply the following changes:

First, add the following code to the class:

Here, we defined event to notify the UIManager when participants join or leave the call.

Next, add these 2 methods:

Next, replace the JoinCallAsync method with the following code:

The above code extends the previous implementation with:

1. Calling OnParticipantJoined for each participant that's already present on the call - _activeCall.Participants.
2. Subscribing to ParticipantJoined and ParticipantLeft events, so we get notified whenever a participant joins or leaves the call.

Lastly, replace the LeaveCallAsync method with:

We've extended the previous implementation with unsubscribing from the ParticipantJoined and ParticipantLeft events.

The final key component we need to cover is handling participants and their tracks. A participant is a user who connects to a call using a device. If a user joins the call from multiple devices, each device is treated as a separate participant. Tracks represent either Audio or Video data received from a participant. In this tutorial, we'll be using audio tracks only.

Open the ParticipantPanel.cs script, located in the Scripts folder, and replace it with the following code:

This script will be attached to a game object representing a single call participant and handle its track.

Let's break this down to better understand it:

The Init method:

1. Saves the IStreamVideoCallParticipant reference in a class field.
2. Updates the game object name - this improves readability in the Hierarchy window.
3. Loops over currently available tracks and calls OnTrackAdded for each available track.
4. Subscribes to the IStreamVideoCallParticipant.TrackAdded event to handle any tracks that might be added after we've joined the call.

The OnTrackAdded method:

1. Uses .NET's pattern matching to check if track is of type StreamAudioTrack. In this tutorial, we're using audio tracks, but if you'd be implementing video calls, you'd also have to handle the StreamVideoTrack case.
2. Creates the AudioSource component to receive the participant's audio stream.
3. Sets the newly created AudioSource as a target of the received audio track. For this, we use the streamAudioTrack.SetAudioSourceTarget method - this is essential for the AudioSource to receive audio data from the participant.

Next, in the OnDestroy method (called by Unity), we unsubscribe from the TrackAdded event:

And lastly, we've defined two fields to keep the AudioSource and the participant references:

Open the UIManager.cs in your code editor and make the following changes.

Add this field to the class:

We'll use this to reference the ParticipantPanel component we'll create for every participant. We keep references in the dictionary where a SessionId will be the key. This way, whenever a participant leaves the call, we can easily find and destroy the corresponding game object.

Next, add this method to the UIManager class:

The OnParticipantJoined method will be executed for each call participant. It does 3 things:

• Spawns a new instance of the ParticipantPanel prefab.
• Calls the ParticipantPanel.Init method and passes the IStreamVideoCallParticipant object.
• Adds the newly spawned panel to the _callParticipantBySessionId dictionary using the participant's SessionId as key.

Next, add the OnParticipantLeft method to the UIManager class:

The OnParticipantLeft will be called whenever a participant leaves the call. We're using the participant's sessionId to check if the ParticipantPanel associated with the participant exists in the _callParticipantBySessionId dictionary and destroy the game object if it does.

Next, add these 2 lines anywhere to the Start method:

This will subscribe to the AudioRoomsManager events that we've added earlier and trigger the logic to handle participants joining or leaving the call.

Lastly, replace the OnLeaveButtonClickedAsync with the following code:

We added this part:

This will destroy all participant panels after we leave the call and clear the dictionary.

An additional step is needed if you wish to test this app on an Android or iOS. You can skip this step if you only test on a standalone platform (Win, Linux, macOS). Mobile devices often require applications to explicitly request permissions for the user's camera or microphone devices, which the user must grant. Otherwise, the app may be unable to access the camera or microphone.

Handling permissions on Android:

Handling permissions on iOS:

Add this code to the Start method of the UIManager class.

We're now ready to test our app!

It's best to use multiple devices for testing. Otherwise, you may run into conflict when multiple applications attempt to use the microphone on a single device.

A quick testing setup:

1. Right-click the Join Call button in the box below and copy the URL.
2. Send this URL to another device you have, e.g., your smartphone. You can send it to multiple devices if you want.
3. Run the project in the Unity Editor and click the Join button to join the call.
4. Open the Join Call URL you've sent to other devices and join the call.

There are a few things to double-check:

• Ensure that you're using the same App ID and the Call ID on all devices you wish to connect
• On standalone platforms (Win, macOS, Linux), headphones with a microphone can be represented as two devices: Headphones and the Headset. Select the Headset in the Unity app to use the microphone in the application and as the audio output device in the OS.

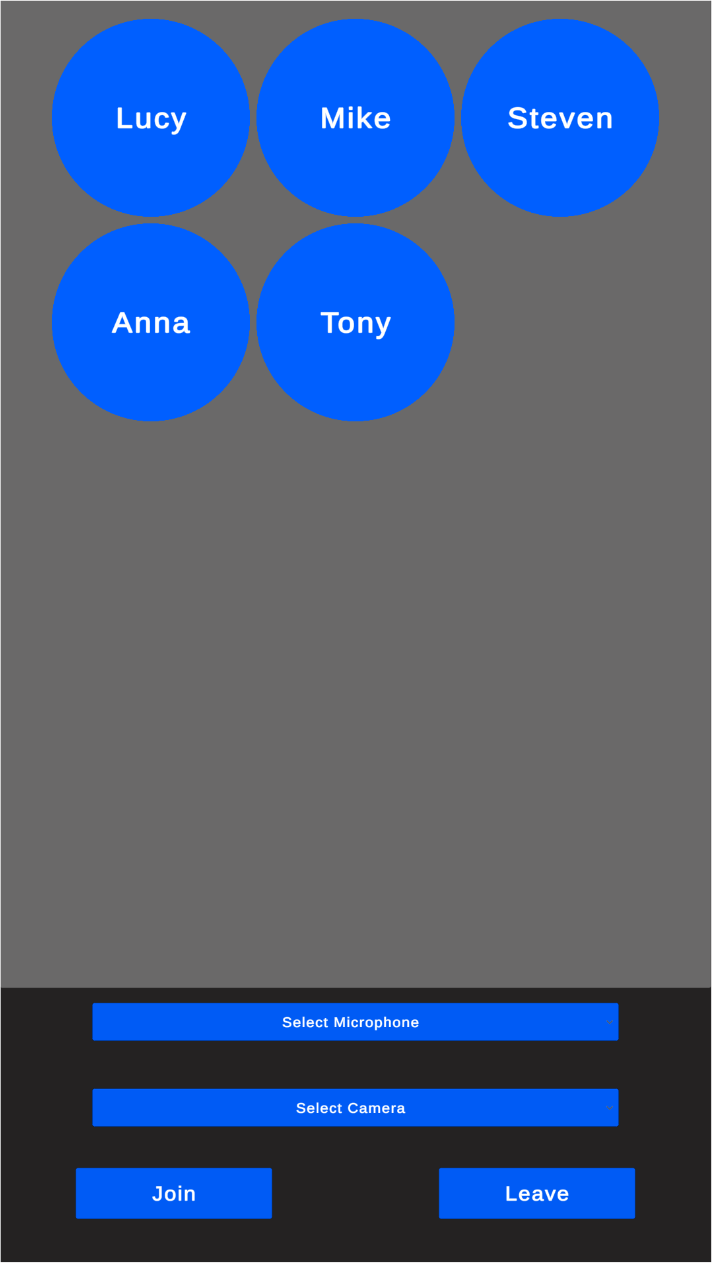

Congrats! You should now be able to join the audio call from multiple devices.

There are a few more exciting features that you can use to build audio rooms:

• Requesting Permissions : Participants can ask the host for permission to speak, share video etc
• Query Calls : You can query calls to easily show upcoming calls, calls that recently finished etc
• Call Previews : Before you join the call you can observe it and show a preview. IE John, Sarah and 3 others are on this call.
• Reactions & Custom events : Reactions and custom events are supported
• Recording & Broadcasting : You can record your calls, or broadcast them to HLS
• Chat : Stream's chat SDKs are fully featured and you can integrate them in the call
• Moderation : Moderation capabilities are built-in to the product
• Transcriptions : Transcriptions aren't available yet, but are coming soon

It was fun to see just how quickly you can build an audio-room for your app. Please do let us know if you ran into any issues. Our team is also happy to review your UI designs and offer recommendations on how to achieve it with Stream.

Calls run on Stream's global edge network of video servers. Being closer to your users improves the latency and reliability of calls. For audio rooms we use Opus RED and Opus DTX for optimal audio quality.

The SDKs enable you to build audio rooms, video calling and livestreaming app very easily.

We hope you've enjoyed this tutorial, and please do feel free to reach out if you have any suggestions or questions.

Final Thoughts

In this audio app tutorial we built a fully functioning Unity Audio Rooms app with our Video SDK for Unity library.

Both the video SDK for Unity and the API have plenty more features available to support more advanced use-cases.
