TL;DR
- Speech, text, and vision should share a single realtime loop with shared rules for turn-taking, tool use, and fallback.
- Turn-taking and state are core design work. Think voice activity detection, a turn policy, narrow tool calls, and memory that doesn't make the conversation brittle.
- Vision involves sampled frames. Route precision tasks (like small on-screen text) to a specialized CV model instead of expecting the multimodal model to catch everything.
- Track turn latency, interruption recovery, tool round-trip time, and session drop rate.
If your app needs to listen, watch, and respond in the same session, a normal speech-to-text plus text-to-speech stack quickly starts to feel clumsy.
The best multimodal agents are not built as three separate pipelines stitched together. Rather, they should be designed as one realtime workflow that can process speech, text, and vision together, with clear rules for turn-taking, tool use, retrieval, and fallback behavior.
This guide breaks down how to design multimodal AI agent architecture for voice and video apps that hold up in production, using the architectural choices, transport options, and model constraints that matter most.
How To Think About Multimodal Realtime Agents
Evaluating a realtime agent starts with three questions.
- How fast does it respond when the user interrupts?
- What happens when vision input arrives late or is missing?
- And can the system keep state across a long call without drifting into nonsense?
Those questions come from the same failure modes showing up over and over. A clean demo often falls apart on barge-in, noisy audio, or a camera feed that updates slower than the conversation. A useful agent needs a turn detector, a transport that stays stable under load, and a way to decide when speech, text, or vision should drive the next action.
The other thing worth checking is whether the system treats multimodality as one loop or as separate services. If a product sends audio to one service, images to another, then tries to reconcile the outputs in a third layer, the user usually pays for that in delay.
The better systems keep the conversation together and make each input type part of the same session state.

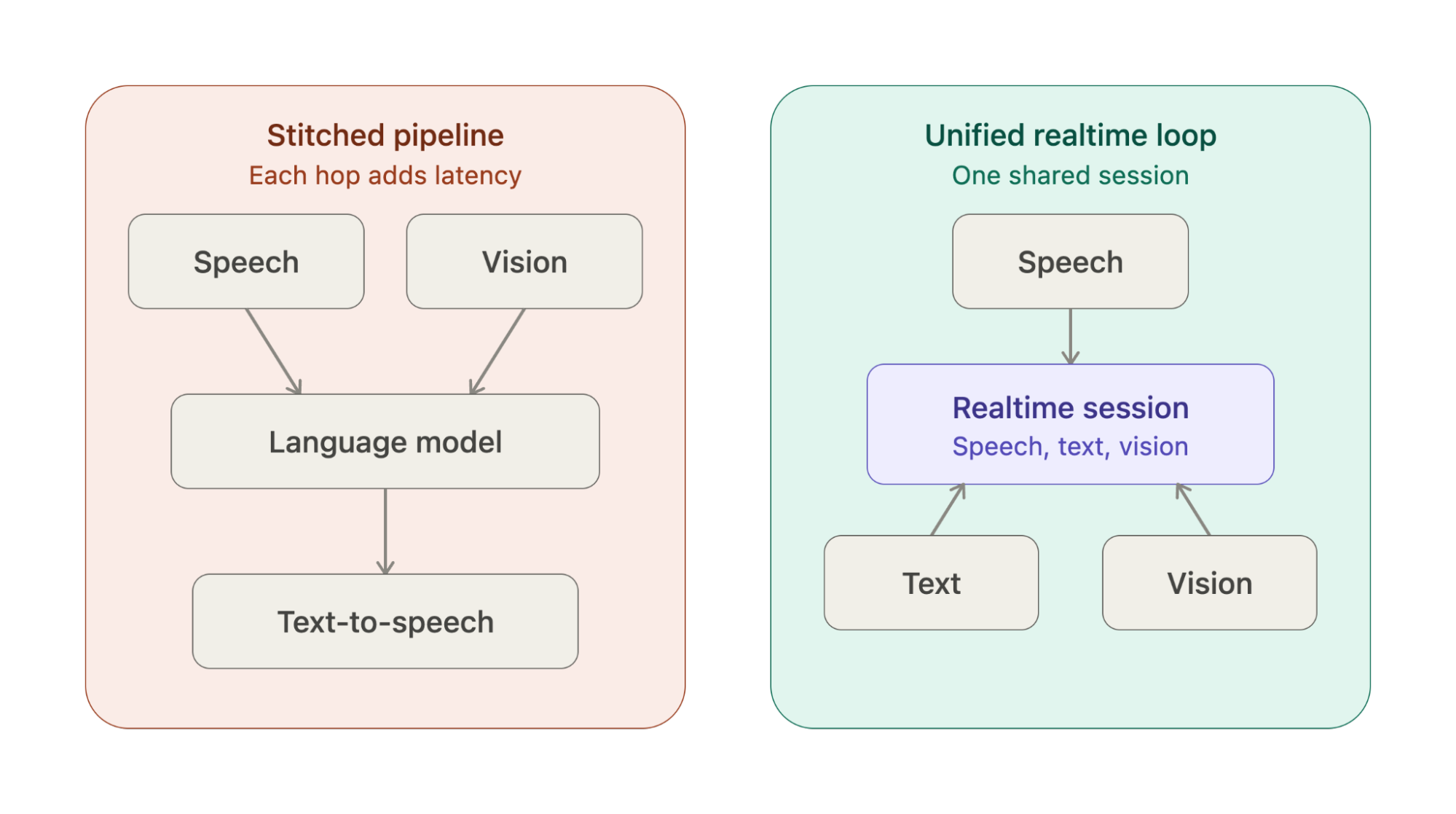

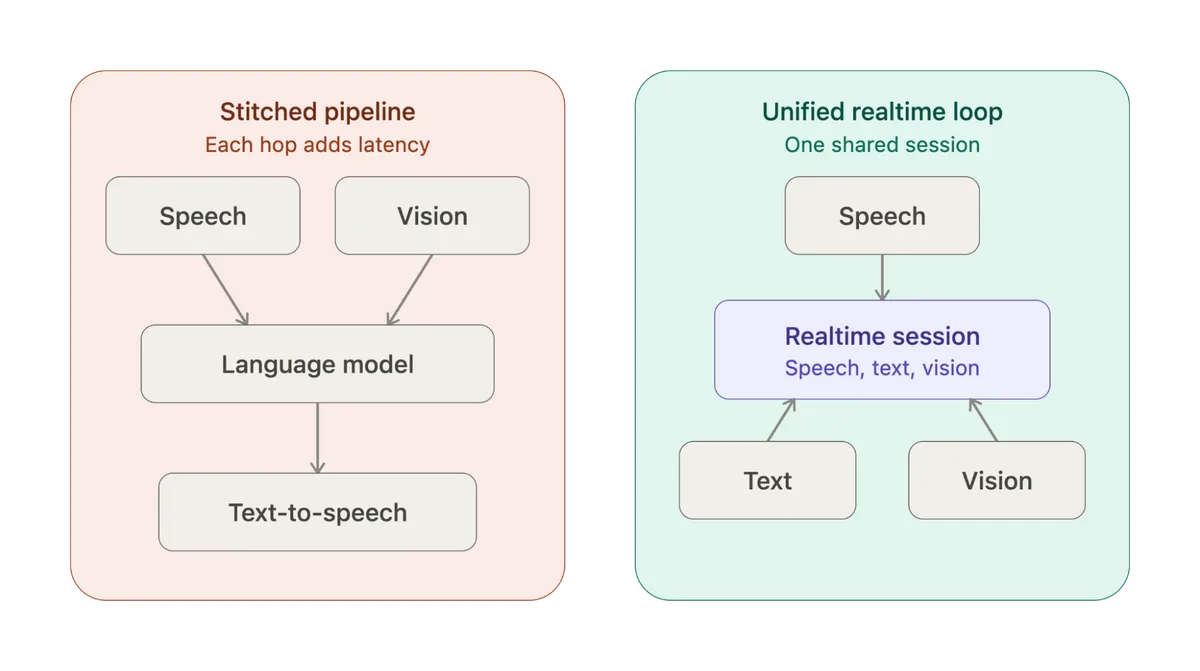

One Loop, Not Three Pipelines
The old chain of ASR to LLM to TTS still works for short prompts, but it gets awkward the moment the user talks over the assistant or points the camera at something that changes quickly.
In a live support call, even a 700 ms pause can feel long. In a coaching or telehealth flow, a delayed response can make the agent miss the moment that matters.
The shift is architectural. Audio, images, and text flow through a single live session instead of separate services stitched together after the fact. The model is part of the live loop.
That matters for interruption handling, too.
If the model hears the user start talking before the previous response has finished, it can stop, adjust, or defer. If the camera feed changes while the call is active, the agent can use that frame as part of the same turn instead of waiting for a separate vision pipeline to catch up.
Choosing Your Transport
Transport choices decide how much control you have over the session, where media can originate, and how hard the whole thing is to debug.
WebRTC is the default choice for browser-based voice and video agents because it was standardized for real-time audio and video on the web. In practice, that means lower friction for mic and camera capture, a better fit for bidirectional media, and fewer awkward hops through a backend that was never meant to handle media timing.
For phone-based agents, Twilio is usually the practical path since the media already lives in telephony, bridging a call into the agent session rather than asking the user to switch to a browser.
Turn-Taking, Tools, and State
The core work is session design.
A production agent needs a voice activity detector, a turn policy, a tool router, and some memory of what just happened.

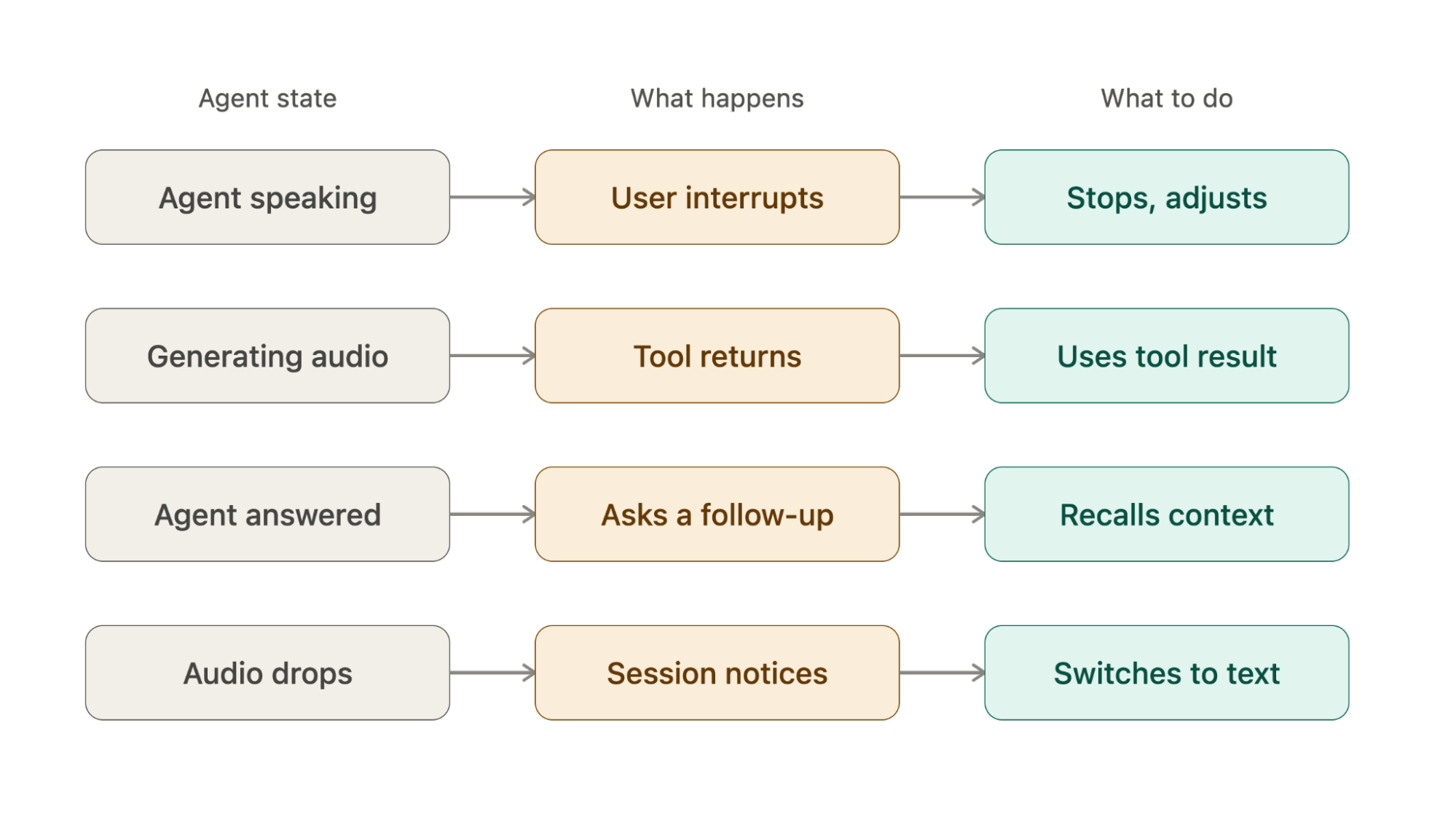

In a real call, the sequence is usually messy:
- The user starts speaking before the agent has finished
- A tool call returns while the agent is still generating audio
- The same user asks a follow-up that depends on the previous answer
- The session needs to fall back to text if audio drops
The agent should know when to pause, when to continue, and when to call a tool.
Tool calls work best when they are explicit and narrow. A calendar check, a CRM lookup, and a policy search should not all go through one generic endpoint if the output needs to be dependable.
And state matters as much as the tool layer. A live session needs enough memory to keep context, but not so much that the conversation becomes brittle. That means server-side controls, guardrails, conversation lifecycle management, and cost monitoring. Not just a longer prompt.
Vision: Frames, Not Video
One common mistake is assuming a video agent is watching everything all the time. That is rarely true in production.

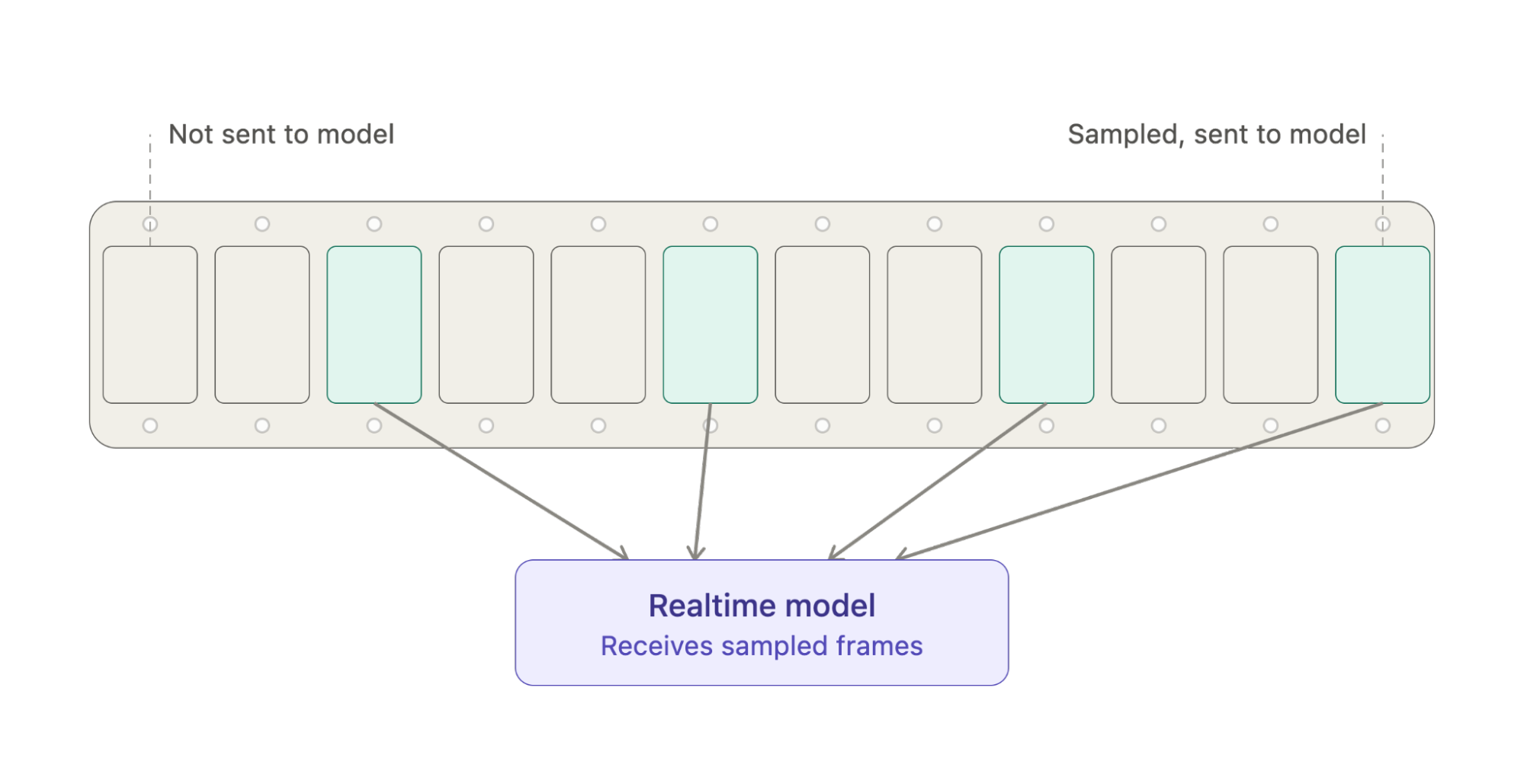

Most systems use sampled frames, short clips, or still images, then combine those with audio and text. In practice, the model treats a frame more like a photo dropped into the conversation than a continuous stream it's watching. That distinction matters because it changes what you can expect from the model and where you need extra CV logic.
For applications that need precise visual cues, a specialized vision model often does the first pass:
Vision Agents leans into that pattern with pluggable vision pipelines, frame-by-frame processors, and support for models such as YOLO and Roboflow alongside larger language models. That is the sensible split for use cases like golf coaching, form checks, or screen walkthroughs.
The other constraint is context length.
Video understanding gets weaker in longer continuous sessions, especially after roughly 30 seconds, and that small text is a weak spot. That lines up with what to expect from any live system: if the user needs OCR-level accuracy on a tiny UI element, route that task to the right model instead of waiting for the multimodal model to guess.
Grounding With Retrieval
Live multimodal agents break down quickly when the answer depends on policy, product details, or account-specific context. Retrieval is the difference between a fluent answer and a confident mistake.
For voice and video apps, the retriever needs to be fast enough to stay inside the session. Vision Agents supports two practical paths here: Gemini File Search for quick setup, and TurboPuffer for hybrid vector plus BM25 search with reciprocal rank fusion. The details matter because the agent may need a short policy paragraph, a meeting note, or a case file while the user is still talking.
RAG is also what keeps phone and support agents from hallucinating on local rules. In a telephony workflow, the agent can answer an intake question, check a knowledge base, then hand off a concise summary to a human if needed. That is a better fit than trying to make the model remember everything in the prompt.
Deploying and Monitoring
A realtime agent is easy to launch and harder to keep healthy.
The things that usually show up first are packet loss, slow turn detection, and cost creep from long sessions. After that comes observability. With no trace of which turn triggered which tool call, you're stuck guessing what happened.
Vision Agents takes a practical approach here. The project includes HTTP server support, Prometheus metrics via OpenTelemetry instrumentation, Docker, and Kubernetes deployment. In practice, teams can watch LLM, STT, TTS, and turn detection metrics without rebuilding the same plumbing themselves.

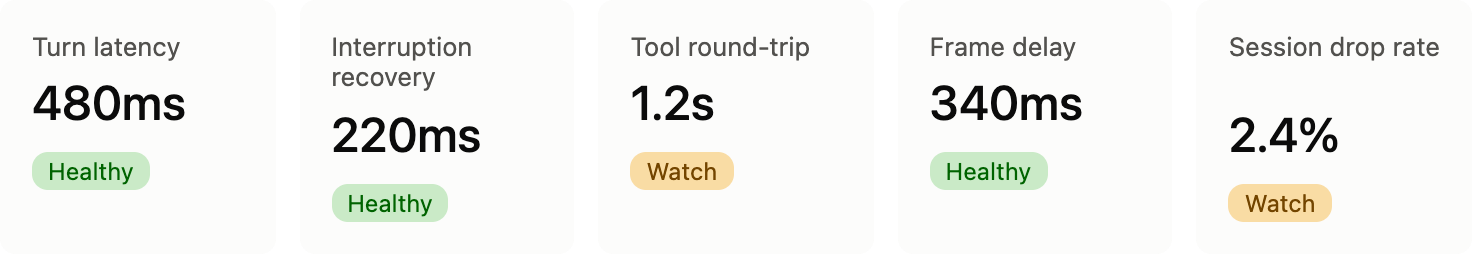

For production tuning, the numbers that matter most are:
- end-to-end turn latency
- interruption recovery time
- tool-call round-trip time
- frame processing delay
- session drop rate
If those are not measured, the agent is being tuned by feel.
Is Vision Agents a Fit?
Vision Agents makes sense when the app is truly multimodal and the team wants Python-first control over transport, tools, and deployment. It fits best when the workflow needs voice, video, RAG, and a clear path to production monitoring in the same codebase.
A simple way to judge fit is to ask whether the app needs frame-level vision plus live audio in one session.
If the answer is yes, the framework's modular agent design, WebRTC support, Twilio calling flow, and deployment tooling line up with that problem.
If the answer is only voice, with no real vision or custom tool layer, it may be more framework than the project needs.
For teams evaluating it, run one interruption test before anything else. Start a live session, point the camera at a page with small on-screen text, then interrupt the agent mid-answer and ask it to read a specific line from the frame. A useful system should stop cleanly, recover the turn, and send the right visual task to the vision pipeline without losing the conversation state. If that fails, the rest of the stack usually has the same weakness.
The Vision Agents quickstart is the fastest way to set up that test.
Frequently Asked Questions
What is a multimodal AI agent for voice and video?
A multimodal agent processes speech, text, and vision in one live session. In practice, that usually means audio streaming, sampled frames or images, tool calls, and a response loop that can handle interruptions.
Should voice and video agents use WebRTC or WebSockets?
WebRTC is the better fit for browser audio and video because it is built for real-time media. WebSockets still make sense for server-side orchestration, control messages, or middle-tier apps that are not sending media directly from the client.
Do multimodal agents need continuous video understanding?
Usually not. Many production systems use discrete frames or sampled clips, then combine that with live audio. That keeps latency lower and makes the vision side easier to control.
Why does turn detection matter so much?
Without turn detection, the agent will talk over the user, cut off too early, or wait too long to answer. Voice activity detection and turn policy are what keep the session usable.
When does RAG matter in a live voice or video app?
RAG matters any time the answer depends on policy, product details, a support article, or account-specific context. It keeps the agent from guessing when the correct answer is already in a source document.
Is Vision Agents more suited to voice-only or multimodal builds?
It is better suited to multimodal builds. The framework is built around voice, video, retrieval, and deployment in one workflow, so it makes more sense when vision is part of the product rather than a side feature.
