Build an AI Assistant for iOS using Swift

In this tutorial, we will demonstrate how easy it is to create an AI assistant for iOS using Stream Chat.

In this example, we will use the Stream Chat integration with Vercel's AI SDK; however, developers are free to use whichever LLM provider they like and still benefit from Stream's rich UI support for Markdown, tables, code samples, charts etc.

To follow along with this tutorial, we recommend creating a free account and checking out our main iOS Chat SDK tutorial as a refresher.

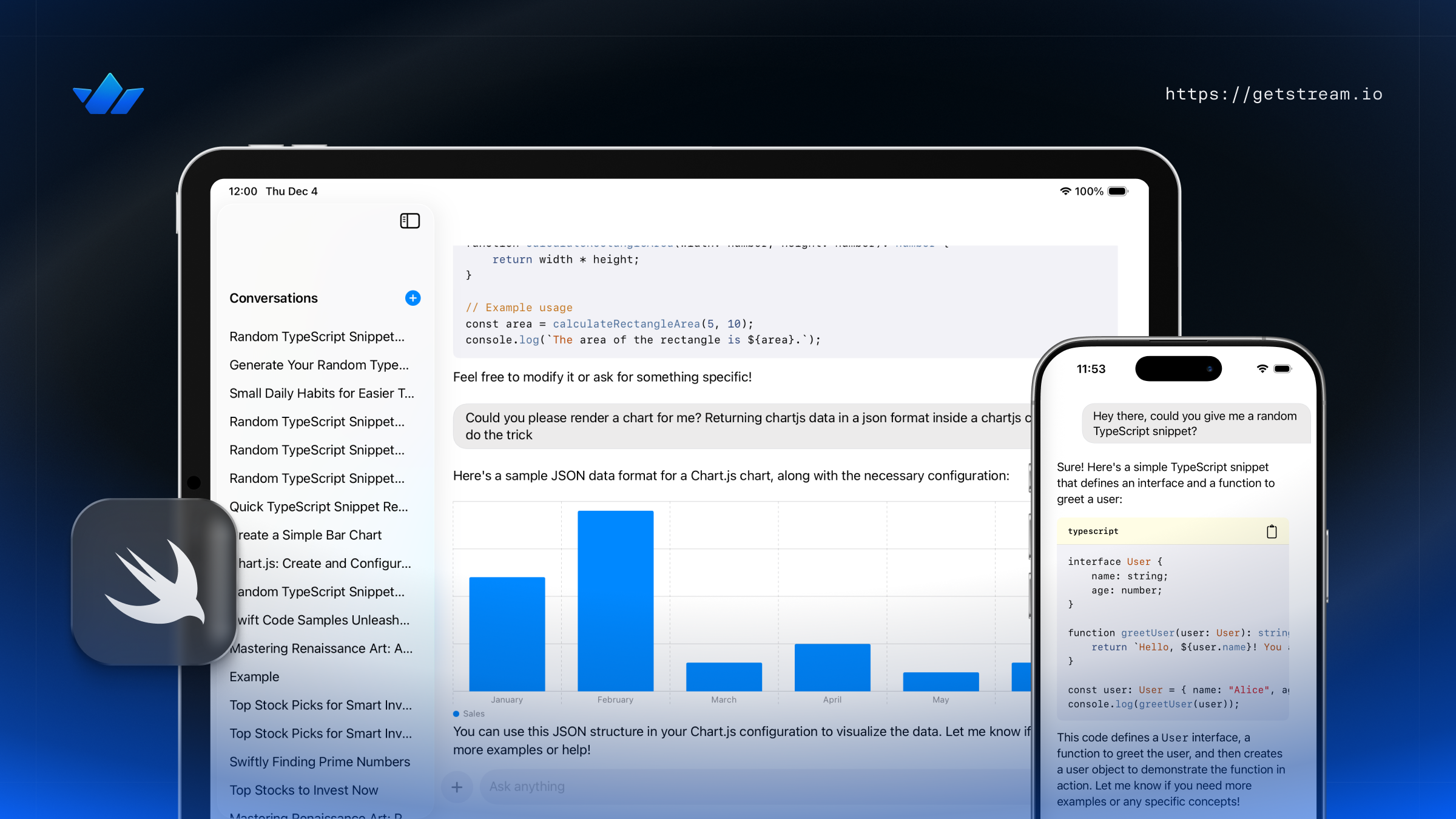

Here's a video of the end result:

Running the Backend

Before adding AI features to our iOS app, let's set up our node.js backend. The backend will expose two methods for starting and stopping an AI agent for a particular channel. If the agent is started, it listens to all new messages and sends them to the LLM provider of your choice. It provides the results by sending a message and updating its text.

The sample also supports sending different states of the typing indicator (for example, Thinking, Checking external sources, etc), client-side MCP tools, suggestions, summaries, memory with mem0 and much more.

You can find a working implementation of the backend here.

1. Install Dependencies

bash

1
npm install @stream-io/chat-ai-sdk express cors dotenv

@stream-io/chat-ai-sdk brings the Agent, AgentManager, tool helpers, and the streaming logic. Express/cors/dotenv provide the basic HTTP server.

2. Configure Stream Credentials

Create a .env file with:

STREAM_API_KEY=your_key
STREAM_API_SECRET=your_secret
OPENAI_API_KEY=your_open_api_key
ANTHROPIC_API_KEY=your_anthropic_api_key
XAI_API_KEY=your_xai_api_key
GOOGLE_API_KEY=your_google_api_key
MEM0_API_KEY=your_mem0_api_key

Apart from the Stream API key and secret, every other API key is optional. You would need to add at least one LLM service, for the AI to work.

Load it at the top of your entry file:

typescript

1
import 'dotenv/config';

3. Bootstrap Express and the AgentManager

Add the following to your index.ts (or similar):

typescript

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
import express from 'express';
import cors from 'cors';
import {
  AgentManager,
  AgentPlatform,
  createDefaultTools,
} from '@stream-io/chat-ai-sdk';

const app = express();
app.use(express.json());
app.use(cors({ origin: '*' }));

const buildAgentUserId = (channelId: string): string =>
  `ai-bot-${channelId.replace(/!/g, '')}`;

const agentManager = new AgentManager({
  serverToolsFactory: () => createDefaultTools(),
  agentIdResolver: buildAgentUserId,
});

const normalizeChannelId = (raw: string): string => {
  const trimmed = raw?.trim() ?? '';
  if (!trimmed) return trimmed;
  const parts = trimmed.split(':');
  return parts.length > 1 ? parts[1] : trimmed;
};

AgentManager owns the agent cache, pending state, and inactivity cleanup. Each channel uses an ID pattern such as ai-bot-{channelId}.

4. Starting an Agent

Next, let's add the endpoint that will start the AI agent. First, we need to validate the payload, normalize the channel, and then ask the AgentManager to start or reuse the agent:

typescript

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
import express from 'express';
import cors from 'cors';
import {
  AgentManager,
  AgentPlatform,
  createDefaultTools,
} from '@stream-io/chat-ai-sdk';

const app = express();
app.use(express.json());
app.use(cors({ origin: '*' }));

const buildAgentUserId = (channelId: string): string =>
  `ai-bot-${channelId.replace(/!/g, '')}`;

const agentManager = new AgentManager({
  serverToolsFactory: () => createDefaultTools(),
  agentIdResolver: buildAgentUserId,
});

const normalizeChannelId = (raw: string): string => {
  const trimmed = raw?.trim() ?? '';
  if (!trimmed) return trimmed;
  const parts = trimmed.split(':');
  return parts.length > 1 ? parts[1] : trimmed;
};

5. Stopping an Agent

To stop the agent and clean the cache, we can do the following:

typescript

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
app.post('/stop-ai-agent', async (req, res) => {
  const channelId = normalizeChannelId(req.body?.channel_id ?? '');
  if (!channelId) {
    res.status(400).json({ error: 'Invalid channel_id' });
    return;
  }

  try {
    await agentManager.stopAgent(buildAgentUserId(channelId));
    res.json({ message: 'AI Agent stopped' });
  } catch (error) {
    res.status(500).json({
      error: 'Failed to stop AI Agent',
      reason: (error as Error).message,
    });
  }
});

6. Register Client Side Tools

Next, we can expose an endpoint to allow clients to register MCP tools that can be handled client-side:

typescript

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
app.post('/register-tools', (req, res) => {
  const { channel_id, tools } = req.body ?? {};

  if (typeof channel_id !== 'string' || !channel_id.trim()) {
    res.status(400).json({ error: 'Missing or invalid channel_id' });
    return;
  }
  if (!Array.isArray(tools)) {
    res.status(400).json({ error: 'Missing or invalid tools array' });
    return;
  }

  const channelId = normalizeChannelId(channel_id);
  agentManager.registerClientTools(channelId, tools);
  res.json({ message: 'Client tools registered', count: tools.length });
});

7. Start the Server

Add the log when the server is started.

typescript

1
2
3
4
const port = process.env.PORT || 3000;
app.listen(port, () => {
  console.log(`Server is running on <http://localhost>:${port}`);
});

You can start the server by running:

npm start

iOS Integration

Next, let's setup things on the iOS side. You can find a working implementation of this project here.

1. Add the Required Swift Packages

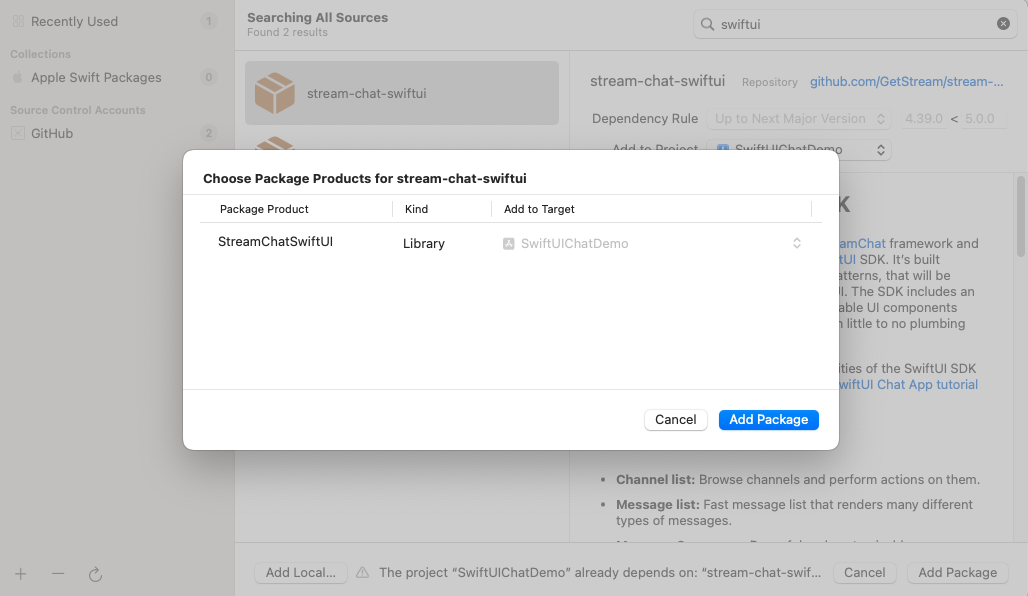

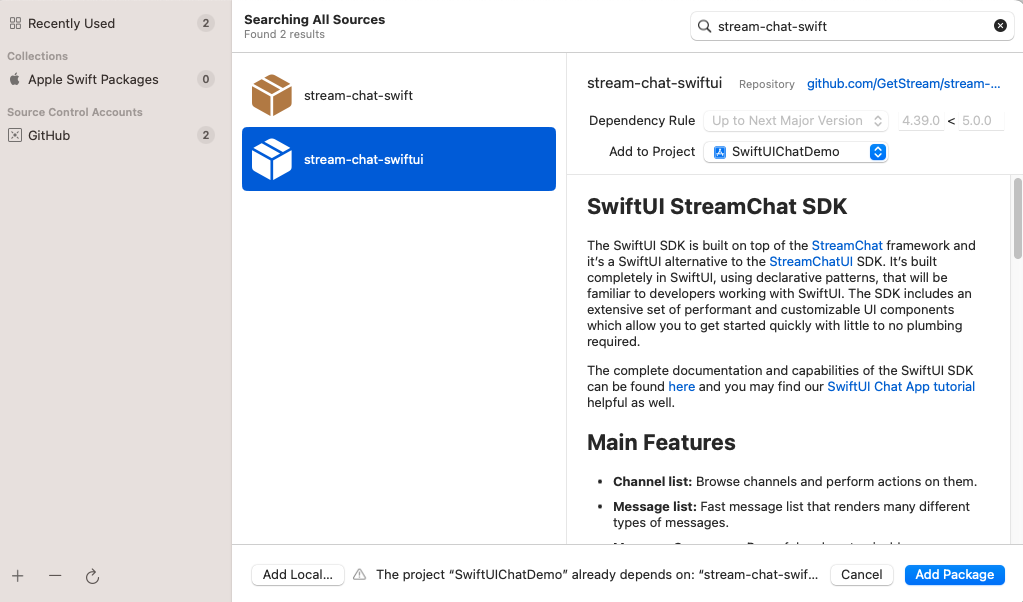

Open your project in Xcode and add the packages through File ▸ Add Package Dependencies.... Select the following versions when adding the SDKs:

Package	URL	Version
Stream Chat SwiftUI	`https://github.com/GetStream/stream-chat-swiftui`	`4.93.0`
Stream Chat AI	`https://github.com/GetStream/stream-chat-swift-ai.git`	`0.4.0`

2. Set Up Stream Chat

Create the SwiftUI App entry point (AIComponentsApp.swift) and bootstrap ChatClient, StreamChat, and the Stream Chat SwiftUI environment:

swift

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
import SwiftUI
import StreamChat
import StreamChatSwiftUI

@main
struct AIComponentsApp: App {
    @State var streamChat: StreamChat

    var chatClient: ChatClient = {
        var config = ChatClientConfig(apiKey: .init("YOUR_STREAM_API_KEY"))
        config.isLocalStorageEnabled = true
        config.applicationGroupIdentifier = "group.your.bundle.chat"

        return ChatClient(config: config)
    }()

    init() {
        let messageListConfig = MessageListConfig(
            messageDisplayOptions: .init(
                showAvatars: false,
                showAvatarsInGroups: false,
                showMessageDate: false,
                showAuthorName: false,
                spacerWidth: { _ in 0 }
            ),
            skipEditedMessageLabel: { $0.extraData["ai_generated"]?.boolValue == true }
        )

        let utils = Utils(
            messageTypeResolver: CustomMessageResolver(),
            messageListConfig: messageListConfig
        )

        _streamChat = State(initialValue: StreamChat(chatClient: chatClient, utils: utils))

        chatClient.connectUser(
            userInfo: UserInfo(
                id: "anakin_skywalker",
                imageURL: URL(string: "<https://example.com/avatar.png>")
            ),
            token: try! Token(rawValue: "USER_TOKEN_FROM_YOUR_BACKEND")
        )
    }

    var body: some Scene {
        WindowGroup {
            ContentView()
        }
    }
}

Get started! Activate your free Stream account today and start prototyping your chat app.

Key points:

ChatClientConfig must contain your Stream API key. Turn on local storage and specify an app group if you want share extensions.
StreamChat injects SDK utilities into the SwiftUI environment; the sample provides a CustomMessageResolver so AI generated content renders as custom attachments.
connectUser has to be called with a user token created on your server.

3. Build the AI Agent Service Layer

AgentService.swift centralizes all calls to your Stream Chat AI proxy. It uses StreamChatAI's request/response models plus Model Context Protocol (MCP) helpers:

swift

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
class AgentService {
    static let shared = AgentService()

    private let baseURL = "<http://localhost:3000>"

    private let jsonEncoder = JSONEncoder()
    private let jsonDecoder = JSONDecoder()

    private let urlSession = URLSession.shared

    func setupAgent(channelId: String, model: String? = nil) async throws {
        try await executePostRequest(
            body: AIAgentRequest(channelId: channelId, model: model),
            endpoint: "start-ai-agent"
        )
    }

    func stopAgent(channelId: String) async throws {
        try await executePostRequest(
            body: AIAgentRequest(channelId: channelId, model: nil),
            endpoint: "stop-ai-agent"
        )
    }

    func registerTools(channelId: String, tools: [ToolRegistrationPayload]) async throws {
        guard !tools.isEmpty else { return }
        try await executePostRequest(
            body: ToolRegistrationRequest(channelId: channelId, tools: tools),
            endpoint: "register-tools"
        )
    }

    func summarize(text: String, platform: String, model: String? = nil) async throws -> String {
        let data = try await executePostRequestWithResponse(
            body: AgentSummaryRequest(text: text, platform: platform, model: model),
            endpoint: "summarize"
        )

        let response = try jsonDecoder.decode(AgentSummaryResponse.self, from: data)
        return response.summary
    }

    private func executePostRequest<RequestBody: Encodable>(body: RequestBody, endpoint: String) async throws {
        _ = try await executePostRequestWithResponse(body: body, endpoint: endpoint)
    }

    private func executePostRequestWithResponse<RequestBody: Encodable>(body: RequestBody, endpoint: String) async throws -> Data {
        let url = URL(string: "\\(baseURL)/\\(endpoint)")!
        var request = URLRequest(url: url)
        request.httpMethod = "POST"
        request.setValue("application/json", forHTTPHeaderField: "Content-Type")
        request.httpBody = try jsonEncoder.encode(body)
        let (data, _) = try await urlSession.data(for: request)
        return data
    }
}

The complete implementation of this service, along with the required helper methods and request/response payloads can be found here.

Each chat channel kicks off its own AI agent (/start-ai-agent), optionally registers client tools, and can request message summaries for conversation titles. You should update the baseURL to your deployed backend service when you are ready to test and ship.

4. Integration with Stream Chat SwiftUI

Next, let's build some UI and integrate it with Stream Chat's SwiftUI SDK. The SDK works seamlessly with the AI components, enabling you to build AI assistants quickly.

We will create a new view factory, that will implement the ViewFactory protocol:

swift

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
import SwiftUI
import StreamChat
import StreamChatAI
import StreamChatSwiftUI

class AIComponentsViewFactory: ViewFactory {

    @Injected(\\.chatClient) var chatClient: ChatClient

    private let actionHandler = ClientToolActionHandler.shared
    var typingIndicatorHandler: TypingIndicatorHandler!

    private init() {}

    static let shared = AIComponentsViewFactory()

    @ViewBuilder
    func makeCustomAttachmentViewType(
        for message: ChatMessage,
        isFirst: Bool,
        availableWidth: CGFloat,
        scrolledId: Binding<String?>
    ) -> some View {
        let isGenerating = message.extraData["generating"]?.boolValue == true
        StreamingMessageView(
            content: message.text,
            isGenerating: isGenerating
        )
        .padding()
    }

    func makeMessageListContainerModifier() -> some ViewModifier {
        CustomMessageListContainerModifier(typingIndicatorHandler: typingIndicatorHandler)
    }

    func makeEmptyMessagesView(
        for channel: ChatChannel,
        colors: ColorPalette
    ) -> some View {
        AIAgentOverlayView(typingIndicatorHandler: typingIndicatorHandler)
    }
}

First, we are implementing a method that allows us to specify custom attachments - the makeCustomAttachmentViewType method, where we return the StreamingMessageView from the AI components.

Next, we're creating a custom message list container modifier, where we set the thinking indicator as an overlay:

swift

1
2
3
4
5
6
7
8
9
10
struct CustomMessageListContainerModifier: ViewModifier {

    @ObservedObject var typingIndicatorHandler: TypingIndicatorHandler

    func body(content: Content) -> some View {
        content.overlay {
            AIAgentOverlayView(typingIndicatorHandler: typingIndicatorHandler)
        }
    }
}

We do something similar for the makeEmptyMessagesView, which is called when there are no messages in the message list.

The AIAgentOverlayView handles the display of the thinking indicator, and shows the AITypingIndicatorView from the AI components SDK:

swift

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
struct AIAgentOverlayView: View {

    @ObservedObject var typingIndicatorHandler: TypingIndicatorHandler

    var body: some View {
        VStack {
            Spacer()
            if typingIndicatorHandler.typingIndicatorShown {
                HStack {
                    AITypingIndicatorView(text: typingIndicatorHandler.state)
                    Spacer()
                }
                .padding()
                .frame(height: 60)
                .background(Color(UIColor.secondarySystemBackground))
            }
        }
    }
}

The TypingIndicatorHandler is a helper class that listens to events from Stream Chat. You can find its complete implementation here.

5. Build the Conversation UI

Building the Conversation UI is quite straightforward with the available components from the Stream Chat SwiftUI SDK and the AI components.

You can find all the implementation details here.

swift

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
var body: some View {
    NavigationStack {
        SidebarView(
            isOpen: $isSplitOpen,
            excludedBottomHeight: composerHeight,
            menu: {
                ConversationListView(
                    onChannelSelected: handleChannelSelection,
                    onNewChat: handleNewChatRequest
                )
            },
            content: {
                mainConversation()
            }
        )
    }
}

At the root of the navigation stack, we use the SidebarView from the AI components, that lets you build side menu and main content with few lines of code.

The ConversationListView handles the conversation history and allows you to start new chats:

swift

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
import SwiftUI
import StreamChat
import StreamChatAI
import StreamChatSwiftUI

struct ConversationListView: View {

    @StateObject private var viewModel = ChatChannelListViewModel()
    var onChannelSelected: (ChatChannel) -> Void
    var onNewChat: () -> Void

    var body: some View {
        ScrollView {
            LazyVStack {
                HStack {
                    Text("Conversations")
                        .font(.headline)

                    Spacer()

                    Button(action: onNewChat) {
                        Image(systemName: "plus.circle.fill")
                            .font(.title3)
                            .foregroundColor(.accentColor)
                    }
                    .accessibilityLabel("New chat")
                    .buttonStyle(.plain)
                }
                .padding()

                ForEach(viewModel.channels) { channel in
                    HStack {
                        Text(channel.name ?? channel.id)
                            .multilineTextAlignment(.leading)
                            .lineLimit(1)
                        Spacer()
                    }
                    .padding(.horizontal)
                    .padding(.vertical, 4)
                    .contentShape(Rectangle())
                    .onTapGesture {
                        onChannelSelected(channel)
                    }
                    .onAppear {
                        if let index = viewModel.channels.firstIndex(of: channel) {
                            viewModel.checkForChannels(index: index)
                        }
                    }
                }
            }
        }
        .padding(.top, 40)
    }
}

The mainConversation view shows the actual AI chat experience.

swift

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
private func mainConversation() -> some View {
        VStack(spacing: 0) {
            ZStack(alignment: .leading) {
                if showMessageList, let channelController {
                    ConversationView(
                        channelController: channelController
                    )
                    .id(channelController.cid)
                } else {
                    VStack {
                        Spacer()
                        SuggestionsView(suggestions: predefinedOptions) { messageData in
                            sendMessage(messageData)
                        }
                    }
                    .onChange(of: viewModel.text) { oldValue, newValue in
                        // already create the channel for faster reply.
                        if viewModel.text.count > 5 {
                            setupChannel()
                        }
                    }
                }
            }
            .frame(maxWidth: .infinity, maxHeight: .infinity)
            .contentShape(Rectangle())

            ComposerView(
                viewModel: viewModel,
                isGenerating: typingIndicatorHandler.generatingMessageId != nil,
                onMessageSend: { messageData in
                    sendMessage(messageData)
                },
                onStopGenerating: {
                    stopGenerating()
                }
            )
        }
    }

The ConversationView uses the message list from our SwiftUI SDK:

swift

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
struct ConversationView: View {
    let channelController: ChatChannelController
    @StateObject private var viewModel: ChatChannelViewModel

    init(channelController: ChatChannelController) {
        self.channelController = channelController
        _viewModel = StateObject(wrappedValue: ChatChannelViewModel(channelController: channelController))
    }

    var body: some View {
        if let channel = viewModel.channel {
            MessageListView(
                factory: AIComponentsViewFactory.shared,
                channel: channel,
                viewModel: viewModel,
                onLongPress: { _ in }
            )
        } else {
            ProgressView()
        }
    }
}

We're also using the ComposerView from the AI components SDK.

6. Register client tools and surface their actions

With the help of Stream Chat AI, you can handle native "client tools" coming from your LLM through custom events. For this, you can use our server-side SDKs that integrate with Vercel's AI SDK and Langchain, or build your own.

The iOS sample sets up a registry and a global action handler:

Implements a tool action handler (ClientToolActionHandler.swift) that conforms to ClientToolActionHandling, stores alerts, and executes tool-provided closures on the main thread.

swift

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
import Combine
import Foundation
import StreamChatAI

final class ClientToolActionHandler: ObservableObject, ClientToolActionHandling {
    static let shared = ClientToolActionHandler()

    @Published var presentedAlert: ClientToolAlert?

    private init() {}

    func handle(_ actions: [ClientToolAction]) {
        actions.forEach { action in
            action()
        }
    }

    func presentAlert(_ alert: ClientToolAlert) {
        presentedAlert = alert
    }
}

struct ClientToolAlert: Identifiable {
    let id = UUID()
    let title: String
    let message: String
}

Define your tools (StreamChatClientTools.swift). The included GreetClientTool exposes a greetUser tool with a tiny JSON schema and responds by showing a SwiftUI alert.

swift

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
@MainActor
final class GreetClientTool: ClientTool {
    let toolDefinition: Tool = {
        let schema: Value = .object([
            "type": .string("object"),
            "properties": .object([:]),
            "required": .array([]),
            "additionalProperties": .bool(false)
        ])

        return Tool(
            name: "greetUser",
            description: "Display a native greeting to the user",
            inputSchema: schema,
            annotations: .init(title: "Greet user")
        )
    }()

    let instructions =
        "Use the greetUser tool when the user asks to be greeted. The tool shows a greeting alert in the iOS app."

    let showExternalSourcesIndicator = false

    func handleInvocation(_ invocation: ClientToolInvocation) -> [ClientToolAction] {
        [
            {
                ClientToolActionHandler.shared.presentAlert(
                    ClientToolAlert(
                        title: "Greetings!",
                        message: "👋 Hello there! The assistant asked me to greet you."
                    )
                )
            }
        ]
    }
}

You can find the complete implementation of the client-side tool handling mechanism here.

To make this work, we listen for custom_client_tool_invocation events and translate them into tool invocations. TypingIndicatorHandler does this by checking each event payload, constructing a ClientToolInvocation, and passing it through a ClientToolRegistry.

This gives your AI agent the ability to ask the client to run arbitrary UX-side actions such as surfacing alerts, opening screens, or fetching files.

To register a tool, you need to add it to the client tool registry:

swift

1
2
let registry = ClientToolRegistry()
registry.register(tool: GreetClientTool())

Conclusion

In this tutorial, you learned how to build a complete AI-powered chat experience by combining Stream Chat, the Stream Chat AI SDK, and a customizable Node.js backend.

We set up an AI agent capable of generating responses, streaming typing indicators, and triggering client-side tools, then integrated it into an iOS app using Stream's SwiftUI components for a polished, real-time chat interface.

With a few endpoints, a lightweight service layer, and fully customizable UI, you now have a foundation for creating rich conversational AI experiences on iOS using any LLM provider you prefer.

Build an AI Assistant for iOS Using Swift

Running the Backend

1. Install Dependencies

2. Configure Stream Credentials

3. Bootstrap Express and the AgentManager

4. Starting an Agent

5. Stopping an Agent

6. Register Client Side Tools

7. Start the Server

iOS Integration

1. Add the Required Swift Packages

2. Set Up Stream Chat

3. Build the AI Agent Service Layer

4. Integration with Stream Chat SwiftUI

5. Build the Conversation UI

6. Register client tools and surface their actions

Conclusion
