Stream Flutter: Building a Social Network with Stream Activity Feeds and Flutter

In this post, we'll be creating a simple social network, called Stream Flutter, that allows a user to post messages to followers.

The app will allow a user to post a message to their followers. Stream's Activity Feed API combined with Google's Flutter makes it straightforward to build this sort of complex interaction. All source code for this application is available on GitHub. This application is fully functional on both iOS and Android.

For brevity, when we need to drop down to native code, we'll only focus on Android. You can find the corresponding iOS code to see how things are implemented. To keep things focused, we'll be showing the more important code snippets to get the idea of each piece across.

Often there is context around those code snippets which are important, such as layout or navigation. Please refer to the full source if you're confused on how something works, or how we got to a screen. Each snippet will be accompanied by a comment explaining which file and line it came from.

Building Stream Flutter: Activity Feeds

To build our social network we'll need both a backend and a mobile application. Most of the work is done in the mobile application, but we need the backend to securely create frontend tokens for interacting with the Stream API.

For the backend, we'll rely on Express (Node.js) leveraging Stream's JavaScript library.

For the frontend, we'll build it with Flutter wrapping Stream's Java and Swift libraries.

  • User types their name into our mobile application to log in.
  • The mobile app registers user with our backend and receives a Stream Activity Feed frontend token.
  • User types in their message and hits "Post". The mobile app uses the Stream token to create a Stream activity by using Flutter's platform channels to connect to Stream's REST API via Java or Swift.
  • User views their posts. The mobile app does this by retrieving its user feed via Stream.

If another user wants to follow a user and view their messages, the app goes through this process:

  • Log in (see above).
  • User navigates to the user list and selects a user to follow. The mobile app communicates with Stream API directly to create a follower relationship on their timeline feed.
  • User views their timeline. The mobile app uses Stream API to retrieve their timeline feed, which is composed of all the messages from who they follow.

The code is split between the Flutter mobile application contained in the mobbile directory and the Express backend is in the backend directory. See the README.md in each folder to see installing and running instructions. If you'd like to follow along with running code, make sure you get both the backend and mobile app running before continuing.

Prerequisites

Basic knowledge of Node.js (JavaScript) and Flutter (Dart) is required to follow this tutorial. This code is intended to run locally on your machine.

If you'd like to follow along, you'll need an account with Stream. Please make sure you can run a Flutter app, at least on Android. If you haven't done so, make sure you have Flutter installed. If you're having issues building this project, please check if you can create run a simple application by following the instructions here.

Once you have an account with Stream, you need to set up a development app:

Once you have an account with Stream, you need to set up a development app:

You'll need to add the credentials from the Stream app to the source code for it to work. See both the mobile and backend readmes.

Let's get to building!

User Posts a Status Update

We'll start by allowing a user to post messages.

Step 1: Login

In order to communicate with the Stream API, we need a secure frontend token that allows our mobile application to authenticate with Stream directly. This avoids having to proxy through the backend. To do this, we'll need a backend endpoint that uses our Stream account secrets to generate this token. Once we have this token, we don't need the backend to do anything else, since the mobile app has access to the full Stream API.

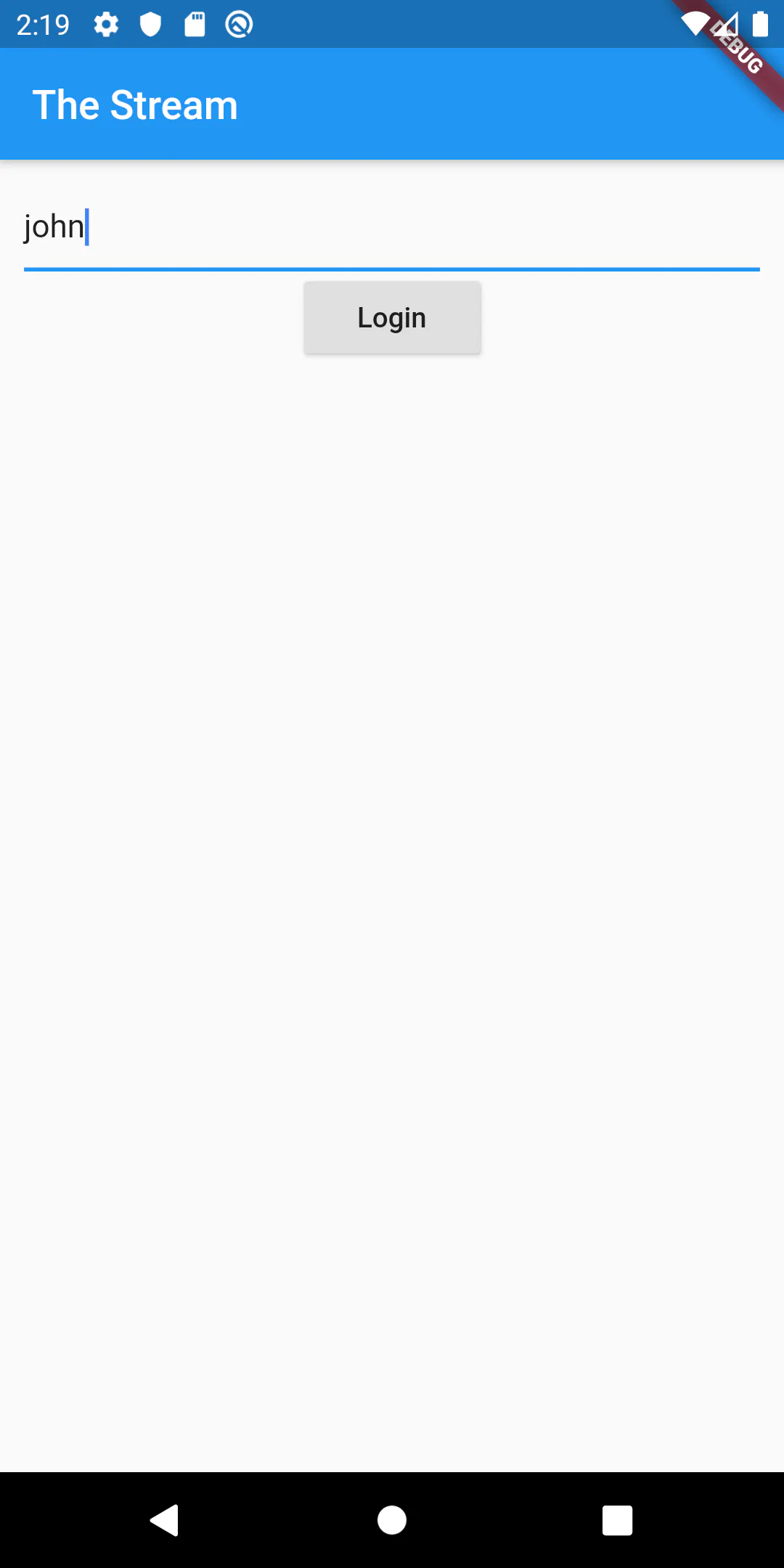

First, we'll be building the login screen which looks like:

To start let's layout our form in Flutter. In our main.dart file, we'll create a simple check to see if we're logged in, and if we don't have one, show the user a login form:

The _account variable is as simple Map<String, String> object which will contain the the backend authToken and a Stream feedToken. The authToken is used to make further requests the the backend, which we'll use later to retrieve a list of users. The feedToken is the Stream frontend token which allows access to the Stream API.

To set the _account variable, we'll take the string typed in by the user once they've pressed "Login" and pass it to the ApiService to perform our authentication. Here's our _login(..) function:

We use the user's typed in name to get our credentials from the backend and store it in our _account variable. This is two calls, one to get our backend authentication token and the other to get our Stream API token. To do this, let's look at our implementation of ApiService#login:

Two things happen here. First, we register a user with the backend and get an authToken. Using this authToken we ask the backend to create our Stream Activity Feed frontend token.

The user registration endpoint in the backend simply stores the user in memory and generates a simple token for auth. This is not a real implementation and should be replaced by however authentication and user management works for your application. Because of this, we won't go into detail here (please refer to the source code if you're interested).

To generate our Stream token, let's look at what the backend is doing to generate that:

This code uses our secret account credentials to create a Stream user and register the user's name. the getOrCreate call creates the user with a name (or simply retrieves that user if we already registered them). Once we've created the user, we return the necessary credentials to the mobile app.

Once we're logged in, we're ready to post our first message!

Step 2: Posting a Message

Now we'll build the form to post a status message to our Stream activity feed. We won't dive into navigation and layout in this tutorial. Please refer to the source if you're curious about how we get to this screen. We'll need to build a form that takes what the user wants to say to their followers and submit that to Stream.

First, the form:

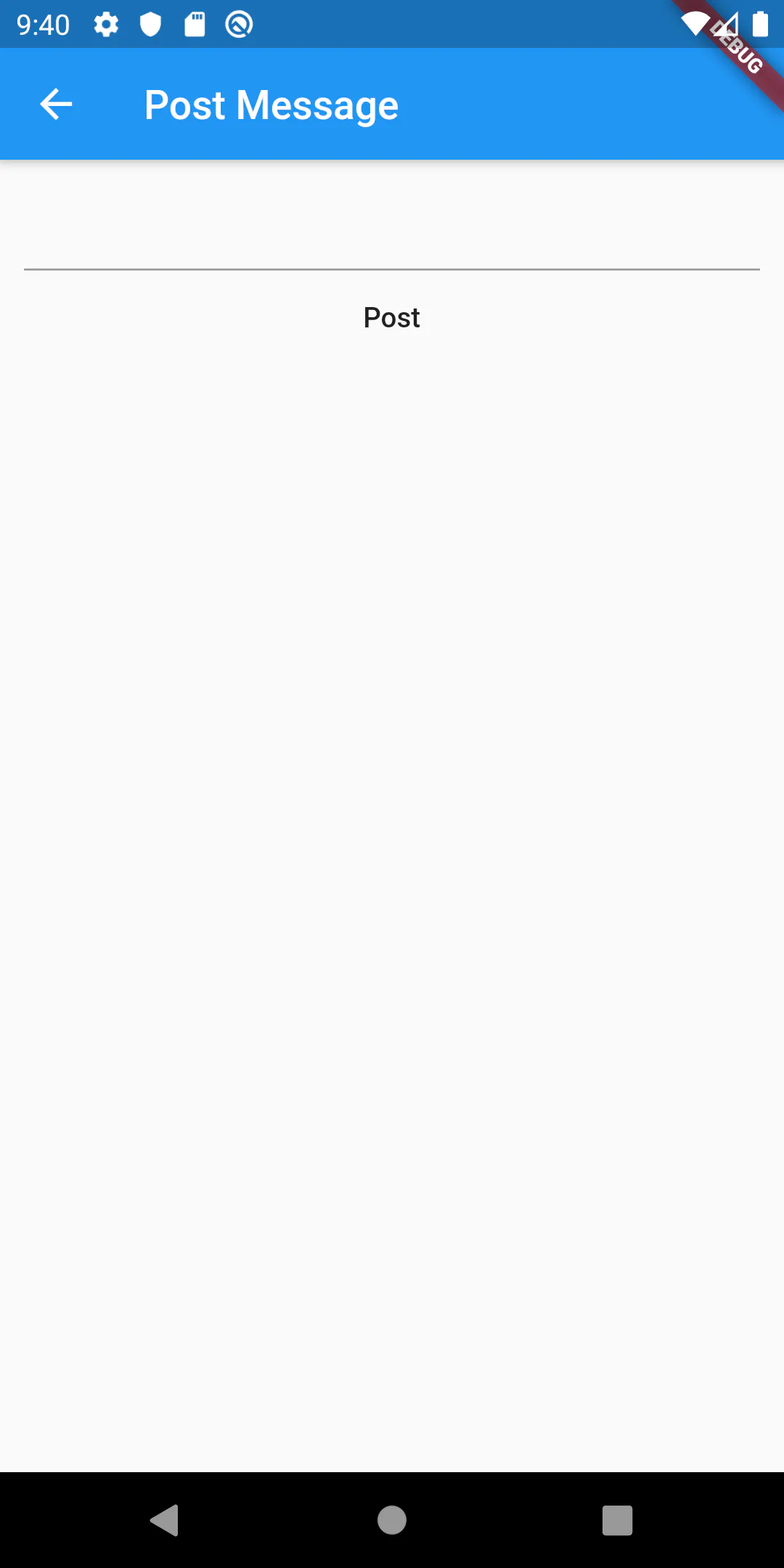

Which will produce a flutter view that looks like this:

This is a straightforward Flutter widget, which uses a TextEditingController to track a user's input and uses a MaterialButton to trigger the post.

Now let's look at the implementation of _postMessage which is how we create the activity, with our message, in Stream:

We simply take the the typed in text and pass it to our ApiService and pop the navigation stack to return to the previous screen. Here is the implementation of ApiService#postMessage:

Since we're going to leverage the Streams' Java library (and Swift on iOS), we make a call to the native implementation via Flutter's built in Platform Channels. We won't go into detail on how this call happens, so either refer to the source code, or read up on Flutter's docs how to do this. Here is the Kotlin implementation (the iOS implementation is available in the source):

Here we use Stream Java's CloudClient from the Cloud package. This set of classes take our frontend token which allows the mobile app to communicate directly with Stream. We are authenticated only to post activities for the actor SU:john. Since we aren't storing a corresponding object in a database, we generate an id to keep each post unique. We also pass along a message payload which is what our followers will see.

You may be wondering what the client.flatFeed("user") is referring to. In order for this to work, we need to set up a flat feed called "user" in Stream. This is where every user's feed, which only contains their messages will be stored.

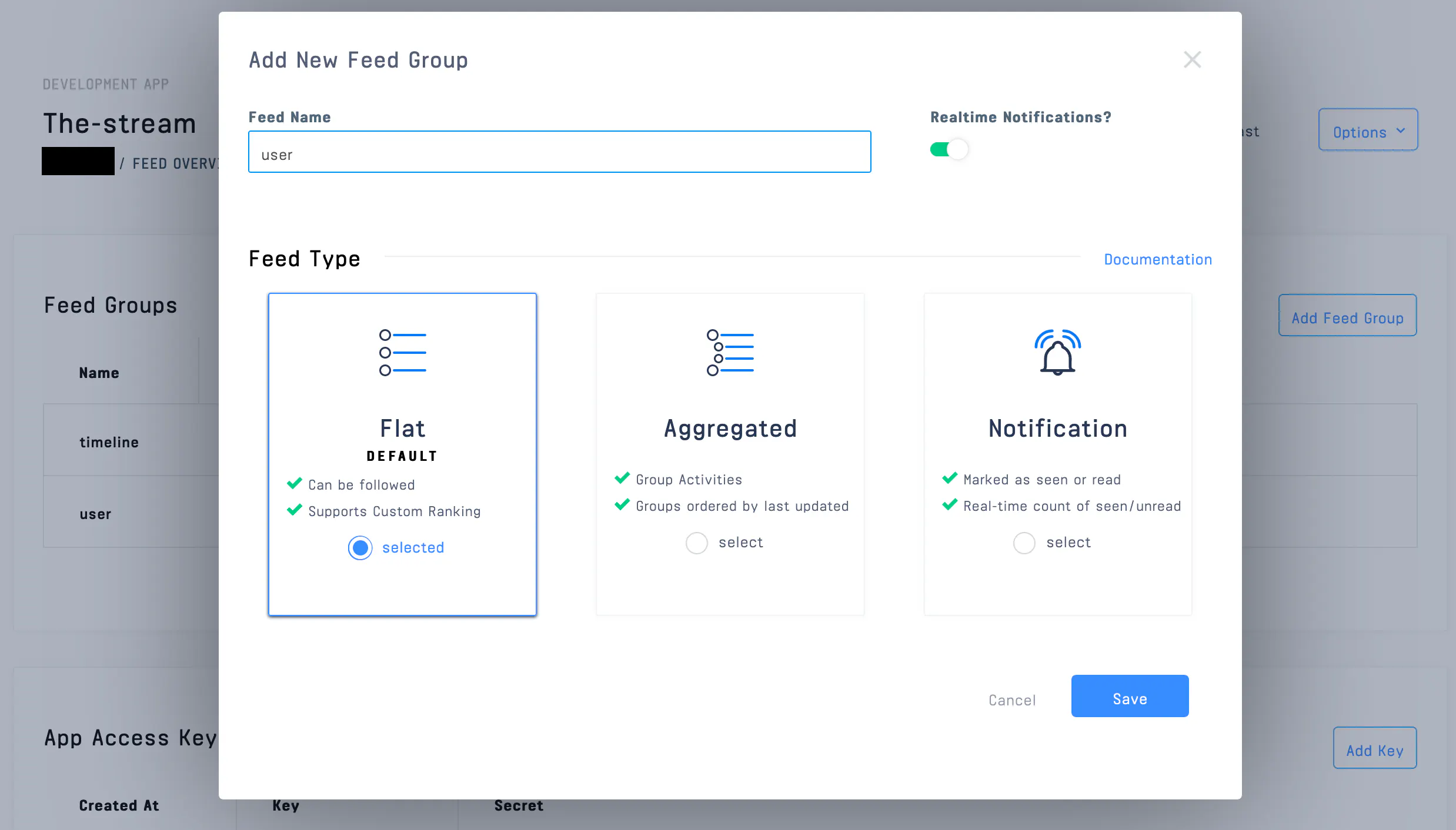

Inside of your Stream development app create a flat feed called "user":

That's all we need for Stream to store our messages. Once all of these functions return we pop the Navigator to return to the user's profile screen which will display our posted messages. We'll build this next.

Step 3: Displaying Messages on our Profile

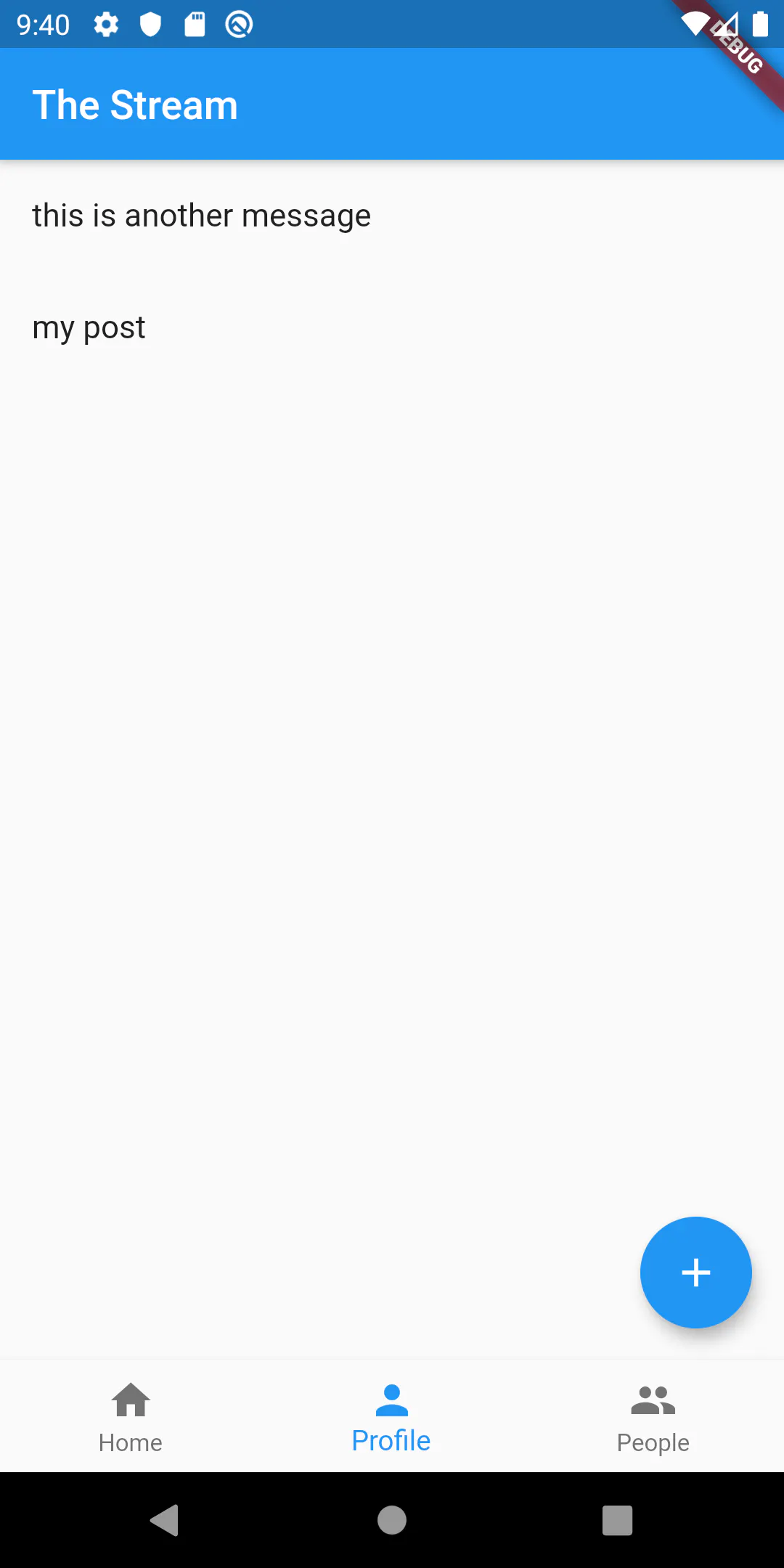

Let's first build a Flutter widget that will contain the user's messages. Here is what the screen will look like:

And here is the code:

We're using a FutureBuilder to asynchronously load our activities. We won't go into this pattern here so please refer to the docs or The Boring Flutter Development Show to understand how this works. We also use a simple RefreshIndicator to implement pull to refresh. Putting these two built-in widgets together allows us to show a user's messages and refresh them when they post a new message.

The Stream specific code happens with our _activities variable. In order to get a user's activities (which contain our messages) we once again call to our ApiService:

Our ApiService#getActivities calls into native code to perform the work:

In Kotlin, we use the CloudClient to ask for the user's flat feed and get the last 25 messages (activities):

Next we'll see how to follow multiple user's via a timeline feed.

User Timeline

Now that users can post messages, we'd like to follow a few and see a combined feed of all the messages for users we follow.

Step 1: Follow a User

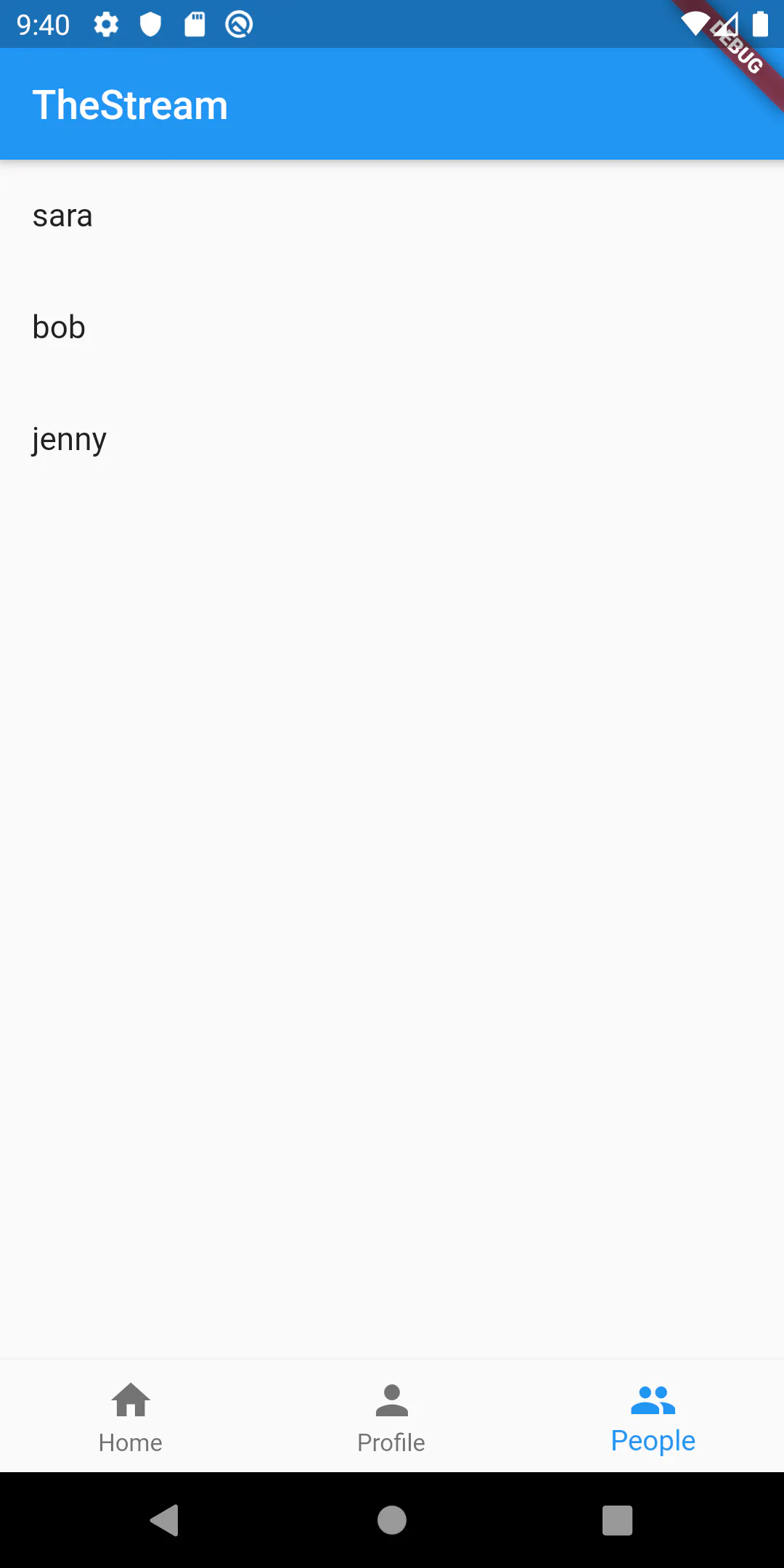

The first thing we need to do is view a list of users and pick a few to follow. We'll start by creating a view that shows all the users and lets a user follow a few. Here is the screen that shows all the users:

And here's the code that backs it:

This widget follows the same pattern as the profile by using a FutureBuilder backed by users. The users variable is backed simply a call to our backend service. Since the backend is not a real implementation, we'll skip the details of how the backend stores and retrieves users here. Please refer to the source. In Flutter we simply make a http call to retrieve the list, as seen in ApiService#users:

The interesting parts are when we click a user. We show a Flutter dialog via showDialog which contains a single button that allows us to follow. When we press that button we trigger ApiService#follow. We can see how, once again, we're leveraging native libraries to do the work of following a user. Here is the Flutter side:

And here is the native Kotlin side using the CloudClient:

Here we're adding a follow relationship to another user's user feed to this user's timeline feed. All this means is anytime a user posts to their user feed (implemented in the first part) we'll see it on our timeline feed. The cool part is, we can add any number of users feeds to our timeline feed and Stream will return a well-ordered list of activities.

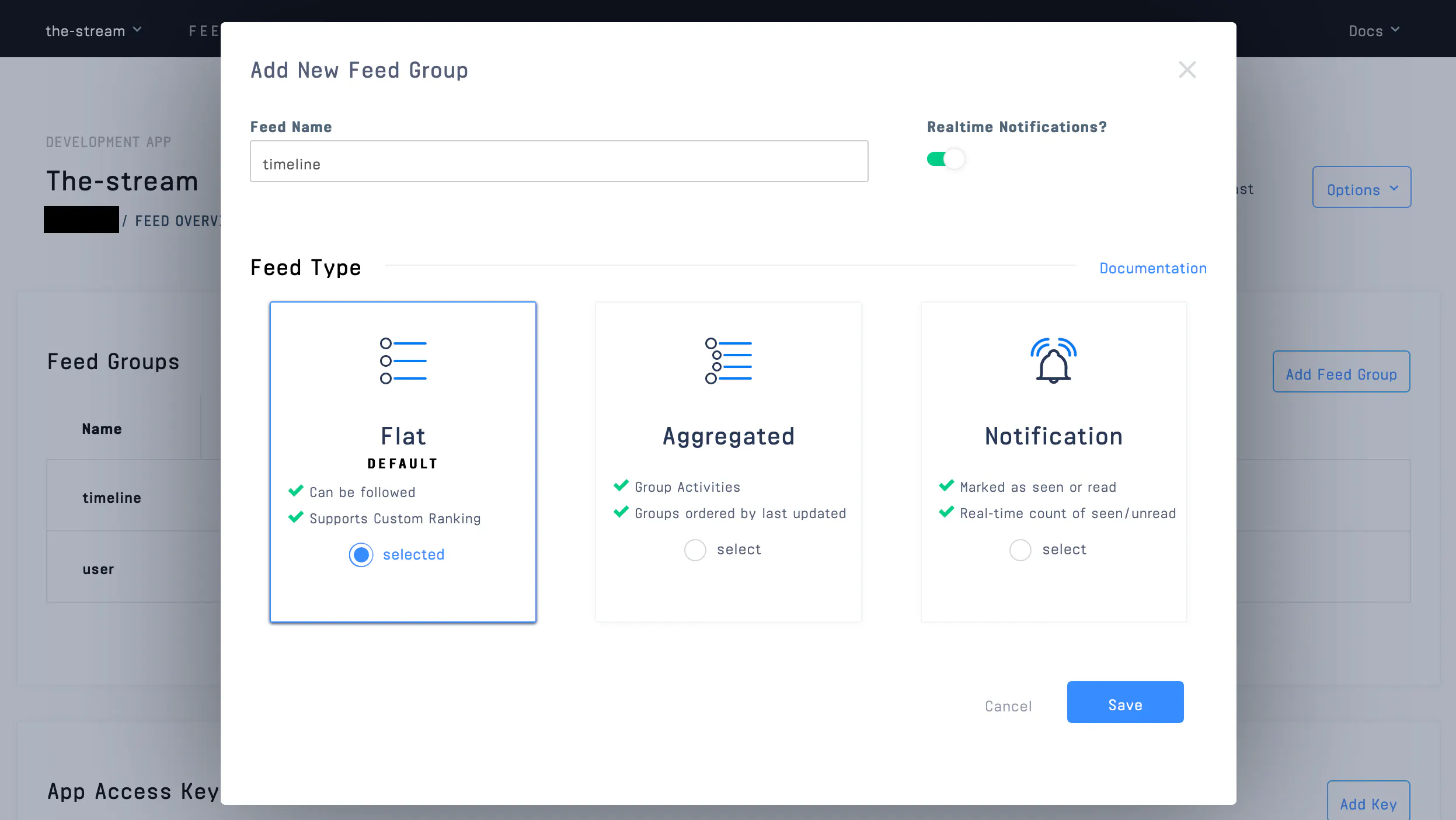

Since we have a new feed type, we need to set this up in Stream. Just like the user feed, navigate to the Stream app you set up and create a flat feed group called timeline:

Step 2: View Timeline

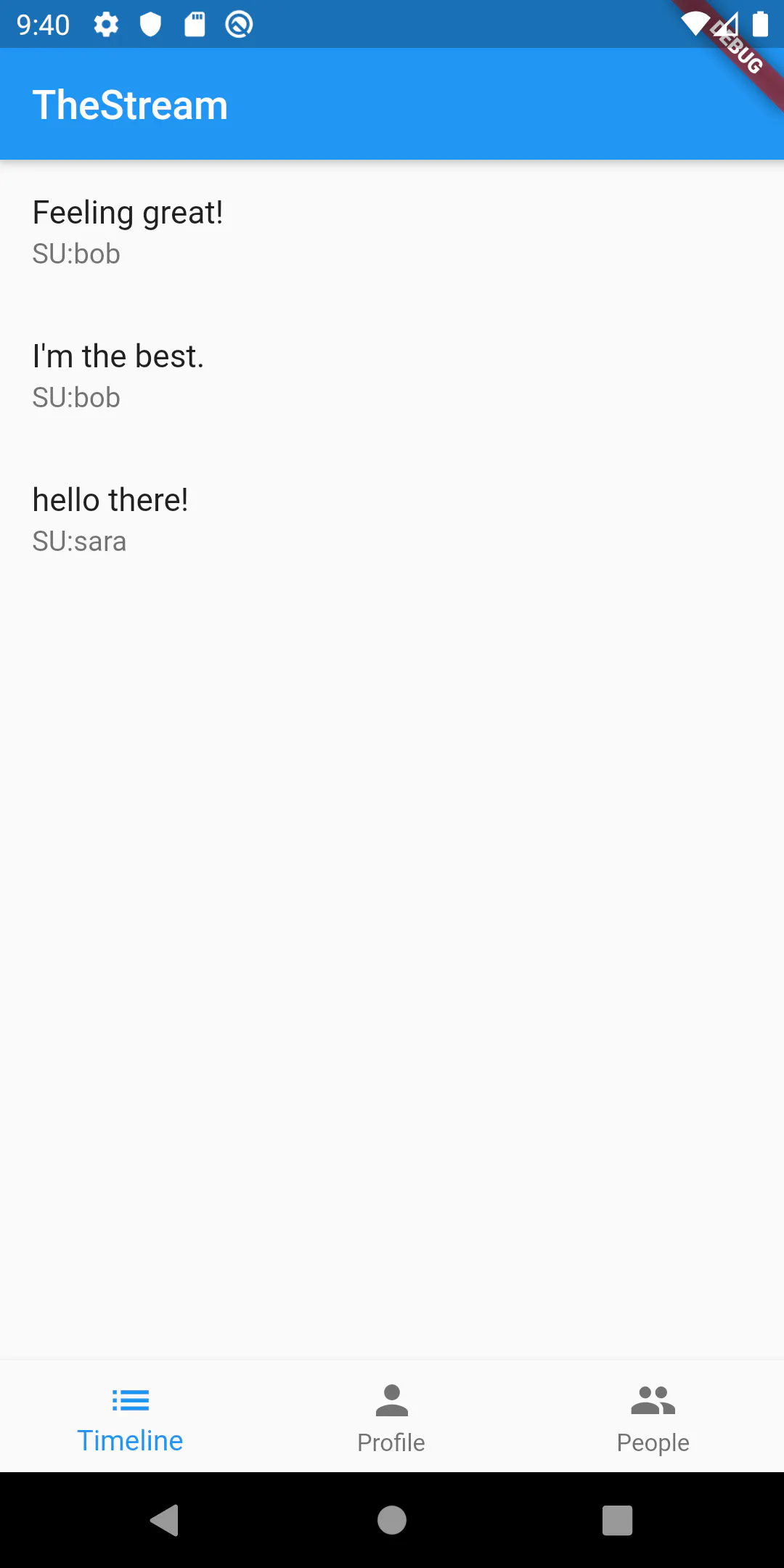

Now that we have a way to follow users we can view our timeline. When we're done, assuming we've followed "bob" and "sara" we'll see a screen that looks like this:

Let's look at the code to display our timeline:

This looks identical to our Profile widget using both FutureBuilder and RefreshIndicator backed by a future _activities. Since the timeline is just a feed like user, the code is identical to how we got our user's messages. First we call ApiService#getTimeline which is simple a call to our native code:

And here's the corresponding native code:

And that's it! We now have a fully functioning mini social network.

Final Thoughts

Flutter and Stream make it straightforward to build a cross-platform mobile application leveraging activity feeds. Both come with a ton of functionality out of the box. If you're looking for an alternative to React Native, Flutter is a great choice. Calling native code is simple with platform channels, which allows us to use all the great libraries Stream has provided us.
