Replies and threads

What users get

Any message can start a thread: a conversation of replies under it, shown in its own panel. Users also get a thread list with every thread they take part in, and can send a reply to the channel as well.

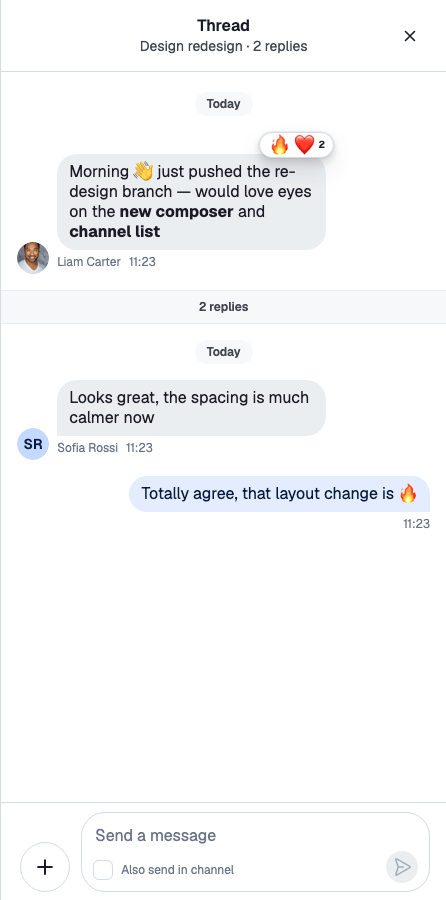

A thread panel: the header, the parent message, the reply count, a reply and the composer

Starting and opening a thread. The reply button on a message, or Thread Reply in its menu, opens the message's thread. A message with replies shows a reply count button with the avatars of the people who replied.
The thread panel. The header shows "Thread", the channel's name and the number of replies, and who is typing. The parent message sits at the top, followed by a reply count divider, the replies and a composer.
Also sending to the channel. The thread's composer has an "Also send in channel" checkbox ("Also send as a direct message" in a one-to-one channel). Such a reply shows "Also sent in channel · View" in the thread, and "Replied to a thread · View" in the channel. View jumps to the other copy.
The thread list. A list of the user's threads, each with its parent message, latest reply and unread count. When threads that aren't in the list get new replies, a banner offers to reload it. With ChatView, the threads button shows the number of unread threads.

How it works across the layers

State: a thread and its replies

A thread is identified by its parent message: thread.id is the parent message's id. A reply is a message with a parent_id. With show_in_channel: true, it's also shown in the channel's message list.

There is one Thread instance per thread, shared by every component that shows it. client.threads.ensure({ channel, parentMessage }) returns the existing instance or creates one, and client.threads.get(id) looks one up. A Thread holds what a channel holds, for its replies:

thread.state: the parent message, the reply count, the participants, read state, and the flags isLoading and isStateStale;
thread.messagePaginator: the replies;
thread.messageComposer: the reply being written, with showReplyInChannel for the "Also send in channel" choice;
thread.messageOperations: sending, editing and deleting replies. Requests go through the thread's channel, so a thread uses its channel's request handlers.

A thread created from its parent message knows only that message. It starts stale when the parent has replies or its channel isn't watched, and Thread.reload() loads its replies, participants and read state. See Thread for what a thread holds and how unread threads are counted.

UI: the thread panel

Thread renders the thread passed as thread, and only its children. It gives the thread to the components inside it and loads the thread while its state is stale. Inside it:

ThreadHeader shows the title, the reply count and who is typing, with back and close buttons.
MessageList renders thread.messagePaginator, with the parent message on top (ThreadHead) and the reply count divider below it (ThreadStart).
MessageComposer drives thread.messageComposer and shows the "Also send in channel" checkbox.

Thread renders nothing until it knows the parent message, and nothing when replies are turned off for the channel.

With ChatView, ThreadSlot renders the thread in its slot: a Thread for it, around its children. The reply button and the Thread Reply action call openThread({ channel, message }) from useWorkspaceNavigation(), and ChatView puts the thread in a thread slot. The Quick start builds this layout. Every way of opening a thread, and the View links of replies sent to the channel, are on Moving between channels, threads and messages.

The thread's message list marks it read when the user reaches its latest reply; see Read state, unread and receipts.

The thread list

The thread list is client.threads, the thread manager:

client.threads.paginator holds the user's threads. Each page loads 25 threads, with up to 10 participants and the latest 10 replies of each.
client.threads.state holds unreadThreadCount, unseenThreadIds and isThreadOrderStale.

ThreadList renders the paginator's threads, one ThreadListItem per thread, and loads the next page when the user scrolls to the end. When it mounts, it reloads the list. While the page is visible, it keeps the thread manager active. Each activation, such as coming back to the tab, reloads the list when it's stale or has unseen threads.

Chat starts the thread manager's event handling, so unreadThreadCount stays current even while no thread list is on screen.

Order

The list is in the order the server returns. The client doesn't sort it. A thread that gets a new reply updates its row in place, without moving.

New threads

When a thread gets a reply (notification.thread_message_new), the thread manager doesn't insert or move anything:

If the thread is in the list, it sets isThreadOrderStale, because the server might now order the list differently.
If it isn't, it adds the thread's id to unseenThreadIds. ThreadListUnseenThreadsBanner shows "N unread threads" while that list isn't empty.

Both start only once the first page has loaded.

Reloading the list

client.threads.reload() asks the server for the first page again, sized to the threads already loaded plus the unseen ones (up to one page), and replaces the list in server order. Then it clears unseenThreadIds and isThreadOrderStale.

Without force, it reloads only when the list is empty, stale or has unseen threads. Clicking the banner calls it this way.
client.threads.reload({ force: true }) always reloads. ThreadList calls it when it mounts.
After a reconnect, the thread manager reloads the list by itself, if it was ever activated.

The current threads stay on screen until the new page arrives. If the request fails, the list stays as it was and client.threads.paginator.lastQueryError holds the error.

Turning it on or off

Replies are on by default. Two settings must both allow them:

On the client: channel.replies.enabled in client.config.
On the server: the channel type's replies setting, in the dashboard. When the server turns replies off, the client can't turn them on.

client.config.set({ channel: { replies: { enabled: false } } });

Check channel.config.replies.enabled for the value in effect. When it's false, Thread renders nothing.

The send-reply capability decides who can reply. Without it, the message actions leave out the reply button and Thread Reply. The actions check only the capability, so when you turn replies off on the client, remove the reply actions too; see Actions.

Customizing

Composing the thread panel

Thread and ThreadSlot render their children, so the panel is whatever you put inside: your own header, a VirtualizedMessageList instead of MessageList, or extra content. See Thread UI.

Replacing the parent message area

ThreadHead renders the parent message, and ThreadStart the divider under it. Both are override keys. This divider names how many people replied:

import type { ThreadState } from "stream-chat";
import {
  useStateStore,
  useThreadContext,
  WithComponents,
} from "stream-chat-react";

const parentSelector = (state: ThreadState) => ({
  participants: state.participants,
  replyCount: state.replyCount,
});

const RepliesStart = () => {
  const thread = useThreadContext();
  const { participants, replyCount } =
    useStateStore(thread?.state, parentSelector) ?? {};

  if (!replyCount) return null;

  return (
    <div className="str-chat__thread-start">
      {replyCount} replies from {participants?.length ?? 0} people
    </div>
  );
};

export const App = () => (
  <WithComponents overrides={{ ThreadStart: RepliesStart }}>
    {/* the rest of the app */}
  </WithComponents>
);

Replacing a thread list row

ThreadListItemUI renders one row of the thread list. A replacement reads its thread with useThreadListItemContext() and opens it with openThread:

import type { ThreadState } from "stream-chat";
import {
  useChatContext,
  useStateStore,
  useThreadListItemContext,
  useWorkspaceNavigation,
  WithComponents,
} from "stream-chat-react";

const rowSelector = (state: ThreadState) => ({
  parentMessage: state.parentMessage,
  read: state.read,
  replyCount: state.replyCount,
});

const CompactThreadRow = () => {
  const thread = useThreadListItemContext();
  const { client } = useChatContext();
  const { isThreadActive, openThread } = useWorkspaceNavigation();
  const { parentMessage, read, replyCount } =
    useStateStore(thread?.state, rowSelector) ?? {};

  if (!thread || !parentMessage) return null;

  const unreadCount = read?.[client.userID ?? ""]?.unreadMessageCount ?? 0;

  return (
    <button
      aria-pressed={isThreadActive(thread.id)}
      className="compact-thread-row"
      onClick={() => openThread(thread)}
      type="button"
    >
      <span>{parentMessage.text}</span>
      <span>{replyCount} replies</span>
      {unreadCount > 0 && <strong>{unreadCount} new</strong>}
    </button>
  );
};

export const App = () => (
  <WithComponents overrides={{ ThreadListItemUI: CompactThreadRow }}>
    {/* the rest of the app */}
  </WithComponents>
);

ThreadListItem, ThreadListUnseenThreadsBanner, ThreadListEmptyPlaceholder and ThreadListLoadingIndicator are override keys too.

Threads without ChatView

Without a layout, openThread does nothing, so the reply button opens nothing. Provide your own navigation with WorkspaceNavigationProvider, keep the open thread in state, and render it with Thread:

import { useMemo, useState } from "react";
import { Thread as StreamThread } from "stream-chat";
import type { Channel as StreamChannel } from "stream-chat";
import {
  Channel,
  defaultWorkspaceNavigation,
  MessageComposer,
  MessageList,
  Thread,
  ThreadHeader,
  useChatContext,
  WorkspaceNavigationProvider,
} from "stream-chat-react";
import type { WorkspaceNavigation } from "stream-chat-react";

export const ChannelWithThreads = ({ channel }: { channel: StreamChannel }) => {
  const { client } = useChatContext();
  const [thread, setThread] = useState<StreamThread>();

  const navigation = useMemo<WorkspaceNavigation>(
    () => ({
      ...defaultWorkspaceNavigation,
      closeThread: () => setThread(undefined),
      isThreadActive: (threadId) => threadId === thread?.id,
      isThreadDismissable: () => true,
      openThread: (target) =>
        setThread(
          target instanceof StreamThread
            ? target
            : client.threads.ensure({
                channel: target.channel,
                parentMessage: target.message,
              }),
        ),
      openThreads: thread ? [thread] : [],
    }),
    [client, thread],
  );

  return (
    <WorkspaceNavigationProvider value={navigation}>
      <Channel channel={channel}>
        <MessageList />
        <MessageComposer />
      </Channel>
      {thread && (
        <Thread thread={thread}>
          <ThreadHeader />
          <MessageList />
          <MessageComposer />
        </Thread>
      )}
    </WorkspaceNavigationProvider>
  );
};

client.threads.ensure() returns the one instance for the thread, so the list and the panel share it. The close button of ThreadHeader calls closeThread. See Providing your own navigation.

Showing the unread thread count

client.threads.state.unreadThreadCount holds the number of threads with unread replies. Read it with useStateStore, as the example in What's new in v15 does.

Reference

State: What channels and threads hold, Message paginators and Thread and thread manager.
UI: Thread UI, Moving between channels, threads and messages and Workspace with ChatView.
Props: Thread, ThreadList, ThreadListItem, ThreadContext and ChatView components for ThreadSlot and ThreadListSlot.
Hooks: Channel and thread hooks.
