Polls

A poll is a question with options that members of a channel vote on. This page covers creating a poll in the composer, how votes reach every client, and the components that render a poll in a message.

What users get

The user opens the attachment menu and picks Poll. A dialog asks for the question and the options, which they can drag to reorder. They can also allow more than one answer (with a maximum), hide who voted, let others suggest options, and let them add comments. They send, and the poll appears in the channel as a message.

Bob ticks an option. His vote shows at once, with the count next to each option and the avatars of the latest voters. As the poll's creator, the user sees End Poll. Everyone sees View Results once there are votes, and the actions the user allowed: Suggest an Option, Add a Comment and View Comments, which shows the number of comments (View 1 Comment). A poll with more than five options shows the first five and a button that opens the full list.

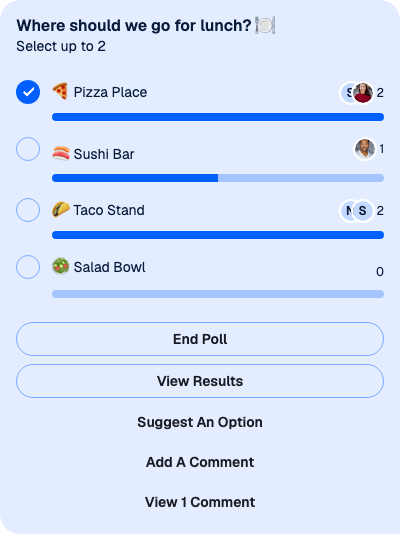

A poll message with votes, End Poll, View Results and the comment actions

How it works across the layers

  • State. The composer's pollComposer holds the poll being created. Once created, the poll is a Poll object kept in client.polls, one per poll, with its data in poll.state. The message only refers to it, through message.poll_id.
  • UI. AttachmentSelector opens PollCreationDialog. The default MessageUI renders Poll for every message with a poll, and Poll renders the question, the options and the actions.
  • Layout. Not involved.

Creating a poll

  1. Picking Poll in the attachment menu resets pollComposer and opens PollCreationDialog. Each field writes to pollComposer, which validates each field as the user types or leaves it: the question is required, options can't be empty or repeat each other, and the maximum number of answers is a number from 2 to 10.
  2. The send button is enabled when pollComposer.canCreatePoll is true.
  3. Sending calls MessageComposer.createPoll(), which creates the poll on the server through client.polls.createPoll() and sets the composer's pollId.
  4. Then MessageComposer.send() sends a message that carries only the poll. Text the user typed in the composer stays there for their next message.

MessageComposer.createPoll() publishes an api:poll:create:failed notification when the request fails, and nothing is sent. Message composer shows the same two steps in code.

Voting and keeping the poll current

client.polls keeps one Poll for each poll id. It fills from every loaded message that carries a poll, and from new ones as they arrive. Poll events (poll.updated, poll.closed, poll.vote_casted, poll.vote_changed, poll.vote_removed) update the matching Poll, so every message that shows it re-renders.

Bob's vote goes through Poll.castVote(optionId, messageId). It shows in poll.state before the server answers and is undone if the request fails. Poll.removeVote() and Poll.close() work the same way. When Bob has reached max_votes_allowed, Poll.castVote() publishes a notification instead of voting. What's optimistic and what isn't has the details.

poll.state holds the poll's data, such as vote_counts_by_option, and a few values derived from it: ownVotesByOptionId (Bob's votes), ownAnswer (his comment) and maxVotedOptionIds (the leading options). Read it from there, not from message.poll, which is only the copy that came with the message.

Rendering a poll

MessageUI reads the poll with client.polls.fromState(message.poll_id) and renders <Poll poll={poll} />. Poll provides PollContext and renders PollContent:

  • PollHeader: the question and how many options can be chosen.
  • PollOptionList: a PollOptionSelector for each option, with its vote count, a bar and the latest voters. It shows five options, and a button opens PollOptionsFullList, which lists all of them in a dialog.
  • PollActions: the buttons below the options and the dialogs they open: EndPollAlert, PollResults, SuggestPollOptionForm, AddCommentPrompt and PollAnswerList.

Each action shows only when it applies. End Poll is for the poll's creator while the poll is open. Voting and suggesting options need the cast-poll-vote capability and an open poll. View Comments needs query-poll-votes.

Turning it on or off

Polls are on by default. Two sides decide:

  • The client: messageComposer.polls.enabled, true by default.
  • The server: the channel type's polls setting. Creating a poll also needs the user's send-poll capability.

To turn poll creation off in every composer:

client.config.set({
  messageComposer: { polls: { enabled: false } },
});

Messages that already carry a poll still render it. The attachment menu offers Poll only in channels, not in threads. Configuration lists every setting both sides decide.

Customizing

Replace part of the poll

Five override keys replace parts of the poll UI: PollContent, PollHeader, PollOptionSelector, PollActions and PollCreationDialog. A replacement reads the poll from usePollContext() and subscribes to poll.state. This header shows the question and the number of votes:

import type { PollState } from "stream-chat";
import {
  Channel,
  MessageComposer,
  MessageList,
  usePollContext,
  useStateStore,
  WithComponents,
} from "stream-chat-react";

const headerSelector = ({ name, vote_count }: PollState) => ({
  name,
  voteCount: vote_count,
});

const PollHeaderWithVotes = () => {
  const { poll } = usePollContext();
  const { name, voteCount } = useStateStore(poll.state, headerSelector);

  return (
    <div className="poll-header">
      <strong>{name}</strong>
      <span>{voteCount} votes</span>
    </div>
  );
};

const overrides = { PollHeader: PollHeaderWithVotes };

export const ChannelWithPollHeader = () => (
  <WithComponents overrides={overrides}>
    <Channel channel={channel}>
      <MessageList />
      <MessageComposer />
    </Channel>
  </WithComponents>
);

Change the poll's layout

Override PollContent and put the SDK's parts in the order you want. PollOptionList takes optionsDisplayCount, the number of options shown before the "more options" button, and PollOptionsFullList, the component that lists all of them:

import { PollActions, PollHeader, PollOptionList } from "stream-chat-react";

export const PollContentWithTenOptions = () => (
  <div className="str-chat__poll">
    <PollHeader />
    <PollOptionList optionsDisplayCount={10} />
    <PollActions />
  </div>
);

Register it with <WithComponents overrides={{ PollContent: PollContentWithTenOptions }}>. Without optionsDisplayCount, PollOptionList shows every option.

Replace the action dialogs

PollActions takes the dialogs it opens as props: AddCommentPrompt, EndPollAlert, PollAnswerList, PollResults and SuggestPollOptionForm. Wrap it to replace one and keep the rest:

import {
  PollActions,
  useModalContext,
  usePollContext,
} from "stream-chat-react";

const ConfirmEndPoll = () => {
  const { poll } = usePollContext();
  const { close } = useModalContext();

  const endPoll = async () => {
    try {
      await poll.close();
      close();
    } catch {
      // The poll stays open. Show the error in the dialog here.
    }
  };

  return (
    <div className="end-poll-alert">
      <p>Nobody can vote after the poll ends.</p>
      <button onClick={endPoll} type="button">
        End the poll
      </button>
      <button onClick={close} type="button">
        Keep it open
      </button>
    </div>
  );
};

export const PollActionsWithCustomEnd = () => (
  <PollActions EndPollAlert={ConfirmEndPoll} />
);

Register it as the PollActions override. The dialog around EndPollAlert stays the SDK's, and useModalContext() closes it.

Create polls from your own UI

PollCreationDialog receives close. A dialog of your own fills messageComposer.pollComposer with PollComposer.updateFields(), then calls MessageComposer.createPoll() and MessageComposer.send(), as Creating a poll describes. Get the composer with useMessageComposerController(), so the dialog works for the composer it was opened from.

Reference
