WebRTC For The Brave

Multipoint Control Unit (MCU)

In this lesson, we take a look at the Multipoint Control Unit (MCU) architecture - a more scalable alternative to the P2P architecture for WebRTC.

Introduction to MCU Architecture

The Multipoint Control Unit (MCU) represents one of the earliest solutions for scaling real-time communication beyond simple peer-to-peer connections. Born in an era when devices had limited processing power and network bandwidth was precious, MCUs solved a fundamental problem: how to connect multiple participants when individual devices couldn't handle the computational and bandwidth demands of direct connections to every other participant.

The Core Concept

Think of an MCU as a chef in a restaurant. Instead of having each diner prepare their own meal from individual ingredients (as in P2P), the MCU takes all ingredients (media streams), combines them into a single dish (composite stream), and serves the same meal to everyone. This centralized approach dramatically reduces the work required by individual devices.

The Technical Foundation: How MCU Works

Architecture Overview

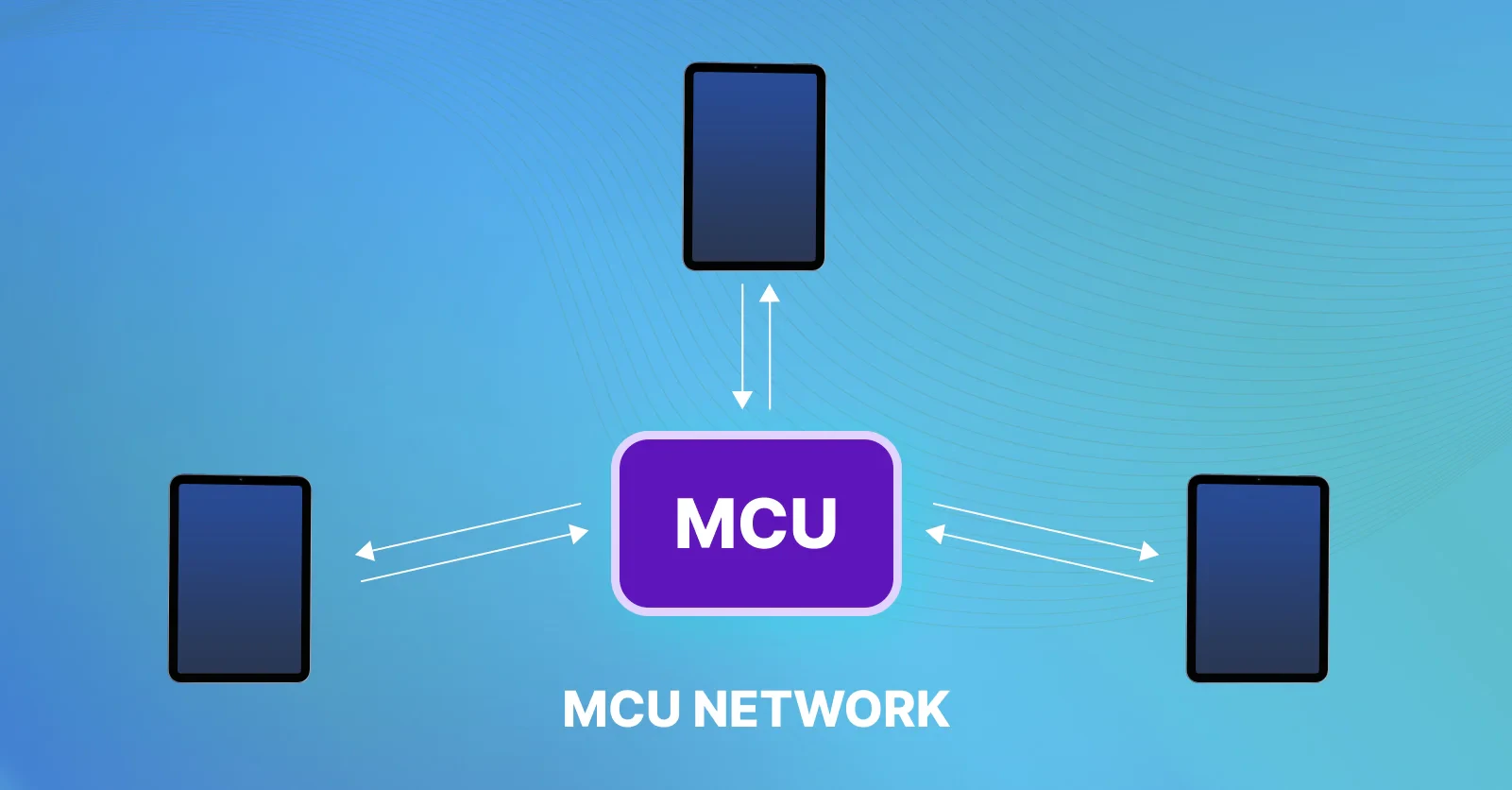

The MCU architecture operates on a hub-and-spoke model where all participants connect to the central MCU server. Each participant sends their media stream to the MCU, which processes all streams and sends back a single composite stream to each participant.

Media Processing Pipeline

The MCU performs several critical operations in sequence. First, it receives encrypted streams from all participants, then decrypts these incoming media streams to access the raw data. Next, it decodes the compressed media into a raw format that can be manipulated. The heart of the process comes when the MCU mixes and composes multiple streams into one coherent output. This composite stream is then encoded to compress it for efficient transmission, encrypted for security, and finally distributed to all participants.

Let's make a conceptual MCU implementation:

javascript
            class MCUServer {
  constructor() {
    this.participants = new Map();
    this.mixer = new MediaMixer();
  }

  async handleNewParticipant(connection) {
    const participant = {
      id: generateId(),
      incomingStream: null,
      outgoingStream: null,
      connection: connection
    };

    this.participants.set(participant.id, participant);

    // Setup stream handlers
    connection.on('stream', stream => {
      this.handleIncomingStream(participant.id, stream);
    });
  }

  async handleIncomingStream(participantId, stream) {
    const participant = this.participants.get(participantId);
    participant.incomingStream = stream;

    // Decode the stream
    const decodedStream = await this.decodeStream(stream);

    // Add to mixer
    this.mixer.addStream(participantId, decodedStream);

    // Update all participants with new composite
    this.updateAllParticipants();
  }

  async updateAllParticipants() {
    // Create composite stream
    const compositeStream = this.mixer.createComposite();

    // Send to all participants
    for (const [id, participant] of this.participants) {
      const encodedStream = await this.encodeStream(compositeStream);
      participant.connection.send(encodedStream);
    }
  }
}


Media Mixing and Composition

Audio Mixing

Audio mixing in MCUs involves sophisticated algorithms that handle multiple challenges simultaneously. The system must normalize audio levels from different sources to prevent some participants from being too loud or too quiet. It applies noise reduction and echo cancellation to improve audio quality, and implements voice activity detection (VAD) to identify who is speaking. The mixer must also gracefully handle multiple simultaneous speakers without creating audio chaos.

javascript
            // Example audio mixing logic
class AudioMixer {
  mix(audioStreams) {
    // Normalize volume levels
    const normalizedStreams = audioStreams.map(stream =>
      this.normalizeVolume(stream)
    );

    // Apply noise gate
    const cleanStreams = normalizedStreams.map(stream =>
      this.applyNoiseGate(stream)
    );

    // Mix into single stream
    return this.combineStreams(cleanStreams);
  }

  normalizeVolume(stream) {
    // Implement volume normalization
    // Uses RMS analysis to equalize levels
  }

  applyNoiseGate(stream) {
    // Filter out background noise
    // Based on threshold detection
  }
}


Video Composition

Video composition involves creating layouts that effectively display multiple participants:

javascript
            // Video composition layouts
class VideoCompositor {
  constructor() {
    this.layouts = {
      'grid': this.createGridLayout,
      'speaker': this.createSpeakerLayout,
      'presentation': this.createPresentationLayout
    };
  }

  compose(videoStreams, layoutType = 'grid') {
    const layout = this.layouts[layoutType];
    return layout.call(this, videoStreams);
  }

  createGridLayout(streams) {
    // Calculate optimal grid dimensions
    const gridSize = Math.ceil(Math.sqrt(streams.length));
    const cellWidth = 1920 / gridSize;
    const cellHeight = 1080 / gridSize;

    // Position each stream
    return streams.map((stream, index) => ({
      stream: stream,
      x: (index % gridSize) * cellWidth,
      y: Math.floor(index / gridSize) * cellHeight,
      width: cellWidth,
      height: cellHeight
    }));
  }
}


Scalability Analysis

Connection Complexity

Unlike P2P, MCU scales linearly with the number of participants:

Participants Network Connections Server Load
2 4 2x transcoding
5 10 5x transcoding
10 20 10x transcoding
25 50 25x transcoding
100 200 100x transcoding

Resource Requirements

The MCU server must handle significant demands across multiple dimensions. CPU usage becomes intensive due to constant transcoding operations, while memory requirements grow with the need to buffer multiple streams. Network bandwidth must accommodate all incoming and outgoing streams, and storage is needed for temporary stream data during processing.

Performance Characteristics

Latency Considerations

MCU introduces several types of latency throughout the communication pipeline. Network latency includes the round-trip time to the server, while processing latency accounts for the time spent transcoding. Additional delays come from buffering latency needed for stream synchronization and composition latency during layout processing.

javascript
            // Latency monitoring
class LatencyMonitor {
  measureE2ELatency(participant) {
    const timestamps = {
      sent: Date.now(),
      serverReceived: null,
      serverProcessed: null,
      clientReceived: null
    };

    // Track packet through pipeline
    return this.trackPacket(participant, timestamps);
  }
}


Quality Management

MCUs implement various quality management strategies to maintain optimal performance across different network conditions. Adaptive bitrate control dynamically adjusts video resolution, frame rate, and audio quality based on available bandwidth. The system continuously monitors network conditions, tracking latency, packet loss, and jitter to make informed quality decisions. Resource prioritization ensures that active speakers and critical streams receive more processing power and bandwidth allocation.

javascript
            // Adaptive quality control
class QualityManager {
  constructor() {
    this.qualityProfiles = {
      high: { resolution: '1080p', bitrate: 2500, fps: 30 },
      medium: { resolution: '720p', bitrate: 1500, fps: 24 },
      low: { resolution: '480p', bitrate: 800, fps: 15 }
    };
  }

  async adjustQuality(participant, networkConditions) {
    const { bandwidth, latency, packetLoss } = networkConditions;

    // Calculate quality score
    const qualityScore = this.calculateQualityScore(networkConditions);

    // Select appropriate profile
    if (qualityScore > 0.7) {
      await this.applyProfile(participant, 'high');
    } else if (qualityScore > 0.4) {
      await this.applyProfile(participant, 'medium');
    } else {
      await this.applyProfile(participant, 'low');
    }

    // Enable FEC if packet loss is high
    if (packetLoss > 0.03) {
      await this.enableForwardErrorCorrection(participant);
    }
  }

  calculateQualityScore(conditions) {
    // Simple weighted scoring
    return (conditions.bandwidth / 3000) * 0.5 +
           (1 - conditions.latency / 500) * 0.3 +
           (1 - conditions.packetLoss / 0.1) * 0.2;
  }
}


Cost Analysis

Infrastructure Costs

MCU servers require significant resources across three main categories. Compute costs involve high-performance CPUs for transcoding, GPU acceleration for video processing, and dedicated audio processing hardware. Network costs include high bandwidth requirements, quality of service guarantees, and global distribution needs for low latency. Operational costs encompass 24/7 monitoring and maintenance, redundancy and failover systems, and security and compliance requirements.

Cost Comparison

Architecture Infrastructure Cost Bandwidth Cost Client Device Cost
P2P Low Low High
MCU Very High Medium Low
SFU Medium High Medium

Security Considerations

Encryption Challenges

MCUs present unique security challenges that stem from their centralized nature. Traditional end-to-end encryption becomes impossible because the server must decrypt streams to process them, creating a trust requirement where the server sees all content. This fundamental limitation has driven the development of alternative architectures for applications requiring strict privacy.

javascript
            // Security implementation
class MCUSecurity {
  constructor() {
    this.keyManager = new KeyManager();
  }

  async handleSecureStream(encryptedStream) {
    // Decrypt incoming stream
    const key = await this.keyManager.getKey(encryptedStream.keyId);
    const decryptedStream = await this.decrypt(encryptedStream, key);

    // Process stream
    const processedStream = await this.processStream(decryptedStream);

    // Re-encrypt for distribution
    const newKey = await this.keyManager.generateKey();
    return this.encrypt(processedStream, newKey);
  }
}


Advanced MCU Features

Intelligent Layout Management

Modern MCUs employ AI to optimize layouts through speaker detection and tracking, dynamic layout adjustments based on activity, and content-aware composition that adapts to what's being shared:

javascript
            // AI-powered layout manager
class IntelligentLayoutManager {
  async determineLayout(streams, context) {
    const activeParticipants = await this.detectActiveSpeakers(streams);
    const presentationContent = await this.detectPresentation(streams);

    if (presentationContent) {
      return this.createPresentationLayout(presentationContent, activeParticipants);
    } else if (activeParticipants.length === 1) {
      return this.createSpeakerFocusLayout(activeParticipants[0], streams);
    } else {
      return this.createDynamicGridLayout(streams, activeParticipants);
    }
  }
}


Recording and Streaming

MCUs naturally support recording and streaming because they already process all media. They can create multiple output formats simultaneously and support various live streaming protocols without additional overhead.

When to Use MCU Architecture

Ideal Use Cases

MCU architecture excels in several specific scenarios. It's particularly well-suited for legacy device support, handling older hardware with limited processing power, devices without modern codec support, and limited bandwidth environments. Controlled environments like corporate networks, educational institutions, and government applications benefit from the central control MCUs provide. Specific requirements that make MCU attractive include the need for server-side processing, compliance with recording regulations, and integration with legacy systems.

When to Avoid MCU

However, MCUs are not suitable for all applications. Privacy-critical applications like healthcare consultations, legal proceedings, and confidential business meetings should avoid MCUs due to the inability to provide end-to-end encryption. Cost-sensitive projects including startup applications, community projects, and small-scale deployments may find the infrastructure costs prohibitive. Modern applications where devices have sufficient processing power, low latency is critical, or end-to-end encryption is required are better served by alternative architectures.

Migration from MCU

Many organizations are migrating from MCU to more modern architectures:

Migration Strategies

  1. Hybrid Approach

    • Use MCU for legacy devices
    • SFU for modern clients
    • Gateway between architectures
  2. Phased Migration

    • Gradual transition by department/region
    • Feature parity testing
    • Performance monitoring
  3. Complete Replacement

    • Full migration to SFU/hybrid
    • Client upgrades
    • Infrastructure modernization

Conclusion

While MCU architecture was revolutionary for its time, modern alternatives like SFU and hybrid approaches offer better balance of cost, performance, and flexibility. However, MCUs still have their place in specific use cases where centralized processing and legacy support are paramount.

Understanding MCU architecture remains valuable for maintaining legacy systems, designing hybrid solutions, understanding the evolution of WebRTC, and making informed architectural decisions. The future of real-time communication is moving toward more distributed architectures, but the lessons learned from MCU design continue to influence modern systems.
