Theming

Many aspects of the UI components can be changed and customized. For example, it’s possible to change:

Font family
Text color
Background of views
Item views in lists
Enable and disable features
Text style (italic, bold, normal)
Drawable of icons
Stroke widths
Divider color

It is not possible to change the tint of icons. Use colored drawables instead.

These customizations can be applied in multiple ways. From simplest to most complex, these are:

Adding attributes to the View in the XML layout where it’s created.
Using the TransformStyle object to apply transformations to all style objects of a given type.
Using themes to style all Views globally.

Be careful when using multiple theming approaches. Themes are applied first, then XML attributes, then style transformations. Values applied later will override previously set values.

XML Attributes

The simplest way to customize Views is by setting attributes on them in the XML layout. For example, here are some custom values you can set on MessageListView.

<io.getstream.chat.android.ui.message.list.MessageListView
    android:id="@+id/messageListView"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    app:streamUiMessageBackgroundColorMine="#70AF74"
    app:streamUiMessageBackgroundColorTheirs="@android:color/white"
    app:streamUiMessageTextColorMine="@android:color/white"
    app:streamUiMessageTextColorTheirs="@android:color/black"
    />

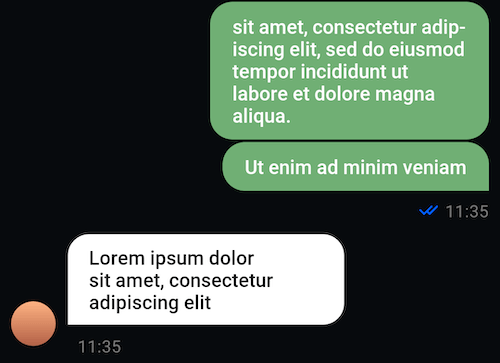

This will have the following result:

You can find the full list of available attributes for each view linked on their individual component pages, or in the attrs_view_name files here.

Styles can be configured programmatically by overriding the corresponding StyleTransformer from the TransformStyle object. These transformations will be applied to all UI Components of the given type.

You have to set up any custom StyleTransformer instances before the View instances are initialized, otherwise they won’t take effect.

Here’s an example using TransformStyle to change multiple appearance characteristics of all MessageListView instances:

TransformStyle.messageListItemStyleTransformer = StyleTransformer { defaultViewStyle ->
    defaultViewStyle.copy(
        messageBackgroundColorMine = Color.parseColor("#70AF74"),
        messageBackgroundColorTheirs = Color.WHITE,
        textStyleMine = defaultViewStyle.textStyleMine.copy(color = Color.WHITE),
        textStyleTheirs = defaultViewStyle.textStyleTheirs.copy(color = Color.BLACK),
    )
}

TransformStyle.setMessageListItemStyleTransformer(source -> {
    // Customize the style
    return source;
});

This will have the following result:

This is the same as the XML customization shown above, but applied to all MessageListView instances in the app, and configured programmatically.

Themes

You can also use Android themes to set attributes for the UI Components. To do this, set a streamUiTheme attribute within your app’s theme, in the themes.xml file:

<style name="AppTheme" parent="Theme.MaterialComponents.DayNight.NoActionBar">
    <!-- Other items... -->
    <item name="streamUiTheme">@style/StreamTheme</item>
</style>

The theme you pass in as the streamUiTheme can then define a style for each type of UI Component where you can set attribute values.

For example, you can create styles for avatars in the message list, or for the message list header:

<style name="StreamTheme" parent="@style/StreamUiTheme">
    <item name="streamUiMessageListItemAvatarStyle">@style/MessageListAvatarTheme</item>
    <item name="streamUiMessageListHeaderStyle">@style/MessageListHeaderStyle</item>
</style>

The list of available styles you can define here is available here in our attrs file.

These styles can then contain attributes for the views. For example, you can make the avatars display in a given size:

<style name="MessageListAvatarTheme" parent="StreamUi.MessageList.Item.Avatar">
    <item name="android:layout_width">48dp</item>
    <item name="android:layout_height">48dp</item>
</style>

Or you can hide the avatar that’s shown by default on the message list header:

<style name="MessageListHeaderStyle" parent="StreamUi.MessageListHeader">
    <item name="streamUiMessageListHeaderShowUserAvatar">true</item>
</style>

Your custom themes can use the default styles can use the default styles for these Views as their parent. See the sample app’s themes for examples of this.

Themes for Activities

SDK contains following activities: AttachmentMediaActivity, AttachmentActivity and AttachmentGalleryActivity. You can customize them by overriding the activity with custom theme in your manifest:

AndroidManifest.xml

<activity
    android:name="io.getstream.chat.android.ui.gallery.AttachmentMediaActivity"
    android:theme="@style/MediaActivityStyle"
    tools:replace="android:theme"
    />

themes.xml

<style name="MediaActivityStyle" parent="StreamUi.MediaActivity">
    <item name="streamUiMediaActivityIconStyle">@style/MediaActivityIconStyle</item>
</style>

<style name="MediaActivityIconStyle" parent="StreamUi.MediaActivity.Icon">
    <item name="android:layout_width">150dp</item>
    <item name="android:layout_height">150dp</item>
    <item name="android:src">@drawable/stream_ui_ic_audio</item>
</style>

Choose Light/Dark Theme

Our SDK already provide a DayNight theme. If you want to force Dark or Light mode, you need to follow the default Android mechanism to use it:

// Force Dark theme
AppCompatDelegate.setDefaultNightMode(AppCompatDelegate.MODE_NIGHT_YES)

// Force Light theme
AppCompatDelegate.setDefaultNightMode(AppCompatDelegate.MODE_NIGHT_NO)

// Force Dark theme
AppCompatDelegate.setDefaultNightMode(AppCompatDelegate.MODE_NIGHT_YES);

// Force Light theme
AppCompatDelegate.setDefaultNightMode(AppCompatDelegate.MODE_NIGHT_NO);
