Channel List

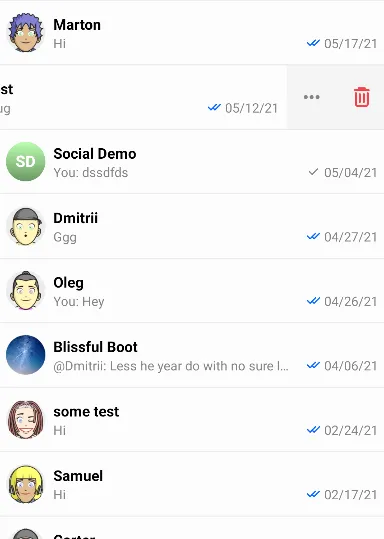

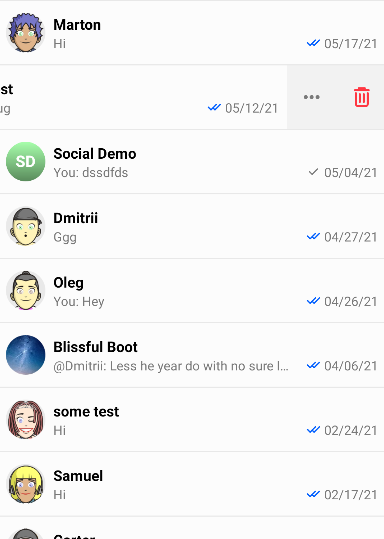

ChannelListView is a component that displays a list of channels available to a user. For users with a slower connection or that don’t belong to any channels yet, ChannelListView also supports loading and empty states.

By default, a single list item shows the following:

Channel name
User’s read state
Last message
Timestamp of the last message

It also implements swiping behaviour which allows handling different actions on the channel.

Usage

To use ChannelListView, include it in your XML layout as shown below:

<io.getstream.chat.android.ui.channel.list.ChannelListView
    android:id="@+id/channelsView"
    android:layout_width="match_parent"
    android:layout_height="match_parent" />

We recommend using the ChannelListViewModel to get the full list of data from the Stream API and then render it using the ChannelListView.

The basic setup of the ViewModel and connecting it to the View is done the following way:

// Instantiate the ViewModel
val viewModel: ChannelListViewModel by viewModels {
    ChannelListViewModelFactory(
        filter = Filters.and(
            Filters.eq("type", "messaging"),
            Filters.`in`("members", listOf(ChatClient.instance().getCurrentUser()!!.id)),
        ),
        sort = ChannelListViewModel.DEFAULT_SORT,
        limit = 30,
    )
}
// Bind the ViewModel with ChannelListView
viewModel.bindView(channelListView, viewLifecycleOwner)

// Instantiate the ViewModel
FilterObject filter = Filters.and(
        Filters.eq("type", "messaging"),
        Filters.in("members", Collections.singletonList(ChatClient.instance().getCurrentUser().getId()))
);

ViewModelProvider.Factory factory = new ChannelListViewModelFactory.Builder()
        .filter(filter)
        .sort(ChannelListViewModel.DEFAULT_SORT)
        .limit(30)
        .build();

ChannelListViewModel viewModel = new ViewModelProvider(this, factory).get(ChannelListViewModel.class);

// Bind the ViewModel with ChannelListView
ChannelListViewModelBinding.bind(viewModel, channelListView, getViewLifecycleOwner());

You may need to pass a custom ChatEventHandler to make sure the list is updated properly. Check ChannelListUpdates section to read more.

All the logic of subscribing to data emitted by the ViewModel is provided by the bindView function. Other than channel data loading, the ViewModel is also handling actions like deleting a channel and leaving a group conversation by default.

Handling Actions

ChannelListView includes a set of channel actions. Actions on ChannelListView items are available on swipe. With these, you can:

Delete the channel if you have sufficient permissions
See channel members
Leave the channel if it’s a group channel

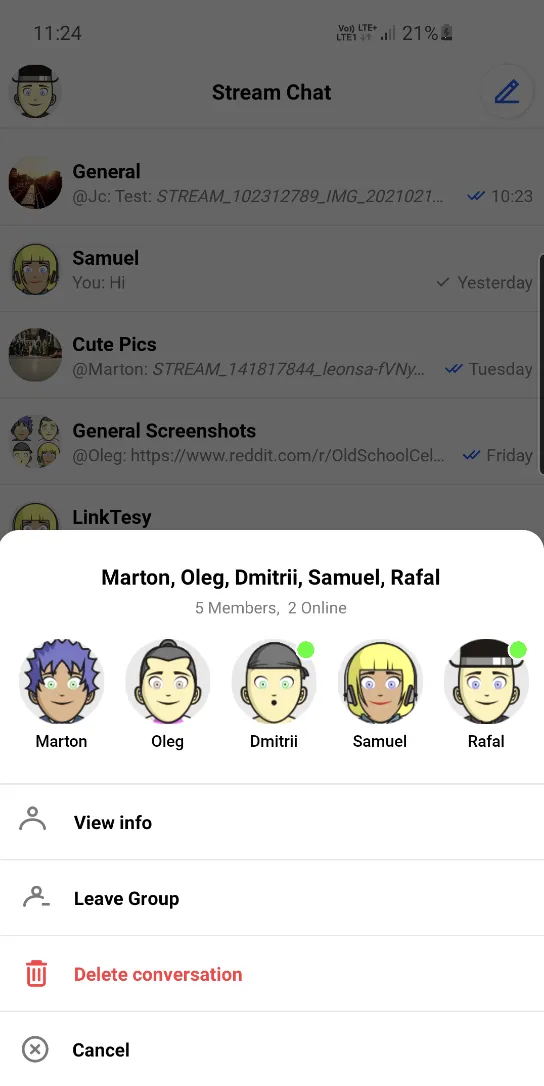

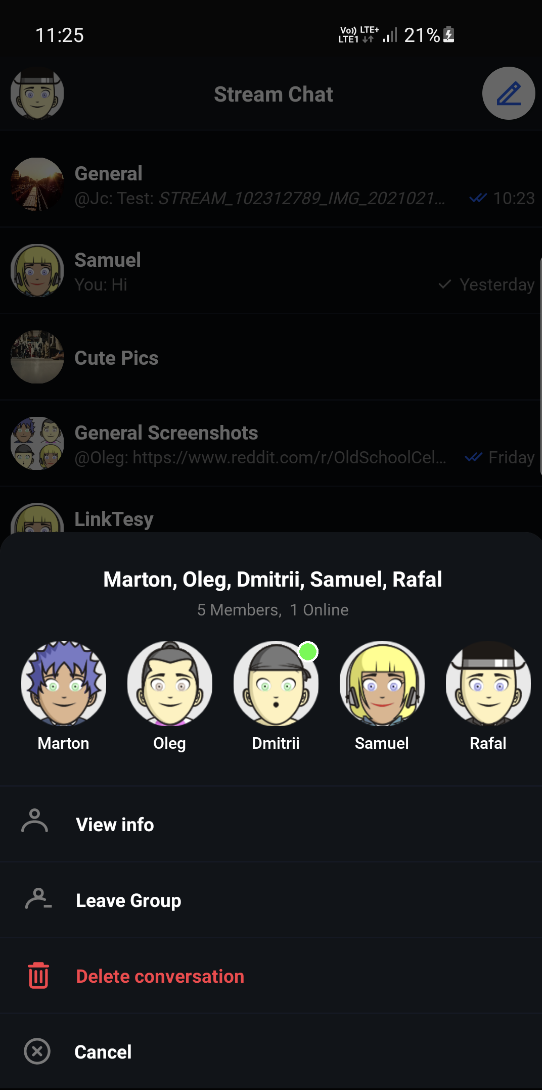

Light Mode	Dark Mode

The following actions are not implemented by default, so you should add your own listeners if you want to handle them:

channelListView.setChannelItemClickListener { channel ->
    // Handle channel click
}
channelListView.setChannelInfoClickListener { channel ->
    // Handle channel info click
}
channelListView.setUserClickListener { user ->
    // Handle member click
}

channelListView.setChannelItemClickListener(channel -> {
    // Handle channel click
});
channelListView.setChannelInfoClickListener(channel -> {
    // Handle channel info click
});
channelListView.setUserClickListener(user -> {
    // Handle member click
});

The full list of available listeners is available here.

Customization

There are two ways to customize the appearance of ChannelListView:

Using XML attributes
Using the TransformStyle API at runtime to customize the style of all ChannelListView instances

Using XML Attributes

There are many XML attributes that can be used to customize the appearance of the channel list. The most useful ones include:

streamUiChannelDeleteEnabled: Whether the delete icon should be displayed.
streamUiChannelDeleteIcon: Drawable reference for the channel delete icon.
streamUiChannelTitleTextColor: Color of the channel title text.
streamUiChannelTitleTextSize: Size of the channel title text.
streamUiLastMessageTextSize: Size of the last message text.
streamUiLastMessageTextColor: Color of the last message text.
streamUiForegroundLayoutColor: Foreground color of the channel list item.
streamUiBackgroundLayoutColor: Background color of the channel list item, visible when swiping the list item.

The full list of available XML attributes is available under ChannelListView styleable, here.

Using Style Transformations

The following example shows how to modify the style of all ChannelListView instances globally to:

Disable the default options
Change the title text style
Make the default icons larger
Change the background color for unread messages

To make these changes, we need to define a custom TransformStyle.channelListStyleTransformer:

TransformStyle.channelListStyleTransformer = StyleTransformer { defaultStyle ->
    defaultStyle.copy(
        optionsEnabled = false,
        foregroundLayoutColor = Color.LTGRAY,
        indicatorReadIcon = ContextCompat.getDrawable(requireContext(), R.drawable.stream_ui_ic_clock)!!,
        channelTitleText = TextStyle(
            color = Color.WHITE,
            size = resources.getDimensionPixelSize(R.dimen.stream_ui_text_large),
        ),
        lastMessageText = TextStyle(
            size = resources.getDimensionPixelSize(R.dimen.stream_ui_text_small),
        ),
        unreadMessageCounterBackgroundColor = Color.BLUE,
    )
}

TransformStyle.setChannelListStyleTransformer(source -> {
    // Customize the style
    return source;
});

These changes should have the following results:

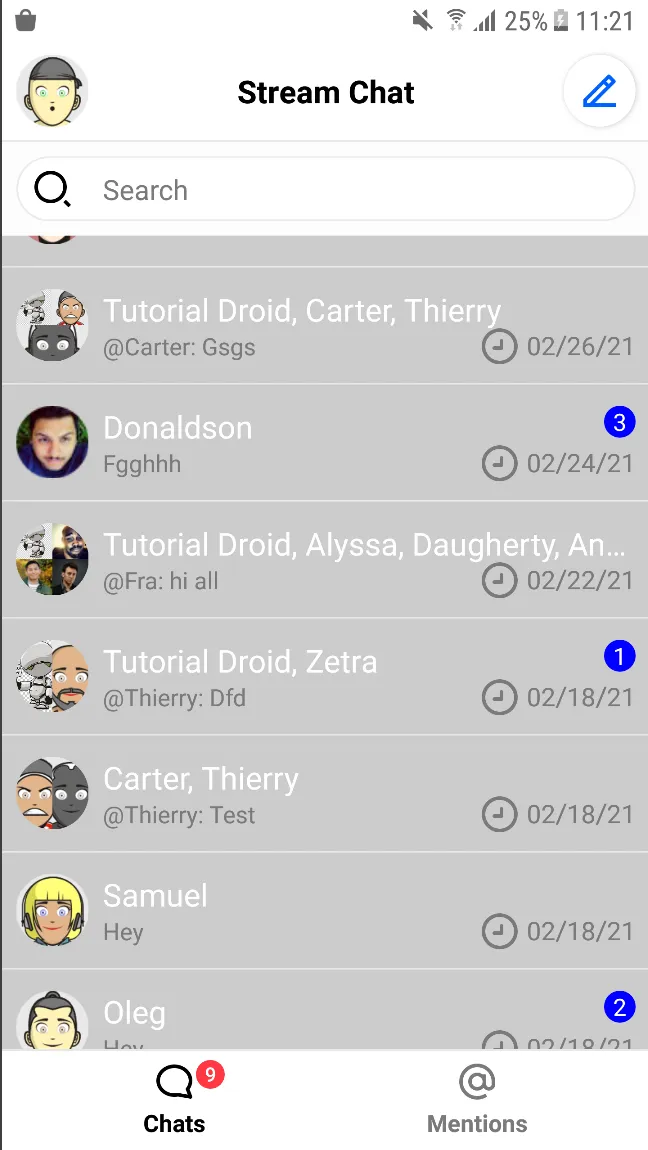

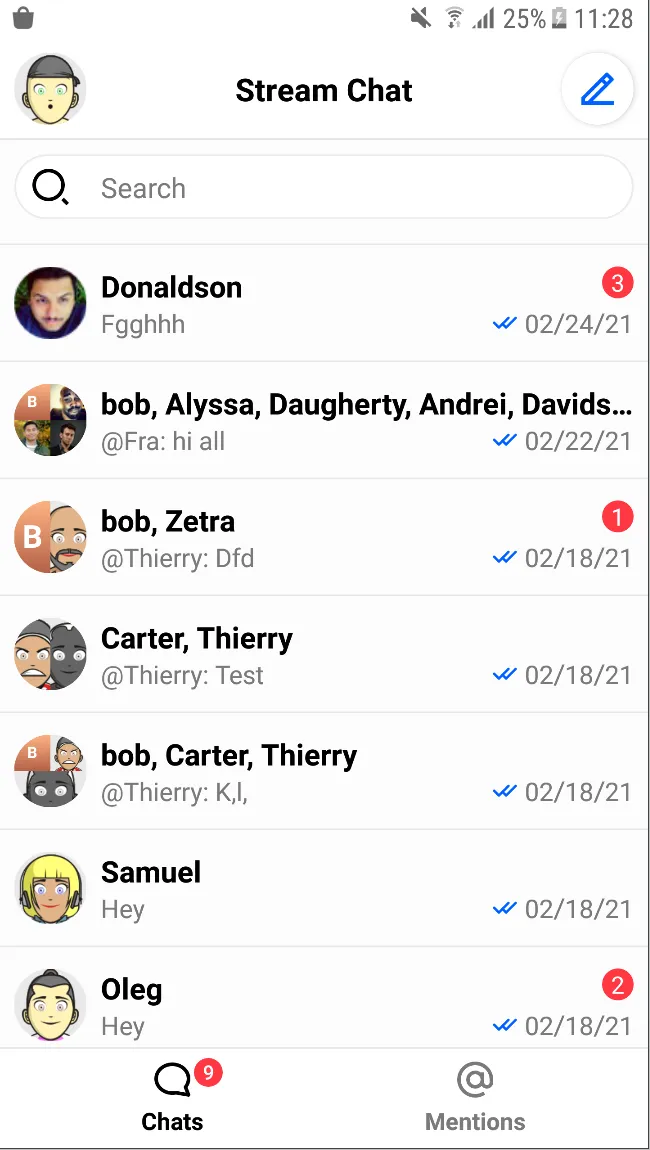

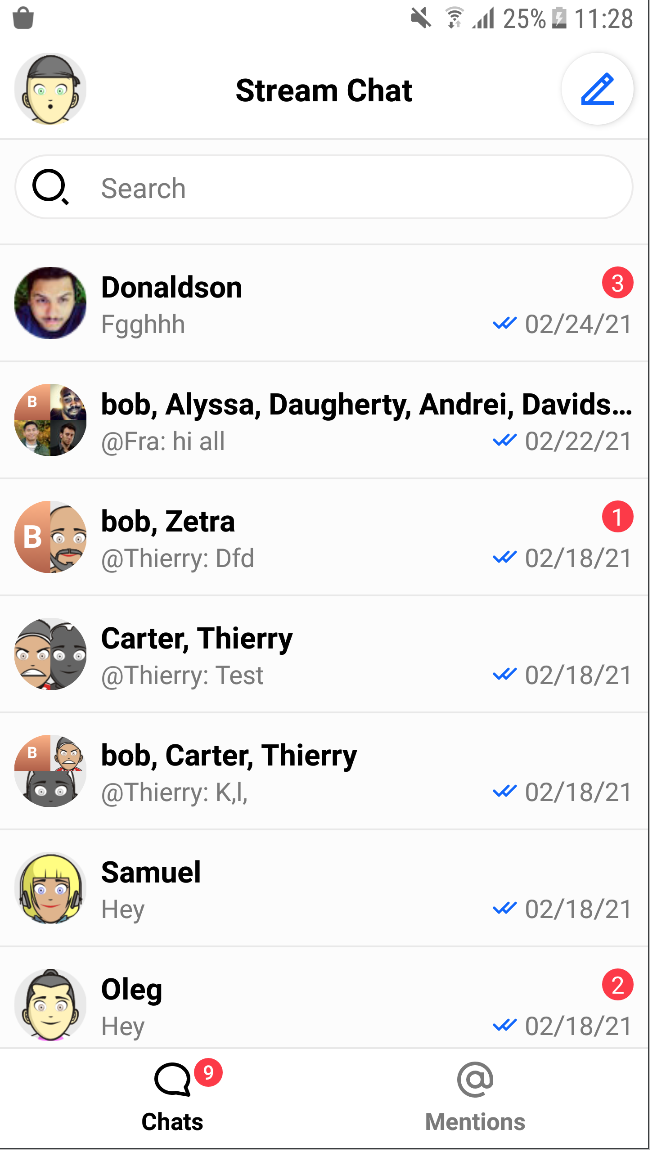

Before	After

The transformer should be set before the View is rendered to make sure that the new style was applied.

Customizing Swipe Actions

By default ChannelListView supports two swipe actions:

More Options - available for every channel.
Delete - available for the channels where Channel.ownCapbilities contains "delete-channel"

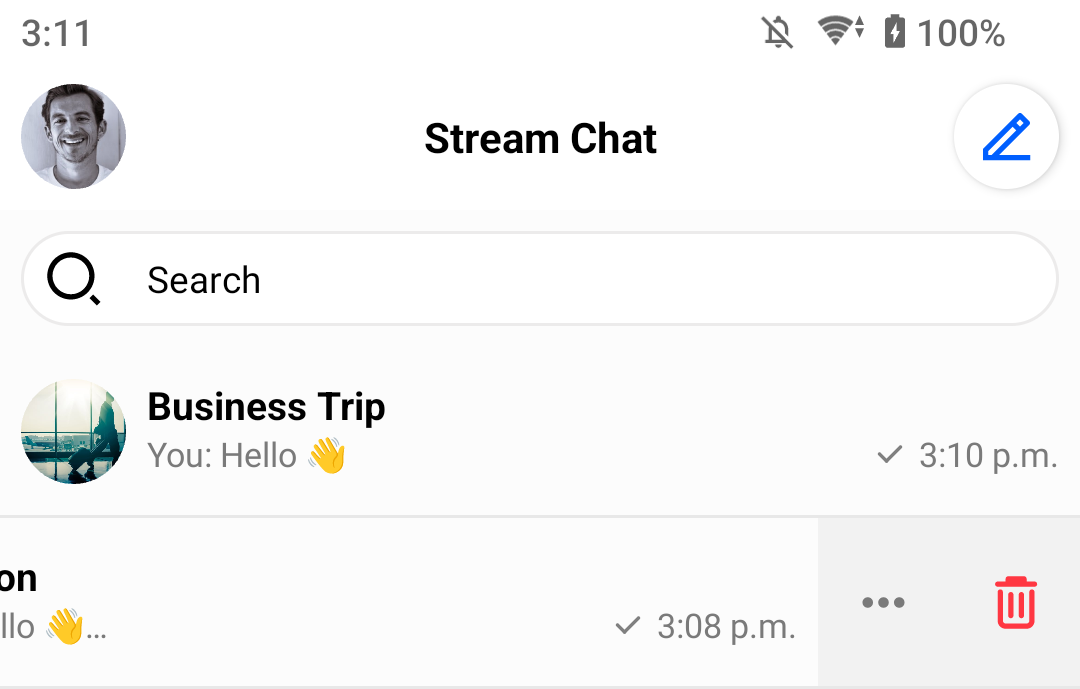

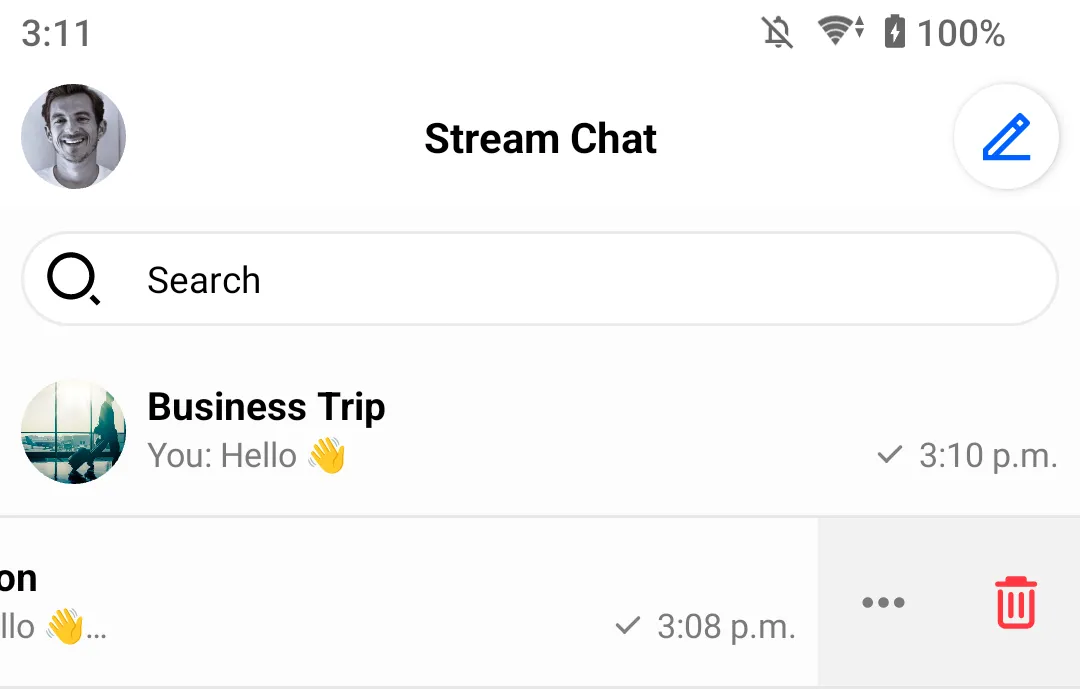

Here is the default implementation:

Swipe Actions

You can customize the swipe actions as shown below.

Customizing Icons

channelsView.setMoreOptionsIconProvider { channel ->
    // You can generate the icon Drawable based on the channel object
    ContextCompat.getDrawable(context, R.drawable.custom_action_icon_more)
}
channelsView.setDeleteOptionIconProvider { channel ->
    // You can generate the icon Drawable based on the channel object
    ContextCompat.getDrawable(context, R.drawable.custom_action_icon_delete)
}

channelsView.setDeleteOptionIconProvider(channel -> {
    // You can generate icon Drawable based on the channel object
    return ContextCompat.getDrawable(context, R.drawable.custom_action_icon_more);
});
channelsView.setDeleteOptionIconProvider(channel -> {
    // You can generate icon Drawable based on the channel object
    return ContextCompat.getDrawable(context, R.drawable.custom_action_icon_delete);
});

Customizing Visibility

channelsView.setIsMoreOptionsVisible { channel ->
    // You can determine visibility based on the channel object.
    true
}
channelsView.setIsDeleteOptionVisible { channel ->
    // You can determine visibility based on the channel object.
    // Here is the default implementation:
    channel.ownCapabilities.contains("delete-channel")
}

channelsView.setIsMoreOptionsVisible(channel -> {
    // you generate icon based on the channel object
    return true;
});
channelsView.setIsDeleteOptionVisible(channel -> {
    // You can determine visibility based on the channel object.
    // Here is the default implementation:
    return channel.getOwnCapabilities().contains("delete-channel");
});

Creating a Custom ViewHolder Factory

ChannelListView provides a way to completely change the default ViewHolders and add different types of views. All you need to do is to provide your own ChannelListItemViewHolderFactory. Let’s see an example that displays the channel’s photo, name, and member count.

Create the custom_channel_list_item.xml layout:

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:layout_width="match_parent"
    android:layout_height="64dp"
    >

    <io.getstream.chat.android.ui.avatar.AvatarView
        android:id="@+id/avatarView"
        style="@style/StreamUiChannelListAvatarStyle"
        android:layout_marginVertical="12dp"
        android:layout_marginStart="8dp"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toTopOf="parent"
        />

    <TextView
        android:id="@+id/nameTextView"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginStart="8dp"
        android:ellipsize="end"
        android:singleLine="true"
        android:textAppearance="@style/StreamUiTextAppearance.BodyBold"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintEnd_toStartOf="@id/membersCountTextView"
        app:layout_constraintHorizontal_chainStyle="spread_inside"
        app:layout_constraintStart_toEndOf="@+id/avatarView"
        app:layout_constraintTop_toTopOf="parent"
        />

    <TextView
        android:id="@+id/membersCountTextView"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginHorizontal="8dp"
        android:textAllCaps="false"
        android:textColor="#7A7A7A"
        android:textSize="14sp"
        android:textStyle="normal"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toEndOf="@id/nameTextView"
        app:layout_constraintTop_toTopOf="parent"
        />

</androidx.constraintlayout.widget.ConstraintLayout>

Add this plurals entry to strings.xml:

<plurals name="members_count">
    <item quantity="one">%1d Member</item>
    <item quantity="other">%1d Members</item>
</plurals>

Create a custom ViewHolder and ViewHolder factory:

class CustomChannelListItemViewHolderFactory : ChannelListItemViewHolderFactory() {
    override fun createChannelViewHolder(parentView: ViewGroup): BaseChannelListItemViewHolder {
        return CustomChannelViewHolder(parentView, listenerContainer.channelClickListener)
    }
}

class CustomChannelViewHolder(
    parent: ViewGroup,
    private val channelClickListener: ChannelListView.ChannelClickListener,
    private val binding: CustomChannelListItemBinding = CustomChannelListItemBinding.inflate(
        LayoutInflater.from(parent.context),
        parent,
        false
    ),
) : BaseChannelListItemViewHolder(binding.root) {

    private lateinit var channel: Channel

    init {
        binding.root.setOnClickListener { channelClickListener.onClick(channel) }
    }

    override fun bind(channel: Channel, diff: ChannelListPayloadDiff) {
        this.channel = channel

        binding.apply {
            avatarView.setChannelData(channel)
            nameTextView.text = ChatUI.channelNameFormatter.formatChannelName(
                channel = channel,
                currentUser = ChatClient.instance().getCurrentUser()
            )
            membersCountTextView.text = itemView.context.resources.getQuantityString(
                R.plurals.members_count,
                channel.members.size,
                channel.members.size
            )
        }
    }
}

public final class CustomChannelListItemViewHolderFactory extends ChannelListItemViewHolderFactory {
    @Override
    public int getItemViewType(@NonNull ChannelListItem item) {
        // Override together with createViewHolder() to introduce different view holder types
        return super.getItemViewType(item);
    }

    @NonNull
    @Override
    public BaseChannelListItemViewHolder createViewHolder(@NonNull ViewGroup parentView, int viewType) {
        // Override to create custom create view holder logic
        return super.createViewHolder(parentView, viewType);
    }

    @NonNull
    @Override
    protected BaseChannelListItemViewHolder createChannelViewHolder(@NonNull ViewGroup parentView) {
        // Create custom channel view holder
        return super.createChannelViewHolder(parentView);
    }

    @NonNull
    @Override
    protected BaseChannelListItemViewHolder createLoadingMoreViewHolder(@NonNull ViewGroup parentView) {
        // Create custom loading more view holder
        return super.createLoadingMoreViewHolder(parentView);
    }
}

Set the custom ViewHolder factory on the ChannelListView:

// Create custom view holder factory
val customFactory = CustomChannelListItemViewHolderFactory()

// Set custom view holder factory
channelListView.setViewHolderFactory(customFactory)

// Create custom view holder factory
CustomChannelListItemViewHolderFactory customFactory = new CustomChannelListItemViewHolderFactory();

// Set custom view holder factory
channelListView.setViewHolderFactory(customFactory);

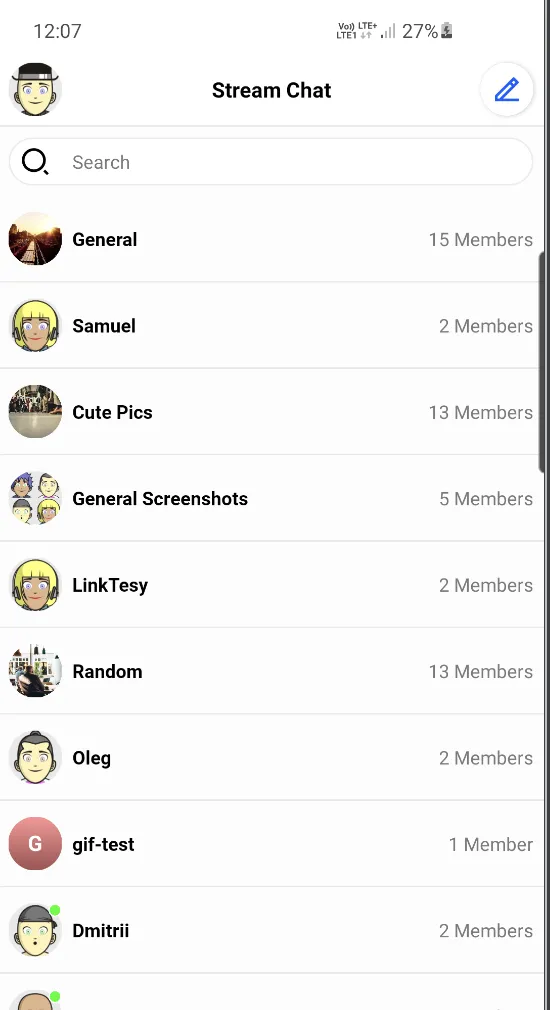

These changes should have the following results:

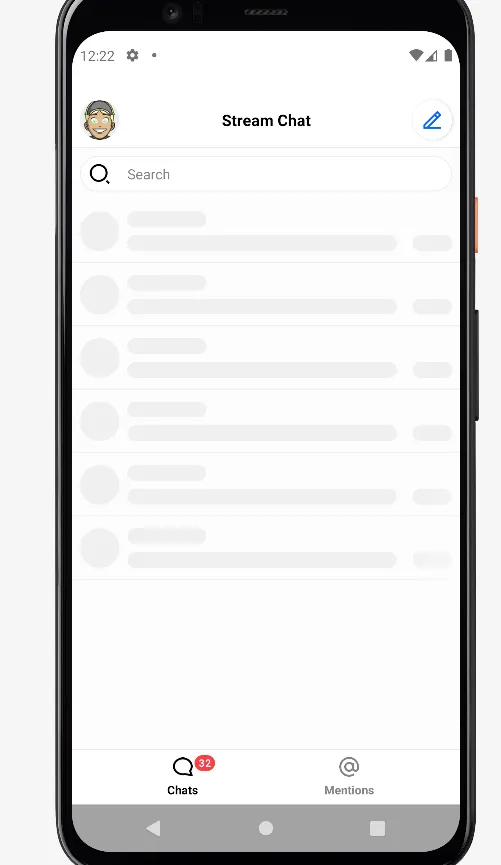

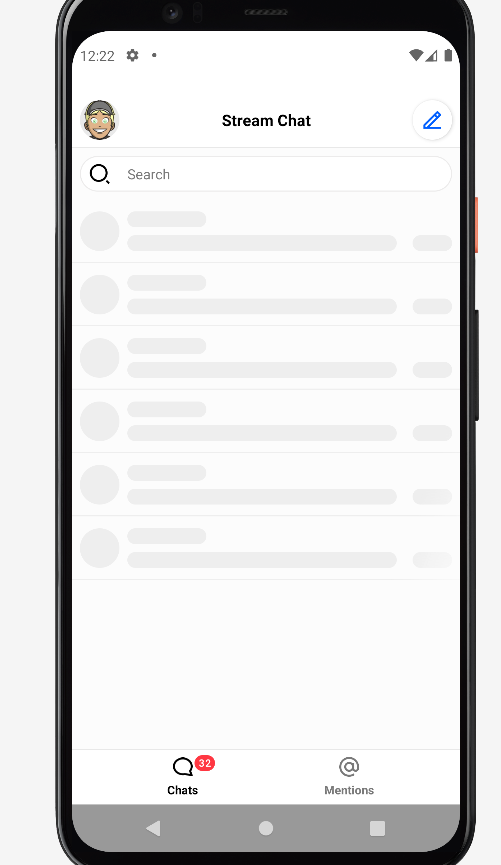

Creating a Custom Loading View

A custom loading view can be set using the setLoadingView method. Assuming that we have the setup similar to previous steps, we can create a loading view with a shimmer effect by taking the following actions:

Add the Shimmer dependency in your build.gradle file’s dependencies block:

implementation "com.facebook.shimmer:shimmer:0.5.0"

Add shape_shimmer.xml into drawable folder:

<?xml version="1.0" encoding="utf-8"?>
<shape xmlns:android="http://schemas.android.com/apk/res/android"
    android:shape="rectangle"
    >
    <solid android:color="#CCCCCC" />
    <corners android:radius="20dp" />
</shape>

Add a single row layout - item_loading_view.xml into layout folder:

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:layout_width="match_parent"
    android:layout_height="64dp"
    >

    <View
        android:id="@+id/avatarPlaceholder"
        android:layout_width="40dp"
        android:layout_height="40dp"
        android:layout_marginStart="8dp"
        android:background="@drawable/shape_shimmer"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toTopOf="parent"
        />

    <View
        android:id="@+id/titlePlaceholder"
        android:layout_width="80dp"
        android:layout_height="16dp"
        android:layout_gravity="center"
        android:layout_marginStart="8dp"
        android:layout_marginEnd="8dp"
        android:background="@drawable/shape_shimmer"
        app:layout_constraintStart_toEndOf="@id/avatarPlaceholder"
        app:layout_constraintTop_toTopOf="@id/avatarPlaceholder"
        />

    <View
        android:id="@+id/subtitlePlaceholder"
        android:layout_width="0dp"
        android:layout_height="16dp"
        android:layout_gravity="center"
        android:layout_marginStart="8dp"
        android:layout_marginTop="8dp"
        android:background="@drawable/shape_shimmer"
        app:layout_constraintBottom_toBottomOf="@id/avatarPlaceholder"
        app:layout_constraintEnd_toStartOf="@+id/datePlaceholder"
        app:layout_constraintStart_toEndOf="@id/avatarPlaceholder"
        />

    <View
        android:id="@+id/datePlaceholder"
        android:layout_width="40dp"
        android:layout_height="16dp"
        android:layout_gravity="center"
        android:layout_marginStart="16dp"
        android:layout_marginEnd="8dp"
        android:background="@drawable/shape_shimmer"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toEndOf="@id/subtitlePlaceholder"
        app:layout_constraintTop_toTopOf="@id/subtitlePlaceholder"
        />

    <View
        android:id="@+id/separator"
        android:layout_width="0dp"
        android:layout_height="1dp"
        android:layout_gravity="center"
        android:background="@drawable/shape_shimmer"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        />

</androidx.constraintlayout.widget.ConstraintLayout>

Create the final loading view with shimmer effect. Let’s call it channel_list_loading_view:

<?xml version="1.0" encoding="utf-8"?>
<com.facebook.shimmer.ShimmerFrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:id="@+id/loadingViewContainer"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:layout_marginTop="64dp"
    app:shimmer_auto_start="true"
    app:shimmer_base_color="#CCCCCC"
    app:shimmer_colored="true"
    app:shimmer_highlight_color="#FFFFFF"
    >

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:orientation="vertical"
        >

        <include layout="@layout/item_loading_view" />

        <include layout="@layout/item_loading_view" />

        <include layout="@layout/item_loading_view" />

        <include layout="@layout/item_loading_view" />

        <include layout="@layout/item_loading_view" />

        <include layout="@layout/item_loading_view" />

    </LinearLayout>

</com.facebook.shimmer.ShimmerFrameLayout>

Change ChannelListView’s loading view:

// Inflate loading view
val loadingView = LayoutInflater.from(context).inflate(R.layout.channel_list_loading_view, channelListView)
// Set loading view
channelListView.setLoadingView(loadingView, FrameLayout.LayoutParams(MATCH_PARENT, MATCH_PARENT))

// Inflate loading view
View loadingView = LayoutInflater.from(getContext()).inflate(R.layout.channel_list_loading_view, channelListView);
// Set loading view
channelListView.setLoadingView(loadingView, new FrameLayout.LayoutParams(MATCH_PARENT, MATCH_PARENT));

These changes should have the following results:

Channel List Screen

Channel List Header
