MessageList

The MessageList component is a crucial part when building a chat experience. We support two versions of the MessageList component:

• Bound: This version binds itself to the MessageListViewModel and loads all the required data. It also connects single and long item tap, pagination, and bottom reached events to the ViewModel.
• Stateless: This is a stateless version of the list which doesn’t know about the ViewModel and depends on pure state from external sources to render its UI.

Based on the provided state, this component shows the following UI:

• Loading indicator: While we’re loading the initial data.
• Empty content: If there is no data and we’ve finished loading.
• Messages: The list of messages in the channel, including file and image attachments, with various actions like thread clicks, item long taps, pagination and reaching the bottom.

Let’s see how to show a list of messages.

Usage

To use the bound MessageList, first initialize the ViewModel using our MessagesViewModelFactory:

val factory by lazy {
    MessagesViewModelFactory(
        context = this,
        channelId = channelId,
    )
}

val listViewModel by viewModels<MessageListViewModel>(factoryProducer = { factory })

Then add it to the rest of your UI, for example within setContent():

override fun onCreate(savedInstanceState: Bundle?) {
    super.onCreate(savedInstanceState)
    // Load data

    setContent {
        ChatTheme {
            Column(
                Modifier.fillMaxSize()
            ) {
                MessageListHeader(...)

                MessageList(
                    viewModel = listViewModel,
                    modifier = Modifier.fillMaxSize()
                )

                // Rest of your UI
            }
        }
    }
}

As you can see, it’s easy to add the component to your UI and combine it with our other components (or your own) to build a custom screen. Additionally, if you choose the bound version, as seen here, you just need to provide a MessageListViewModel and the component will work on its own.

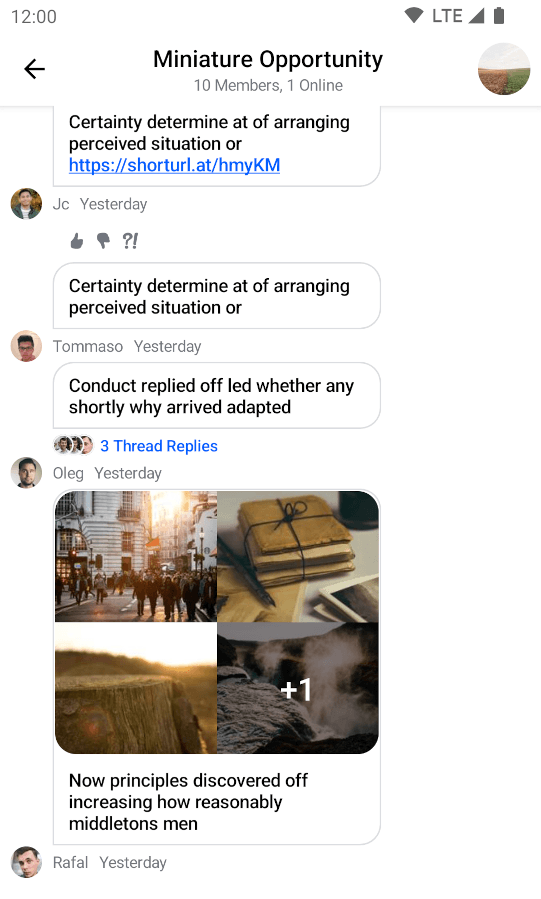

The snippet above will produce the following UI.

Notice how easy it was to integrate this component with other composable functions, like our MessageListHeader. You can see that the component shows different types of messages, such as link and image previews. It also handles pagination and various other events when scrolling or receiving new messages.

Let’s see how to handle the actions within the list.

Handling Actions

The MessageList component exposes the following actions, as per the signature:

@Composable
fun MessageList(
	..., // State & UI
    onThreadClick: (Message) -> Unit = { viewModel.openMessageThread(it) },
    onLongItemClick: (Message) -> Unit = { viewModel.selectMessage(it) },
    onReactionsClick: (Message) -> Unit = { viewModel.selectReactions(it) },
    onMessagesStartReached: () -> Unit = { viewModel.loadMore() },
    onLastVisibleMessageChanged: (Message) -> Unit = { viewModel.updateLastSeenMessage(it) },
    onScrollToBottom: () -> Unit = { viewModel.clearNewMessageState() },
    onGiphyActionClick: (GiphyAction) -> Unit = { viewModel.performGiphyAction(it) },
    onImagePreviewResult: (ImagePreviewResult?) -> Unit = {
        if (it?.resultType == ImagePreviewResultType.SHOW_IN_CHAT) {
            viewModel.focusMessage(it.messageId)
        }
    },
    ... // Content
)

• onThreadClick: Handler used when the user taps on a message with a thread.
• onLongItemClick: Handler used when the user long taps on an item.
• onReactionsClick: Handler used when the user taps on a reaction to a message.
• onMessagesStartReached: Handler used when the user reaches the oldest message, to trigger pagination.
• onLastVisibleMessageChanged: Handler used when the user scrolls and the last visible item changes.
• onScrollToBottom: Handler used when the user reaches the newest message. Used to remove the “New message” or “Scroll to bottom” actions from the UI.
• onGiphyActionClick: Handler used when the user clicks on one of the actions in a Giphy message. Giphy images with actions are displayed only directly after using the Giphy slash command.
• onImagePreviewResult: Handler used when the user receives a result from the Image Preview screen, after opening an image attachment.

You can customize the behavior here by providing your own actions, like so:

MessageList(
    ..., // State
    // Actions
    onThreadClick = { message -> },
    onLongItemClick = { message -> },
    onReactionsClick = { message -> },
    onMessagesStartReached = { },
    onLastVisibleMessageChanged = { message -> },
    onScrollToBottom = { },
    onGiphyActionClick = { giphyAction -> },
    onImagePreviewResult = { imagePreviewResult -> },
    // Content
)

If you’re using the bound version of the component, these actions update the state within the ViewModel by default, while the default actions of the stateless version are all empty.

If you override the default actions to build your custom behavior, we still recommend storing the data in the ViewModel, as most of the behavior like having threads and pagination is already built for you.

We recommend using the bound version for ease of use. Alternatively, you can use the stateless version and provide the data manually, for more control.

Controlling the scroll state

The MessageList allows you to control the scroll state of the list by providing a lazyListState parameter, like so:

@Composable
fun MessageList(
    ..., // State, UI & Actions
    lazyListState: LazyListState = rememberMessageListState(parentMessageId),
    ... // Content
)

• lazyListState: The scroll state of the list. While not a handler, you can use it to control the scroll and trigger custom scroll actions.

You can customize this state in the following way:

val myListState = rememberMessageListState(parentMessageId = state.parentMessageId)

MessageList(
    ..., // the rest of the state, UI & actions
    lazyListState = myListState,
)

rememberMessageListState() keeps a separate instance of LazyListState based on the parentMessageId. This helps you keep the scroll state of the main list intact when you enter and leave threads.

You can also provide your own instance of LazyListState based on your custom logic where you define the starting scroll position of the state, the offset and how it behaves based on user events. For example, when deep linking.

Customization

We allow for a few ways of customizing the MessageList component, as per the signature:

@Composable
fun MessageList(
	..., // State and actions
    modifier: Modifier = Modifier,
    contentPadding: PaddingValues = PaddingValues(...),
    loadingContent: @Composable () -> Unit = { DefaultMessageListLoadingIndicator(modifier) },
    emptyContent: @Composable () -> Unit = { DefaultMessageListEmptyContent(modifier) },
    helperContent: @Composable BoxScope.() -> Unit = {
        DefaultMessagesHelperContent(viewModel.currentMessagesState, lazyListState)
    },
    loadingMoreContent: @Composable () -> Unit = { DefaultMessagesLoadingMoreIndicator() },
    itemContent: @Composable (MessageListItemState) -> Unit = { messageListItem ->
        DefaultMessageContainer(
            messageListItem = messageListItem,
            onImagePreviewResult = onImagePreviewResult,
            onThreadClick = onThreadClick,
            onLongItemClick = onLongItemClick,
            onReactionsClick = onReactionsClick,
            onGiphyActionClick = onGiphyActionClick
        )
    },
)

• modifier: Modifier for the root component. Useful for things like the component size, padding, background and similar.
• contentPadding: Padding values to be applied to the message list surrounding the content inside.
• loadingContent: Used while loading the message data. By default shows a loading indicator that you can override.
• emptyContent: An empty placeholder used when no messages are available. By default displays a message that you can override.
• helperContent: Composable that represents helper content for the message list. By default handles the scrolling behavior and shows a floating button that can be used to scroll to the bottom.
• loadingMoreContent: Composable that represents the loading more content, when we’re loading the next page.
• itemContent: Composable that allows you to fully override the UI and behavior of each message in the list. This function will be applied to each item in the list and you’ll gain access to the MessageListItemState inside the lambda when building your custom UI.

Here’s an example of customizing the Message items in the list:

MessageList(
    viewModel = listViewModel,
    modifier = Modifier
        .fillMaxSize()
        .background(ChatTheme.colors.appBackground),
    itemContent = { item ->
        if (item is MessageItemState) { // we check against other subclasses of 'MessageListItemState'
            val message = item.message

            Column(
                modifier = Modifier
                    .padding(8.dp)
                    .widthIn(max = 300.dp)
            ) {
                Row(verticalAlignment = Alignment.CenterVertically) {
                    Avatar(
                        modifier = Modifier.size(36.dp),
                        imageUrl =  message.user.image,
                        initials = message.user.initials
                    )

                    Text(
                        modifier = Modifier.padding(start = 8.dp),
                        text = message.user.name,
                        style = ChatTheme.typography.bodyBold,
                        fontSize = 14.sp,
                        color = ChatTheme.colors.textHighEmphasis
                    )
                }

                MessageBubble(
                    color = ChatTheme.colors.barsBackground,
                    modifier = Modifier.padding(top = 4.dp),
                    shape = RoundedCornerShape(
                        topEnd = 16.dp,
                        topStart = 0.dp,
                        bottomEnd = 16.dp,
                        bottomStart = 16.dp
                    ),
                    content = {
                        Text(
                            modifier = Modifier.padding(8.dp),
                            text = message.text,
                            color = ChatTheme.colors.textHighEmphasis
                        )
                    }
                )
            }
        }
    }
)

This snippet of code prepares a custom message item component, using the itemContent parameter. It features a Column that hosts a Row with an avatar and a text showing the user name, as well as a MessageBubble that wraps the message text.

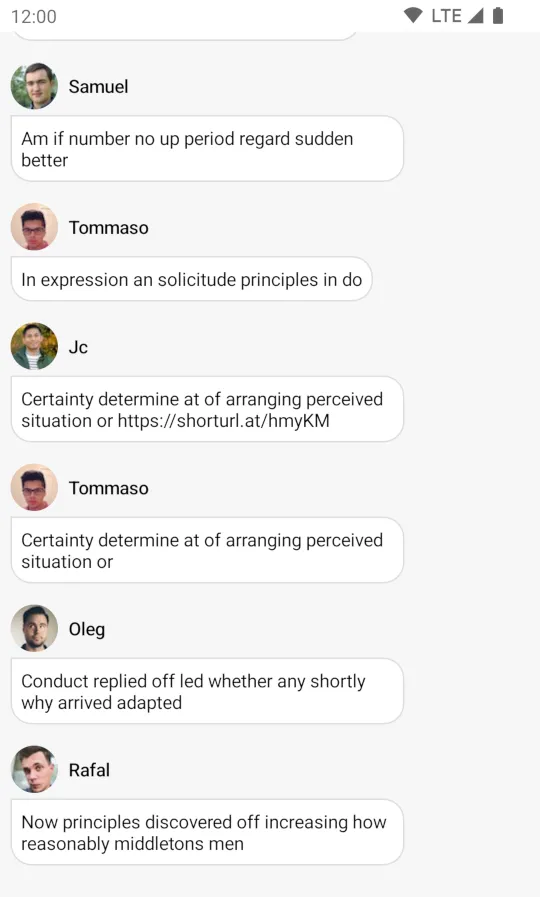

These components also use modifiers and other properties to style them and make them look nicer. With a simple parameter, this snippet will now produce the following UI in the MessageList:

As per our description, the Avatar and the user name Text are shown in a Row, after which we see the MessageBubble. Note that this approach doesn’t automatically display attachments, so you’ll have to show attachment UI based on the provided attachmentFactories within the ChatTheme.

Using this approach, you can completely customize the items to your needs and you can use click, touch and combined modifiers to customize the touch event behavior.

And you can customize the emptyContent and the loadingContent to your needs, if you need custom UI there.
