Call layout

The SDK provides built-in call layouts:

PaginatedGridLayout - displays participants in a paginated grid

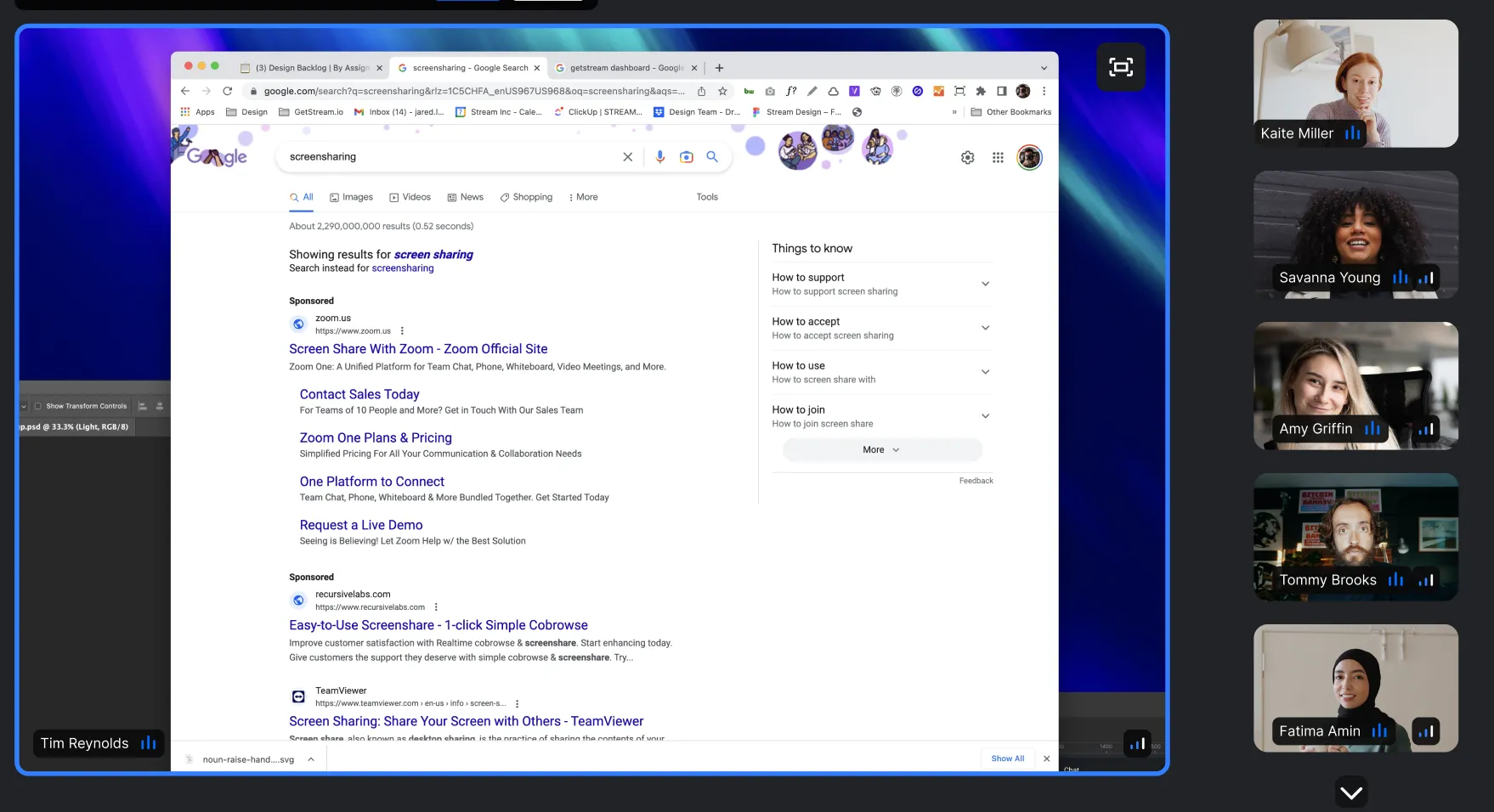

SpeakerLayout - dominant speaker/screen share in focus, others in a bar
LivestreamLayout - optimized for livestreaming with dominant speaker in large video

Best Practices

Use SpeakerLayout for meetings with screen sharing or presentations.
Use PaginatedGridLayout for group calls where everyone is equal.
Use LivestreamLayout for one-to-many broadcasts.
Use filterParticipants to show only relevant participants (e.g., by role).
Set muted={true} only when rendering <ParticipantsAudio /> separately.

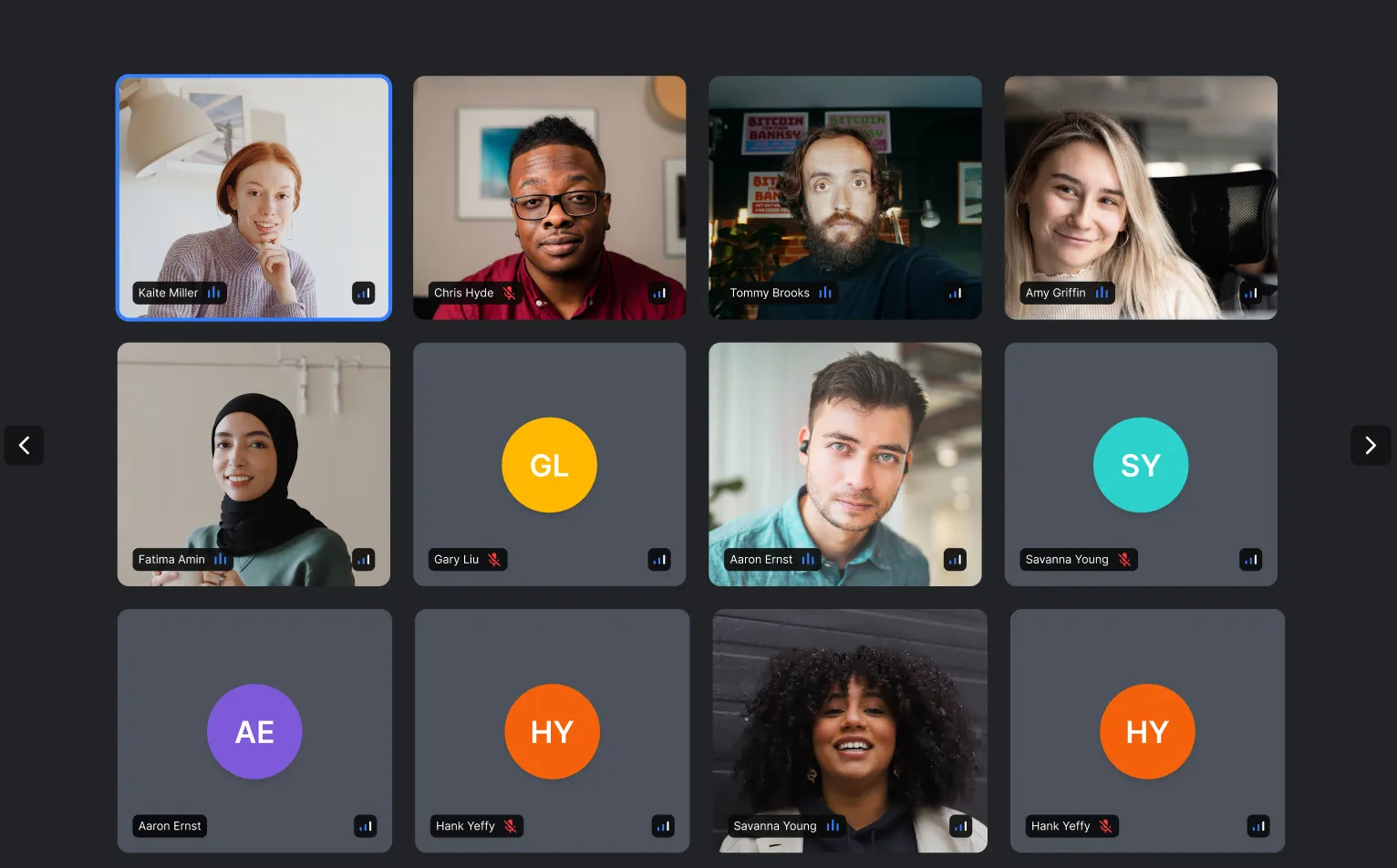

Preview of the PaginatedGridLayout component.

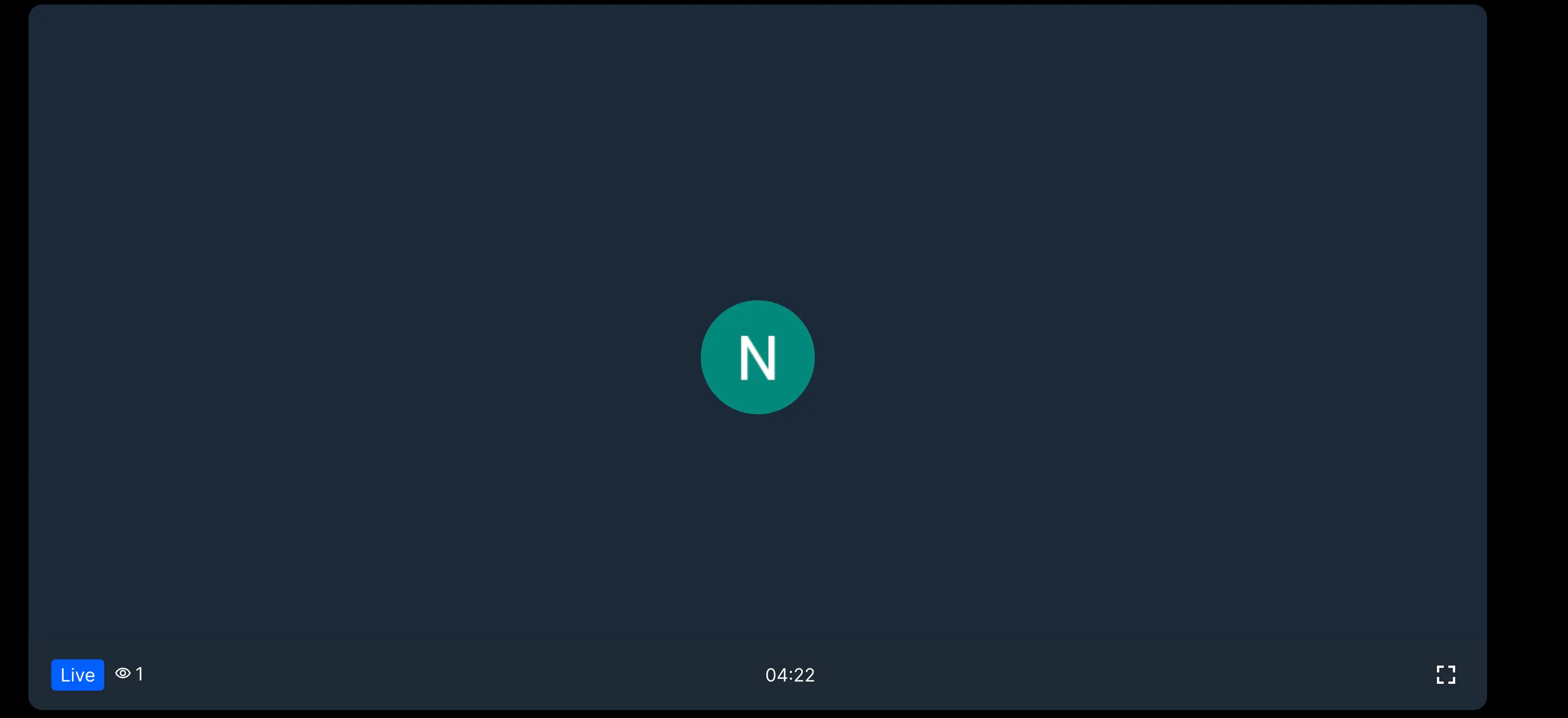

Preview of the LivestreamLayout component.

General usage

Layouts gather state via hooks - no state-related props needed:

import "@stream-io/video-react-sdk/dist/css/styles.css";
import {
  CallControls,
  StreamCall,
  StreamTheme,
  StreamVideo,
  SpeakerLayout,
} from "@stream-io/video-react-sdk";

const MyApp = () => {
  return (
    <StreamVideo client={client}>
      <StreamTheme>
        <StreamCall call={call}>
          <SpeakerLayout />
          <CallControls />
        </StreamCall>
      </StreamTheme>
    </StreamVideo>
  );
};

import "@stream-io/video-react-sdk/dist/css/styles.css";
import {
  CallControls,
  StreamCall,
  StreamTheme,
  StreamVideo,
  PaginatedGridLayout,
} from "@stream-io/video-react-sdk";

const MyApp = () => {
  return (
    <StreamVideo client={client}>
      <StreamTheme>
        <StreamCall call={call}>
          <PaginatedGridLayout />
          <CallControls />
        </StreamCall>
      </StreamTheme>
    </StreamVideo>
  );
};

Built-in Layouts

`PaginatedGridLayout`

Props

Name	Description	Type
`groupSize`	The number of participants to display per page	`number` \| `undefined`
`excludeLocalParticipant`	Whether to exclude the local participant from the grid	`boolean` \| `undefined`
`filterParticipants`	Optional predicate or filter object to determine whether a participant should be displayed in the grid	`ParticipantPredicate` \| `ParticipantFilter` \| `undefined`
`mirrorLocalParticipantVideo`	Whether to mirror the user's own video (default `true`)	`boolean` \| `undefined`
`pageArrowsVisible`	Turns on/off the pagination arrows	`boolean` \| `undefined`
`muted`	Mutes all audio. Only use this if you render `<Audio />` or `<ParticipantsAudio />` manually somewhere else.	`boolean`
`ParticipantViewUI`	See `ParticipantView` documentation	See `ParticipantView` documentation
`VideoPlaceholder`	See `ParticipantView` documentation	See `ParticipantView` documentation
`PictureInPicturePlaceholder`	See `ParticipantView` documentation	See `ParticipantView` documentation

Participant filtering

PaginatedGridLayout supports filtering displayed participants either with a predicate function:

// Display only participants with the role "student":
<PaginatedGridLayout
  filterParticipants={(p) => p.roles.includes("student")}
  /* ... */
/>

Or with a special filter object, which is similar in syntax to that of Mongoose:

// Display only participants with either the role "student",
// or that are currently pinned:
<PaginatedGridLayout
  filterParticipants={{
    $or: [{ roles: { $contains: "student" } }, { isPinned: true }],
  }}
/>

`SpeakerLayout`

Props

Name	Description	Type
`participantsBarPosition`	The position of the participants who are not in focus, the default is `bottom`. Providing `null` will hide the bar	`top` \| `bottom` \| `left` \| `right` \| `null`
`excludeLocalParticipant`	Whether to exclude the local participant from the layout	`boolean` \| `undefined`
`filterParticipants`	Optional predicate or filter object to determine whether a participant should be displayed in the layout	`ParticipantPredicate` \| `ParticipantFilter` \| `undefined`
`mirrorLocalParticipantVideo`	Whether to mirror the user's own video (default `true`)	`boolean` \| `undefined`
`pageArrowsVisible`	Turns on/off the pagination arrows	`boolean` \| `undefined`
`muted`	Mutes all audio. Only use this if you render `<Audio />` or `<ParticipantsAudio />` manually somewhere else.	`boolean`
`enableDragToScroll`	Whether to enable drag to scroll functionality on the participants list.	`boolean`
`ParticipantViewUISpotlight`	The participant UI for the spotlight view, see `ParticipantView` documentation	See `ParticipantView` documentation
`ParticipantViewUIBar`	The participant UI for the participants in the bar, see `ParticipantView` documentation	See `ParticipantView` documentation
`VideoPlaceholder`	See `ParticipantView` documentation	See `ParticipantView` documentation
`PictureInPicturePlaceholder`	See `ParticipantView` documentation	See `ParticipantView` documentation

Participant filtering

SpeakerLayout supports filtering displayed participants either with a predicate function:

// Display only participants with the role "student":
<SpeakerLayout
  filterParticipants={(p) => p.roles.includes("student")}
  /* ... */
/>

Or with a special filter object, which is similar in syntax to that of Mongoose:

// Display only participants with either the role "student",
// or that are currently pinned:
<SpeakerLayout
  filterParticipants={{
    $or: [{ roles: { $contains: "student" } }, { isPinned: true }],
  }}
/>

`LivestreamLayout`

Props

Name	Description	Type
`muted`	Mutes all audio	`boolean`
`enableFullscreen`	Will render a button to enable fullscreen mode	`boolean`
`showParticipantCount`	Will show the number of participants	`boolean`
`humanizeParticipantCount`	Will humanize the participant count. E.g.: `1200 -> 1.2k`	`boolean`
`showDuration`	Will show the duration of the livestream	`boolean`
`showLiveBadge`	Will show a badge whether the livestream is live or not	`boolean`
`showSpeakerName`	Will show the name of the speaker	`boolean`
`showMuteButton`	Will show the speaker mute button	`boolean`
`mirrorLocalParticipantVideo`	Whether to mirror the user's own video (default `true`)	`boolean`
`floatingParticipantProps`	Props to pass to the floating participant view	`object`
`floatingParticipantProps.position`	Position of the floating participant view	`string`

Customization

If the built-in layouts aren't what you're looking for, it's also possible to create your own layout, see our Custom Call Layout guide for more information.
