Manual Video Quality Selection

Override automatic video quality selection to manually request higher resolution for better quality, lower resolution to save bandwidth, or disable video for audio-only mode.

Best Practices

Use useIncomingVideoSettings hook to get current quality state.
Provide "auto" option to let SDK optimize quality based on element size.
Use setPreferredIncomingVideoResolution for specific resolution, setIncomingVideoEnabled(false) to disable.
For per-participant quality, pass session IDs as second parameter to setPreferredIncomingVideoResolution.

Note:

Actual quality depends on source video and network conditions. Manual selection specifies your preference; the SDK selects the closest available resolution.

Prerequisites

If you haven't already bootstrapped a video calling application (our Video Calling Tutorial is a great place to start!), here's a very simple application that we'll use as a starting point:

import {
  Call,
  SpeakerLayout,
  StreamCall,
  StreamTheme,
  StreamVideo,
  StreamVideoClient,
} from "@stream-io/video-react-sdk";
import "@stream-io/video-react-sdk/dist/css/styles.css";

const client = new StreamVideoClient({
  apiKey: "REPLACE_WITH_API_KEY",
  user: { id: "REPALCE_WITH_USER_ID", name: "Jane Doe" },
  token: "REPLACE_WITH_TOKEN",
});

export const App = () => {
  const [call, setCall] = useState<Call>();
  useEffect(() => {
    const newCall = client.call("appointment", callId);
    newCall
      .join({ create: true })
      .then(() => setCall(newCall))
      .catch(() => console.error("Failed to join the call"));

    return () => {
      newCall.leave().catch(() => console.error("Failed to leave the call"));
      setCall(undefined);
    };
  }, []);

  if (!call) {
    return <>Loading...</>;
  }

  return (
    <StreamTheme>
      <StreamVideo client={client}>
        <StreamCall call={call}>
          <SpeakerLayout />
        </StreamCall>
      </StreamVideo>
    </StreamTheme>
  );
};

Getting and Setting Incoming Video Settings

To get the current incoming video quality settings, we will use the useIncomingVideoSettings call state hook. Most importantly, it returns the following two values:

enabled - a boolean flag indicating whether incoming video is enabled.
preferredResolution - if video is enabled, an object of the shape { width: number; height: number } containing the current preferred resolution of the incoming video.

To modify the current setting, the following two methods are available on the Call object:

setIncomingVideoEnabled - enables or disables incoming video, clearing any preferred resolution.
setPreferredIncomingVideoResolution - sets the preference for the incoming video resolution, enabling video if it was previously disabled.

To combine these two settings into a single control, we'll need to do some mapping:

import type { Call } from "@stream-io/video-react-sdk";

const incomingVideoSettings = ["auto", "1080p", "720p", "480p", "off"] as const;
type IncomingVideoSetting = (typeof incomingVideoSettings)[number];
type VideoDimension = { width: number; height: number };

const applyIncomingVideoSetting = (
  call: Call,
  setting: IncomingVideoSetting,
) => {
  if (setting === "auto") {
    call.setIncomingVideoEnabled(true);
  } else if (setting === "off") {
    call.setIncomingVideoEnabled(false);
  } else {
    call.setPreferredIncomingVideoResolution(
      incomingVideoSettingToResolution(setting),
    );
  }
};

const incomingVideoSettingToResolution = (
  setting: Exclude<IncomingVideoSetting, "auto" | "off">,
): VideoDimension => {
  switch (setting) {
    case "1080p":
      return { width: 1920, height: 1080 };
    case "720p":
      return { width: 1280, height: 720 };
    case "480p":
      return { width: 640, height: 480 };
  }
};

const incomingVideoResolutionToSetting = (
  resolution: VideoDimension,
): IncomingVideoSetting => {
  switch (true) {
    case resolution.height >= 1080:
      return "1080p";
    case resolution.height >= 720:
      return "720p";
    case resolution.height >= 480:
      return "480p";
    default:
      return "auto";
  }
};

It's also possible to set a preferred resolution per call participant. There's an optional second parameter to the setPreferredIncomingVideoResolution, accepting an array of participant session ids:

import { useCallStateHooks } from "@stream-io/video-react-sdk";

const { useParticipants } = useCallStateHooks();
const participants = useParticipants();
const [dominantParticipant] = participants;

call.setPreferredIncomingVideoResolution(
  incomingVideoSettingToResolution("1080p"),
  [dominantParticipant.sessionId],
);

However, in this cookbook we assume that the preferences apply to all call participants.

Building Incoming Video Quality Selector

Now we're ready to build a UI control to display and change the incoming video quality.

import type { FormEvent } from "react";
import { useCallStateHooks } from "@stream-io/video-react-sdk";

const IncomingVideoQualitySelector = () => {
  const call = useCall();
  const { useIncomingVideoSettings } = useCallStateHooks();
  const { enabled, preferredResolution } = useIncomingVideoSettings();
  let currentSetting: IncomingVideoSetting;

  if (!preferredResolution) {
    currentSetting = enabled ? "auto" : "off";
  } else {
    currentSetting = incomingVideoResolutionToSetting(preferredResolution);
  }

  const handleChange = (event: FormEvent<HTMLSelectElement>) => {
    if (call) {
      const setting = event.currentTarget.value as IncomingVideoSetting;
      applyIncomingVideoSetting(call, setting);
    }
  };

  return (
    <div className="quality-selector">
      <select
        className="quality-selector-dropdown"
        value={currentSetting}
        onChange={handleChange}
      >
        {incomingVideoSettings.map((setting) => (
          <option key={setting} value={setting}>
            {setting}
          </option>
        ))}
      </select>
    </div>
  );
};

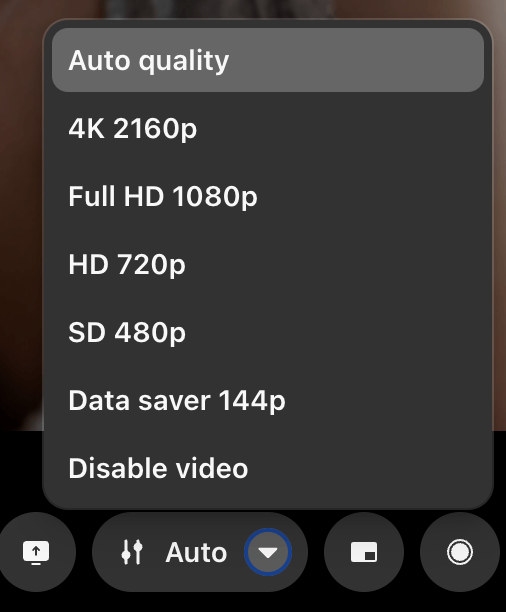

And now by adding this component inside of the StreamCall, we have a video quality selector in the call UI:

<StreamVideo client={client}>
  <StreamCall call={call}>
    <IncomingVideoQualitySelector />
    <SpeakerLayout />
  </StreamCall>
</StreamVideo>
