Chat Integration

It’s common for calling apps to have chat, as well as the opposite - chat apps to have a calling functionality. Stream’s Chat and Video SDKs are perfectly compatible between each other, and can easily be integrated into an app.

Before starting with this guide on how to integrate chat and video together, we will initially focus on installation of the Chat SDK.

Installation

To install Stream Chat SDK, you can go through our Getting Started guide and follow the installation steps and install all the relevant dependencies as well as optional dependencies according to your application’s needs.

Do not forget through the Additional Steps guide while installing the dependencies.

Creating and Passing Chat Client

To create the Chat Client we will mainly follow this tutorial.

Wrapping the chat client

To wrap our Chat initiation and client logic we will create a ChatWrapper component that can be wrapped at the root of the application, so that the client will be available to all the child components.

src/components/ChatWrapper.tsx
import React, { PropsWithChildren, useCallback, useMemo } from 'react';
import { Chat, OverlayProvider, Streami18n } from 'stream-chat-react-native';
import { useChatClient } from '../hooks/useChatClient';
import { SafeAreaView, ActivityIndicator } from 'react-native';

const streami18n = new Streami18n({
  language: 'en',
});

export const ChatWrapper = ({ children }: PropsWithChildren<{}>) => {
  const user = {
    id: 'your-user-id',
    name: 'your-user-name',
  };
  const token = 'your-user-token';

  const chatClient = useChatClient({
    apiKey: STREAM_API_KEY,
    userData: user,
    tokenProvider: token,
  });

  if (!chatClient) {
    // Show a loader until the Chat client loads
    return (
      <SafeAreaView style={styles.container}>
        <ActivityIndicator size={'large'} style={StyleSheet.absoluteFill} />
      </SafeAreaView>
    );
  }

  return (
    <OverlayProvider i18nInstance={streami18n}>
      <Chat client={chatClient} i18nInstance={streami18n}>
        {children}
      </Chat>
    </OverlayProvider>
  );
};

It is essential for you to wrap the GestureHandlerRootView, OverlayProvider and Chat component on the root of your chat integration hierarchy.

GestureHandlerRootView should be wrapped into the root of your application as follows:

App.tsx
import React, { useEffect, useState } from 'react';
import { StyleSheet } from 'react-native';
import {
  Call,
  StreamCall,
  StreamVideo,
  StreamVideoClient,
} from '@stream-io/video-react-native-sdk';
import { VideoCallUI } from 'src/components/VideoCallUI';
import { GestureHandlerRootView } from 'react-native-gesture-handler';

export default function App() {
  // ...

  return (
    <GestureHandlerRootView style={styles.container}>
      <StreamVideo client={client}>
        <StreamCall call={call}>
          <VideoCallUI />
        </StreamCall>
      </StreamVideo>
    </GestureHandlerRootView>
  );
}

const styles = StyleSheet.create({
  container: {
    flex: 1,
  },
});

Creating the Chat Client

Firstly, we will create types for the Chat Client as our setup is focused on Typescript. This can be done as follows:

src/types.ts
export type LocalAttachmentType = Record<string, unknown>;
export type LocalChannelType = Record<string, unknown>;
export type LocalCommandType = string;
export type LocalEventType = Record<string, unknown>;
export type LocalMessageType = Record<string, unknown>;
export type LocalReactionType = Record<string, unknown>;
export type LocalUserType = Record<string, unknown>;

export type StreamChatGenerics = {
  attachmentType: LocalAttachmentType;
  channelType: LocalChannelType;
  commandType: LocalCommandType;
  eventType: LocalEventType;
  messageType: LocalMessageType;
  reactionType: LocalReactionType;
  userType: LocalUserType;
};

Now, we will focus on creating the useChatClient hook that is responsible for creating the Chat client. This is fairly simple:

src/hooks/useChatClient.tsx
import { useEffect, useRef, useState } from 'react';
import {
  StreamChat,
  OwnUserResponse,
  UserResponse,
  TokenOrProvider,
} from 'stream-chat';
import { StreamChatGenerics } from '../../types';

export const useChatClient = <
  SCG extends StreamChatGenerics = StreamChatGenerics,
>({
  apiKey,
  userData,
  tokenProvider,
}: {
  apiKey: string;
  userData?: OwnUserResponse<SCG> | UserResponse<SCG>;
  tokenProvider?: TokenOrProvider;
}) => {
  const [chatClient, setChatClient] = useState<StreamChat<SCG> | null>(null);
  const disconnectRef = useRef(Promise.resolve());

  useEffect(() => {
    if (!userData) {
      return;
    }

    const client = new StreamChat<SCG>(apiKey);
    const connectUser = async () => {
      await disconnectRef.current;
      try {
        await client.connectUser(userData, tokenProvider);
        console.log(`[Chat client]: Connected user: ${userData.id}`);
      } catch (e) {
        console.error('[Chat client]: Failed to establish connection', e);
      }
      if (!didUserConnectInterrupt) {
        setChatClient(client);
      }
    };

    let didUserConnectInterrupt = false;
    const connectPromise = connectUser();

    const cleanUp = async () => {
      didUserConnectInterrupt = true;
      await connectPromise;
      try {
        await client.disconnectUser();
        console.log(`[Chat client]: Disconnected user: ${userData.id}`);
      } catch (e) {
        console.error('[Chat client]: Failed to disconnect', e);
      }
      setChatClient(null);
    };

    return () => {
      disconnectRef.current = cleanUp();
    };
  }, [apiKey, userData, tokenProvider]);

  return chatClient;
};

The apiKey, userData and the tokenProvider comes up from the ChatWrapper created above.

Adding Chat into Video

Step 1: Wrapping the ChatWrapper

If we extend our Video Calling Tutorial, our ChatWrapper component can we wrapped as a parent/child of the StreamVideo as:

App.tsx
import React, { useEffect, useState } from 'react';
import {
  Call,
  StreamCall,
  StreamVideo,
  StreamVideoClient,
} from '@stream-io/video-react-native-sdk';
import { VideoCallUI } from './components/VideoCallUI';
import { ChatWrapper } from './src/components/ChatWrapper';
import { GestureHandlerRootView } from 'react-native-gesture-handler';

export default function App() {
  // ...

  return (
    <ChatWrapper>
      <GestureHandlerRootView style={styles.container}>
        <StreamVideo client={client}>
          <StreamCall call={call}>
            <VideoCallUI />
          </StreamCall>
        </StreamVideo>
      </GestureHandlerRootView>
    </ChatWrapper>
  );
}

Step 2: Creating the Chat window/screen

After the chat client is wrapped to the application, we can focus on creating the chat window/screen. We will take the help of the Channel, MessageList and the MessageInput component to do so.

We will also create a channel with the same id as the call id to make it distinct.

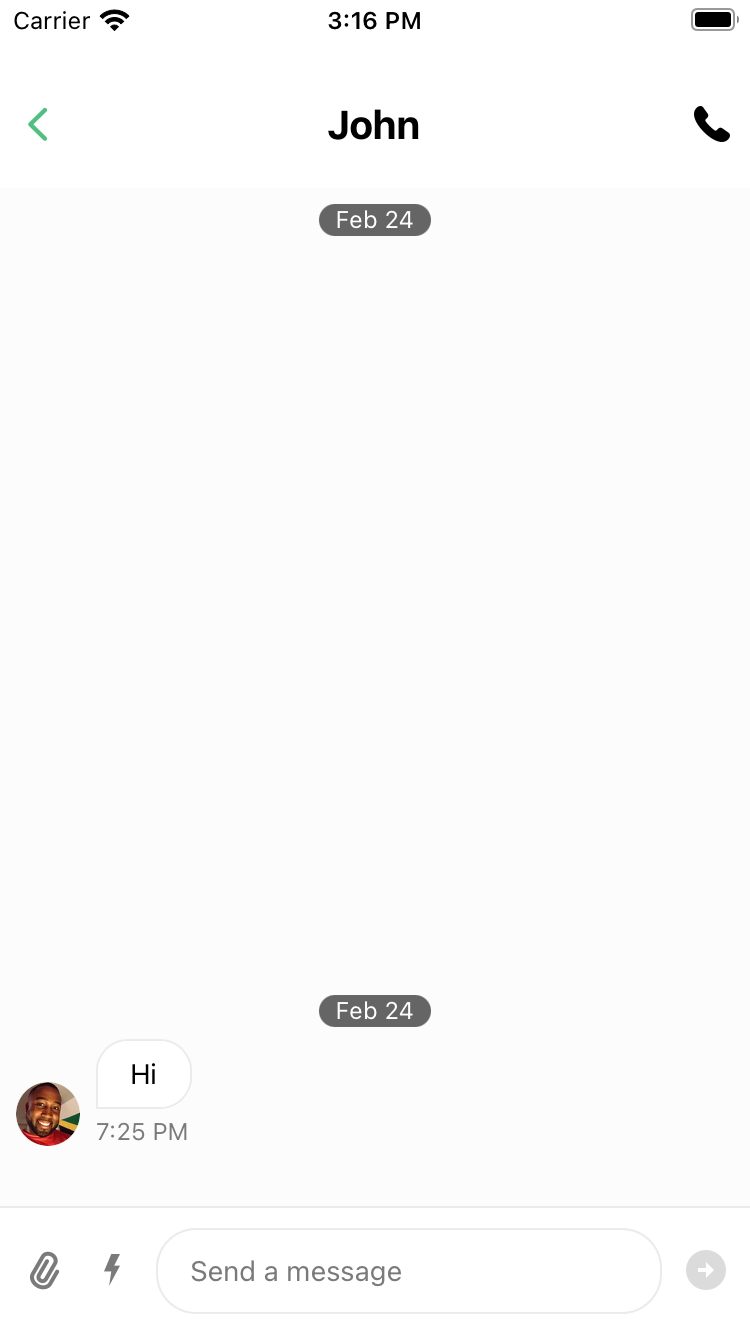

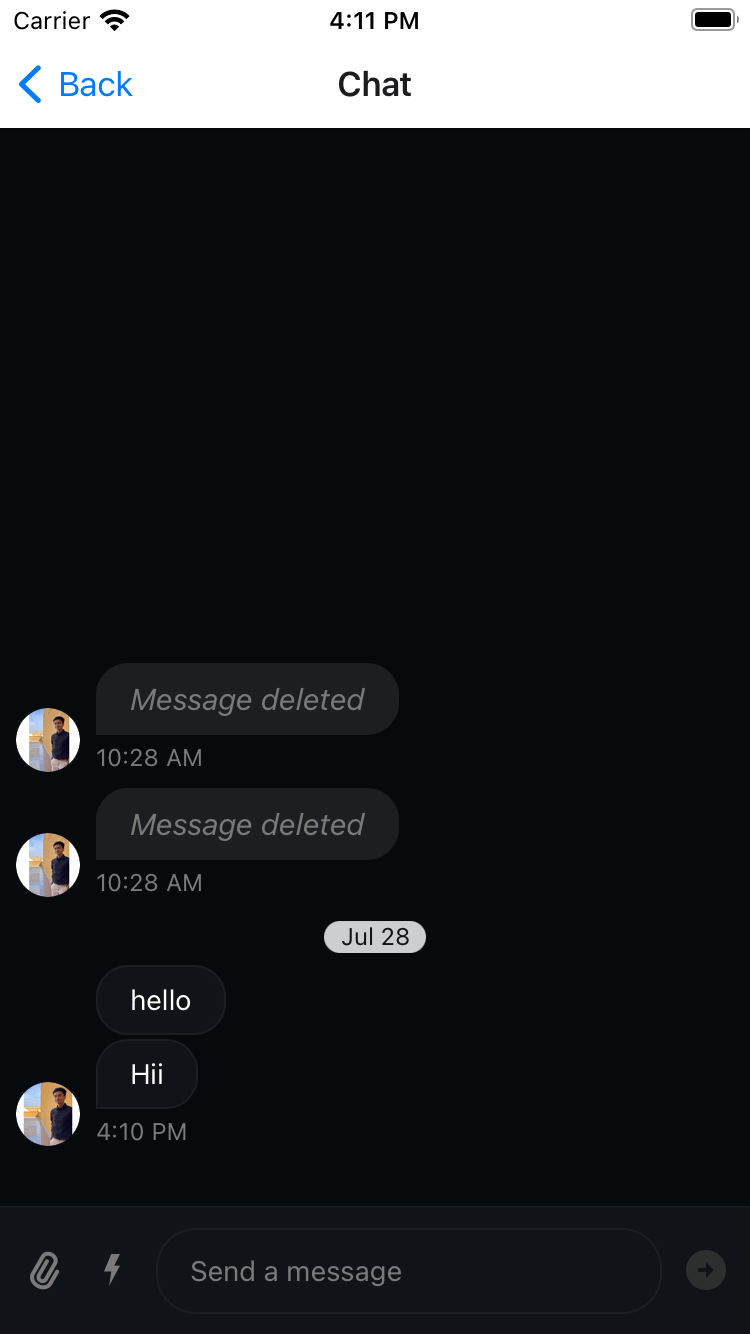

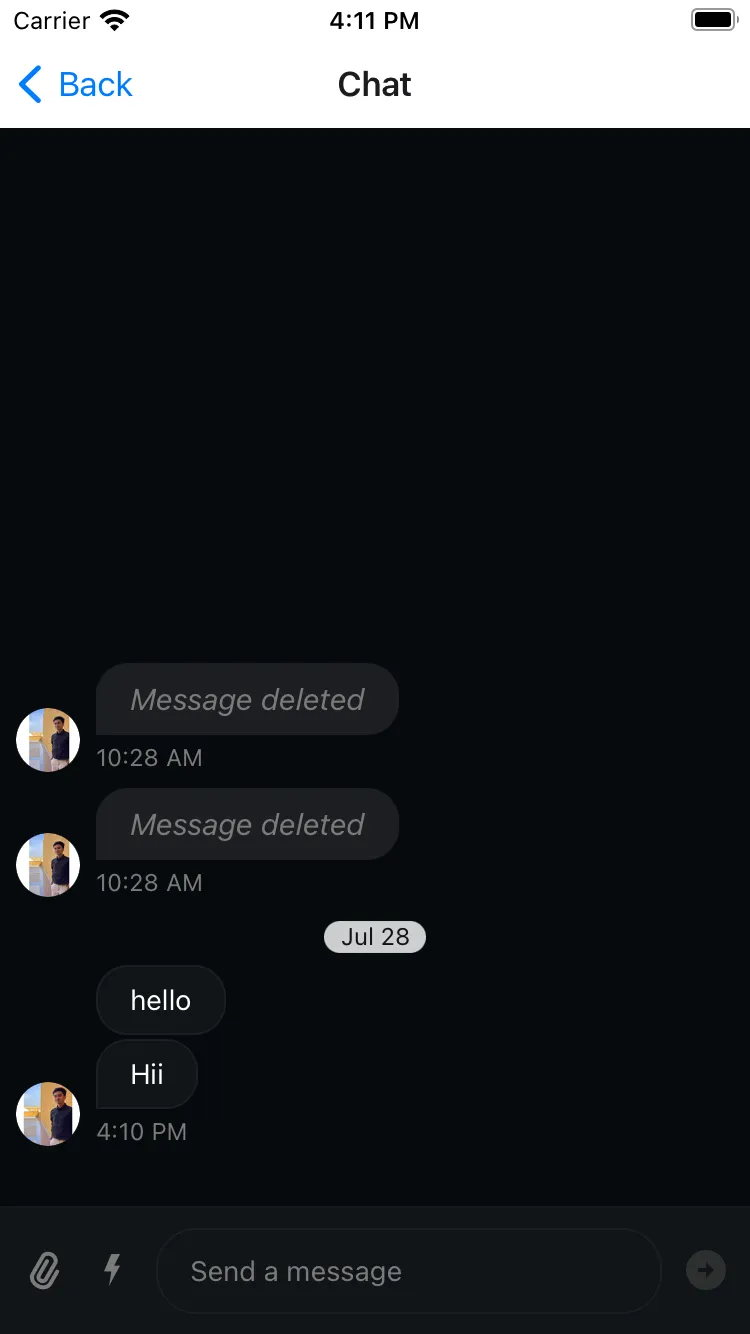

Preview of the Chat Screen

While creating a channel, please make sure the channel type is videocall. This will add the appropriate permissions/capabilities to the channel for video call by default.

An example of the same is shown below:

src/ChatScreen.tsx
import React, { useEffect, useState } from 'react';
import { SafeAreaView, ActivityIndicator, StyleSheet } from 'react-native';
import {
  Channel,
  MessageInput,
  MessageList,
  useChatContext,
} from 'stream-chat-react-native';
import { Channel as ChannelType } from 'stream-chat';
import { StreamChatGenerics } from '../../../types';

export const ChatScreen = () => {
  const [channel, setChannel] = useState<
    ChannelType<StreamChatGenerics> | undefined
  >(undefined);
  const { client } = useChatContext();

  const CHANNEL_TYPE = 'videocall';
  const CHANNEL_ID = 'your-call-id'; // You can get the call id through sharing params while routing through navigation.

  useEffect(() => {
    const createChannel = async () => {
      const newChannel = await client.channel(CHANNEL_TYPE, CHANNEL_ID);
      setChannel(newChannel);
    };
    createChannel();
  }, [client]);

  if (!channel) {
    return (
      <SafeAreaView style={styles.container}>
        <ActivityIndicator size={'large'} style={StyleSheet.absoluteFill} />
      </SafeAreaView>
    );
  }

  return (
    <SafeAreaView>
      <Channel channel={channel}>
        <MessageList />
        <MessageInput />
      </Channel>
    </SafeAreaView>
  );
};

const styles = StyleSheet.create({
  container: {
    flex: 1,
  },
});

Step 3: Open the chat window

To do this, we will create a custom CallControls using the ChatButton component.

The ChatButton component takes up an onPressHandler, which is responsible to perform an action when the button is pressed. In our case, it’s the opening of the ChatScreen.

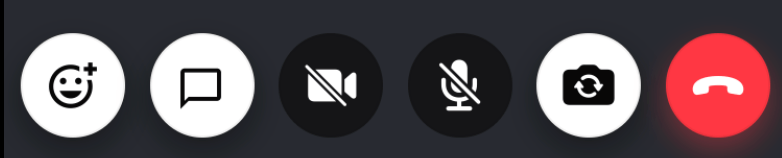

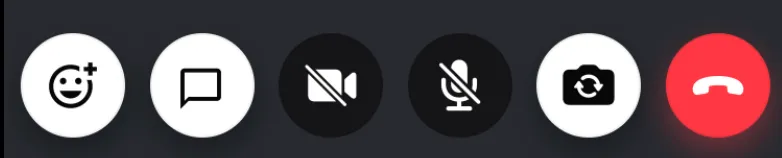

Preview of the call controls with chat button
.

In the VideoCallUI component of our Video Calling Tutorial, we will add the above:

src/components/VideoCallUI.tsx
import React from 'react';
import { SafeAreaView, StyleSheet, View } from 'react-native';
import {
  CallContent,
  ChatButton,
  HangUpCallButton,
  ToggleAudioPublishingButton,
  ToggleCameraFaceButton,
  ToggleVideoPublishingButton,
} from '@stream-io/video-react-native-sdk';

export type CallControlsComponentProps = {
  onChatOpenHandler?: () => void;
  onHangupCallHandler?: () => void;
};

export const CallControlsComponent = ({
  onChatOpenHandler,
  onHangupCallHandler,
}: CallControlsComponentProps) => {
  return (
    <View style={styles.callControlsWrapper}>
      <ChatButton onPressHandler={onChatOpenHandler} />
      <ToggleVideoPublishingButton />
      <ToggleAudioPublishingButton />
      <ToggleCameraFaceButton />
      <HangUpCallButton onPressHandler={onHangupCallHandler} />
    </View>
  );
};

export const VideoCallUI = () => {
  const onChatOpenHandler = () => {
    // handle how to open the Chat window/screen. You can use this to navigate to the chat screen, open a modal, etc.
    // highlight-next-line
  };

  const CustomControlsComponent = useCallback(() => {
    return <CallControlsComponent onChatOpenHandler={onChatOpenHandler} />;
  }, [onChatOpenHandler]);

  return (
    <SafeAreaView style={styles.container}>
      <CallContent CallControls={CustomControlsComponent} />
    </SafeAreaView>
  );
};

const styles = StyleSheet.create({
  container: {
    flex: 1,
    backgroundColor: '#272A30',
  },
  callControlsWrapper: {
    flexDirection: 'row',
    justifyContent: 'space-evenly',
    paddingVertical: 12,
    zIndex: 2,
    backgroundColor: '#272A30',
  },
});

Step 4: Showing unread count indicator for new chats

To get the unread count of the Channel we need to focus primarily on watching the channel and then listen to relevant events such as message.new to update the unread count state variable. The unread count is set to 0 when the message is marked as read, this is done by listening to the notification.mark_read event.

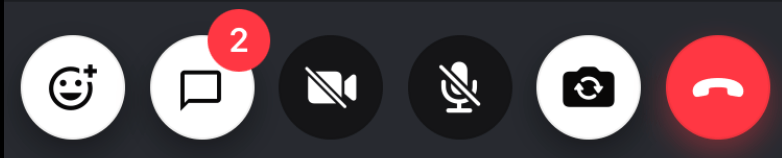

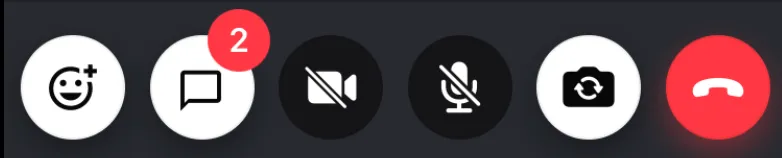

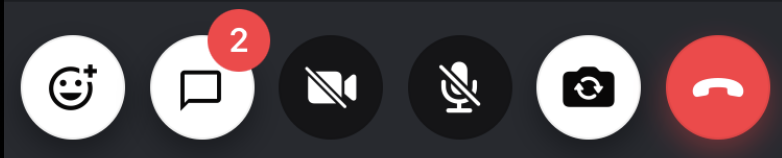

Preview of the unread count in call controls

This is demonstrated and can be done in a hook as created below:

src/hooks/useUnreadCount.tsx
import { useEffect, useState } from 'react';
import { useChatContext } from 'stream-chat-react-native';
import { Event, Channel as ChannelType } from 'stream-chat';
import { useCall } from '@stream-io/video-react-native-sdk';
import { StreamChatGenerics } from 'src/types';

/**
 * This hook is responsible for returning the unread count of the channel.
 * This is done through listening to multiple events.
 * @returns number
 */
export const useUnreadCount = () => {
  const [unreadCount, setUnreadCount] = useState(0);
  const CHANNEL_TYPE = 'videocall';
  const { client } = useChatContext();
  const call = useCall();

  const cid = `${CHANNEL_TYPE}:${call?.id}`;

  // Effect to watch the channel
  useEffect(() => {
    let channel: ChannelType<StreamChatGenerics>;
    const watchChannel = async () => {
      channel = client.channel(CHANNEL_TYPE, call?.id);
      await channel.watch();
    };

    watchChannel();

    return () => {
      channel.stopWatching();
    };
  }, [call?.id, client]);

  // Effect to set the unreadCount to 0 when the `notification.mark_read` event is received
  useEffect(() => {
    if (!client) {
      return;
    }

    const handleEvent = (event: Event) => {
      if (event?.cid === cid) {
        setUnreadCount(0);
      }
    };

    client.on('notification.mark_read', handleEvent);
    return () => client.off('notification.mark_read', handleEvent);
  }, [client, cid]);

  // Effect to update the unread count when the 'message.new' is received
  useEffect(() => {
    if (!client) {
      return;
    }

    const handleEvent = () => {
      const channel = client.activeChannels[cid];

      setUnreadCount(channel?.countUnread() ?? 0);
    };

    handleEvent();

    client.on('message.new', handleEvent);

    return () => {
      client.off('message.new', handleEvent);
    };
  }, [client, cid]);

  return unreadCount;
};

Make sure to clean up/unsubscribe to all the events when the hook un-mounts.

Finally, we will pass the unread count to our component by using the unreadBadgeCountIndicator key of the chatButton prop of CallControls component.

src/components/VideoCallUI.tsx
import React from 'react';
import { SafeAreaView, StyleSheet, View } from 'react-native';
import { CallContent, ChatButton } from '@stream-io/video-react-native-sdk';

export type CallControlsComponentProps = {
  onChatOpenHandler?: () => void;
  onHangupCallHandler?: () => void;
  unreadBadgeCount?: number;
};

export const CallControlsComponent = ({
  onChatOpenHandler,
  onHangupCallHandler,
  unreadBadgeCount,
}: CallControlsComponentProps) => {
  return (
    <View style={styles.callControlsWrapper}>
      // ...
      <ChatButton
        onPressHandler={onChatOpenHandler}
        unreadBadgeCount={unreadBadgeCount}
      />
      // ...
    </View>
  );
};

export const VideoCallUI = () => {
  const channelWatched = useChannelWatch();
  const unreadBadgeCount = useUnreadCount({ channelWatched });
  const onChatOpenHandler = () => {
    // handle how to open the Chat window/screen. You can use this to navigate to the chat screen, open a modal, etc.
    // highlight-next-line
  };

  const CustomControlsComponent = useCallback(() => {
    return (
      <CallControlsComponent
        onChatOpenHandler={onChatOpenHandler}
        unreadBadgeCount={unreadBadgeCount}
      />
    );
  }, [onChatOpenHandler]);

  return (
    <SafeAreaView style={styles.container}>
      <CallContent CallControls={CustomControlsComponent} />
    </SafeAreaView>
  );
};

Adding Video into Chat

By adding Video calling in chat we achieve a messenger like application, that allows calling an individual from the chat screen.

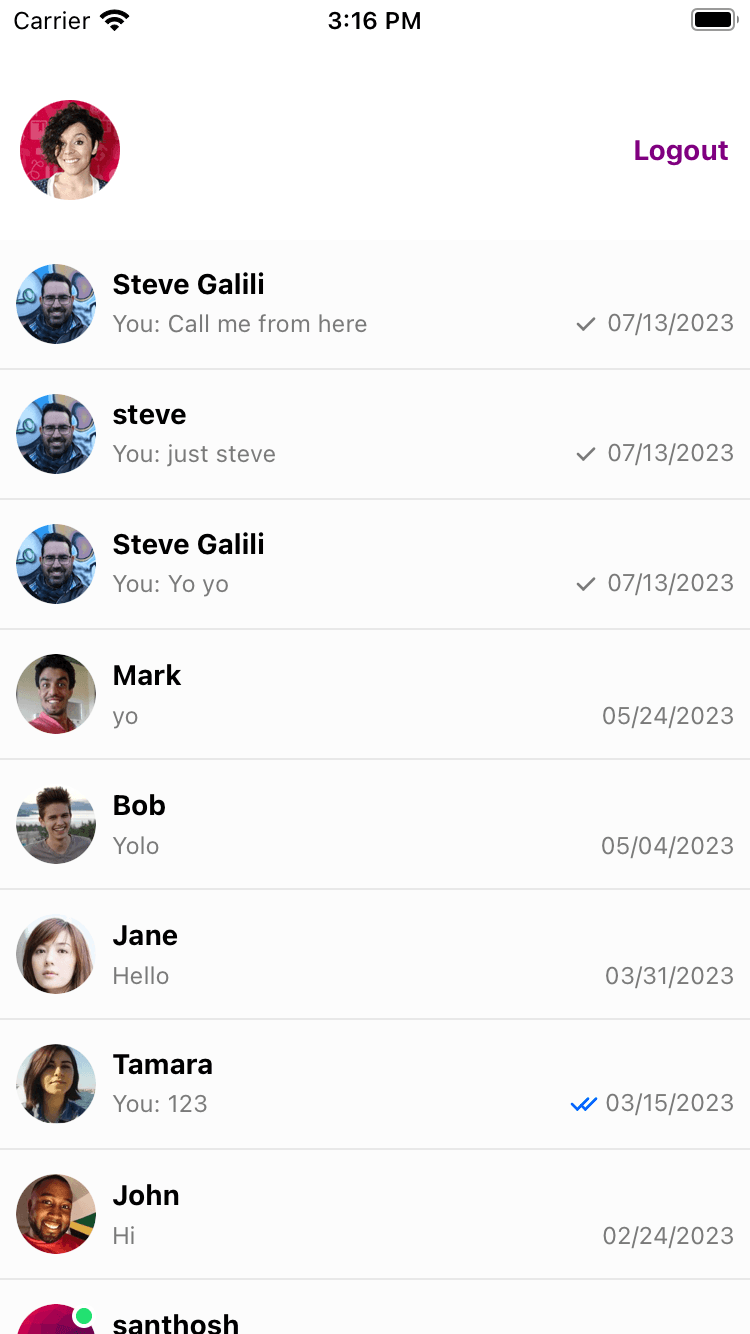

Channel list screen

Channel screen

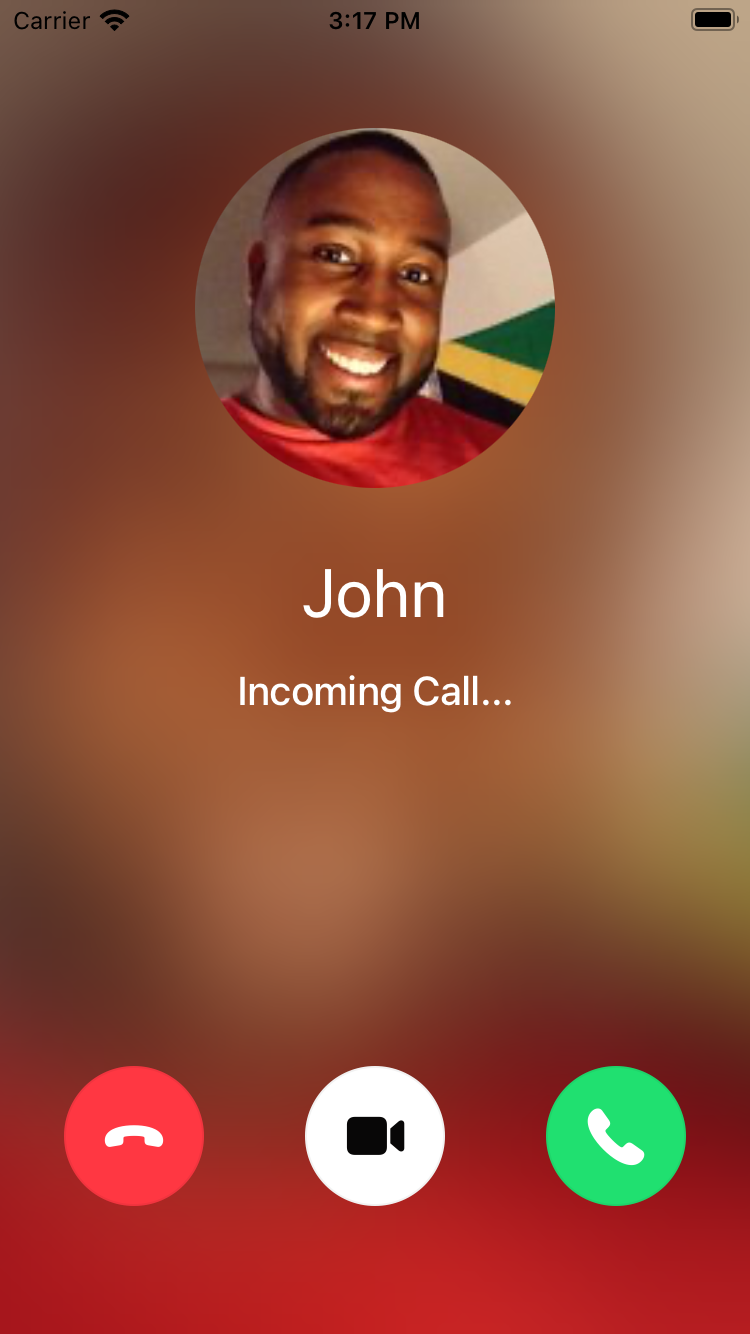

Incoming Call

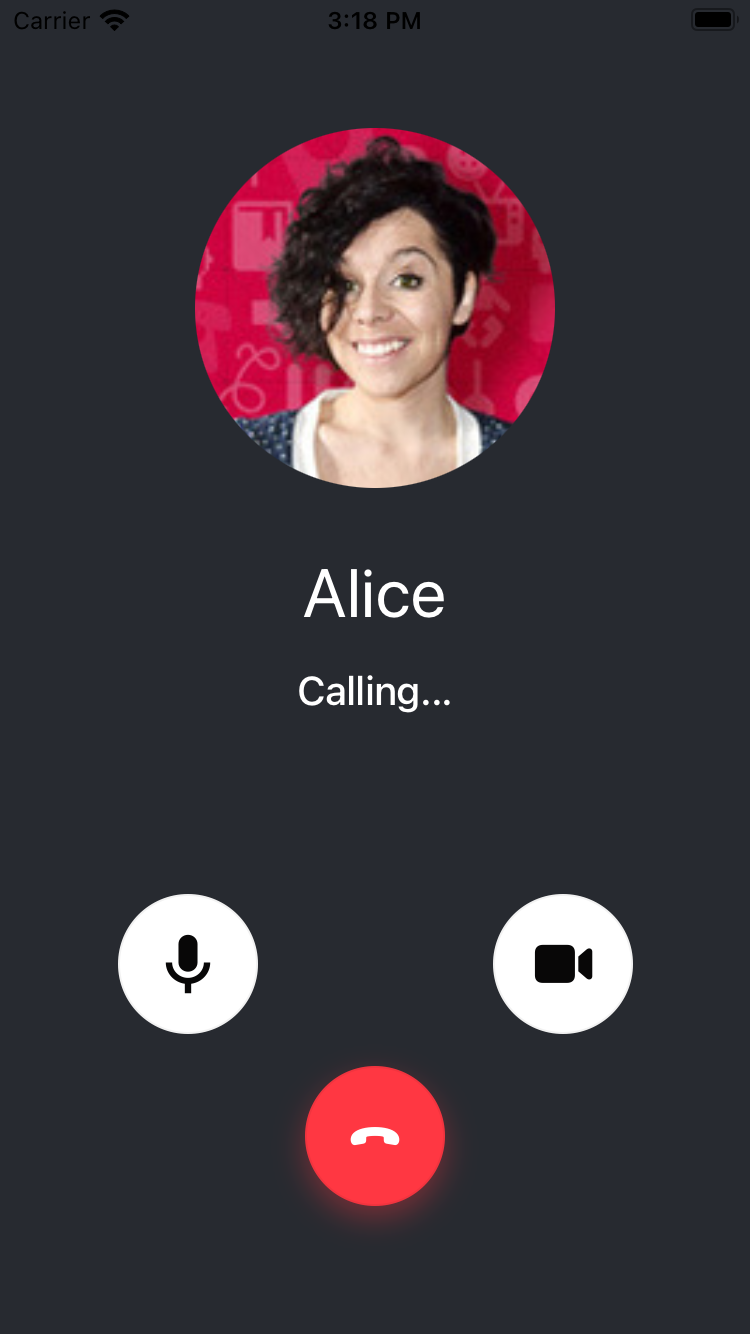

Outgoing Call

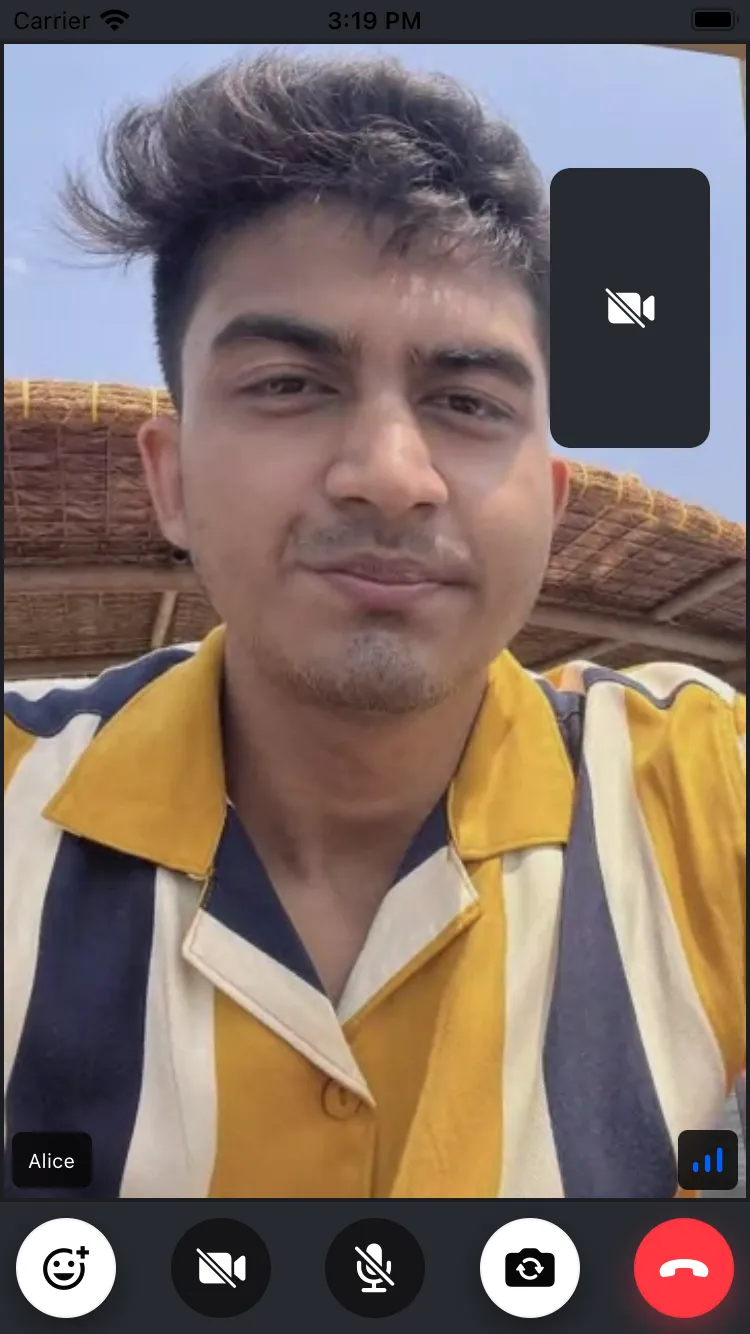

Active Call

To do so we have the useChatClient and the ChatWrapper ready from the Creating and passing Chat Client steps.

To achieve a messenger like application we need to have a basic navigation setup so that we can navigate among Channel list screen to particular channel screen, etc.

Step 1: Setting up navigation

We will use React Navigation to achieve navigation on our application.

Installing the dependencies

Let us start with installing the relevant packages:

As a part of our navigation setup, we plan only to have native stack navigator as a part of our app, therefore we install the following packages:

yarn add @react-navigation/native @react-navigation/elements @react-navigation/native-stack react-native-screens react-native-safe-area-context

After installing the packages, we need to install the pods:

npx pod-install

You can also follow the Getting started guide to install the React Navigation dependencies effectively.

Wrapping the App in NavigationContainer

You need to wrap the NavigationContainer in order to automatically manage app state and linking your top-level navigator to the app environment.

App.tsx
import React from 'react';
import { GestureHandlerRootView } from 'react-native-gesture-handler';
import { NavigationContainer } from '@react-navigation/native';

export default function App() {
  // ...

  return (
    <GestureHandlerRootView style={styles.container}>
      <NavigationContainer>
        {/* Rest of the code */}
      </NavigationContainer>
    </GestureHandlerRootView>
  );
}

const styles = StyleSheet.create({
  container: {
    flex: 1,
  },
});

Creating the screens

We will create two screens primarily, that is:

  • Channel list screen - Here we list all the channels
  • Channel screen - Here we list the messages, message input and add the call button to call someone.

Before that we set up the types for the screen. To do so, we add the following:

src/types.ts
export type NavigationStackParamsList = {
  ChannelListScreen: undefined;
  ChannelScreen: undefined;
};

Now we add the Channel List Screen:

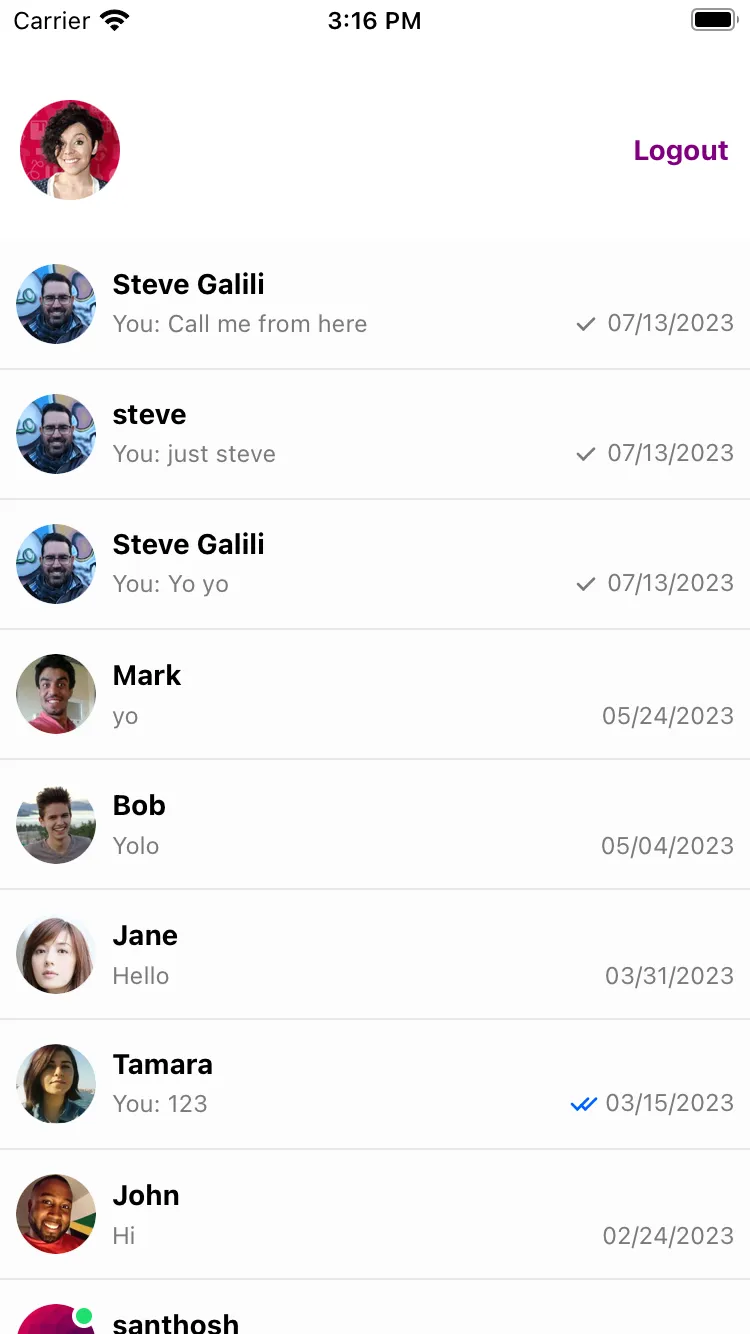

Preview of the Channel List screen

src/screens/ChannelListScreen.tsx
import React from 'react';
import { StyleSheet, View } from 'react-native';
import { ChannelList } from 'stream-chat-react-native';
import type { ChannelSort } from 'stream-chat';
import type { NativeStackScreenProps } from '@react-navigation/native-stack';
import type { NavigationStackParamsList, StreamChatGenerics } from 'src/types';
import { useAppContext } from 'src/context/AppContext';

const sort: ChannelSort<StreamChatGenerics> = {
  last_message_at: -1,
  // Your sort options
};
const options = {
  // Your options
};

type ChannelListScreenProps = NativeStackScreenProps<
  NavigationStackParamsList,
  'ChannelListScreen'
>;

export function ChannelListScreen({ navigation }: ChannelListScreenProps) {
  const { setChannel } = useAppContext();
  // Logged in user details
  const user = {
    id: 'your-user-id',
    name: 'your-user-name',
  };

  const filters = {
    type: 'messaging',
    members: { $in: [user.id] },
    // Your filters
  };

  return (
    <View style={styles.container}>
      <ChannelList<StreamChatGenerics>
        filters={filters}
        onSelect={(channel) => {
          setChannel(channel);
          navigation.navigate('ChannelScreen');
        }}
        options={options}
        sort={sort}
      />
    </View>
  );
}

const styles = StyleSheet.create({
  container: {
    flex: 1,
  },
});

We primarily use the ChannelList component to create this screen.

Next up, we create the Channel Screen:

Preview of the Channel screen

src/screens/ChannelScreen.tsx
import React, { useEffect } from 'react';
import { useAppContext } from 'src/context/AppContext';
import { useHeaderHeight } from '@react-navigation/elements';
import {
  Channel,
  MessageInput,
  MessageList,
  useAttachmentPickerContext,
  useOverlayContext,
} from 'stream-chat-react-native';
import { NativeStackScreenProps } from '@react-navigation/native-stack';
import { NavigationStackParamsList, StreamChatGenerics } from 'src/types';
import { Platform, StyleSheet, View } from 'react-native';

type ChannelScreenProps = NativeStackScreenProps<
  NavigationStackParamsList,
  'ChannelScreen'
>;

export function ChannelScreen({ navigation }: ChannelScreenProps) {
  const { channel } = useAppContext();
  const headerHeight = useHeaderHeight();
  const { setTopInset } = useAttachmentPickerContext();
  const { overlay } = useOverlayContext();

  useEffect(() => {
    navigation.setOptions({
      gestureEnabled: Platform.OS === 'ios' && overlay === 'none',
    });
  }, [navigation, overlay]);

  useEffect(() => {
    setTopInset(headerHeight);
  }, [headerHeight, setTopInset]);

  if (channel === undefined) {
    return null;
  }

  return (
    <Channel channel={channel} keyboardVerticalOffset={headerHeight}>
      <View style={styles.container}>
        <MessageList />
        <MessageInput />
      </View>
    </Channel>
  );
}

const styles = StyleSheet.create({
  container: {
    flex: 1,
  },
});

We use the Channel, MessageList, and the MessageInput components to build this screen.

Since we navigate from one screen to other, we need to persist the state of the channel data to use it between different screens. To do this we will create a context. This can be created as follows:

src/context/AppContext.tsx
import React, { PropsWithChildren, useState } from 'react';
import { Channel as ChannelType } from 'stream-chat';
import { StreamChatGenerics } from '../types';

type AppContextType = {
  channel: ChannelType<StreamChatGenerics> | undefined;
  setChannel: React.Dispatch<
    React.SetStateAction<ChannelType<StreamChatGenerics> | undefined>
  >;
};

export const AppContext = React.createContext({} as AppContextType);

export const AppProvider = ({ children }: PropsWithChildren<{}>) => {
  const [channel, setChannel] = useState<ChannelType<StreamChatGenerics>>();

  return (
    <AppContext.Provider
      value={{
        channel,
        setChannel,
      }}
    >
      {children}
    </AppContext.Provider>
  );
};

export const useAppContext = () => React.useContext(AppContext);

Wrapping the AppProvider created above in the app:

App.tsx
import React from 'react';
import { StyleSheet } from 'react-native';
import { GestureHandlerRootView } from 'react-native-gesture-handler';
import { NavigationContainer } from '@react-navigation/native';
import { AppProvider } from './src/context/AppContext';

export default function App() {
  // ...

  return (
    <GestureHandlerRootView style={styles.container}>
      <NavigationContainer>
        <AppProvider>
          {/* Rest of the code */}
        </AppProvider>
      </NavigationContainer>
    </GestureHandlerRootView>
  );
}

const styles = StyleSheet.create({
  container: {
    flex: 1,
  },
});

Now we set up the Native Stack Navigator by adding the following:

App.tsx
import React from 'react';
import { StyleSheet } from 'react-native';
import { NavigationStackParamsList } from './src/types';
import { createNativeStackNavigator } from '@react-navigation/native-stack';
import { GestureHandlerRootView } from 'react-native-gesture-handler';
import { NavigationContainer } from '@react-navigation/native';
import { ChannelListScreen } from './src/screens/ChannelListScreen';
import { ChannelScreen } from './src/screens/ChannelScreen';
import { AppProvider } from './src/context/AppContext';

const Stack = createNativeStackNavigator<NavigationStackParamsList>();

const Messenger = () => {
  return (
    <Stack.Navigator>
      <Stack.Screen name="ChannelListScreen" component={ChannelListScreen} />
      <Stack.Screen name="ChannelScreen" component={ChannelScreen} />
    </Stack.Navigator>
  );
};

export default function App() {
  // ...

  return (
    <GestureHandlerRootView style={styles.container}>
      <NavigationContainer>
        <AppProvider>
          <Messenger />
        </AppProvider>
      </NavigationContainer>
    </GestureHandlerRootView>
  );
}

const styles = StyleSheet.create({
  container: {
    flex: 1,
  },
});

Step 2: Wrapping the ChatWrapper

Now, we will wrap the ChatWrapper that provides the chat client to the rest of the application created initially in this tutorial.

App.tsx
import React from 'react';
import { StyleSheet } from 'react-native';
import { GestureHandlerRootView } from 'react-native-gesture-handler';
import { NavigationContainer } from '@react-navigation/native';
import { AppProvider } from './src/context/AppContext';
import { ChatWrapper } from './src/components/ChatWrapper';
// ...

export default function App() {
  // ...

  return (
    <GestureHandlerRootView style={styles.container}>
      <NavigationContainer>
        <AppProvider>
          <ChatWrapper>
            <Messenger />
          </ChatWrapper>
        </AppProvider>
      </NavigationContainer>
    </GestureHandlerRootView>
  );
}

const styles = StyleSheet.create({
  container: {
    flex: 1,
  },
});

Step 3: Creating and passing the Video Wrapper

Adhering to the Getting and Setting the credentials step of the Video Call Tutorial, we will create a video wrapper that wraps and provides the Stream’s Video client to the rest of the app.

src/components/VideoWrapper.tsx
import React, { PropsWithChildren, useEffect, useState } from 'react';
import {
  StreamVideo,
  StreamVideoClient,
} from '@stream-io/video-react-native-sdk';

export const VideoWrapper = ({ children }: PropsWithChildren<{}>) => {
  const [videoClient, setVideoClient] = useState<StreamVideoClient | undefined>(
    undefined
  );

  const user = {
    id: 'your-user-id',
    name: 'your-user-name',
  };
  const token = 'your-user-token';

  useEffect(() => {
    if (!user) {
      return;
    }
    const user = {
      id: user.id,
      name: user.name,
    };

    const _videoClient = new StreamVideoClient({
      apiKey: STREAM_API_KEY,
      user,
      tokenProvider: token,
    });

    setVideoClient(_videoClient);

    return () => {
      _videoClient.disconnectUser();
      setVideoClient(undefined);
    };
  }, [user]);

  if (!videoClient) {
    return null;
  }

  return (
    <StreamVideo client={videoClient} language={'en'}>
      {children}
    </StreamVideo>
  );
};

Now we wrap the VideoWrapper created above to the app, as follows:

App.tsx
import React from 'react';
import { StyleSheet } from 'react-native';
import { GestureHandlerRootView } from 'react-native-gesture-handler';
import { NavigationContainer } from '@react-navigation/native';
import { AppProvider } from './src/context/AppContext';
import { ChatWrapper } from './src/components/ChatWrapper';
import { VideoWrapper } from './src/components/VideoWrapper';
// ...

export default function App() {
  // ...

  return (
    <GestureHandlerRootView style={styles.container}>
      <NavigationContainer>
        <AppProvider>
          <ChatWrapper>
            <VideoWrapper>
              <Messenger />
            </VideoWrapper>
          </ChatWrapper>
        </AppProvider>
      </NavigationContainer>
    </GestureHandlerRootView>
  );
}

const styles = StyleSheet.create({
  container: {
    flex: 1,
  },
});

Step 4: Passing the call to StreamCall

To listen to the pending calls (both incoming and outgoing), we can use the useCalls hook that gives us the list of all the pending calls for a user.

To pass the call and provide it to the components within the hierarchy we use the StreamCall component that has a prop call.

We can use the following to create a Calls component that can later be passed down the hierarchy in the app.

import React, { useCallback, useEffect } from 'react';
import { StreamCall, useCalls } from '@stream-io/video-react-native-sdk';
import { Alert } from 'react-native';

export const Calls = () => {
  const calls = useCalls();

  const handleMoreCalls = useCallback(async () => {
    const lastCallCreatedBy = calls[1].data?.created_by;
    Alert.alert(
      `Incoming call from ${
        lastCallCreatedBy?.name ?? lastCallCreatedBy?.id
      }, only 1 call at a time is supported`
    );
  }, [calls]);

  // Reset the state of the show variable when there are no calls.
  useEffect(() => {
    if (calls.length > 1) {
      handleMoreCalls();
    }
  }, [calls.length, handleMoreCalls]);

  const firstCall = calls[0];

  if (!firstCall) {
    return null;
  }

  return <StreamCall call={firstCall}>{/* Rest of the code */}</StreamCall>;
};

We currently support one call at a time, and therefore we show an alert, if a user gets multiple calls while they are in the call already. You can handle it in a different way.

This is the reason why we pass calls[0] to the StreamCall component, for now.

Step 5: Using the RingingCallContent

We can use the RingingCallContent component to intercept the calling states and show the appropriate(Incoming, Outgoing, JoiningCallIndicator and CallContent) components.

src/components/Calls.tsx
import {
  StreamCall,
  useCalls,
  RingingCallContent,
} from '@stream-io/video-react-native-sdk';
import { CallPanel } from 'src/components/CallPanel';

export const Calls = () => {
  const calls = useCalls();

  // ...

  const firstCall = calls[0];

  if (!firstCall) {
    return null;
  }

  return (
    <StreamCall call={firstCall}>
      <View style={styles.container}>
        <RingingCallContent />
      </View>
    </StreamCall>
  );
};

const styles = StyleSheet.create({
  container: {
    flex: 1,
  },
});

Step 6: Creating the Channel Header with ability to Create Call

Creating a Channel Header is fairly simple, you can create a component and pass it to the options prop of StackScreen to the header key as follows:

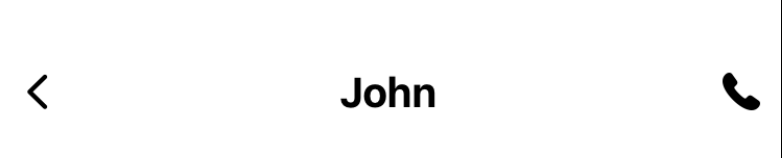

Preview of the Channel Screen Header

<Stack.Screen
  name="ChannelScreen"
  component={ChannelScreen}
  options={{
    header: ChannelHeaderComponent,
  }}
/>

The ChannelHeader can be created as follows:

src/components/ChannelHeader.tsx
import React, { useCallback } from 'react';
import { Pressable, StyleSheet, Text, View } from 'react-native';
import { useAppContext } from 'src/context/AppContext';
import { NativeStackHeaderProps } from '@react-navigation/native-stack';
import {
  MemberRequest,
  useStreamVideoClient,
} from '@stream-io/video-react-native-sdk';

type ChannelHeaderProps = NativeStackHeaderProps;

const ChannelHeader = (props: ChannelHeaderProps) => {
  const { navigation } = props;
  const { channel } = useAppContext();
  const videoClient = useStreamVideoClient();
  const members = Object.values(
    channel?.state?.members ?? {}
  ).map<MemberRequest>((member) => ({
    user_id: member.user_id!,
  }));

  const joinCallHandler = useCallback(async () => {
    try {
      const call = videoClient?.call('default', 'random-call-id');
      await call?.getOrCreate({
        ring: true,
        data: {
          // more timeout to cancel the call automatically so that it works when callee's app is in quit state
          settings_override: {
            ring: {
              auto_cancel_timeout_ms: 30000,
              incoming_call_timeout_ms: 5000,
            },
          },
          custom: { channelCid: channel?.cid },
          members: members,
        },
      });
    } catch (error) {
      console.log('Failed to createCall', error);
    }
  }, [videoClient, members, channel?.cid]);

  const goBackHandler = useCallback(() => {
    navigation.goBack();
  }, [navigation]);

  return (
    <View style={styles.header}>
      <Pressable onPress={goBackHandler} style={styles.icon}>
        {/* Back icon component */}
      </Pressable>
      <Text style={styles.name}>{/* Your custom Header Title */}</Text>
      <Pressable onPress={joinCallHandler} style={styles.icon}>
        {/* Call icon component */}
      </Pressable>
    </View>
  );
};

export const ChannelHeaderComponent = (props: NativeStackHeaderProps) => {
  return <ChannelHeader {...props} />;
};

const styles = StyleSheet.create({
  header: {
    backgroundColor: 'white',
    flexDirection: 'row',
    justifyContent: 'space-between',
    alignItems: 'center',
    paddingHorizontal: 10,
    paddingTop: 50,
    paddingBottom: 20,
  },
  name: {
    fontSize: 20,
    fontWeight: 'bold',
  },
  icon: {
    height: 18,
    width: 18,
  },
});

Finally, when you press on the call button, an outgoing call be sent to the participant, which can be accepted or rejected using the Incoming call component screen. On accepting, the call is joined the participants and the call controls are available.

Further Steps

Now that you have the final project for the Chat in Video and Video in Chat app, you can use it as a template for any kind of apps that feature Chat primarily, with the option to use Video.

If you’re looking to explore more Stream Video based topics, we suggest the following to further customize and improve your Video experience:

  • Deep Linking Guide - Easily integrate deep linking in your app using the guide.
  • Push Notifications Guide - Every Chat and/or Video app needs Push Notifications to notify users for incoming calls. This guide will teach you how to set up different providers and seamlessly integrate push into your app.
Previous
Troubleshooting
Next
Custom Data
© Getstream.io, Inc. All Rights Reserved.
