Channel List

ChannelListView is a component that displays a list of channels available to the user. For users with a slower connection or who don't belong to any channels yet, ChannelListView also supports loading and empty states.

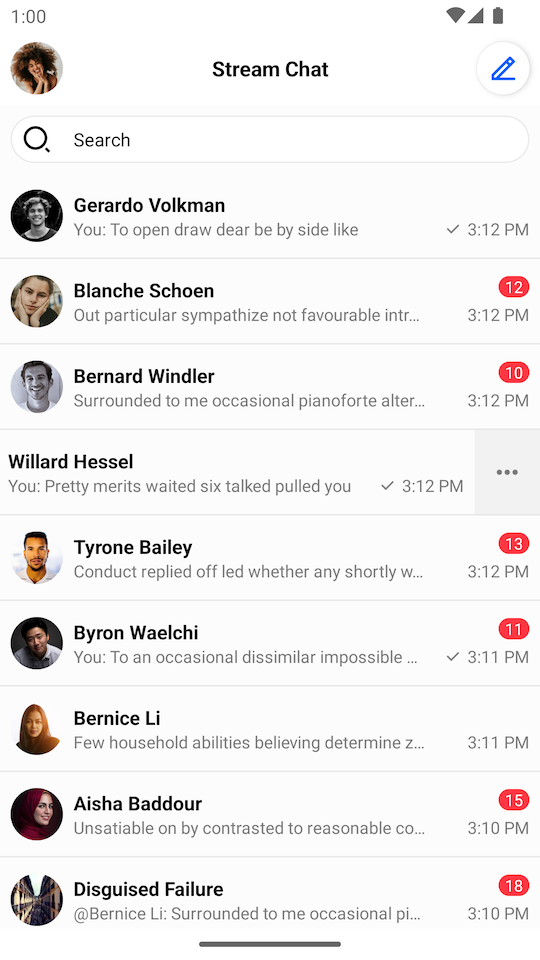

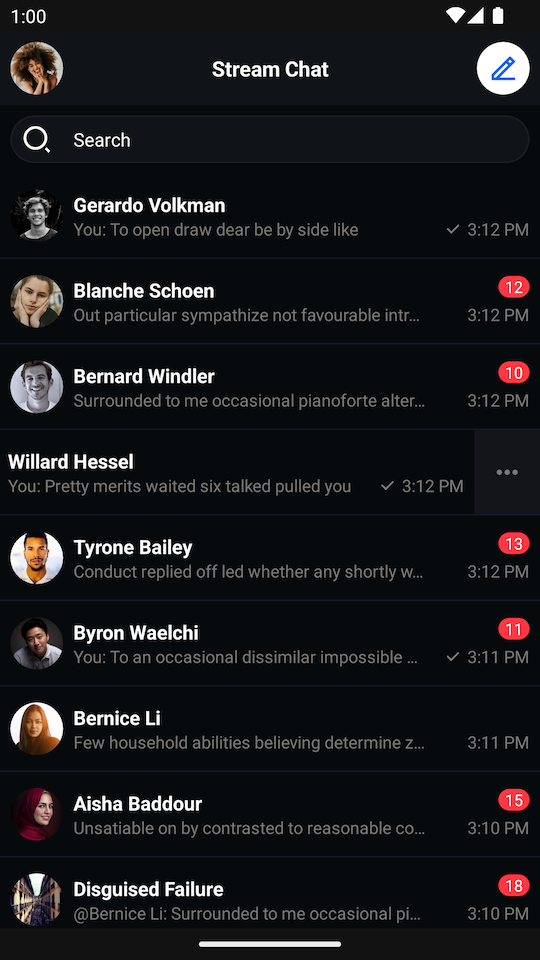

Light Mode	Dark Mode

By default, a single channel item shows the following:

Channel name
User's read state
Latest message
Timestamp of the latest message

It also supports swiping behavior which allows handling different channel actions.

Usage

To use ChannelListView, include it in your XML layout as shown below:

<io.getstream.chat.android.ui.feature.channels.list.ChannelListView
    android:id="@+id/channelListView"
    android:layout_width="match_parent"
    android:layout_height="match_parent" />

We recommend fetching data from Stream's API using ChannelListViewModel, and then rendering it inside ChannelListView.

The basic setup of the ChannelListViewModel is done by configuring a ChannelListViewModelFactory. These are the available parameters:

filter: Responsible to filter the list of channels that will be displayed.
sort: Responsible to sort the list of channels. By default, the channel list will be sorted by their last message date (or channel creation date, if the channel is empty).
limit: Responsible to specify how many channels the initial page will show. The default is 30.
messageLimit: Responsible to specify how many messages each channel will include. The default is guided by the server. For good performance, we recommend setting this to 5.
memberLimit: Responsible to specify how many members each channel will include. The default is guided by the server. For good performance, we recommend setting this to 10.

// Instantiate the ViewModel
val viewModel: ChannelListViewModel by viewModels {
    ChannelListViewModelFactory(
        filter = Filters.and(
            Filters.eq("type", "messaging"),
            Filters.`in`("members", listOf(ChatClient.instance().getCurrentUser()!!.id))
        ),
        sort = QuerySortByField.descByName("last_updated"),
        limit = 30,
    )
}
// Bind the ViewModel with ChannelListView
viewModel.bindView(channelListView, viewLifecycleOwner)

// Instantiate the ViewModel
FilterObject filter = Filters.and(
        Filters.eq("type", "messaging"),
        Filters.in("members", Collections.singletonList(ChatClient.instance().getCurrentUser().getId()))
);

ViewModelProvider.Factory factory = new ChannelListViewModelFactory.Builder()
        .filter(filter)
        .sort(QuerySortByField.descByName("last_updated"))
        .limit(30)
        .build();

ChannelListViewModel viewModel = new ViewModelProvider(this, factory).get(ChannelListViewModel.class);

// Bind the ViewModel with ChannelListView
ChannelListViewModelBinding.bind(viewModel, channelListView, getViewLifecycleOwner());

Using Predefined Filters

For frequently used queries, reference a predefined filter created in the Stream Dashboard instead of passing a Filter to the ViewModel. The filter and sort templates are stored server-side; you pass values for any placeholders via filterValues (and sortValues for templated sort fields). When predefinedFilter is set, the query's filter and sort are ignored. See Querying Channels for more details.

// Reference a predefined filter by name and substitute its placeholder values.
val viewModel: ChannelListViewModel by viewModels {
    ChannelListViewModelFactory(
        predefinedFilterName = "user_messaging_channels",
        filterValues = mapOf("user_id" to userId),
    )
}
// Bind the ViewModel with ChannelListView
viewModel.bindView(channelListView, viewLifecycleOwner)

// Placeholder values accept 'Any' type (String, Boolean, Int, Float, Double, List, Map).
val viewModel: ChannelListViewModel by viewModels {
    ChannelListViewModelFactory(
        predefinedFilterName = "user_per_channel_type_archived_hidden",
        filterValues = mapOf(
            "channel_type" to "messaging",
            "user_id" to userId,
            "archived" to true,
        ),
    )
}

// If the predefined filter templates a sort field, supply it via `sortValues`.
val viewModel: ChannelListViewModel by viewModels {
    ChannelListViewModelFactory(
        predefinedFilterName = "team_channels",
        filterValues = mapOf("team_id" to "engineering"),
        sortValues = mapOf("sort_field" to "last_message_at"),
    )
}

// Reference a predefined filter by name and substitute its placeholder values.
ViewModelProvider.Factory factory = new ChannelListViewModelFactory.Builder()
        .predefinedFilter("user_messaging_channels")
        .filterValues(Collections.singletonMap("user_id", userId))
        .build();

ChannelListViewModel viewModel = new ViewModelProvider(this, factory).get(ChannelListViewModel.class);
ChannelListViewModelBinding.bind(viewModel, channelListView, getViewLifecycleOwner());

// If the predefined filter templates a sort field, supply it via sortValues().
Map<String, Object> filterValues = new HashMap<>();
filterValues.put("team_id", "engineering");

Map<String, Object> sortValues = new HashMap<>();
sortValues.put("sort_field", "last_message_at");

ViewModelProvider.Factory teamFactory = new ChannelListViewModelFactory.Builder()
        .predefinedFilter("team_channels")
        .filterValues(filterValues)
        .sortValues(sortValues)
        .build();

To customize how real-time events affect the channel list (e.g., when using multiple lists filtered by channel type), see Channels State and Filtering.

All the logic of subscribing to data emitted by the ViewModel is provided by the bindView function. Other than channel data loading, the ViewModel also handles actions like deleting a channel and leaving a group conversation by default.

Handling Actions

ChannelListView includes a set of channel actions. Actions on ChannelListView items are available on swipe. With these, you can:

Delete the channel if you have sufficient permissions
See channel members
Leave the channel if it's a group channel

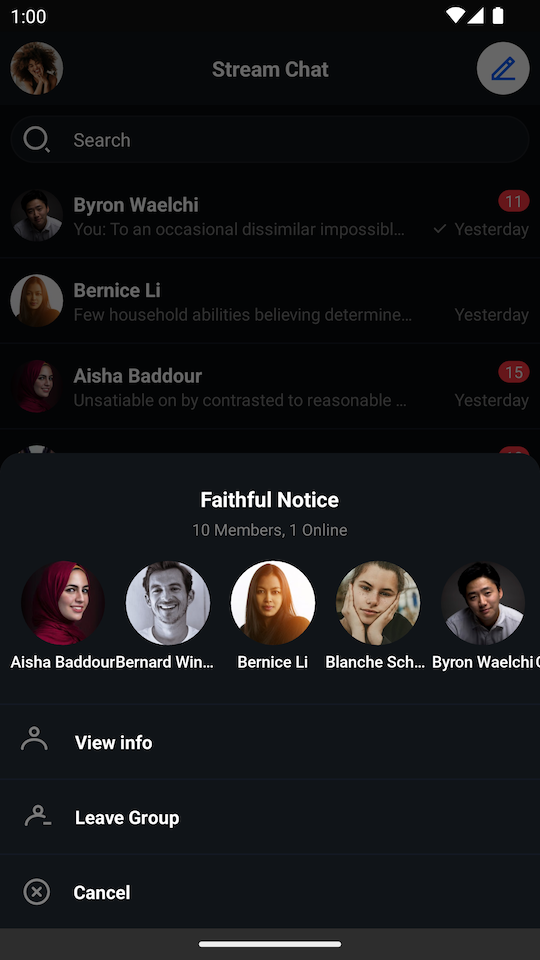

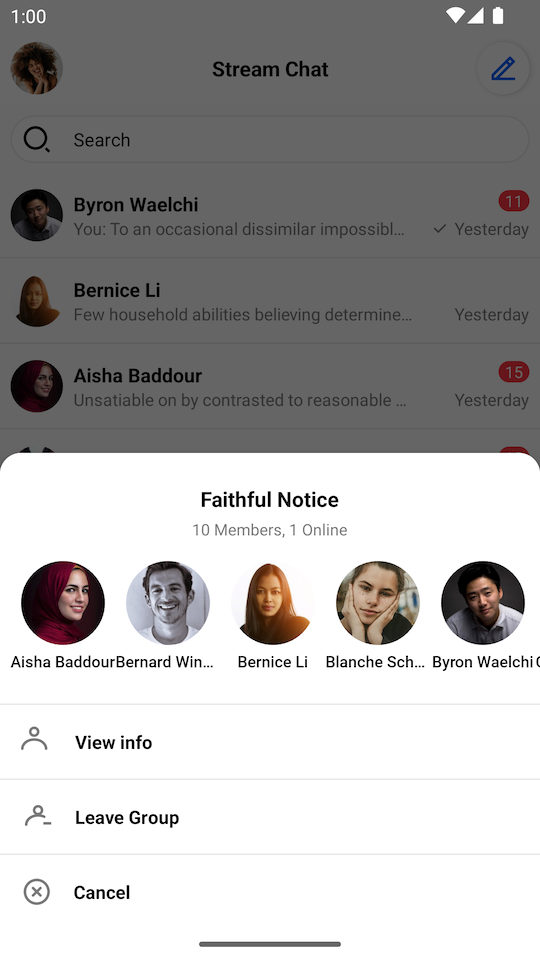

Light Mode	Dark Mode

The following actions are not implemented by default, so you should add your own listeners if you want to handle them:

channelListView.setChannelItemClickListener { channel ->
    // Handle channel click
}
channelListView.setChannelInfoClickListener { channel ->
    // Handle channel info click
}
channelListView.setChannelLongClickListener { channel ->
    // Handle channel long click
}
channelListView.setChannelListUpdateListener { channels ->
    // Handle channel list updates
}
channelListView.setUserClickListener { user ->
    // Handle member click
}

channelListView.setChannelItemClickListener(channel -> {
    // Handle channel click
});
channelListView.setChannelInfoClickListener(channel -> {
    // Handle channel info click
});
channelListView.setChannelLongClickListener(channel -> {
    // Handle channel long click
});
channelListView.setChannelListUpdateListener(channels -> {
    // Handle channel list updates
});
channelListView.setUserClickListener(user -> {
    // Handle member click
});

The full list of available listeners is available here.

Customization

There are two ways to customize the appearance of ChannelListView:

Using XML attributes
Using the TransformStyle API at runtime to customize the style of all ChannelListView instances

Using XML Attributes

There are many XML attributes that can be used to customize the appearance of the channel list. The most useful ones include:

streamUiChannelDeleteEnabled: Whether the delete icon should be displayed.
streamUiChannelDeleteIcon: Drawable reference for the channel delete icon.
streamUiChannelTitleTextColor: Color of the channel title text.
streamUiChannelTitleTextSize: Size of the channel title text.
streamUiLastMessageTextSize: Size of the last message text.
streamUiLastMessageTextColor: Color of the last message text.
streamUiForegroundLayoutColor: Foreground color of the channel list item.
streamUiBackgroundLayoutColor: Background color of the channel list item, visible when swiping the list item.

The full list of available XML attributes is available under ChannelListView styleable, here.

Using Style Transformations

The following example shows how to modify the style of all ChannelListView instances globally to:

Disable the default options
Change the foreground color
Change the read indicator icon
Change the title text style
Change the background color for unread messages

To make these changes, we need to define a custom TransformStyle.channelListStyleTransformer:

TransformStyle.channelListStyleTransformer = StyleTransformer { defaultStyle ->
    defaultStyle.copy(
        optionsEnabled = false,
        foregroundLayoutColor = Color.LTGRAY,
        indicatorReadIcon = ContextCompat.getDrawable(context, R.drawable.stream_ui_ic_flag)!!,
        channelTitleText = defaultStyle.channelTitleText.copy(
            color = Color.BLUE,
            size = context.resources.getDimensionPixelSize(R.dimen.stream_ui_text_large),
        ),
        unreadMessageCounterBackgroundColor = Color.BLUE,
    )
}

These changes should have the following results:

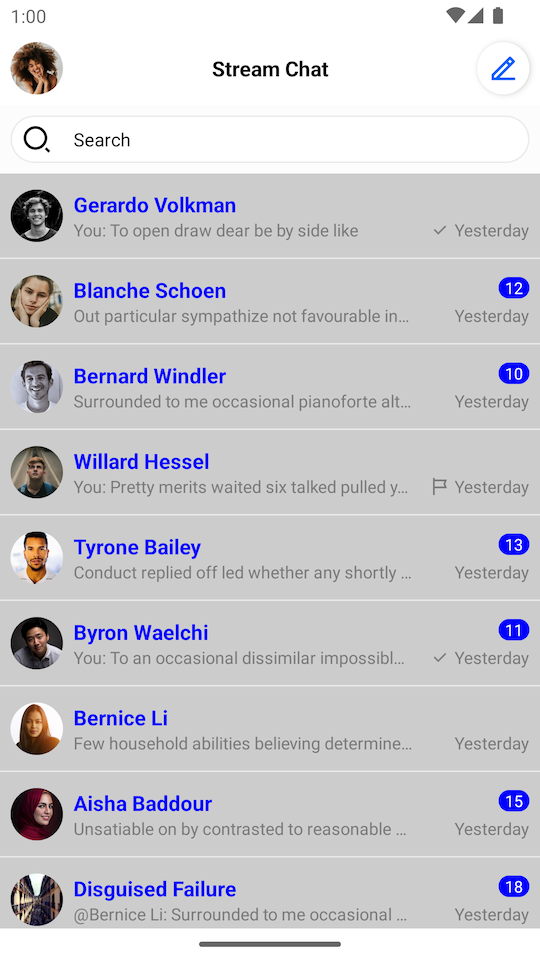

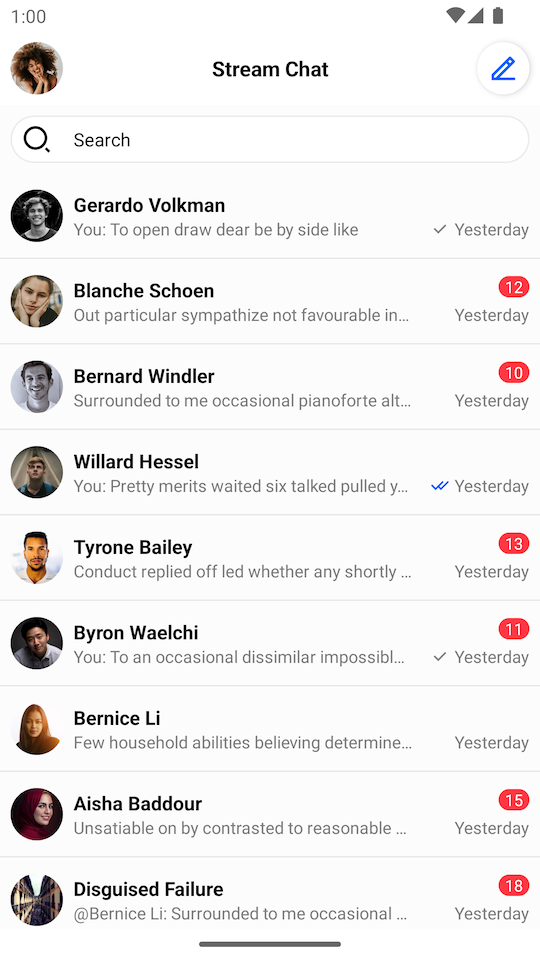

Before	After

The transformer should be set before the View is rendered to make sure that the new style was applied.

Customizing Swipe Actions

By default, ChannelListView supports two swipe actions:

More Options - available for every channel.
Delete - available for the channels where Channel.ownCapabilities contains "delete-channel"

Here is the default implementation:

Swipe Actions

You can customize the swipe actions as shown below.

Customizing Icons

channelListView.setMoreOptionsIconProvider { channel ->
    // You can generate the icon Drawable based on the channel object
    ContextCompat.getDrawable(context, R.drawable.custom_action_icon_more)
}
channelListView.setDeleteOptionIconProvider { channel ->
    // You can generate the icon Drawable based on the channel object
    ContextCompat.getDrawable(context, R.drawable.custom_action_icon_delete)
}

channelListView.setMoreOptionsIconProvider(channel -> {
    // You can generate the icon Drawable based on the channel object
    return ContextCompat.getDrawable(context, R.drawable.custom_action_icon_more);
});
channelListView.setDeleteOptionIconProvider(channel -> {
    // You can generate the icon Drawable based on the channel object
    return ContextCompat.getDrawable(context, R.drawable.custom_action_icon_delete);
});

Customizing Visibility

channelListView.setIsMoreOptionsVisible { channel ->
    // You can determine visibility based on the channel object.
    true
}
channelListView.setIsDeleteOptionVisible { channel ->
    // You can determine visibility based on the channel object.
    // Here is the default implementation:
    channel.ownCapabilities.contains("delete-channel")
}

channelListView.setIsMoreOptionsVisible(channel -> {
    // You can determine visibility based on the channel object
    return true;
});
channelListView.setIsDeleteOptionVisible(channel -> {
    // You can determine visibility based on the channel object.
    // Here is the default implementation:
    return channel.getOwnCapabilities().contains("delete-channel");
});

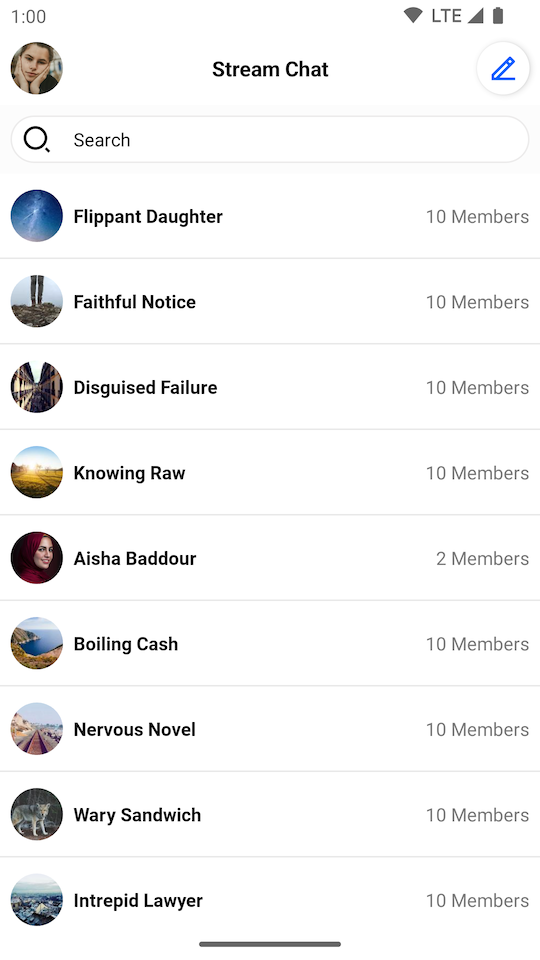

Creating a Custom ViewHolder Factory

ChannelListView provides a way to completely change the default ViewHolders and add different types of views. All you need to do is to provide your own ChannelListItemViewHolderFactory. Let's see an example that displays the channel's photo, name, and member count.

Create the custom_channel_list_item.xml layout:

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:layout_width="match_parent"
    android:layout_height="64dp">

    <io.getstream.chat.android.ui.widgets.avatar.ChannelAvatarView
        android:id="@+id/channelAvatarView"
        style="@style/StreamUi.ChannelList.Item.Avatar"
        android:layout_marginVertical="12dp"
        android:layout_marginStart="8dp"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toTopOf="parent" />

    <TextView
        android:id="@+id/channelNameTextView"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginStart="8dp"
        android:ellipsize="end"
        android:singleLine="true"
        android:textAppearance="@style/StreamUiTextAppearance.BodyBold"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintEnd_toStartOf="@id/membersCountTextView"
        app:layout_constraintHorizontal_chainStyle="spread_inside"
        app:layout_constraintStart_toEndOf="@+id/channelAvatarView"
        app:layout_constraintTop_toTopOf="parent" />

    <TextView
        android:id="@+id/membersCountTextView"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginHorizontal="8dp"
        android:textAllCaps="false"
        android:textColor="#7A7A7A"
        android:textSize="14sp"
        android:textStyle="normal"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toEndOf="@id/channelNameTextView"
        app:layout_constraintTop_toTopOf="parent" />

</androidx.constraintlayout.widget.ConstraintLayout>

Add this plurals entry to strings.xml:

<plurals name="members_count">
    <item quantity="one">%1d Member</item>
    <item quantity="other">%1d Members</item>
</plurals>

Create a custom ViewHolder and ViewHolder factory:

class CustomChannelListItemViewHolderFactory : ChannelListItemViewHolderFactory() {
    override fun createChannelViewHolder(parentView: ViewGroup): BaseChannelListItemViewHolder {
        return CustomChannelViewHolder(parentView, listenerContainer.channelClickListener)
    }
}

class CustomChannelViewHolder(
    parent: ViewGroup,
    private val channelClickListener: ChannelListView.ChannelClickListener,
    private val binding: CustomChannelListItemBinding = CustomChannelListItemBinding.inflate(
        LayoutInflater.from(parent.context),
        parent,
        false
    ),
) : BaseChannelListItemViewHolder(binding.root) {

    private lateinit var channel: Channel

    init {
        binding.root.setOnClickListener { channelClickListener.onClick(channel) }
    }

    override fun bind(channel: Channel, diff: ChannelListPayloadDiff) {
        this.channel = channel

        binding.channelAvatarView.setChannel(channel)
        binding.channelNameTextView.text = ChatUI.channelNameFormatter.formatChannelName(
            channel = channel,
            currentUser = ChatClient.instance().getCurrentUser()
        )
        binding.membersCountTextView.text = itemView.context.resources.getQuantityString(
            R.plurals.members_count,
            channel.members.size,
            channel.members.size
        )
    }
}

public class CustomChannelListItemViewHolderFactory extends ChannelListItemViewHolderFactory {
    @NonNull
    @Override
    protected BaseChannelListItemViewHolder createChannelViewHolder(@NonNull ViewGroup parent) {
        CustomChannelListItemBinding binding = CustomChannelListItemBinding
                .inflate(LayoutInflater.from(parent.getContext()), parent, false);
        return new CustomChannelViewHolder(binding, getListenerContainer().getChannelClickListener());
    }
}

public class CustomChannelViewHolder extends BaseChannelListItemViewHolder {

    private CustomChannelListItemBinding binding;

    private Channel channel;

    public CustomChannelViewHolder(CustomChannelListItemBinding binding,
                                   ChannelListView.ChannelClickListener channelClickListener) {
        super(binding.getRoot());
        this.binding = binding;

        binding.getRoot().setOnClickListener(v -> channelClickListener.onClick(channel));
    }

    @Override
    public void bind(@NonNull Channel channel, @NonNull ChannelListPayloadDiff diff) {
        this.channel = channel;
        binding.channelAvatarView.setChannel(channel);
        String channelName = ChatUI.getChannelNameFormatter().formatChannelName(
                channel,
                ChatClient.instance().getCurrentUser()
        );
        binding.channelNameTextView.setText(channelName);
        String memberCount = itemView.getContext().getResources().getQuantityString(
                R.plurals.members_count,
                channel.getMembers().size(),
                channel.getMembers().size()
        );
        binding.membersCountTextView.setText(memberCount);
    }
}

Set the custom ViewHolder factory on the ChannelListView:

// Create custom view holder factory
val customFactory = CustomChannelListItemViewHolderFactory()

// Set custom view holder factory
channelListView.setViewHolderFactory(customFactory)

// Create custom view holder factory
CustomChannelListItemViewHolderFactory customFactory = new CustomChannelListItemViewHolderFactory();

// Set custom view holder factory
channelListView.setViewHolderFactory(customFactory);

These changes should have the following results:

Creating a Custom Loading View

A custom loading view can be set using the setLoadingView method. Assuming that we have a setup similar to the one seen in the previous steps, we can create a loading view with a shimmer effect by taking the following actions:

Add the Shimmer dependency in your build.gradle file's dependencies block:

implementation "com.facebook.shimmer:shimmer:0.5.0"

Add shape_shimmer.xml into drawable folder:

<?xml version="1.0" encoding="utf-8"?>
<shape xmlns:android="http://schemas.android.com/apk/res/android"
    android:shape="rectangle">
    <solid android:color="#CCCCCC" />
    <corners android:radius="20dp" />
</shape>

Add a single row layout - item_loading_view.xml into layout folder:

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:layout_width="match_parent"
    android:layout_height="64dp">

    <View
        android:id="@+id/avatarPlaceholder"
        android:layout_width="40dp"
        android:layout_height="40dp"
        android:layout_marginStart="8dp"
        android:background="@drawable/shape_shimmer"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toTopOf="parent" />

    <View
        android:id="@+id/titlePlaceholder"
        android:layout_width="80dp"
        android:layout_height="16dp"
        android:layout_gravity="center"
        android:layout_marginStart="8dp"
        android:layout_marginEnd="8dp"
        android:background="@drawable/shape_shimmer"
        app:layout_constraintStart_toEndOf="@id/avatarPlaceholder"
        app:layout_constraintTop_toTopOf="@id/avatarPlaceholder" />

    <View
        android:id="@+id/subtitlePlaceholder"
        android:layout_width="0dp"
        android:layout_height="16dp"
        android:layout_gravity="center"
        android:layout_marginStart="8dp"
        android:layout_marginTop="8dp"
        android:background="@drawable/shape_shimmer"
        app:layout_constraintBottom_toBottomOf="@id/avatarPlaceholder"
        app:layout_constraintEnd_toStartOf="@+id/datePlaceholder"
        app:layout_constraintStart_toEndOf="@id/avatarPlaceholder" />

    <View
        android:id="@+id/datePlaceholder"
        android:layout_width="40dp"
        android:layout_height="16dp"
        android:layout_gravity="center"
        android:layout_marginStart="16dp"
        android:layout_marginEnd="8dp"
        android:background="@drawable/shape_shimmer"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toEndOf="@id/subtitlePlaceholder"
        app:layout_constraintTop_toTopOf="@id/subtitlePlaceholder" />

    <View
        android:id="@+id/separator"
        android:layout_width="0dp"
        android:layout_height="1dp"
        android:layout_gravity="center"
        android:background="@drawable/shape_shimmer"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toStartOf="parent" />

</androidx.constraintlayout.widget.ConstraintLayout>

Create the final loading view with shimmer effect. Let's call it channel_list_loading_view:

<?xml version="1.0" encoding="utf-8"?>
<com.facebook.shimmer.ShimmerFrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:id="@+id/loadingViewContainer"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:layout_marginTop="64dp"
    app:shimmer_auto_start="true"
    app:shimmer_base_color="#CCCCCC"
    app:shimmer_colored="true"
    app:shimmer_highlight_color="#FFFFFF">

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:orientation="vertical">

        <include layout="@layout/item_loading_view" />

        <include layout="@layout/item_loading_view" />

        <include layout="@layout/item_loading_view" />

        <include layout="@layout/item_loading_view" />

        <include layout="@layout/item_loading_view" />

        <include layout="@layout/item_loading_view" />

    </LinearLayout>

</com.facebook.shimmer.ShimmerFrameLayout>

Change ChannelListView's loading view:

// Inflate loading view
val loadingView = LayoutInflater.from(context).inflate(R.layout.channel_list_loading_view, null)
// Set loading view
channelListView.setLoadingView(loadingView, FrameLayout.LayoutParams(MATCH_PARENT, MATCH_PARENT))

// Inflate loading view
View loadingView = LayoutInflater.from(getContext()).inflate(R.layout.channel_list_loading_view, null);
// Set loading view
channelListView.setLoadingView(loadingView, new FrameLayout.LayoutParams(MATCH_PARENT, MATCH_PARENT));

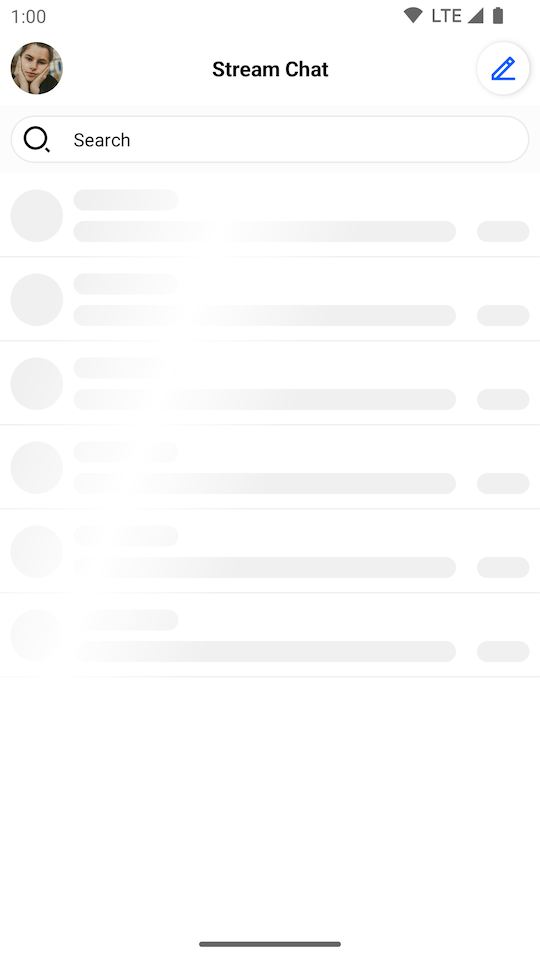

These changes should have the following results:

Channel List Header

Building a Channel List Screen
