Introduction

The SDK has a new theming and customization system. This page contains information about the new version (refered to as version 2 or v2). The most significant improvements of the new version:

  • Refreshed design
  • Better customization through CSS variables
  • Support for RTL layout

The old theme (also refered to as version 1 or v1) can still be used with the latest SDK versions, but it’s now deprecated, won’t be receiving further updates and will be removed in a future major release.

New theming system (v2) utilises updated markup and new class names in certain components which are being rendered based on which of the two systems you use. Most of the new components (and/or markup) aren’t available in the old version (v1) due to compatibility reasons.

To use the new theme, please upgrade stream-chat-react to version 10.0.2 and follow the instructions below.

Importing the stylesheet

If you’re using SCSS:

@import '~stream-chat-react/dist/scss/v2/index.scss';

If you’re using CSS:

@import '~stream-chat-react/dist/css/v2/index.css';

Customization

Our theming system has various customization options allowing for both smaller and large-scale UI changes. This document guides you through the different customization options.

CSS variables

CSS variables are the easiest way to customize the theme. The variables are organized into two layers:

  • global
  • component

Global variables

You can use global variables to apply changes to the whole chat UI (as opposed to changing the design of individual components).

The full list of global variables can be found in our global variables guide.

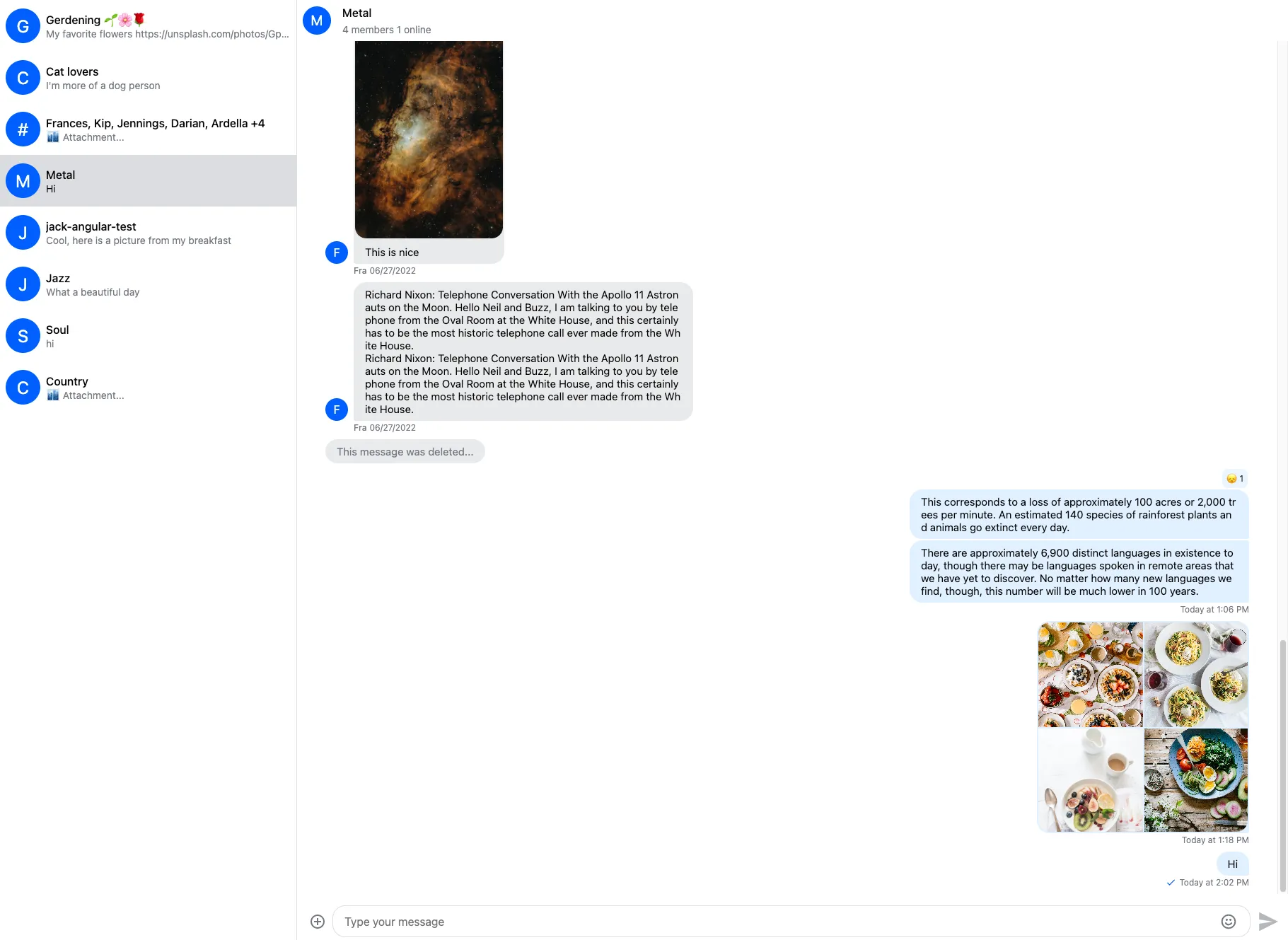

Here is the default chat UI:

Stream Chat Css Chat Ui Screenshot

Here is how you can customize global variables:

@import '~stream-chat-react/dist/scss/v2/index.scss';

.str-chat {
  --str-chat__primary-color: #009688;
  --str-chat__active-primary-color: #004d40;
  --str-chat__surface-color: #f5f5f5;
  --str-chat__secondary-surface-color: #fafafa;
  --str-chat__primary-surface-color: #e0f2f1;
  --str-chat__primary-surface-color-low-emphasis: #edf7f7;
  --str-chat__border-radius-circle: 6px;
}

Here is the result:

Stream Chat Css Chat Ui Theme Customization Screenshot

The str-chat class is applied to the ChannelList and Channel components, all CSS variables are declared on this level.

Component variables

You can use component layer variables to change the design of individual components. The full list of component variables can be found in our component variables guide.

In the above example we set the avatar background color by setting the --str-chat__primary-color variable which also sets the color of other UI elements. If we want to change the background color only for the avatar component we can use the --str-chat__avatar-background-color variable:

.str-chat {
  --str-chat__primary-color: #009688;
  --str-chat__active-primary-color: #004d40;
  --str-chat__surface-color: #f5f5f5;
  --str-chat__secondary-surface-color: #fafafa;
  --str-chat__primary-surface-color: #e0f2f1;
  --str-chat__primary-surface-color-low-emphasis: #edf7f7;
  --str-chat__border-radius-circle: 6px;
  --str-chat__avatar-background-color: #bf360c; // Only changes the background color of the avatar component
}

Here is the result:

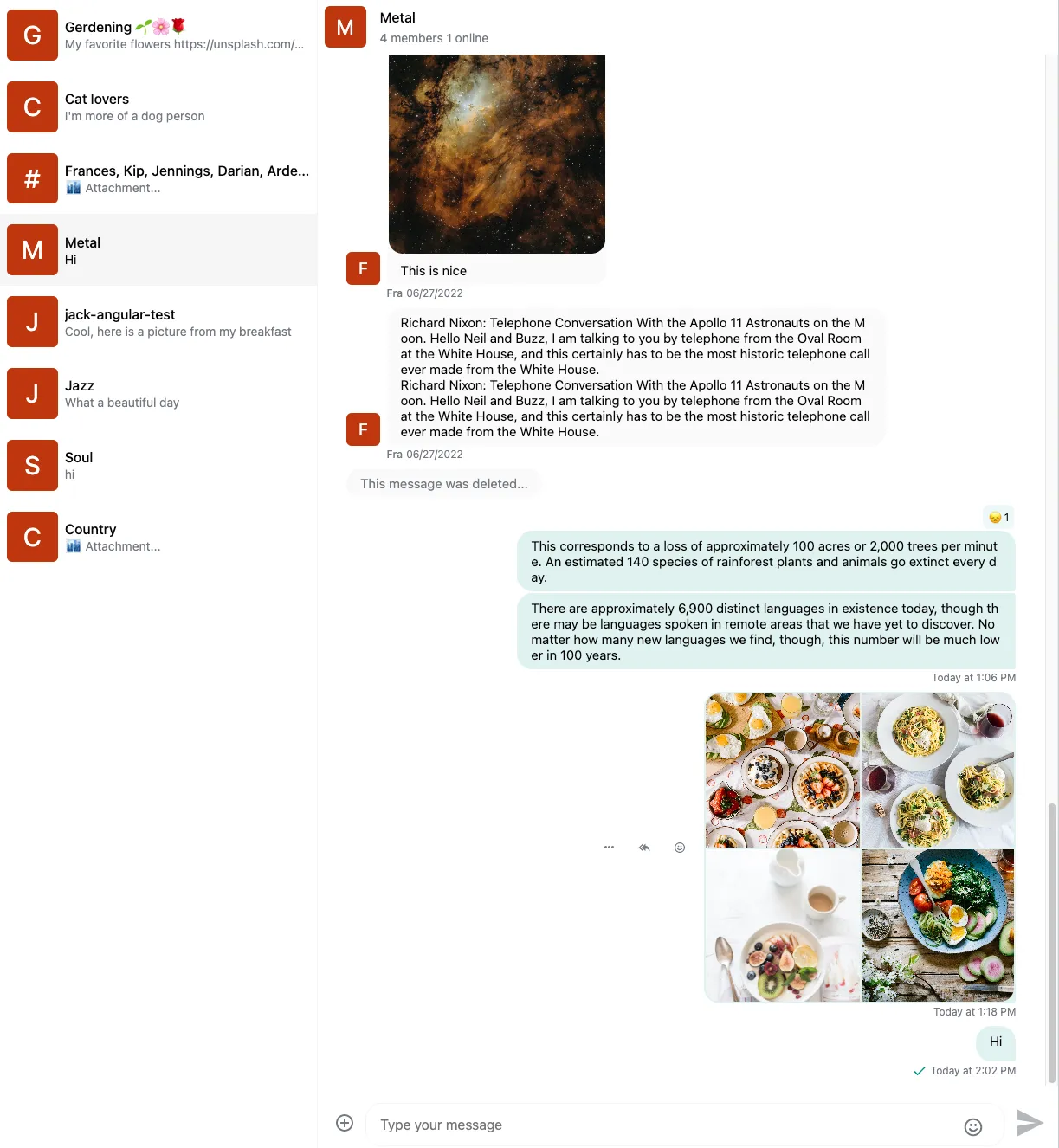

Stream Chat Css Custom Avatar Color Screenshot

Component variables don’t inherit. Let’s see an example of this.

Here is the message component without custom color:

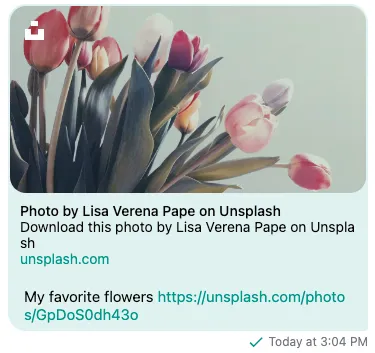

Stream Chat Css Message Color Screenshot

Setting custom text color inside message bubble:

.str-chat {
  --str-chat__primary-color: #009688;
  --str-chat__active-primary-color: #004d40;
  --str-chat__surface-color: #f5f5f5;
  --str-chat__secondary-surface-color: #fafafa;
  --str-chat__primary-surface-color: #e0f2f1;
  --str-chat__primary-surface-color-low-emphasis: #edf7f7;
  --str-chat__border-radius-circle: 6px;
  --str-chat__avatar-background-color: #bf360c;
  --str-chat__message-bubble-color: #00695c; // Custom text color only for the message bubble
}

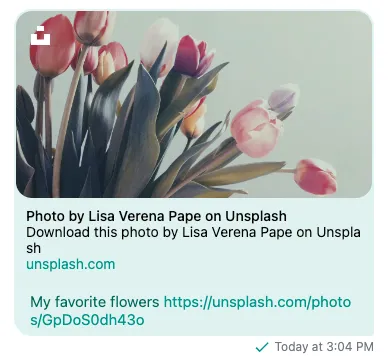

Stream Chat Css Message Color Customization Screenshot

We can see that setting the text color of the message bubble won’t change the color of the link attachments.

To solve this we also have to set the text color for the link attachment component:

.str-chat {
  --str-chat__primary-color: #009688;
  --str-chat__active-primary-color: #004d40;
  --str-chat__surface-color: #f5f5f5;
  --str-chat__secondary-surface-color: #fafafa;
  --str-chat__primary-surface-color: #e0f2f1;
  --str-chat__primary-surface-color-low-emphasis: #edf7f7;
  --str-chat__border-radius-circle: 6px;
  --str-chat__avatar-background-color: #bf360c;
  --str-chat__message-bubble-color: #00695c;
  --str-chat__card-attachment-color: #00695c; // Setting text color of link attachments
}

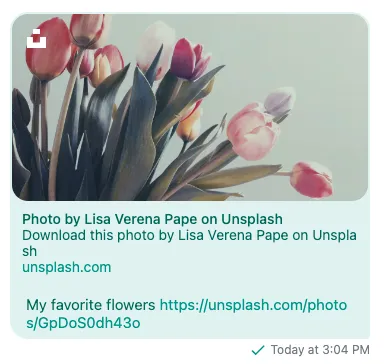

Stream Chat Css Message Color Customization2 Screenshot

Custom icons

TODO

CSS overrides

If you’d like to add customizations that are not supported by CSS variables, you can override parts of the default CSS:

@import '~stream-chat-react/dist/scss/v2/index.scss';

// Provide your overrides after the stream-chat-angular stylesheet imports
.str-chat__channel-preview-messenger--last-message {
  font-weight: 500;
}

Just make sure that you add the customization rules after the stylesheet import.

If you’re using SCSS it’s also possible to import component stylesheets separately (instead of our bundled stylesheet):

// Use default theme for channel list and channel preview components
@import '~stream-chat-react/dist/scss/v2/ChannelList/ChannelList-layout.scss';
@import '~stream-chat-react/dist/scss/v2/ChannelList/ChannelList-theme.scss';
@import '~stream-chat-react/dist/scss/v2/ChannelPreview/ChannelPreview-layout.scss';
@import '~stream-chat-react/dist/scss/v2/ChannelPreview/ChannelPreview-theme.scss';

.str-chat__avatar {
  // Custom CSS for avatar component
}

Apply your own look and feel

If you want to create a truly custom look and feel, it can be exhausting to override the default styling. In that case, it’s possible only to apply layout rules from the default theme.

Here is how you can import the layout stylesheet:

@import '~stream-chat-react/dist/scss/v2/index.layout.scss';

or if you’re using CSS:

@import '~stream-chat-react/dist/css/v2/index.layout.css';

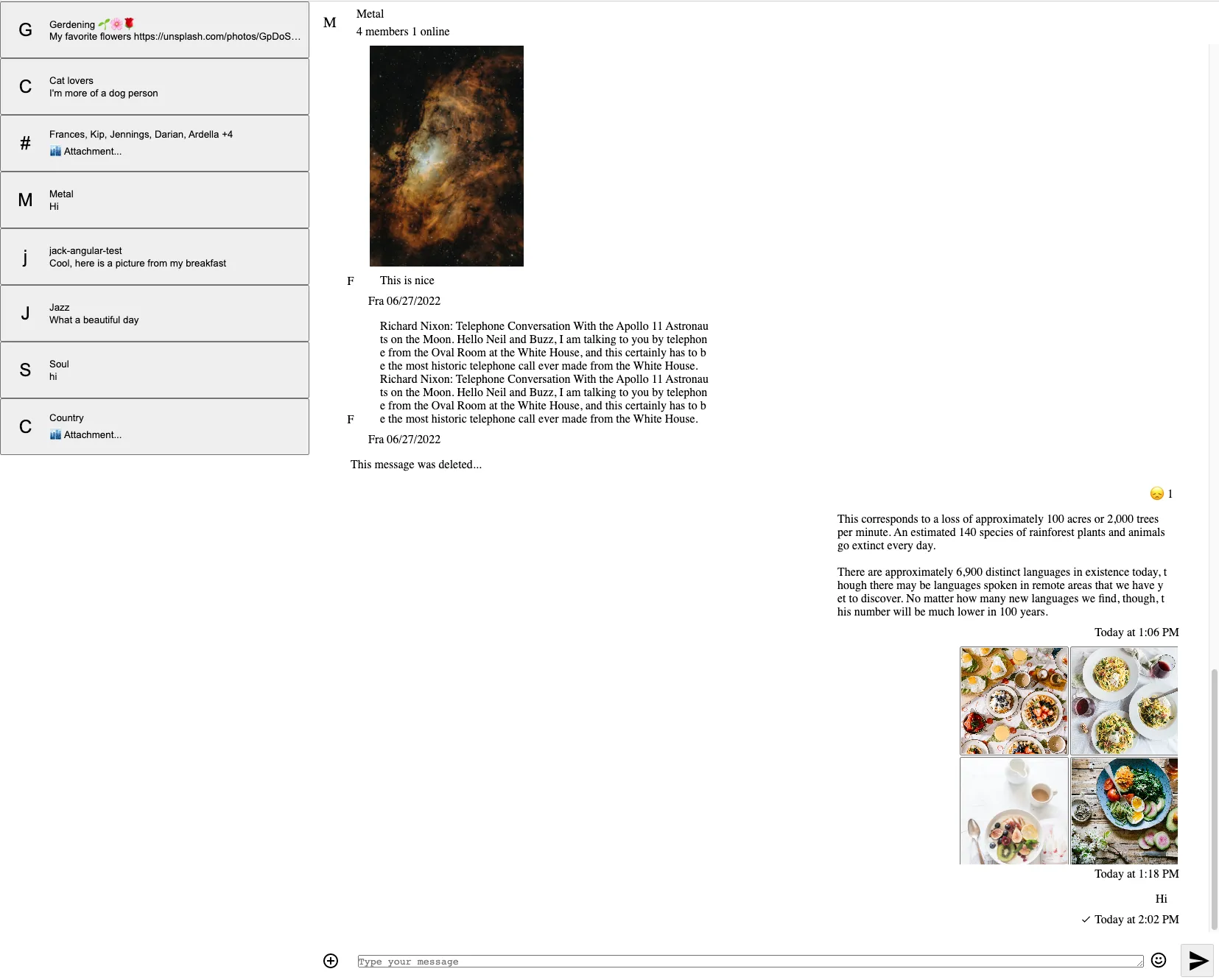

Stream Chat Css Chat Ui Layout Screenshot

The result will be a minimalistic UI without

  • coloring
  • fonts
  • borders
  • shadows

Please note that if you’re only using the layout rules, you can only use the layout CSS variables.

Dark and light themes

The default theme has dark and light variants. Here is how you can switch between the different themes:

<Chat client={client} theme='str-chat__theme-dark'>
  {/* ... */}
</Chat>

or only to a specific component (Channel or/and ChannelList):

Using the customClasses approach for either of the components will override default class names. Don’t forget to add those to your theme class names (as defined in the snippet) for the styling to work properly.

<Chat
  client={client}
  customClasses={{
    channelList: 'str-chat__theme-dark str-chat__channel-list',
    channel: 'str-chat__theme-light str-chat__channel',
  }}
>
  {/* ... */}
</Chat>

Here is what the dark theme looks like:

Stream Chat Css Dark Ui Screenshot

The str-chat__theme-dark/str-chat__theme-light class is applied to the ChannelList and Channel components, these classes are responsible for switching between the dark and light theme color combinations.

Here is how you can provide different color configurations for the dark and light themes:

@import '~stream-chat-react/dist/scss/v2/index.scss';

.str-chat {
  --str-chat__border-radius-circle: 6px;
}

.str-chat__theme-light {
  --str-chat__primary-color: #009688;
  --str-chat__active-primary-color: #004d40;
  --str-chat__surface-color: #f5f5f5;
  --str-chat__secondary-surface-color: #fafafa;
  --str-chat__primary-surface-color: #e0f2f1;
  --str-chat__primary-surface-color-low-emphasis: #edf7f7;
  --str-chat__avatar-background-color: #bf360c;
}

.str-chat__theme-dark {
  --str-chat__primary-color: #26a69a;
  --str-chat__active-primary-color: #00796b;
  --str-chat__surface-color: #424242;
  --str-chat__secondary-surface-color: #212121;
  --str-chat__primary-surface-color: #00695c;
  --str-chat__primary-surface-color-low-emphasis: #004d40;
  --str-chat__avatar-background-color: #ff7043;
}

Here is the custom dark theme:

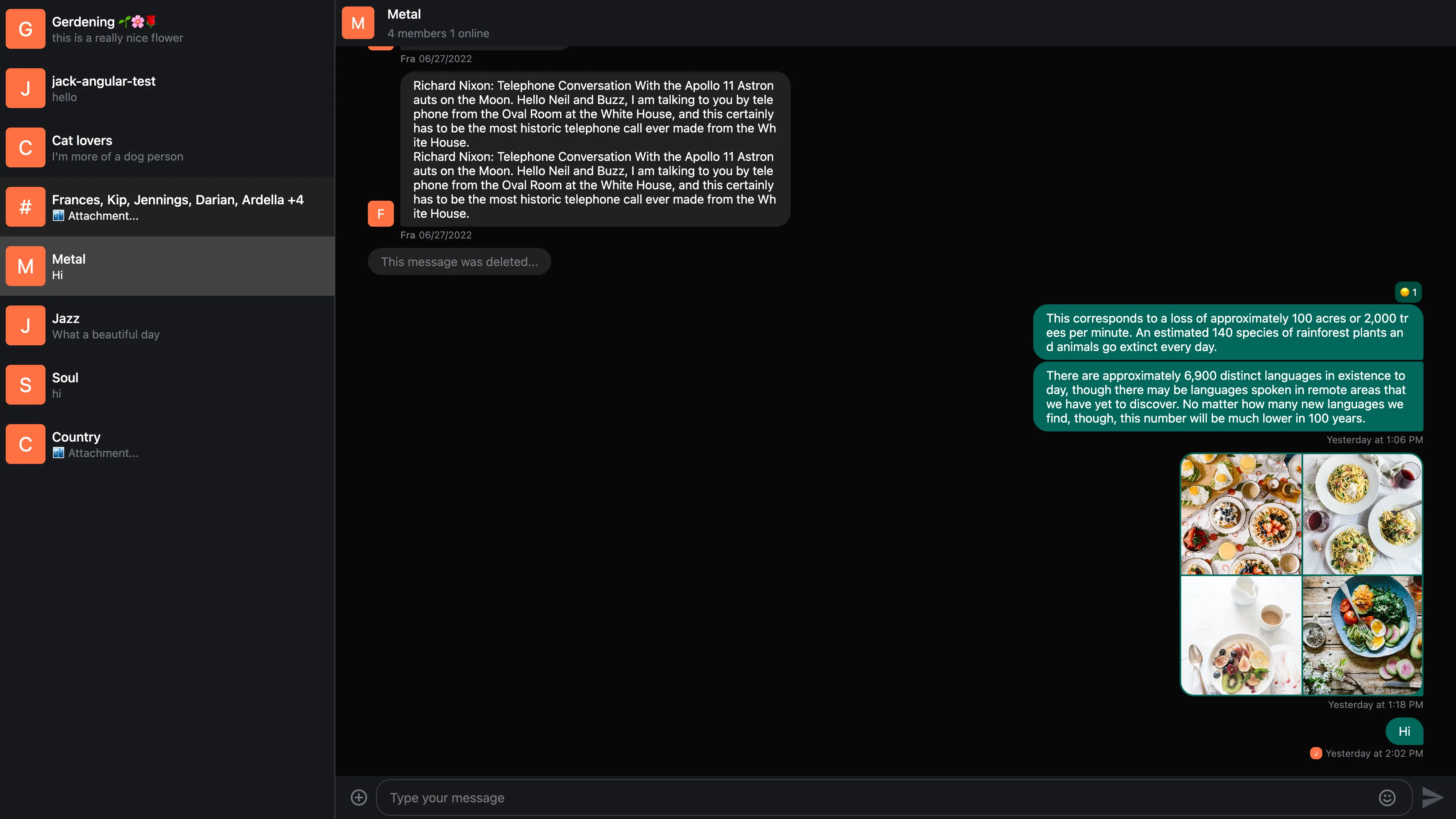

Stream Chat Css Custom Dark Theme Screenshot

Creating your own theme

It’s possible to extend the existing themes with your own themes.

Here is an example creating ‘round’ and ‘square’ themes:

@import '~stream-chat-react/dist/scss/v2/index.scss';

// Make sure to use the proper naming convention: str-chat__theme-<your theme>
.str-chat__theme-round {
  // You can use the predefined theme and component layer variables
  --str-chat__border-radius-circle: 999px;
}

.str-chat__theme-square {
  --str-chat__border-radius-circle: 6px;
}

<Chat client={client} theme='str-chat__theme-square'>
  {/* ... */}
</Chat>

or only to a specific component (Channel or/and ChannelList):

Using the customClasses approach for either of the components will override default class names. Don’t forget to add those to your theme class names (as defined in the snippet) for the styling to work properly.

<Chat
  client={client}
  customClasses={{
    channelList: 'str-chat__theme-square str-chat__channel-list',
    channel: 'str-chat__theme-round str-chat__channel',
  }}
>
  {/* ... */}
</Chat>

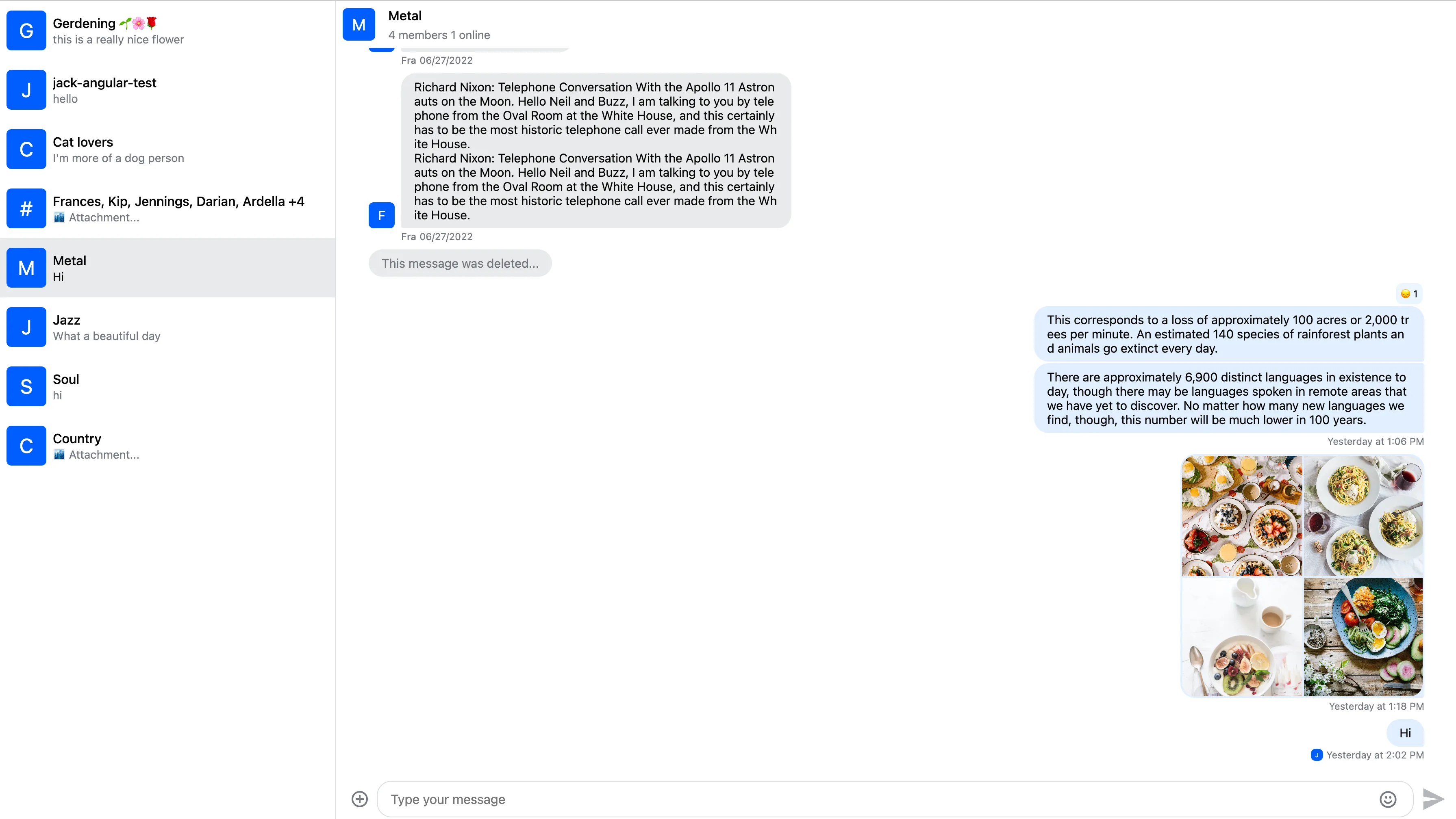

Stream Chat Css Square Theme Screenshot

RTL support

The layout was built with RTL support in mind. You can use the RTL layout by providing the dir attribute in your HTML:

<html dir="rtl">
  <!-- ... -->
</html>

Here is the result:

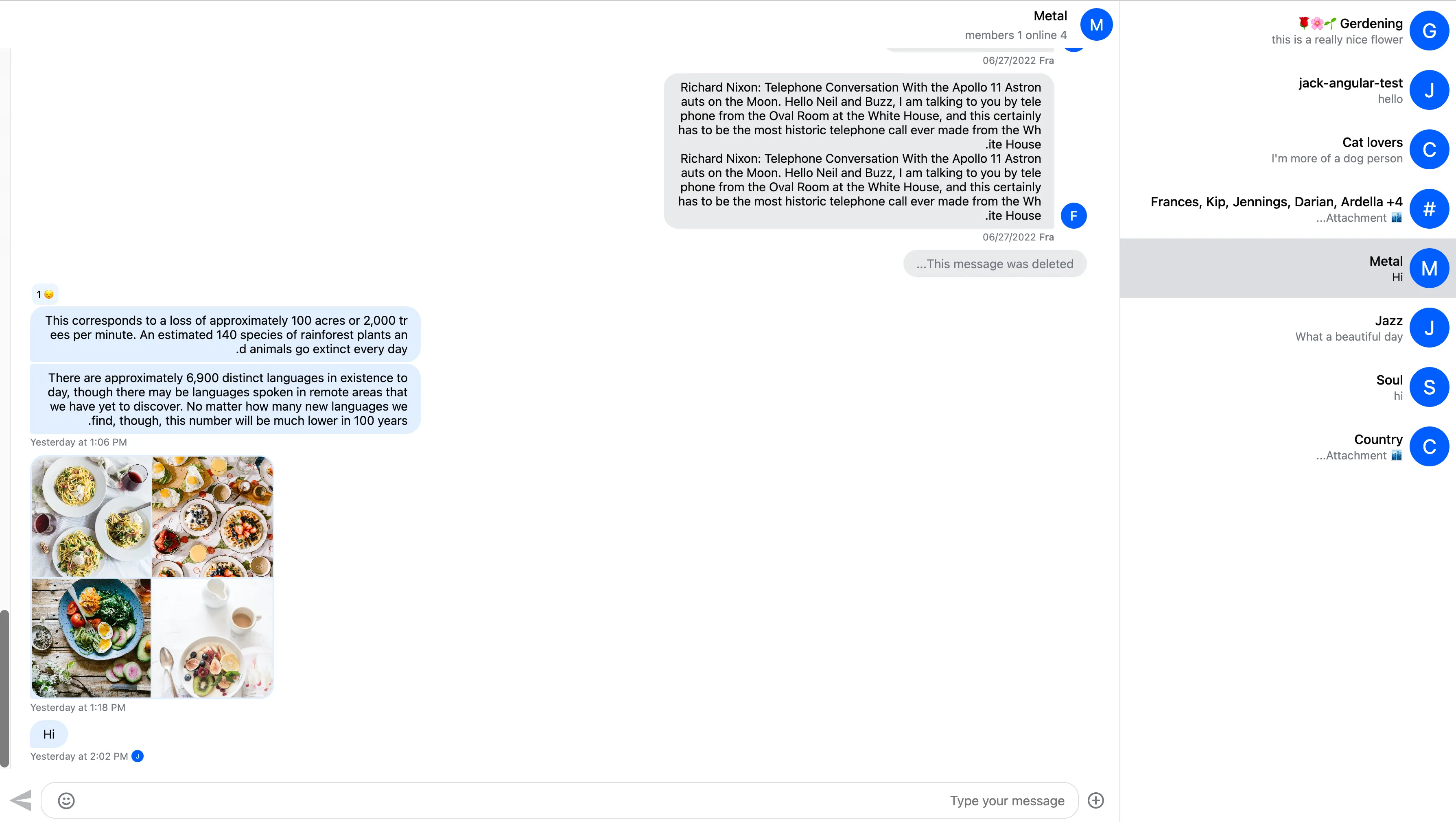

Stream Chat Css Rtl Layout Screenshot
