ChannelSearch
ChannelSearch
is a UI component that searches for chat users and displays the results in a list. It can be used standalone or in the ChannelList
via the showChannelSearch
prop (default is false).
The input searches for users by default, but you can utilize the searchForChannels
prop to also search for channels
. Completely override the querying via the searchFunction
prop.
Selection of a search result will set the active channel with the selected user, or if a channel is an option and is selected, set the active channel with the existing channel.
Basic Usage
Example 1 - used via the showChannelSearch
prop.
<Chat client={client}>
<ChannelList filters={filters} sort={sort} options={options} showChannelSearch />
<Channel>
<Window>
<ChannelHeader />
<MessageList />
<MessageInput />
</Window>
<Thread />
</Channel>
</Chat>
The ChannelSearch
component renders 2 components:
- the search input
- the search results list
Search input and SearchResults state
The input naturally transitions between 3 states:
Input state | Input | Search results |
---|---|---|
inactive | not focused | not rendered |
focused | focused and empty | not rendered |
active search | contains non-empty search string | rendered |
It is possible to jump directly from active search state to inactive by pressing the Esc key or by erasing the search input value. The search results container is shown only if the search input contains non-empty string.
Once the search results container is rendered it transitions between the following states:
Search results state | Search results |
---|---|
loading | the search API call is in progress |
empty search (result) | the search API call returned an empty array |
non-empty search (result) | the search API call returned an array of channel and user objects |
SearchInput component
The SearchInput source code shows that the component renders a single text input element. User can provide a custom SearchInput
component implementation though.
SearchBar component
The SearchBar
contains multiple elements - buttons and text input. The buttons are conditionally rendered based on user interaction with the ChannelSearch
components. All the button icons displayed in the SearchBar
are customizable. User can provide a custom SearchBar
component implementation.
SearchBar states
The SearchBar
transitions between the same states as the SearchInput
, but renders more elements.
1. Inactive state:
The SearchBar
is rendered with app menu icon if a custom AppMenu
component is provided to the ChannelSearch
. Otherwise, only search input is visible.
![Image of an inactive search bar state with an app menu](/chat/docs/sdk/assets/images/inactive-searchbar-no-app-menu-c8514316609a43b42d274e4ef85357ec.png)
![Image of an inactive search bar state without an app menu](/chat/docs/sdk/assets/images/inactive-searchbar-with-app-menu-49850e6b2628668a617b1d52339a6254.png)
2. Active state:
Once the input is focused, a return-arrow button occurs with ExitSearchIcon
to exit the active state. Note the app menu icon is actually replaced by the return arrow button. After typing the search query a clear-input button with ClearInputIcon
appears inside the search input.

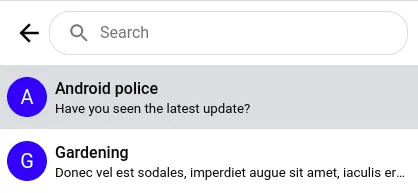

![Image of an active search bar state with empty input](/chat/docs/sdk/assets/images/active-searchbar-no-text-a325cc9adaa1d2c79fefa0593f8bef4d.png)

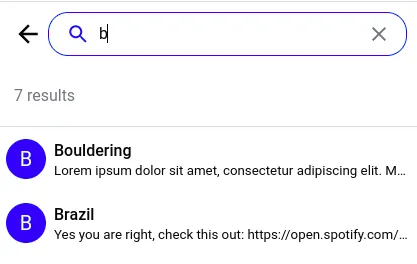

![Image of an active search bar with search query](/chat/docs/sdk/assets/images/active-searchbar-with-text-74ee4a95dfc892cd9ebe9181082d62b0.png)
By clicking the return-arrow button, the user returns to the inactive search state. By clicking the clear-input button the input is cleared but kept focused with return-arrow still displayed (with possibility to exit the search altogether).
The active search UI state can be exited by pressing the Escape
key as well.
SearchResults component
The following states are reflected in the SearchResults
:
- The search query being in progress (can be customized with
SearchLoading
) - The empty search result (can be customized with
SearchEmpty
) - The listing of found channels (if
searchForChannels
is set totrue
) and users
The look of the latter can be customized by providing SearchResultsHeader
, SearchResultItem
, SearchResultsList
) (renders the list of SearchResultItem
).

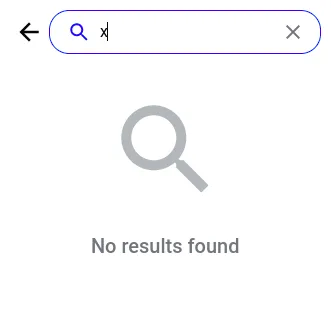

The default styling of the first two states are as follows:
Search results in popup
The search results can be rendered in place of the channel list or above the channel list in a floating container. This behavior is toggled by popupResults
prop.

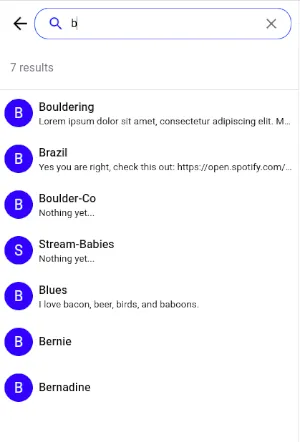

![Image of search results displayed inline](/chat/docs/sdk/assets/images/search-results-inline-theme-b9af96533bc6089525843e1a5482581b.png)

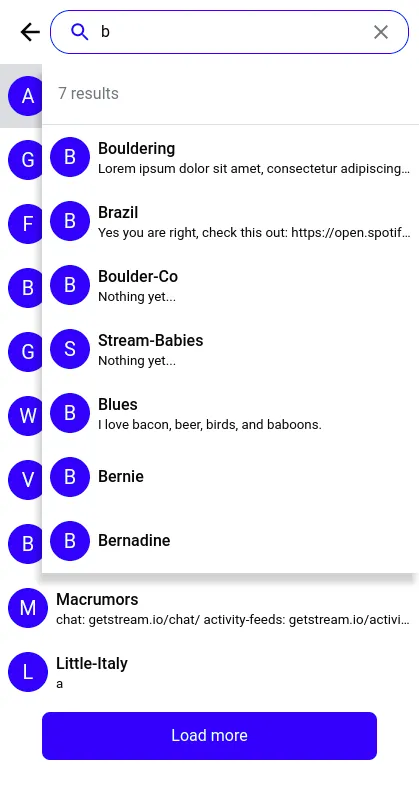

![Image of search results displayed floating above the channel list](/chat/docs/sdk/assets/images/search-results-popup-theme-c3c01626dcd298ab0971a6e3c9c560d1.png)
Keep the search results open on channel select
The ChannelSearch
offers possibility to keep the search results open meanwhile the user clicks between the search results. This behavior is controlled by clearSearchOnClickOutside
flag. The selected channel is added to the channel list if it was not present there before the search.
Customizing the search method
By default, the ChannelSearch
component searches just for users. Use the searchForChannels
prop to also search for channels.
To override the search method completely, use the searchFunction
prop. This prop is useful, say, when you want to search only for channels
that the current logged in user is a member of. See the example below for this.
const customSearchFunction = async (
props: ChannelSearchFunctionParams,
event: { target: { value: SetStateAction<string> } },
client: StreamChat,
) => {
const { setResults, setSearching, setQuery } = props;
const value = event.target.value;
const filters = {
name: { $autocomplete: value },
members: { $in: client.userID },
};
setSearching(true);
setQuery(value);
const channels = await client.queryChannels(filters);
setResults(channels);
setSearching(false);
};
const { client } = useChatContext();
<ChannelList
additionalChannelSearchProps={{
searchFunction: (params, event) => {
return customSearchFunction(params, event, client);
},
}}
showChannelSearch
/>;
Props
AppMenu
Application menu / drop-down to be displayed when clicked on MenuIcon
. Prop is consumed only by the SearchBar
component. No default component is provided by the SDK. The library does not provide any CSS for AppMenu
. Consult the customization tutorial on how to add AppMenu to your application. The component is passed a prop close
, which is a function that can be called to hide the app menu (e.g. on menu item selection).
Type | Default |
---|---|
React.ComponentType | undefined |
channelType
The type of channel
to create on user result selection.
Type | Default |
---|---|
livestream | messaging | team | gaming | commerce | messaging |
ClearInputIcon
Custom icon component used as a content of the button used to clear the search input. Prop is consumed only by the SearchBar
component.
Type | Default |
---|---|
React.ComponentType | XIcon |
clearSearchOnClickOutside
Signals that the search state / results should be cleared on every click outside the search input (e.g. selecting a search result or exiting the search UI), defaults to true
. If set to false
, the search results are kept in the UI meanwhile the user changes between the channels.
Type | Default |
---|---|
boolean | true |
disabled
Disables execution of the search queries and makes the search text input element disabled. Defaults to false
.
Type | Default |
---|---|
boolean | false |
ExitSearchIcon
Custom icon component used as a content of the button used to exit the search UI. Prop is consumed only by the SearchBar
component.
Type | Default |
---|---|
React.ComponentType | ReturnIcon |
MenuIcon
Custom icon component used as a content of the button used to invoke the AppMenu
. Prop is consumed only by the SearchBar
component. The menu icon button is displayed only if AppMenu
component has been passed to ChannelSearch
props.
Type | Default |
---|---|
React.ComponentType | MenuIcon |
onSearch
Callback invoked with every search input change handler. SDK user can provide own implementation. The prop is used by the ChannelList
component to set a flag determining that the search has been initiated. If the search has been initiated and search result are to be displayed instead of the list of loaded channels (popupResults
flag is set to false
), then the list of loaded channels is not rendered. This logic is executed despite passing custom implementation of onSearch
function to ChanneList
props.
Type |
---|
React.ChangeEventHandler<HTMLInputElement\> |
onSearchExit
Callback invoked when the search UI is deactivated. The ChannelList
component uses it to set a flag that the search has been terminated and search results are not expected to be displayed in place of the list of loaded channels. And so the ChannelList
renders the list of loaded channels. This logic is executed despite passing custom implementation of onSearchExit
function to ChanneList
props.
Type |
---|
() => void |
onSelectResult
Custom handler function to run on search result item selection. If not provided then the default selection handler takes care of:
- loading the active channel
- adding the selected channel to the channel list
- clearing the search results, if
clearSearchOnClickOutside
flag is set to true (default)
Type |
---|
(params: ChannelSearchFunctionParams<StreamChatGenerics\>, result: ChannelOrUserResponse<StreamChatGenerics\> ) => Promise<void> | void |
placeholder
Custom placeholder text to be displayed in the search input. Can be passed down from ChannelList
via its additionalChannelSearchProps
. If using custom i18n translations, it is preferable to change the placeholder value in your translations files under the key 'Search'
.
Type | Default |
---|---|
string | 'Search' |
popupResults
Display search results as an absolutely positioned popup, defaults to false and shows inline.
Type | Default |
---|---|
boolean | false |
SearchBar
Custom component to be rendered instead of the default SearchBar. The default SearchBar
component is a composite of multiple buttons and a search input. You can find more information about its features in an above section.
Type | Default |
---|---|
React.ComponentType<SearchBarProps\> | SearchBar |
SearchEmpty
Custom UI component to display empty search results.
Type | Default |
---|---|
React.ComponentType | DefaultSearchEmpty |
searchForChannels
Boolean to search for channels as well as users in the server query, default is false
and just searches for users.
Type | Default |
---|---|
boolean | false |
searchFunction
Custom search function to override default. The first argument should expect an object of type ChannelSearchFunctionParams
. It carries references to the Dispatch<SetStateAction>
functions that allow to control the search state:
setQuery
- sets the search input value, the default value is an empty stringsetResults
- sets the array of search results, the default value is an empty arraysetSearching
- signals that the HTTP search request is in progress
Type |
---|
(params: ChannelSearchFunctionParams, event: React.BaseSyntheticEvent ) => Promise<void> | void |
See also Customizing the search method.
searchDebounceIntervalMs
The number of milliseconds to debounce the search query.
Type | Default |
---|---|
number | 300 |
SearchInput
Custom UI component to display the search text input.
Type | Default |
---|---|
React.ComponentType<SearchInputProps> | SearchInput |
SearchLoading
Custom UI component to display the search loading state. Rendered within the SearchResults
component.
Type | Default |
---|---|
React.ComponentType | a div with: 'Searching...' |
searchQueryParams
Object containing filters/sort/options overrides for user / channel search.
The filters
attribute (SearchQueryParams.userFilters.filters
) can be either UserFilters
object describing the filter query or a function with a single argument of the search / filter (query) string. The function is then expected to derive and return the UserFilters
from the provided query string.
Type |
---|
SearchQueryParams<StreamChatGenerics> |
SearchResultsHeader
Custom UI component to display the search results header.
Type | Default |
---|---|
React.ComponentType | DefaultSearchResultsHeader |
SearchResultItem
Custom UI component to display a search result list item.
Type | Default |
---|---|
React.ComponentType<SearchResultItemProps<StreamChatGenerics>> | DefaultSearchResultItem |
SearchResultsList
Custom UI component to display all the search results.
Type | Default |
---|---|
React.ComponentType<SearchResultsListProps<StreamChatGenerics>> | DefaultSearchResultsList |
