Location Sharing

This cookbook shows how to add static and live location sharing to a React Native chat app using Stream Chat.

There are two types of location sharing:

• Static Location: A one-time snapshot of the user's current position.
• Live Location: A real-time share that updates the user's position for a chosen duration.

Best Practices

• Request location permissions just-in-time and explain why you need them.
• Provide clear UI to stop live sharing and surface remaining time.
• Avoid high-frequency updates; use reasonable intervals to save battery.
• Handle permission denial gracefully by falling back to static sharing.
• Store location metadata on the message to render without extra lookups.

Prerequisites

The SDK handles location messages and updates, but your app must handle device location tracking. You need a working chatClient and a Channel screen with MessageList and MessageInput in place.

Use the Sample App or Expo Messaging app as a full reference implementation.

Setup

Installing Dependencies

yarn add @react-native-community/geolocation
yarn add react-native-maps

yarn add expo-location
yarn add react-native-maps

Configuring Location Permissions

<uses-permission android:name="android.permission.ACCESS_FINE_LOCATION" />
<uses-permission android:name="android.permission.ACCESS_COARSE_LOCATION" />

<application>
   <meta-data
     android:name="com.google.android.geo.API_KEY"
     android:value="Your Google maps API Key Here"/>
</application>

{
  "expo": {
    "plugins": [
      [
        "expo-location",
        {
          "locationAlwaysAndWhenInUsePermission": "Allow $(PRODUCT_NAME) to use your location."
        }
      ]
    ]
  }
}

{
  "expo": {
    "android": {
      "config": {
        "googleMaps": {
          "apiKey": "Your Google maps API Key Here"
        }
      }
    }
  }
}

Sending a Location Message

To send a location message, set data on messageComposer.locationComposer and call sendLocation. The difference between static and live is whether you include a durationMs.

Static Location

A static location sends the user's current coordinates as a one-time share:

const sendStaticLocation = async () => {
  const { latitude, longitude } = await getCurrentLocation();
  await messageComposer.locationComposer.setData({
    latitude,
    longitude,
  });
  await messageComposer.sendLocation();
};

Live Location

A live location includes a duration. The SDK watches for location changes and updates the message automatically:

const sendLiveLocation = async () => {
  const { latitude, longitude } = await getCurrentLocation();
  await messageComposer.locationComposer.setData({
    durationMs: 600000, // 10 minutes
    latitude,
    longitude,
  });
  await messageComposer.sendLocation();
};

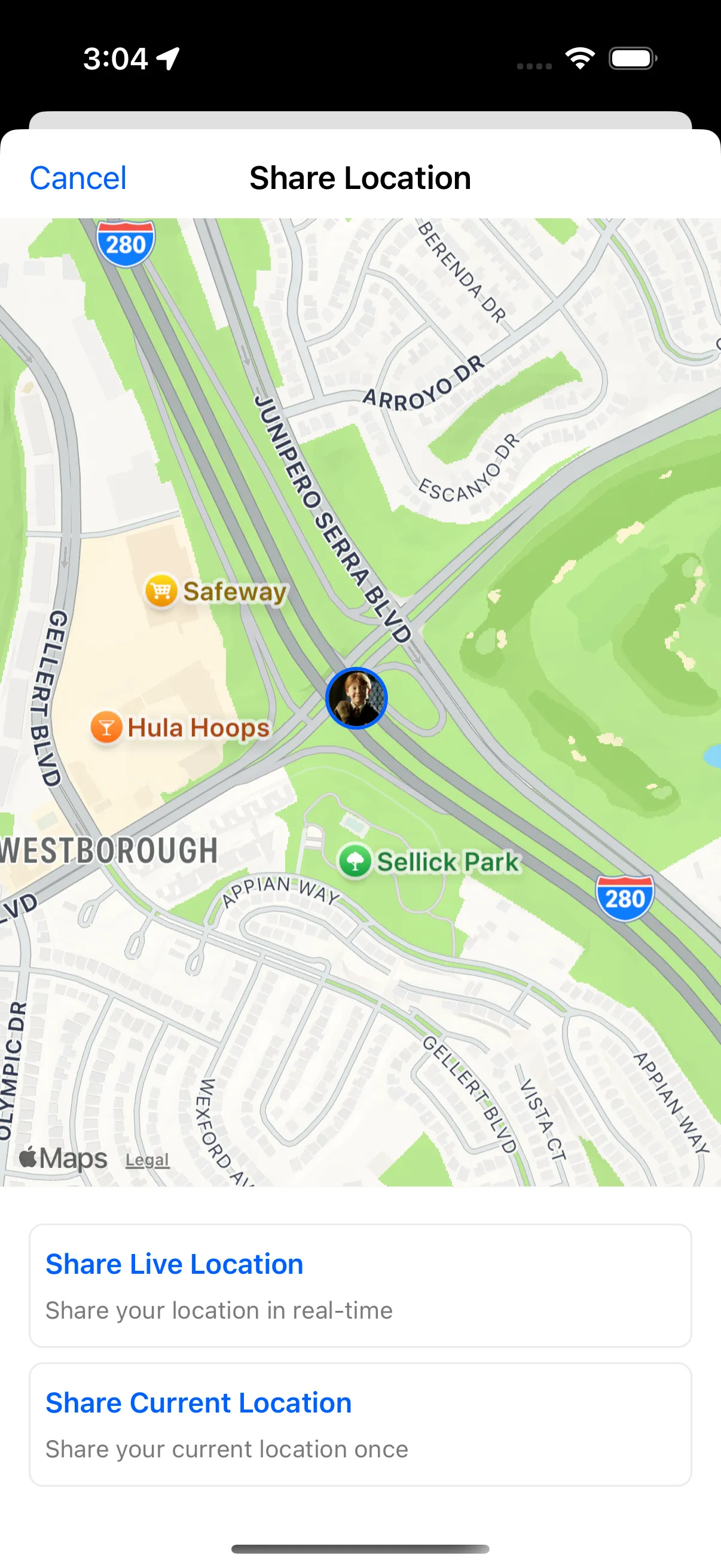

Full example implementations of the create-location modal:

• Expo
• Native CLI

Adding a Location Button to the Input

Customize the InputButtons component on Channel to add a button that opens the location-sharing modal:

import React, { useState } from "react";
import { Pressable, StyleSheet } from "react-native";
import { Channel, InputButtons as DefaultInputButtons } from "stream-chat-expo";
import { ShareLocationIcon } from "../icons/ShareLocationIcon";
import { LiveLocationCreateModal } from "./LocationSharing/CreateLocationModal";

const InputButtons: NonNullable<
  React.ComponentProps<typeof Channel>["InputButtons"]
> = (props) => {
  const [modalVisible, setModalVisible] = useState(false);

  const onRequestClose = () => {
    setModalVisible(false);
  };

  const onOpenModal = () => {
    setModalVisible(true);
  };

  return (
    <>
      <DefaultInputButtons {...props} hasCommands={false} />
      <Pressable style={styles.liveLocationButton} onPress={onOpenModal}>
        <ShareLocationIcon />
      </Pressable>
      <LiveLocationCreateModal
        visible={modalVisible}
        onRequestClose={onRequestClose}
      />
    </>
  );
};

const styles = StyleSheet.create({
  liveLocationButton: {
    paddingLeft: 5,
  },
});

export default InputButtons;

Rendering the Location in a Message

When a message includes location data, the shared_location field contains latitude, longitude, and other details. The SDK does not ship a default map UI, so you need to build a custom component and pass it via the MessageLocation prop on Channel.

Use react-native-maps to render the map with the shared coordinates:

Example MessageLocation implementations:

• Expo
• Native CLI

Managing Live Location Updates

An app can have multiple active live locations across channels. Use client.getSharedLocations() to fetch all active live locations for the current user.

The LiveLocationManager class from stream-chat coordinates live location updates across your app. The SDK exposes a LiveLocationManagerProvider that supplies an instance and handles event registration/deregistration automatically.

Wrap your app with LiveLocationManagerProvider and pass a watchLocation function that watches device location:

import Geolocation from "@react-native-community/geolocation";

type LocationHandler = (value: { latitude: number; longitude: number }) => void;

export const watchLocation = (handler: LocationHandler) => {
  let watchId: number | null = null;
  watchId = Geolocation.watchPosition(
    (position) => {
      const { latitude, longitude } = position.coords;
      handler({ latitude, longitude });
    },
    (error) => {
      console.warn("Error watching location:", error);
    },
    {
      enableHighAccuracy: true,
      timeout: 20000,
      maximumAge: 1000,
      interval: 2000, // android only
    },
  );

  return () => {
    if (watchId) {
      Geolocation.clearWatch(watchId);
    }
  };
};

import * as Location from "expo-location";

export type LocationHandler = (value: {
  latitude: number;
  longitude: number;
}) => void;

export const watchLocation = (handler: LocationHandler) => {
  let subscription: Location.LocationSubscription | null = null;
  Location.watchPositionAsync(
    {
      accuracy: Location.Accuracy.High,
      distanceInterval: 0,
      // Android only: these option are ignored on iOS
      timeInterval: 2000,
    },
    (location) => {
      const { latitude, longitude } = location.coords;
      handler({ latitude, longitude });
    },
    (error) => {
      console.warn("Error watching location:", error);
    },
  ).then((sub) => {
    subscription = sub;
  });

  return () => {
    subscription?.remove();
  };
};

Then wrap your app:

import { LiveLocationManagerProvider } from "stream-chat-react-native";

const App = () => {
  return (
    <LiveLocationManagerProvider watchLocation={watchLocation}>
      {/* Your app components */}
    </LiveLocationManagerProvider>
  );
};

Navigating to a Full-Screen Map

When the user taps a location message, navigate to a detail screen that shows a full-screen map. Use the onPressMessage prop on Channel:

const App = () => {
  const onPressMessage: NonNullable<
    React.ComponentProps<typeof Channel>["onPressMessage"]
  > = (payload) => {
    const { message, defaultHandler, emitter } = payload;
    const { shared_location } = message ?? {};
    if (emitter === "messageContent" && shared_location) {
      navigation.navigate("MapScreen", shared_location);
    }
    defaultHandler?.();
  };

  return <Channel onPressMessage={onPressMessage}></Channel>;
};

const App = () => {
  const onPressMessage: NonNullable<
    React.ComponentProps<typeof Channel>["onPressMessage"]
  > = (payload) => {
    const { message, defaultHandler, emitter } = payload;
    const { shared_location } = message;
    if (emitter === "messageContent" && shared_location) {
      const params = Object.entries(shared_location)
        .map(([key, value]) => `${key}=${value}`)
        .join("&");
      router.push(`/map/${message.id}?${params}`);
    }
    defaultHandler?.();
  };

  return <Channel onPressMessage={onPressMessage}></Channel>;
};

Building the Map Detail Screen

This screen displays the shared location on a full-screen map. For live locations, it shows a stop-sharing button and the remaining time. For ended live locations, it shows the final position.

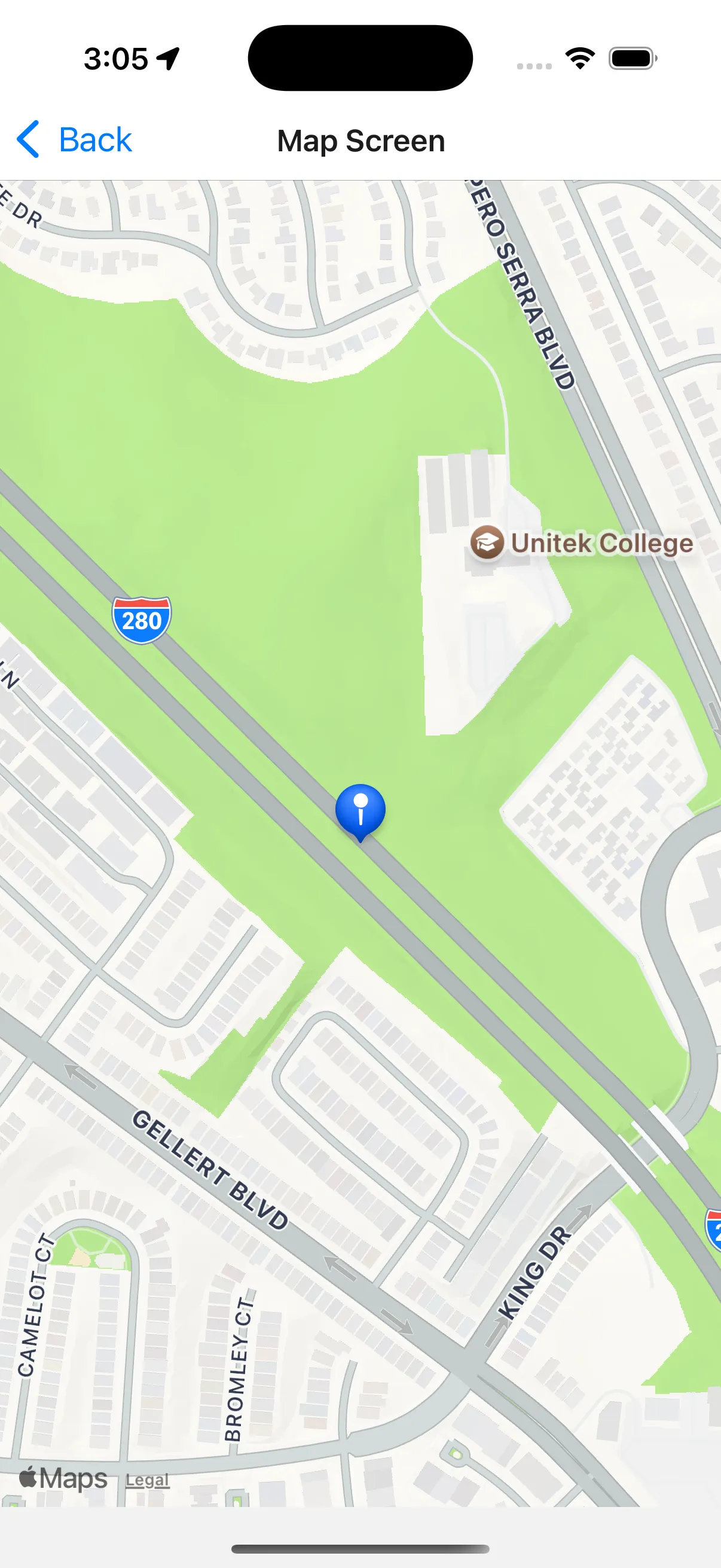

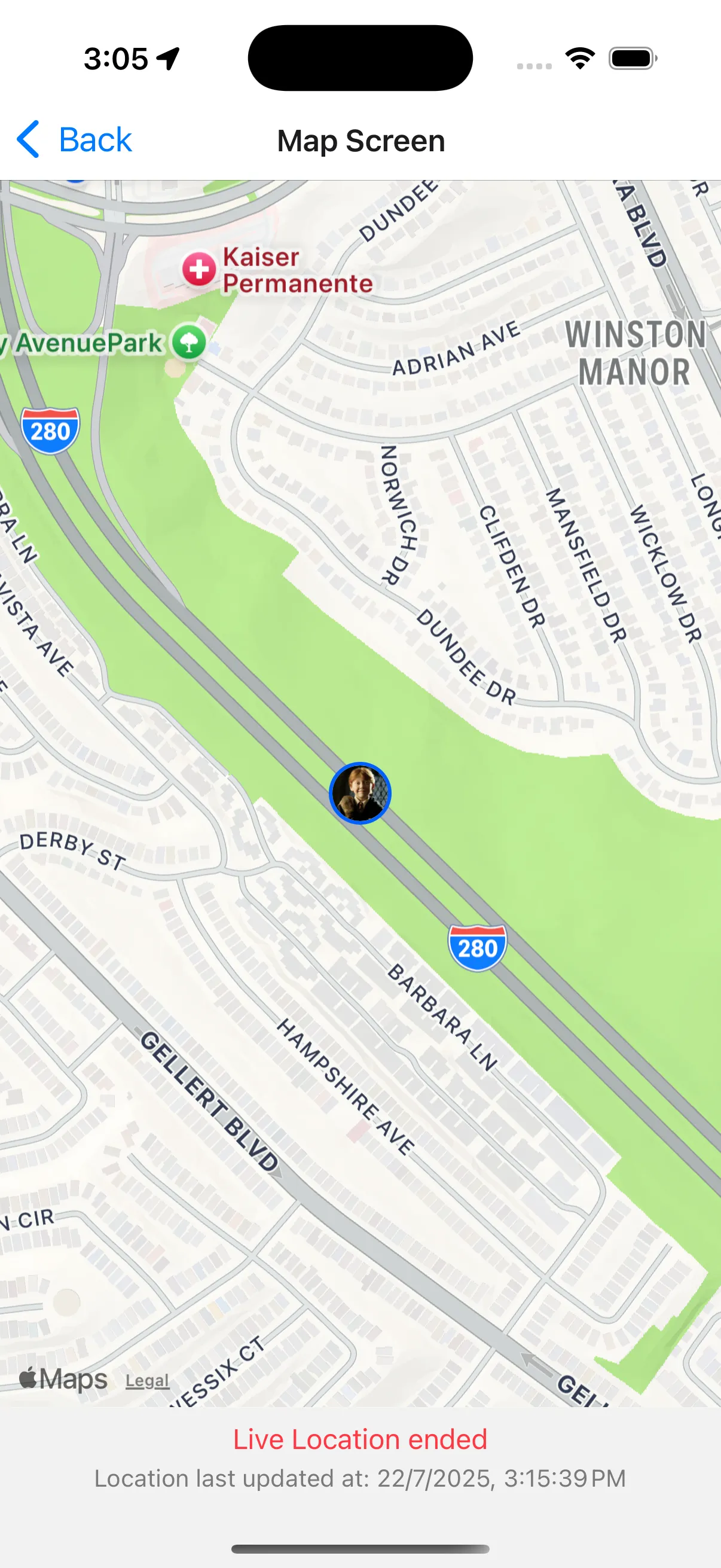

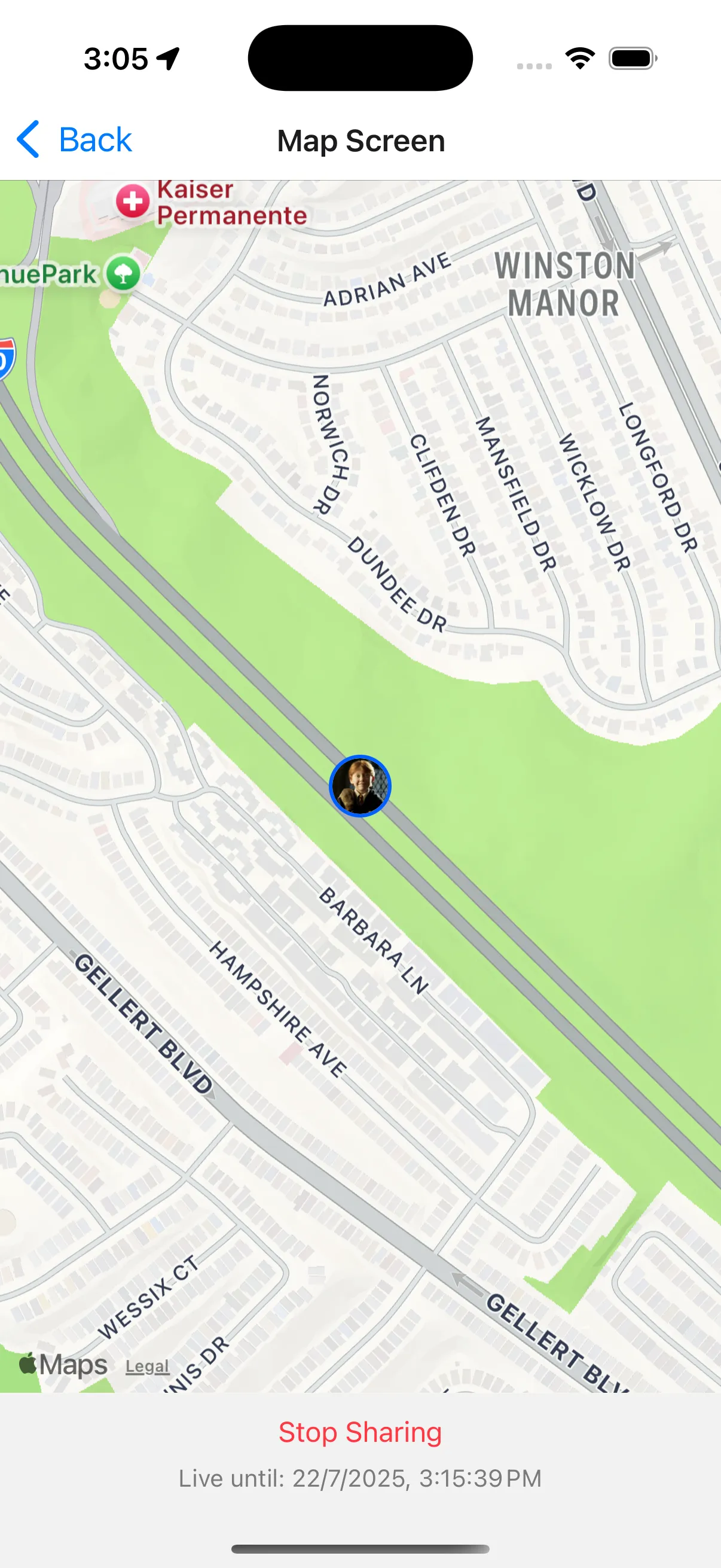

Current Location	Live Location	Live Location Ended

To keep the map marker up to date while a live location is active, listen for backend events. The key event is:

• message.updated — Fired when the message's shared_location changes.

Use the useHandleLiveLocationEvents hook with messageId, channel, and an onLocationUpdate callback. The callback fires on every message.updated event and can update the map marker position.

Example MapScreen implementations:

• Expo
• Native CLI

Stopping Live Location Sharing

To stop an active live location share, call stopLiveLocationSharing on the channel with the current location response:

const stopSharingLiveLocation = async () => {
  if (!locationResponse) {
    return;
  }
  await channel?.stopLiveLocationSharing(locationResponse);
};

The message updates automatically once sharing stops, and the map detail screen reflects the final position.

Sample Code

Complete implementations are available in the sample apps:

• Expo Messaging
• Native CLI Sample App
