This is documentation for Stream Chat Flutter SDK v5, which is nolonger actively maintained. For up-to-date documentation, see the latest version (v8).

StreamChannelListView

A Widget For Displaying A List Of Channels

Find the pub.dev documentation here

Background

Channels are fundamental elements of Stream Chat and constitute shared spaces which allow users to message each other.

1:1 conversations and groups are both examples of channels, albeit with some (distinct/non-distinct) differences. Displaying the list of channels that a user is a part of is a pattern present in most messaging apps.

The StreamChannelListView widget allows displaying a list of channels to a user. By default, this is NOT ONLY the channels that the user is a part of. This section goes into setting up and using a StreamChannelListView widget.

Make sure to check the StreamChannelListController documentation for more information on how to use the controller to manipulate the StreamChannelListView.

Basic Example

Here is a basic example of the StreamChannelListView widget. It consists of the main widget itself, a StreamChannelListController to control the list of channels and a callback to handle the tap of a channel.

class ChannelListPage extends StatefulWidget {
  const ChannelListPage({
    super.key,
    required this.client,
  });

  final StreamChatClient client;

  @override
  State<ChannelListPage> createState() => _ChannelListPageState();
}

class _ChannelListPageState extends State<ChannelListPage> {
  late final _controller = StreamChannelListController(
    client: widget.client,
    filter: Filter.in_(
      'members',
      [StreamChat.of(context).currentUser!.id],
    ),
    channelStateSort: const [SortOption('last_message_at')],
  );

  @override
  void dispose() {
    _controller.dispose();
    super.dispose();
  }

  @override
  Widget build(BuildContext context) => Scaffold(
        body: RefreshIndicator(
          onRefresh: _controller.refresh,
          child: StreamChannelListView(
            controller: _controller,
            onChannelTap: (channel) => Navigator.push(
              context,
              MaterialPageRoute(
                builder: (_) => StreamChannel(
                  channel: channel,
                  child: const ChannelPage(),
                ),
              ),
            ),
          ),
        ),
      );
}

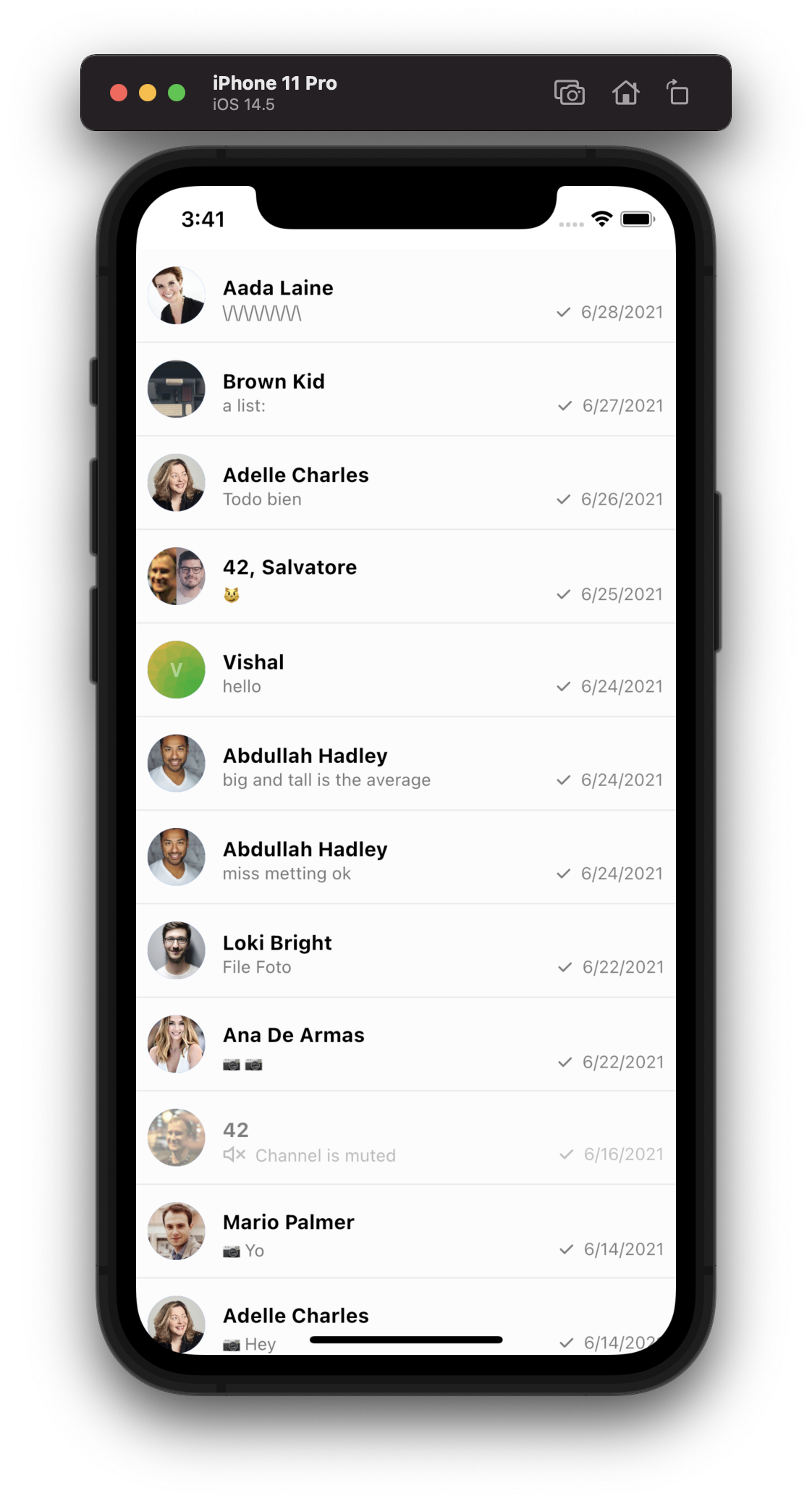

This example by default displays the channels that a user is a part of. Now let’s look at customizing the widget.

Customizing the Channel Preview

A common aspect of the widget needed to be tweaked according to each app is the Channel Preview (the Channel tile in the list). To do this, we use the itemBuilder parameter like this:

StreamChannelListView(
  ...
  itemBuilder: (context, channels, index, defaultTile) {
    return ListTile(
      tileColor: Colors.amberAccent,
      title: Center(
        child: StreamChannelName(channel: channels[index]),
      ),
    );
  },
),

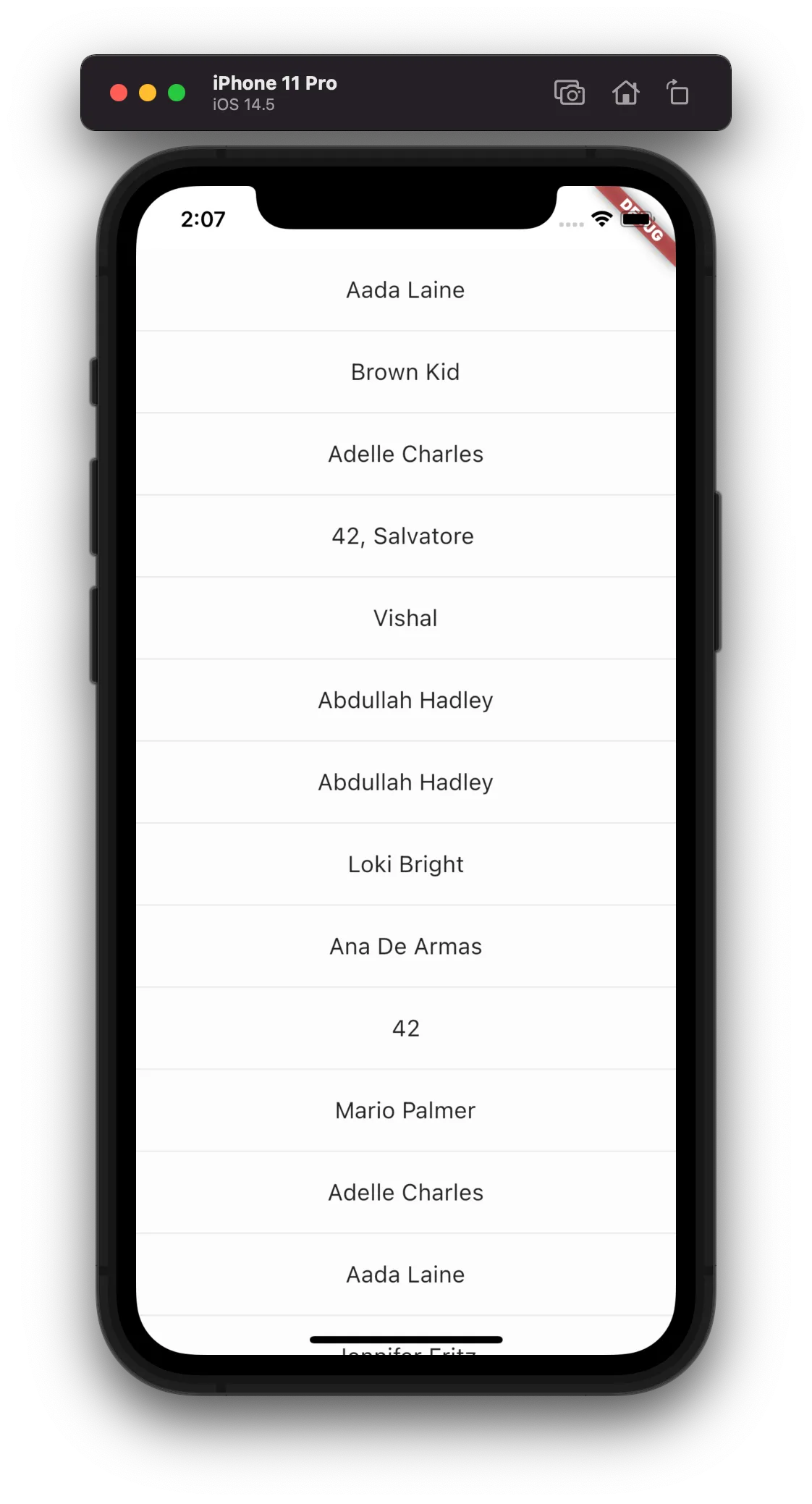

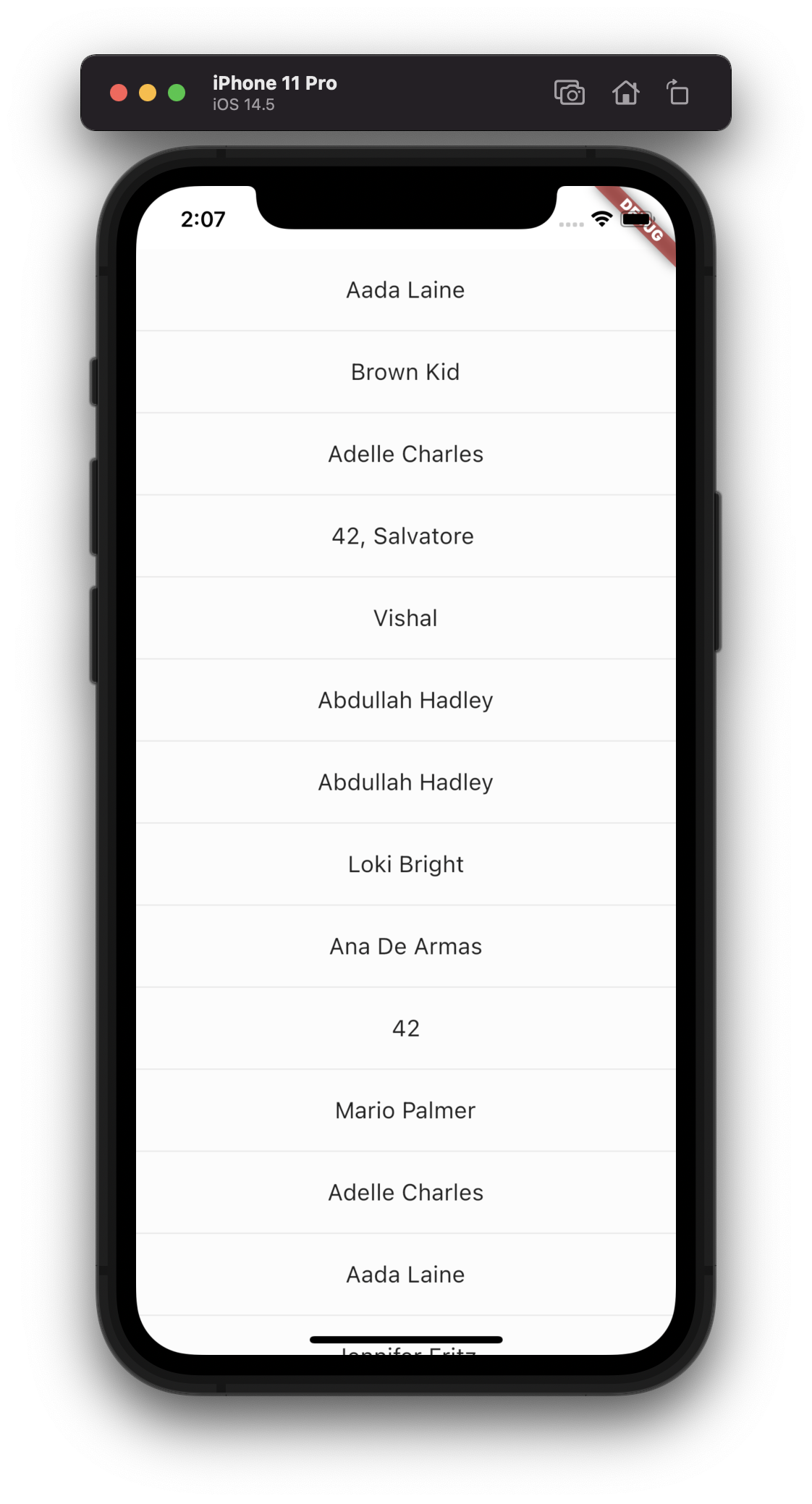

Which gives you a new Channel preview in the list:
