Customizing The MessageWidget

Customizing Text Messages

Introduction

Every application provides a unique look and feel to their own messaging interface including and not limited to fonts, colors, and shapes.

This guide details how to customize the MessageWidget in the Stream Chat Flutter UI SDK.

Building Custom Messages

This guide goes into detail about the ability to customize the MessageWidget. However, if you want to customize the default MessageWidget in the MessageListView provided, you can use the .copyWith() method provided inside the messageBuilder parameter of the MessageListView like this:

MessageListView(
    messageBuilder: (context, details, messageList, defaultImpl) {
        // Your implementation of the message here
        // E.g: return Text(details.message.text ?? '');
    },
),

Theming

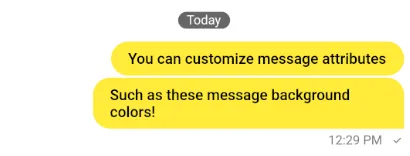

You can customize the MessageWidget using the StreamChatTheme class, so that you can change the message theme at the top instead of creating your own MessageWidget at the lower implementation level.

There are several things you can change in the theme including text styles and colors of various elements.

You can also set a different theme for the user’s own messages and messages received by them.

Here is an example:

StreamChatThemeData(

  /// Sets theme for user's messages
  ownMessageTheme: MessageThemeData(
    messageBackgroundColor: colorTheme.textHighEmphasis,
  ),

  /// Sets theme for received messages
  otherMessageTheme: MessageThemeData(
    avatarTheme: AvatarThemeData(
      borderRadius: BorderRadius.circular(8),
    ),
  ),

)

Change message text style

The MessageWidget has multiple Text widgets that you can manipulate the styles of. The three main are the actual message text, user name, message links, and the message timestamp.

MessageThemeData(
  messageTextStyle: TextStyle(...),
  createdAtStyle: TextStyle(...),
  messageAuthorStyle: TextStyle(...),
  messageLinksStyle: TextStyle(...),
)

Change avatar theme

You can change the attributes of the avatar (if displayed) using the avatarTheme property.

MessageThemeData(
    avatarTheme: AvatarThemeData(
      borderRadius: BorderRadius.circular(8),
    ),
)

Changing Reaction theme

You also customize the reactions attached to every message using the theme.

MessageThemeData(
  reactionsBackgroundColor: Colors.red,
  reactionsBorderColor: Colors.redAccent,
  reactionsMaskColor: Colors.pink,
),

Changing Message Actions

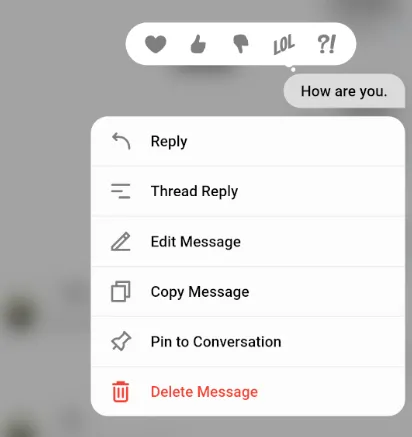

When a message is long pressed, the MessageActionsModal is shown.

The MessageWidget allows showing or hiding some options if you so choose.

MessageWidget(
    ...
    showUsername = true,
    showTimestamp = true,
    showReactions = true,
    showDeleteMessage = true,
    showEditMessage = true,
    showReplyMessage = true,
    showThreadReplyMessage = true,
    showResendMessage = true,
    showCopyMessage = true,
    showFlagButton = true,
    showPinButton = true,
    showPinHighlight = true,
),

Building attachments

The customAttachmentBuilder property allows you to build any kind of attachment (inbuilt or custom) in your own way. While a separate guide is written for this, it is included here because of relevance.

MessageListView(
  messageBuilder: (context, details, messages, defaultMessage) {
    return defaultMessage.copyWith(
        customAttachmentBuilders: {
          'location': (context, message, attachments) {
            final attachmentWidget = Image.network(
              _buildMapAttachment(
                attachments[0].extraData['latitude'],
                attachments[0].extraData['longitude'],
              ),
            );

            return wrapAttachmentWidget(context, attachmentWidget, null, true, BorderRadius.circular(8.0));
          }
        },
    );
  },
),

Widget Builders

Some parameters allow you to construct your own widget in place of some elements in the MessageWidget.

These are:

• userAvatarBuilder : Allows user to substitute their own widget in place of the user avatar.
• editMessageInputBuilder : Allows user to substitute their own widget in place of the input in edit mode.
• textBuilder : Allows user to substitute their own widget in place of the text.
• bottomRowBuilder : Allows user to substitute their own widget in the bottom of the message when not deleted.
• deletedBottomRowBuilder : Allows user to substitute their own widget in the bottom of the message when deleted.

MessageWidget(
    ...
    textBuilder: (context, message) {
        // Add your own text implementation here.
    },
),
