This is documentation for Stream Chat Angular SDK v4, which is nolonger actively maintained. For up-to-date documentation, see the latest version (v5).

Emoji picker

The SDK doesn’t have a built-in emoji picker, but it has support for providing your own template. This guide shows you how to add an emoji picker to your chat application.

Create the emoji picker template

Create a new component in your application

ng g c emoji-picker

Install @ctrl/ngx-emoji-mart

You can use any emoji picker but this example will use @ctrl/ngx-emoji-mart

npm install @ctrl/ngx-emoji-mart

Import the emoji-mart stylesheet into your root stylesheet (for example styles.scss):

@import "~@ctrl/ngx-emoji-mart/picker";

Import the PickerModule into your AppModule:

import { NgModule } from "@angular/core";
import { BrowserModule } from "@angular/platform-browser";
import { TranslateModule } from "@ngx-translate/core";

import { AppComponent } from "./app.component";
import {
  StreamChatModule,
  StreamAutocompleteTextareaModule,
} from "stream-chat-angular";
import { EmojiPickerComponent } from "./emoji-picker/emoji-picker.component";
import { PickerModule } from "@ctrl/ngx-emoji-mart";

@NgModule({
  declarations: [AppComponent, EmojiPickerComponent],
  imports: [
    BrowserModule,
    TranslateModule.forRoot(),
    StreamAutocompleteTextareaModule,
    StreamChatModule,
    PickerModule,
  ],
  providers: [],
  bootstrap: [AppComponent],
})
export class AppModule {}

Component class

Your emoji picker component should have an input with the type Subject<string> to emit the selected emojis. This input will be provided by the MessageInput component.

We also defined an isOpened property that tells if the emoji picker should be opened or closed.

The emoji picker will close on outside clicks.

import { Component, ElementRef, Input, ViewChild } from "@angular/core";
import { Observable, Subject } from "rxjs";
import { ThemeService } from "stream-chat-angular";

@Component({
  selector: "app-emoji-picker",
  templateUrl: "./emoji-picker.component.html",
  styleUrls: ["./emoji-picker.component.scss"],
})
export class EmojiPickerComponent {
  isOpened = false;
  theme$: Observable<string>;
  @Input() emojiInput$: Subject<string> | undefined;
  @ViewChild("container") container: ElementRef<HTMLElement> | undefined;

  constructor(themeService: ThemeService) {
    this.theme$ = themeService.theme$;
  }

  emojiSelected(event: any) {
    // eslint-disable-next-line @typescript-eslint/no-unsafe-member-access
    this.emojiInput$?.next(event.emoji.native);
  }

  eventHandler = (event: Event) => {
    // Watching for outside clicks
    if (!this.container?.nativeElement.contains(event.target as Node)) {
      this.isOpened = false;
      window.removeEventListener("click", this.eventHandler);
    }
  };

  toggled() {
    if (!this.container) {
      return;
    }
    this.isOpened = !this.isOpened;
    if (this.isOpened) {
      window.addEventListener("click", this.eventHandler);
    } else {
      window.removeEventListener("click", this.eventHandler);
    }
  }
}

Component template

We create a button that can be used to toggle the emoji picker.

The emoji-mart component has a lot of configuration options, feel free to explore those.

We set the color input to --str-chat__primary-color defined in the stream-chat-css theme.

The ngIf directive is used to hide/show the emoji picker.

The emojiSelect event is fired when a user selects an emoji, we emit the selected emoji using the emojiSelected method.

<div #container class="emoji-picker-container">
  <button (click)="toggled()">
    <svg
      viewBox="0 0 28 28"
      width="100%"
      preserveAspectRatio="xMinYMin"
      xmlns="http://www.w3.org/2000/svg"
    >
      <g clip-rule="evenodd" fill-rule="evenodd">
        <path
          d="M14 4.4C8.6 4.4 4.4 8.6 4.4 14c0 5.4 4.2 9.6 9.6 9.6c5.4 0 9.6-4.2 9.6-9.6c0-5.4-4.2-9.6-9.6-9.6zM2 14c0-6.6 5.4-12 12-12s12 5.4 12 12s-5.4 12-12 12s-12-5.4-12-12zM12.8 11c0 1-.8 1.8-1.8 1.8s-1.8-.8-1.8-1.8s.8-1.8 1.8-1.8s1.8.8 1.8 1.8zM18.8 11c0 1-.8 1.8-1.8 1.8s-1.8-.8-1.8-1.8s.8-1.8 1.8-1.8s1.8.8 1.8 1.8zM8.6 15.4c.6-.4 1.2-.2 1.6.2c.6.8 1.6 1.8 3 2c1.2.4 2.8.2 4.8-2c.4-.4 1.2-.6 1.6 0c.4.4.6 1.2 0 1.6c-2.2 2.6-4.8 3.4-7 3c-2-.4-3.6-1.8-4.4-3c-.4-.6-.2-1.2.4-1.8z"
        ></path>
      </g>
    </svg>
  </button>

  <emoji-mart
    class="picker"
    color="var(--str-chat__primary-color)"
    *ngIf="isOpened"
    title="Pick your emoji…"
    emoji="point_up"
    (emojiSelect)="emojiSelected($event)"
    [darkMode]="(theme$ | async) === 'dark'"
  ></emoji-mart>
</div>

Component styles

If you want to match the color of the emoji picker toggle button to the other tool buttons in the message input, you can use the --str-chat__message-input-tools-color to do that as defined in the stream-chat-css theme

.emoji-picker-container {
  position: relative;
  width: 24px;
  height: 24px;

  button {
    background-color: transparent;
    border: none;
    cursor: pointer;
    padding: 0;
    margin: 0;

    svg {
      display: flex;
      width: 24px;
      height: 24px;

      path {
        fill: var(--str-chat__message-input-tools-color);
      }
    }
  }

  .picker {
    z-index: 3;
    position: absolute;
    bottom: 100%;
    transform: scale(0.8);
    right: 0;
    transform-origin: bottom right;
  }

  @media only screen and (min-device-width: 1024px) {
    .picker {
      transform: scale(1);
    }
  }
}

Provide your custom template

Let’s create the template for the emoji picker (for example in your AppComponent):

<!-- The MessageInput component will provide the emojiInput$ to emit the selected emojis and insert them in the textarea -->
<ng-template #emojiPickerTemplate let-emojiInput$="emojiInput$">
  <app-emoji-picker [emojiInput$]="emojiInput$"></app-emoji-picker>
</ng-template>

These are the necessary steps:

Create a reference to the custom template
Import the CustomTemplatesService
Register your custom template

Here is an example file:

import {
  AfterViewInit,
  Component,
  TemplateRef,
  ViewChild,
} from "@angular/core";
import {
  ChatClientService,
  ChannelService,
  StreamI18nService,
} from "stream-chat-angular";
import {
  CustomTemplatesService,
  EmojiPickerContext,
} from "stream-chat-angular";
import { environment } from "../environments/environment";

@Component({
  selector: "app-root",
  templateUrl: "./app.component.html",
  styleUrls: ["./app.component.scss"],
})
export class AppComponent implements AfterViewInit {
  // Create a reference to the custom template
  @ViewChild("emojiPickerTemplate")
  private emojiPickerTemplate!: TemplateRef<EmojiPickerContext>;

  constructor(
    private chatService: ChatClientService,
    private channelService: ChannelService,
    private streamI18nService: StreamI18nService,
    private customTemplatesService: CustomTemplatesService, // Import the customTemplatesService
  ) {
    void this.chatService.init(
      environment.apiKey,
      environment.userId,
      environment.userToken,
    );
    void this.channelService.init({
      type: "messaging",
      members: { $in: [environment.userId] },
    });
    this.streamI18nService.setTranslation();
  }

  ngAfterViewInit(): void {
    // Register your custom template
    this.customTemplatesService.emojiPickerTemplate$.next(
      this.emojiPickerTemplate,
    );
  }
}

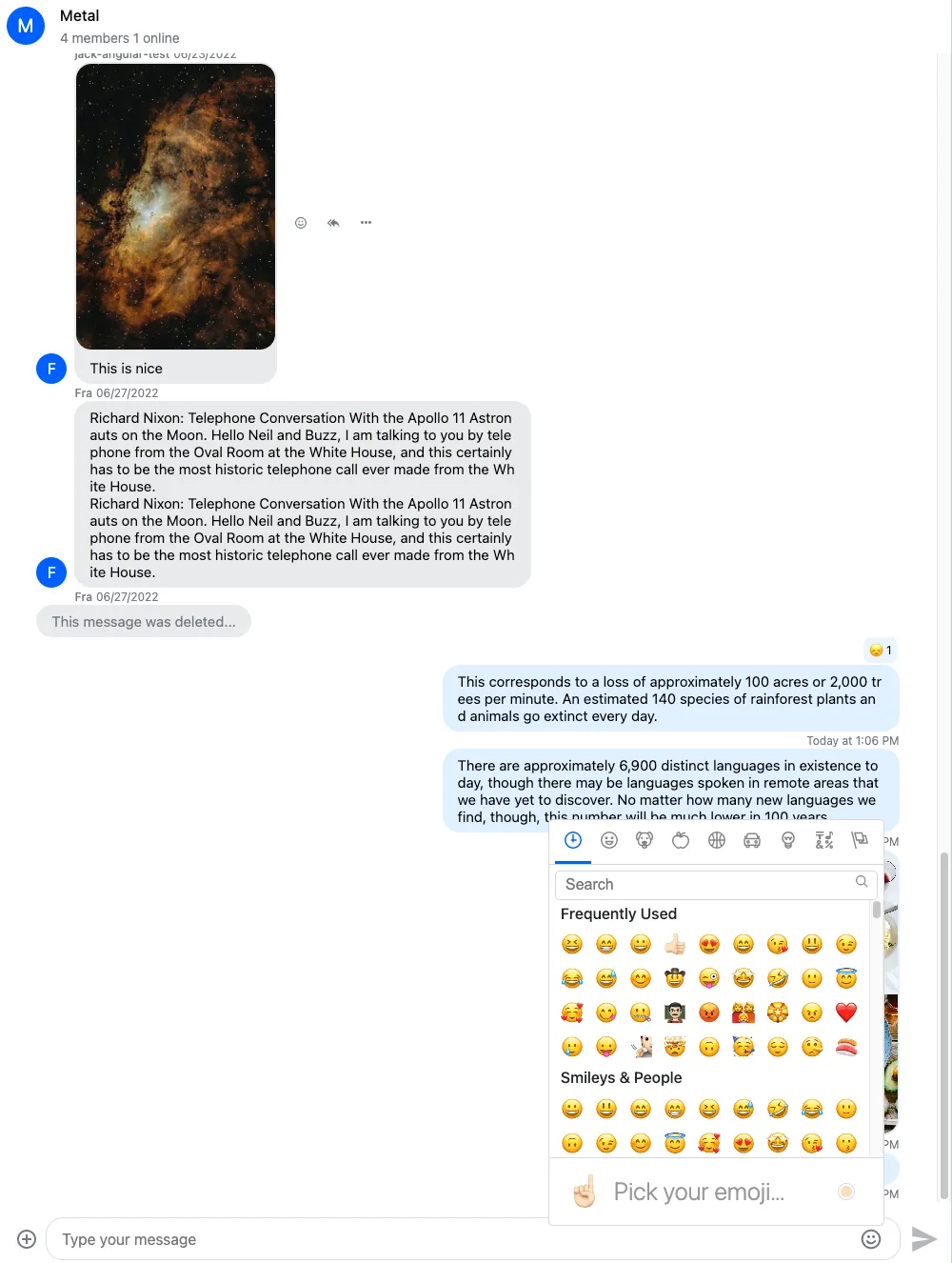

This is how our emoji picker looks like:

Dark and light mode

If your application supports dark and light themes, here how you can toggle the theme on the emoji input component:

Add this to you emoji picker component class:

theme$: Observable<string>;

constructor(themeService: ThemeService) {
  this.theme$ = themeService.theme$;
}

And set the darkMode input on the emoji-mart component:

<emoji-mart
  class="picker"
  color="var(--str-chat__primary-color)"
  *ngIf="isOpened"
  title="Pick your emoji…"
  emoji="point_up"
  (emojiSelect)="emojiSelected($event)"
  [darkMode]="(theme$ | async) === 'dark'"
></emoji-mart>
