Example Configuration

This guide explains how to configure the minimal example: token service, user, environment, call, and publishing. The main app logic lives in main.c.

Configuration options

1. Token service — Where the app fetches the token (your backend or Stream's)
2. User / environment — Passed to the token service (user_id, environment name)
3. Call selection — Which call to join (call_type and call_id)
4. Publishing — Mute audio/video flags

Configuration in main.c

Edit the configuration section near the top of examples/minimal/main/main.c:

// Token service (app fetches token, then passes to SDK)
#define STREAM_AUTH_BASE_URL "https://pronto.getstream.io/"  // Your backend or Stream's token service
#define STREAM_ENVIRONMENT "pronto"   // "production", "staging", or "pronto"
#define STREAM_USER_ID "esp32_user"   // User ID (can be NULL for auto-generated)

// Call selection
#define STREAM_CALL_TYPE "default"    // Call type (e.g., "default", "livestream")
#define STREAM_CALL_ID "abcd" // Call ID to join (can be NULL to create new call)

Flow:

1. The app calls app_request_auth_data(STREAM_AUTH_BASE_URL, STREAM_ENVIRONMENT, STREAM_USER_ID, exp, &auth_data) to get auth data from the token service.
2. The app passes auth_data in stream_video_join_call_params_t.auth_data to stream_video_join_call().
3. The SDK uses that auth data for coordinator, joinCall, and SFU; it does not fetch the token.

Join parameters:

• auth_data — From your token fetch (required). Must contain valid user_id, api_key, and token.
• call_type — From STREAM_CALL_TYPE
• call_id — From STREAM_CALL_ID (or NULL to create a new call)
• create — Set to true to create the call if it does not exist
• result_cb — Callback with join success or failure
• mute_audio / mute_video — Set to mute publishing

Complete flow

1. stream_video_init()
2. Fetch token: app_request_auth_data(..., &auth_data)
3. stream_video_join_call(&params, &client) with params.auth_data = &auth_data
4. stream_video_leave_call(client) when done
5. stream_video_deinit()

WiFi and SDK options

• WiFi — SSID and password can be configured through idf.py menuconfig. Open the menu with:

idf.py menuconfig

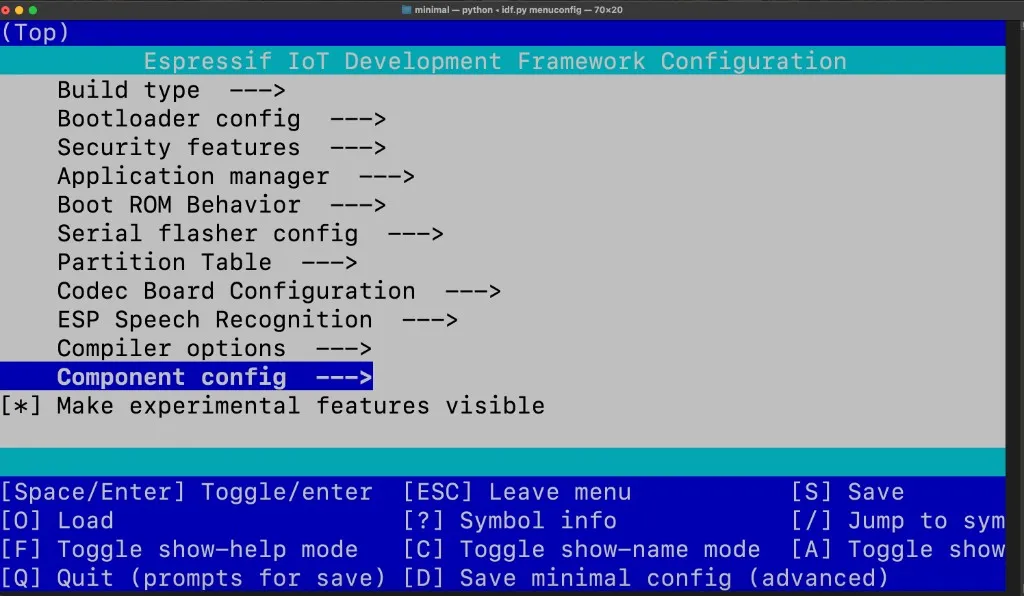

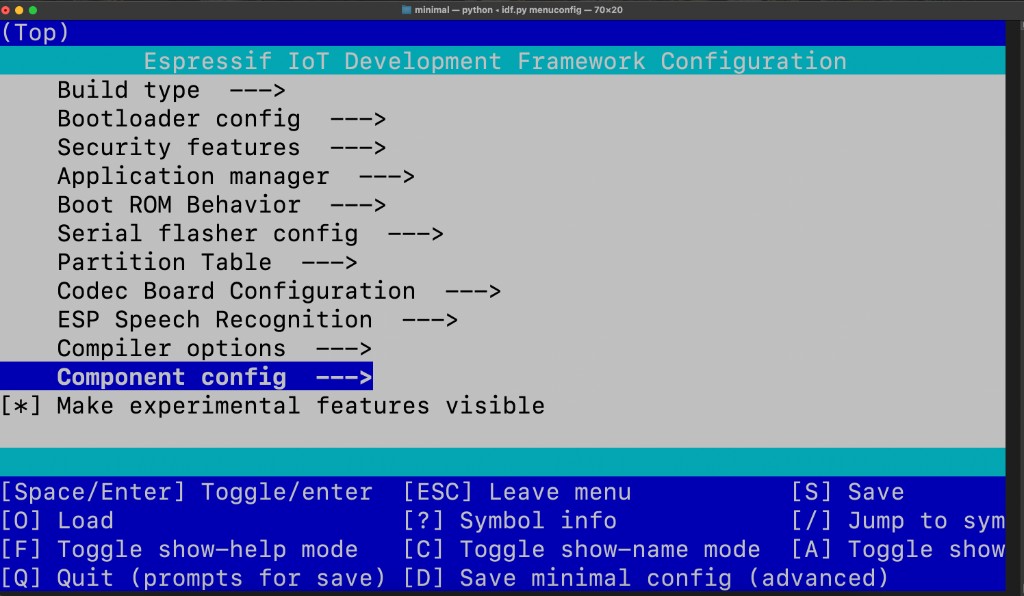

Navigate to Component config:

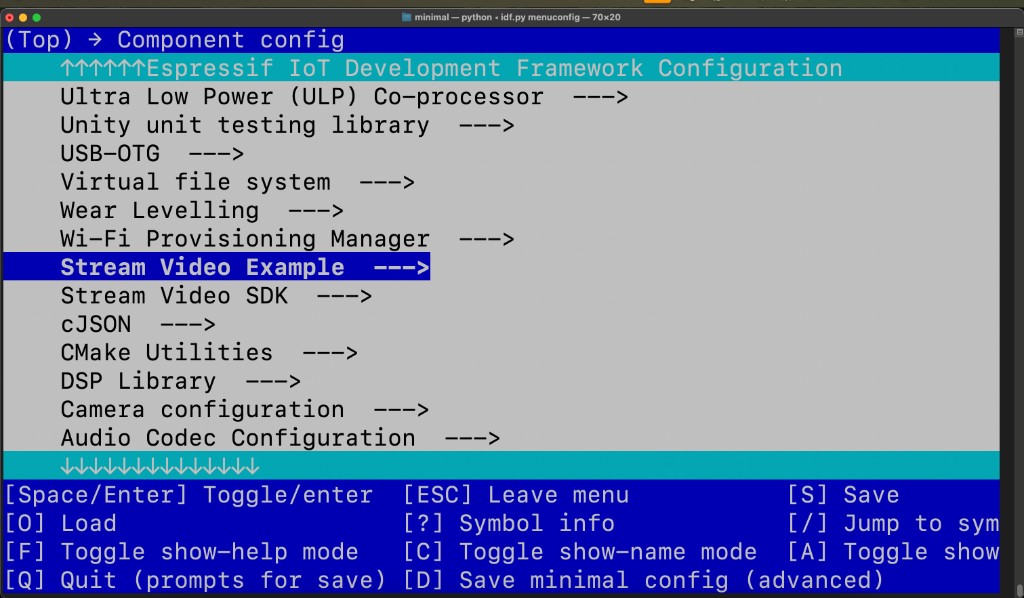

Then select Stream Video Example:

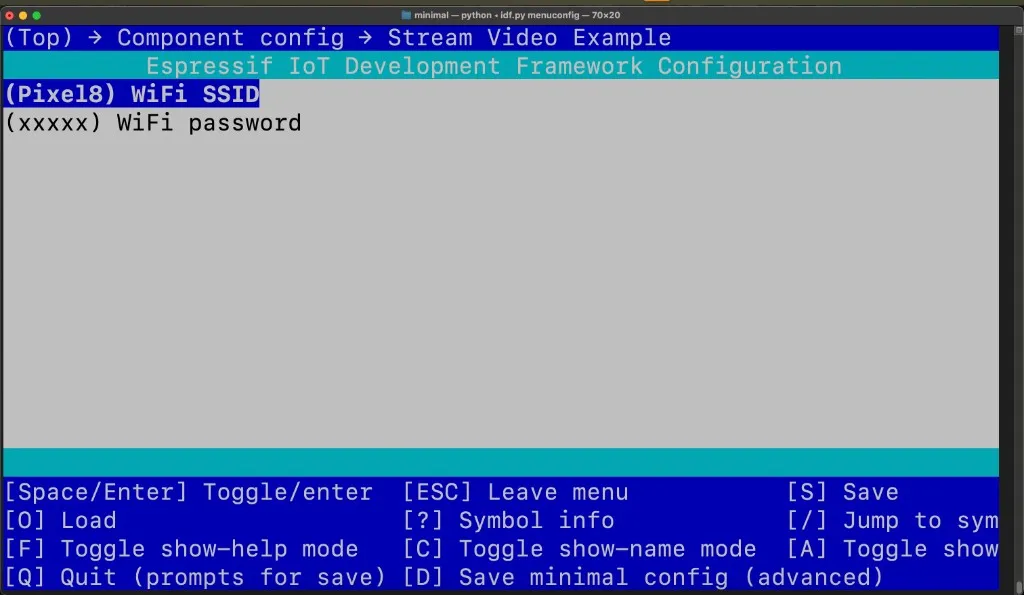

Here you can set your WiFi SSID and WiFi password:

Alternatively, you can set these values directly in sdkconfig.defaults.

• Token service URL — Change STREAM_AUTH_BASE_URL to point to your own backend that returns { userId, apiKey, token }. See Client auth.
• Video, audio, board, ICE — All SDK options (resolution, bitrate, board, STUN/TURN, etc.) are under Stream Video SDK in menuconfig. See SDK configuration.
